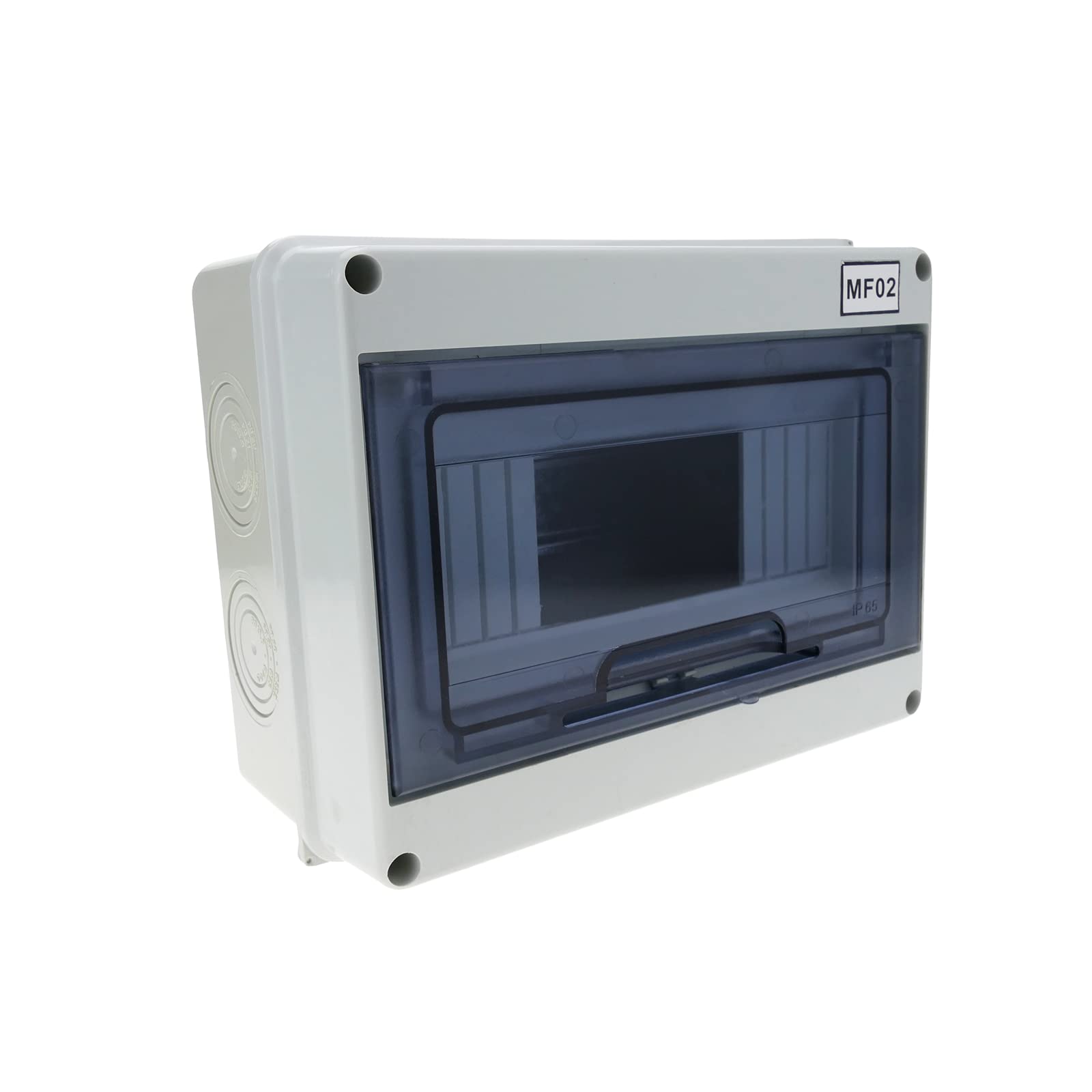

BeMatik - Electrical box SPN 8M IP65 ABS plastic surface HT

• Distribution box plABS plastic with IP65 environmental protection.
• Made of sturdy gray ABS plastic.
• Compatible with the IEC60670-24 standard.
• Maximum intensity: 100A.
• Operating voltage: 240/415V.

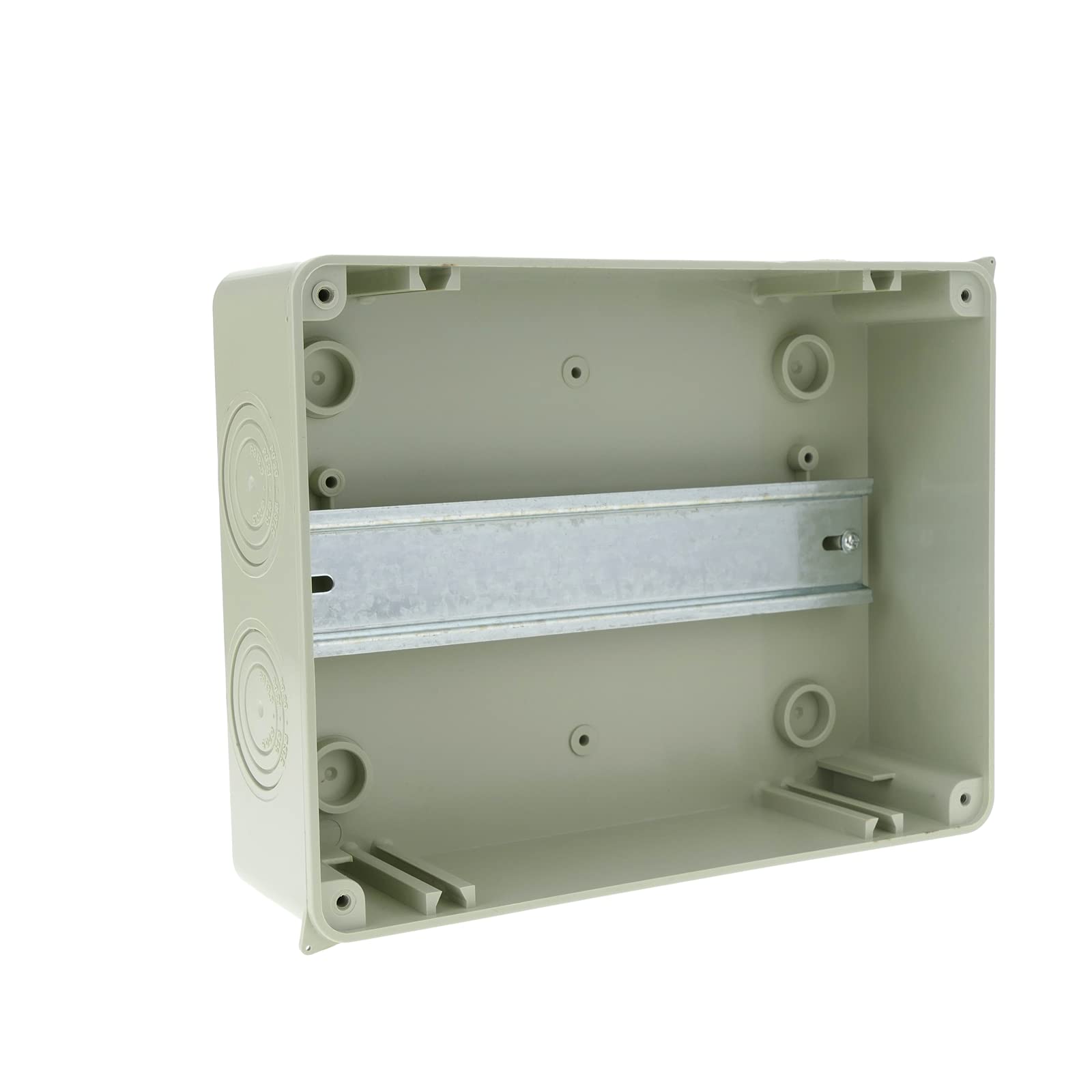

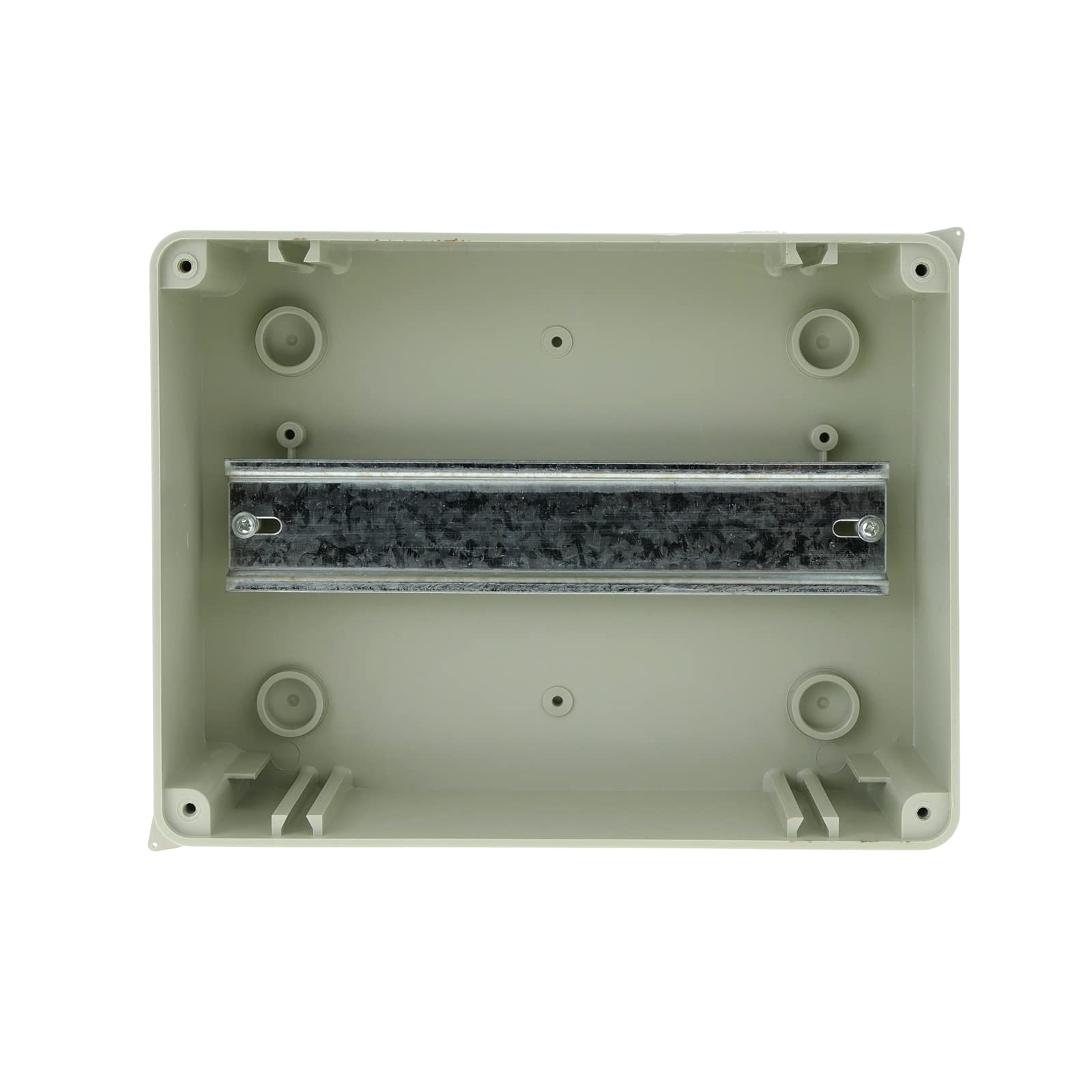

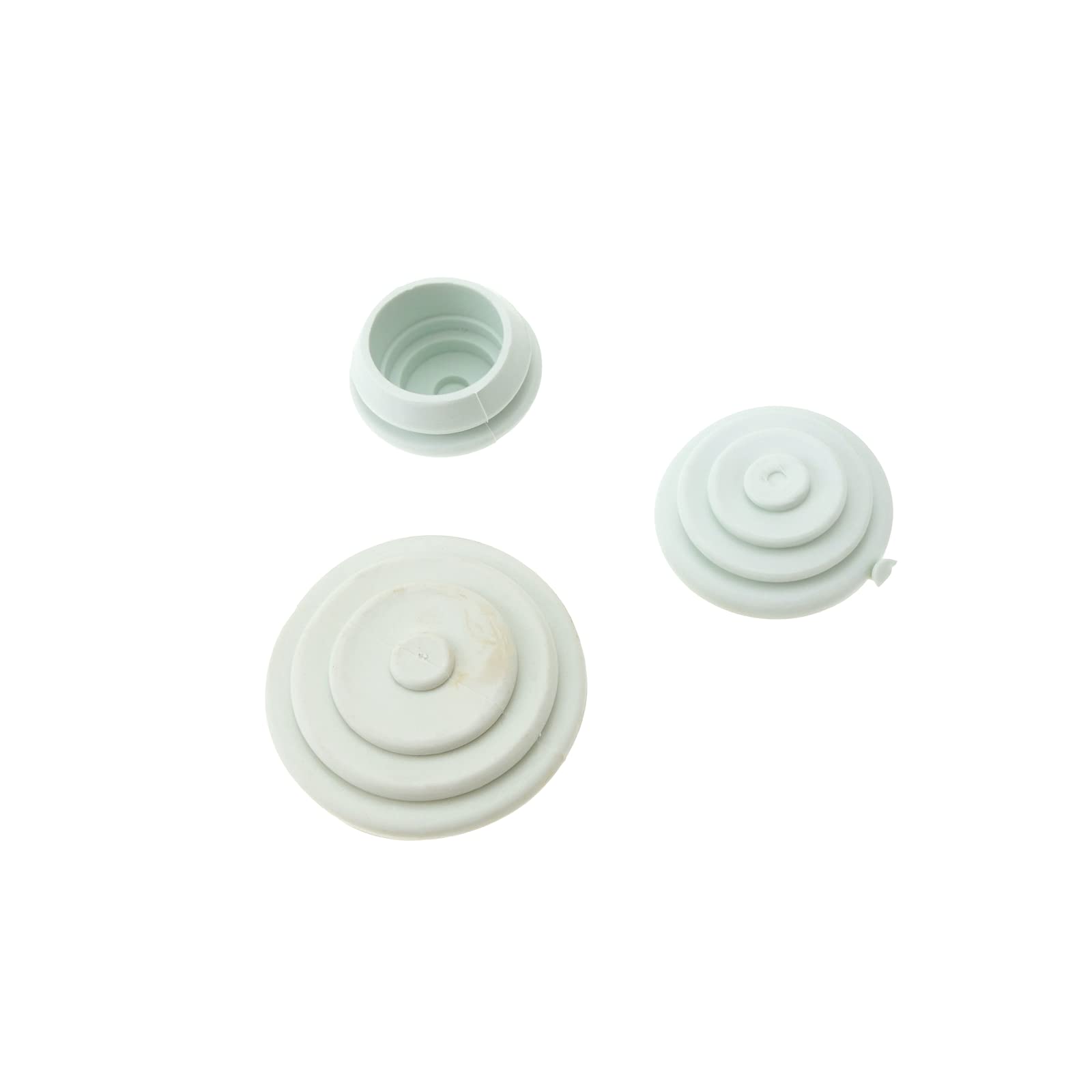

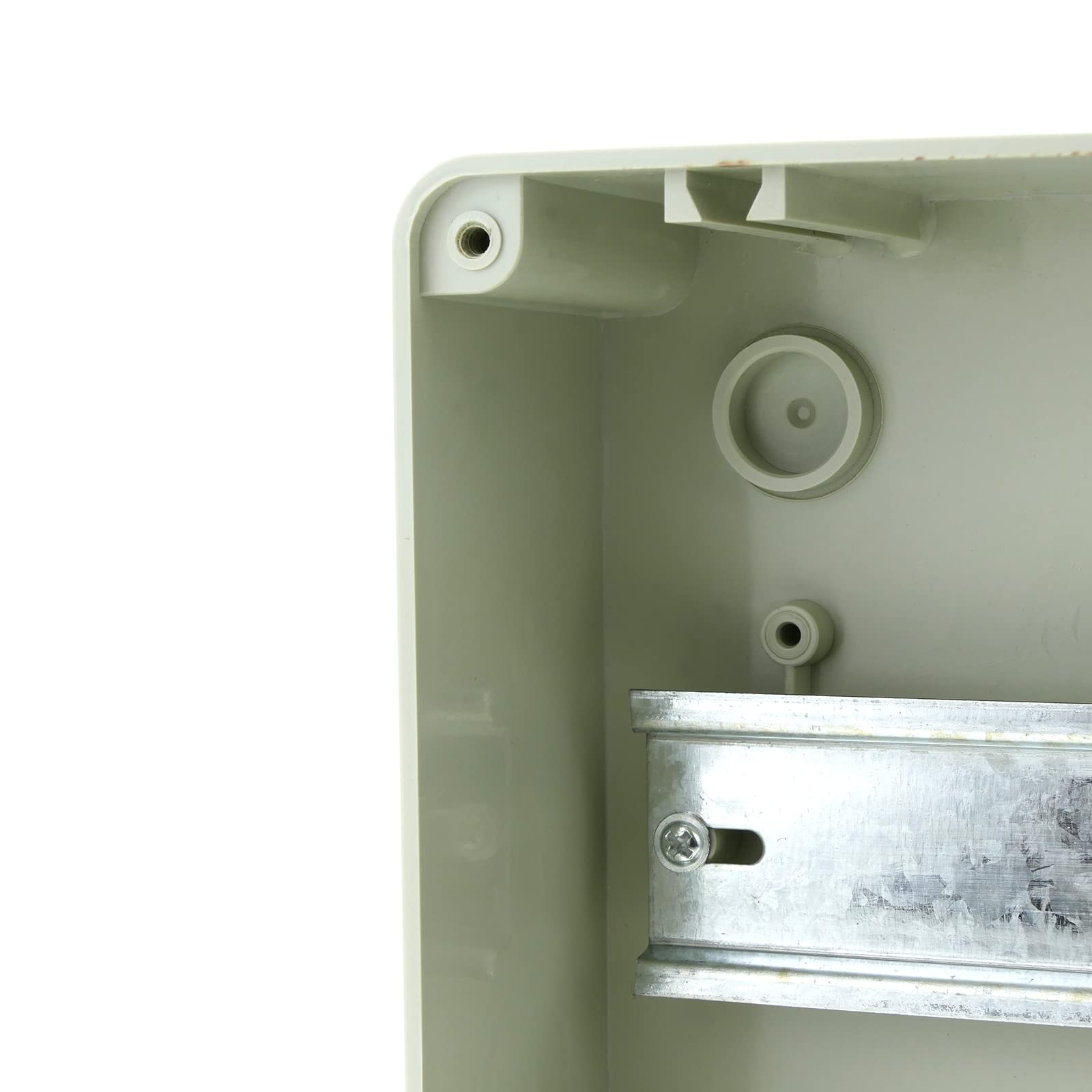

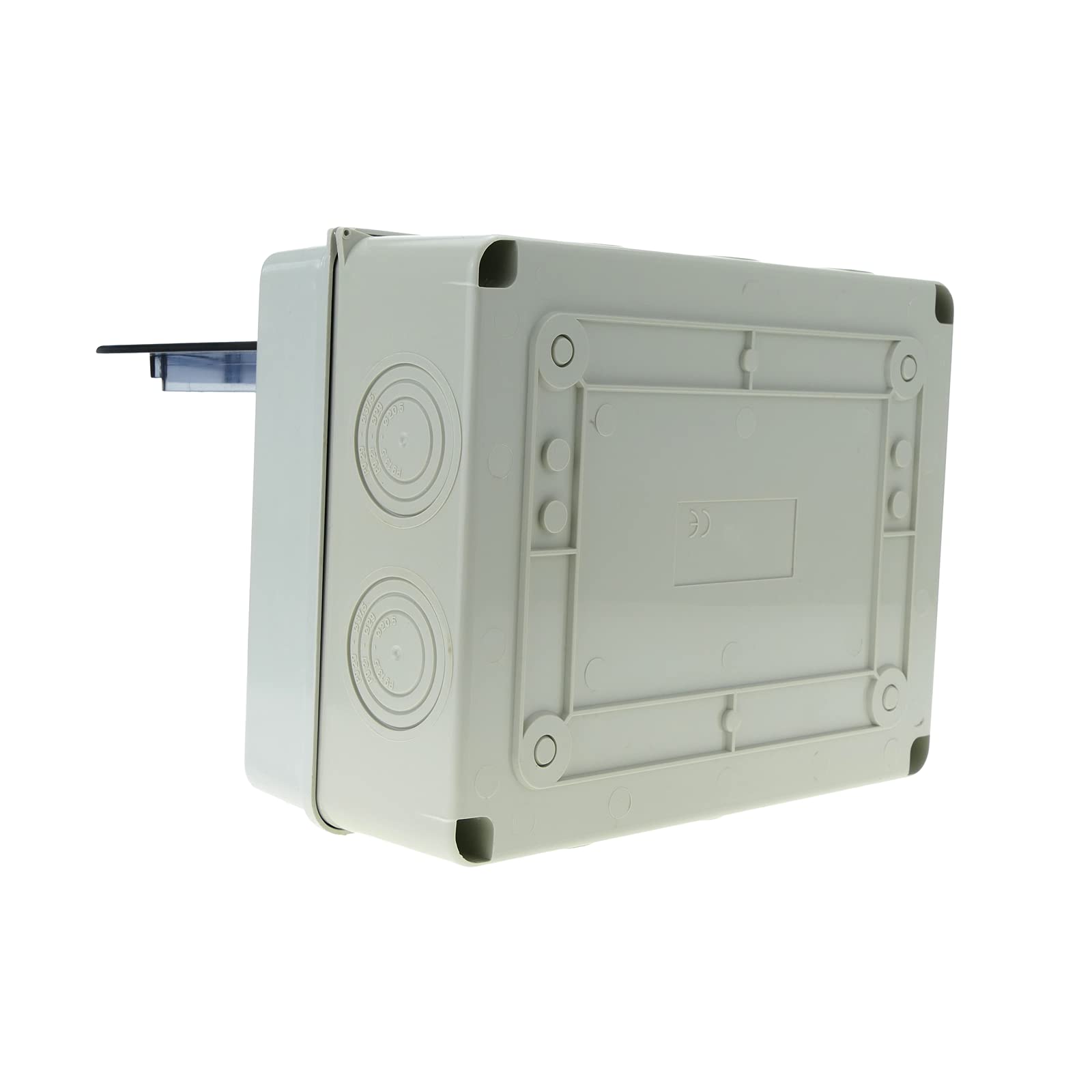

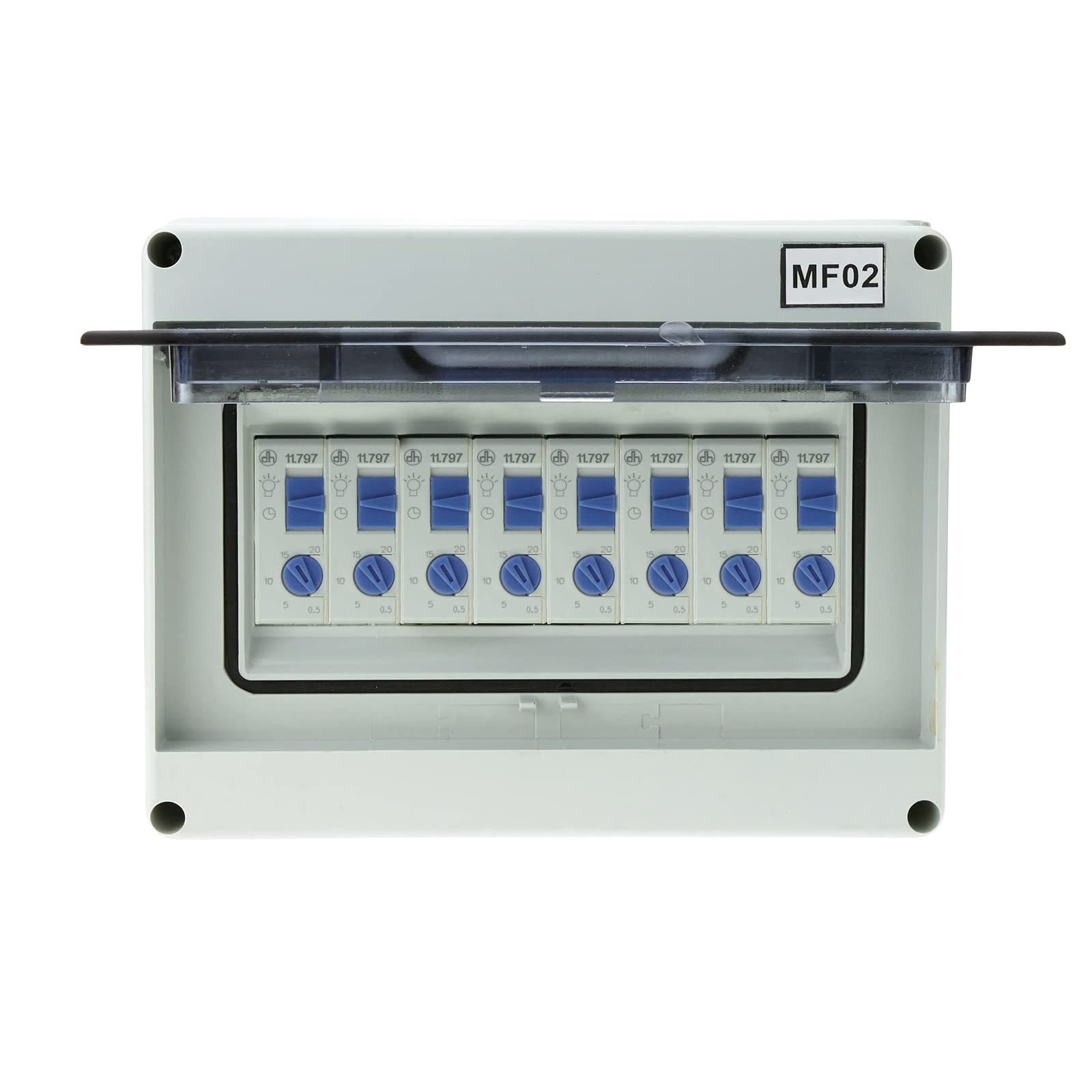

ABS plastic surface distribution box, with 8 modules in line. The distribution box allows the assembly of standard modules 18mm wide, on a DIN rail. Robust distribution box made of plastic. Designed to be installed on a flat surface. Electric distribution box with IP65 environmental protection, water resistant. Specifications Distribution box plABS plastic with IP65 environmental protection. Made of sturdy gray ABS plastic. Compatible with the IEC60670-24 standard. Maximum intensity: 100A. Operating voltage: 240/415V. 35x7mm DIN rail for fixing the modules. Transparent front door obscured to protect the modules. Opening the door upwards (vertically). Fixing to wall using screws (not included). It is fixed directly to the surface. Model for the installation of 8 standard 18mm wide modules. It is supplied with 4 plugged modules and 4 open modules. It has 10 closed side exits, ready to be cut. 2 tow presses are supplied for cable entry. Size of the module window: 144 x 47 mm. Distribution box size: 195 x 150 x 93 mm. .
