Belnotelt Stainless Steel Ebike Motor Clutch Assembly Planetary Gear Base - for 500W 750W Electric Bicycle - Left Right Outlet Directional 70mm 72mm 75mm 88mm(88mm Right Outlet)

• [ROBUST STAINLESS STEEL DESIGN] This electric bike motor clutch is constructed from stainless steel to withstand rigorous use over time.
• [MULTIPLE SIZES TO CHOOSE FROM] Available in sizes of 70mm, 72mm, 75mm, and 88mm to suit different electric bike models effortlessly.
• [LEFT AND RIGHT OUTLET ] The design includes clearly marked left and right outlets for straightforward installation processes, catering to both novice and experienced users.
• [PREDICTABLE DIMENSIONAL ACCURACY] Featuring an inner diameter of 15mm and a column diameter of 8mm, making compatibility with a wide range of motors.
• [SIZING CHECK RECOMMENDATION] Be sure to verify your specific size needs prior to ordering instead of relying on the size chart.

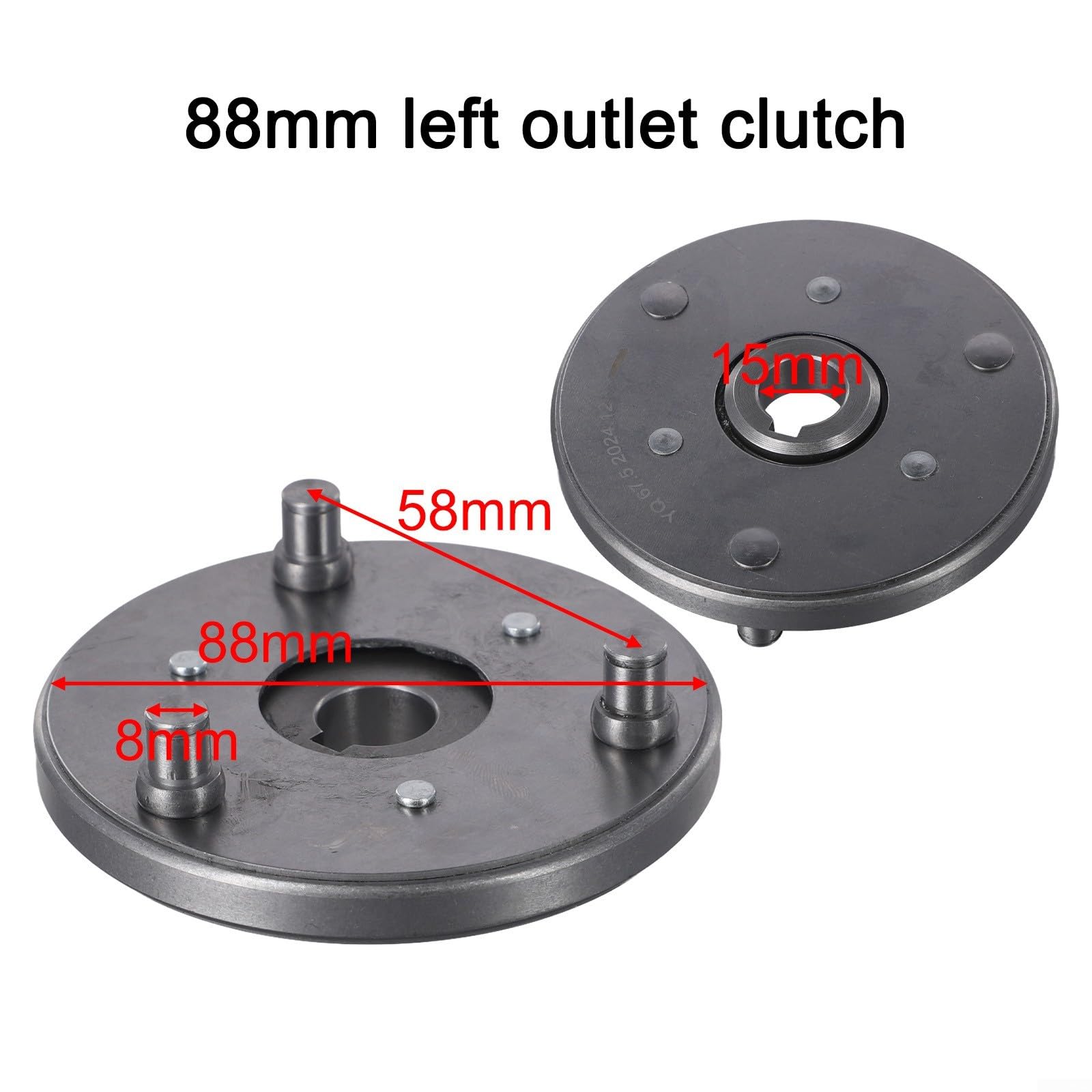

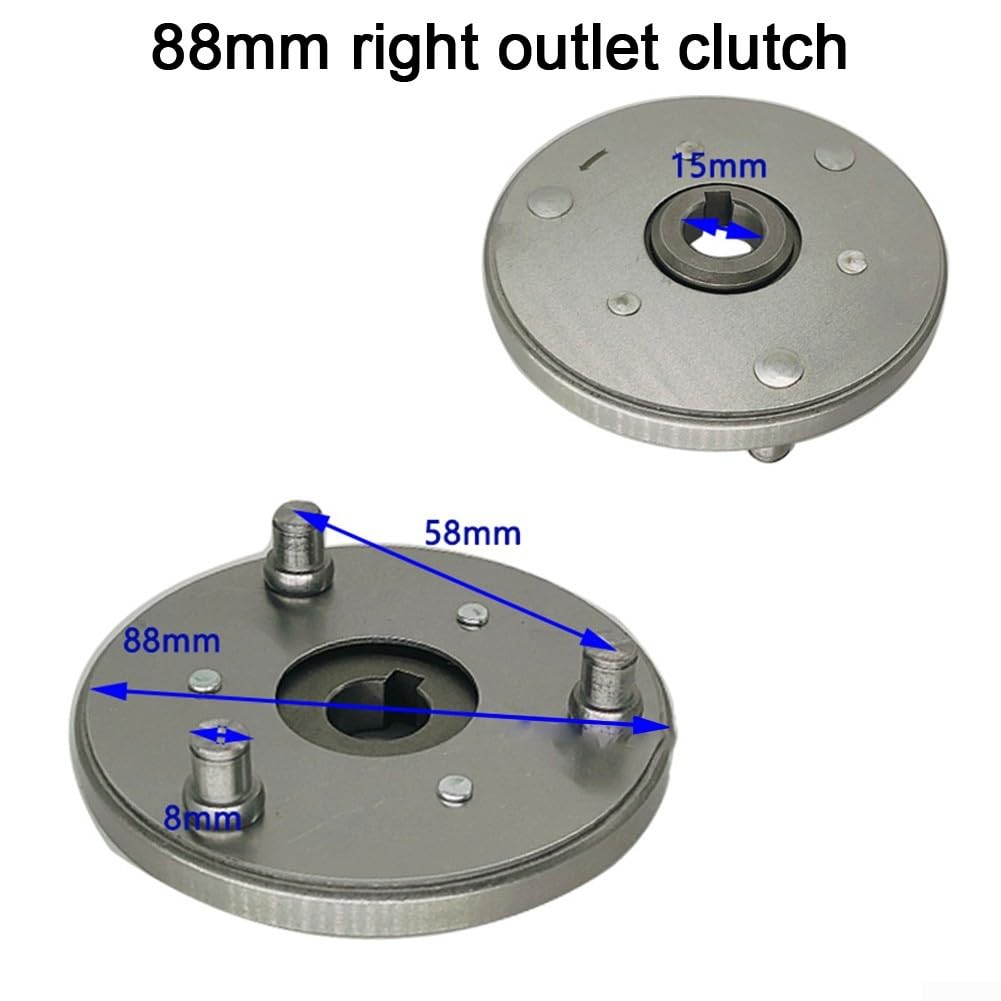

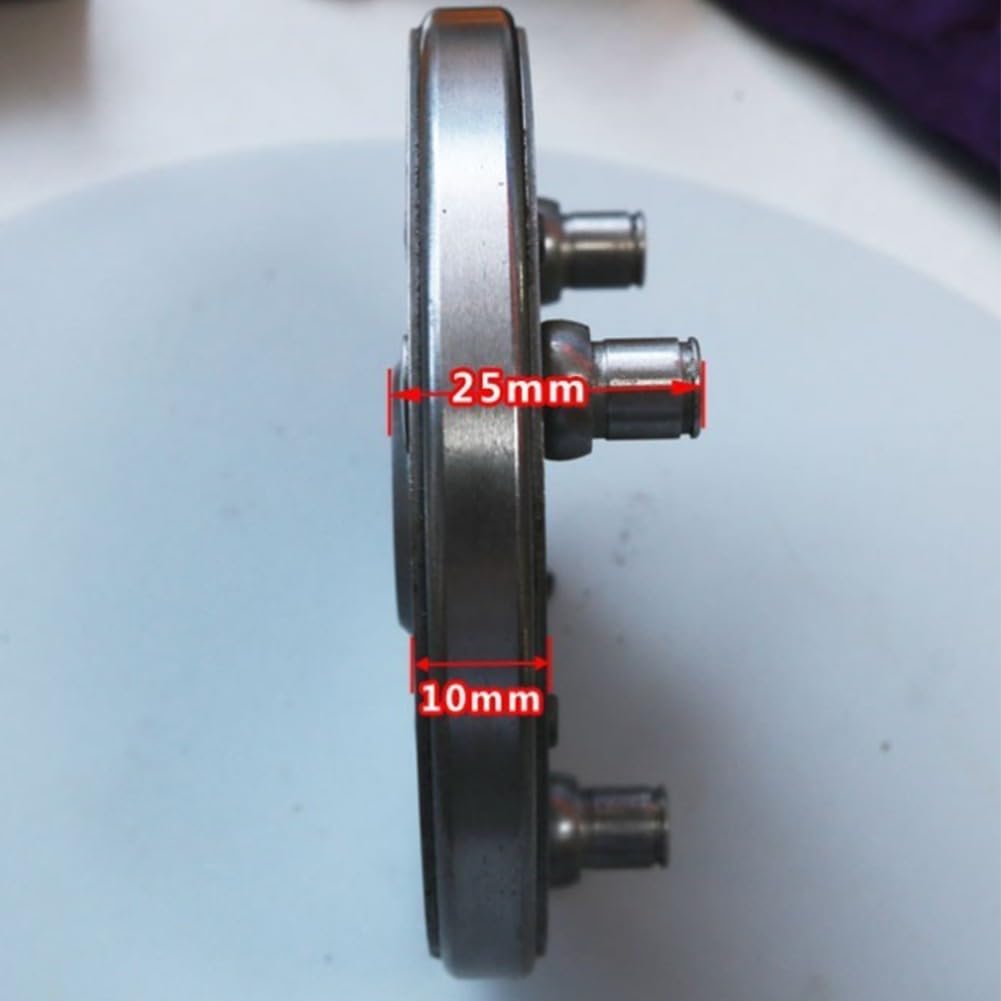

Features: *The motor clutch is made of stainless steel material. *Distinguish the left and right outlet: the motor cable from the flywheel is the right outlet, and the motor cable from the brake is the left outlet. *70mm directional clutch: Diameter 70mm, Inner diameter 15mm, column diameter 8mm, planetary gear wheelbase 49.3mm, total thickness 24mm. *72mm left clutch: Diameter 72mm, Inner diameter 15mm, column diameter 8mm, planetary gear wheelbase 50.3mm, total thickness 24mm. *75mm left clutch: Diameter 75mm, Inner diameter 15mm, column diameter 8mm, planetary gear wheelbase 52.1mm, total thickness 24mm. *88mm left clutch: Diameter 88mm, Inner diameter 15mm, column diameter 8mm, planetary gear wheelbase 58mm, total thickness 24mm. *88mm right clutch: Diameter 88mm, Inner diameter 15mm, column diameter 8mm, planetary gear wheelbase 58mm, total thickness 24mm. Specifications: *Product Name: 500W-750W Electric Bike Motor Clutch 70/72/75/88mm Planet Gear Base *Material: stainless steel *Size: total thickness 24mm *Color: Silver Package Content: 1x clutch
