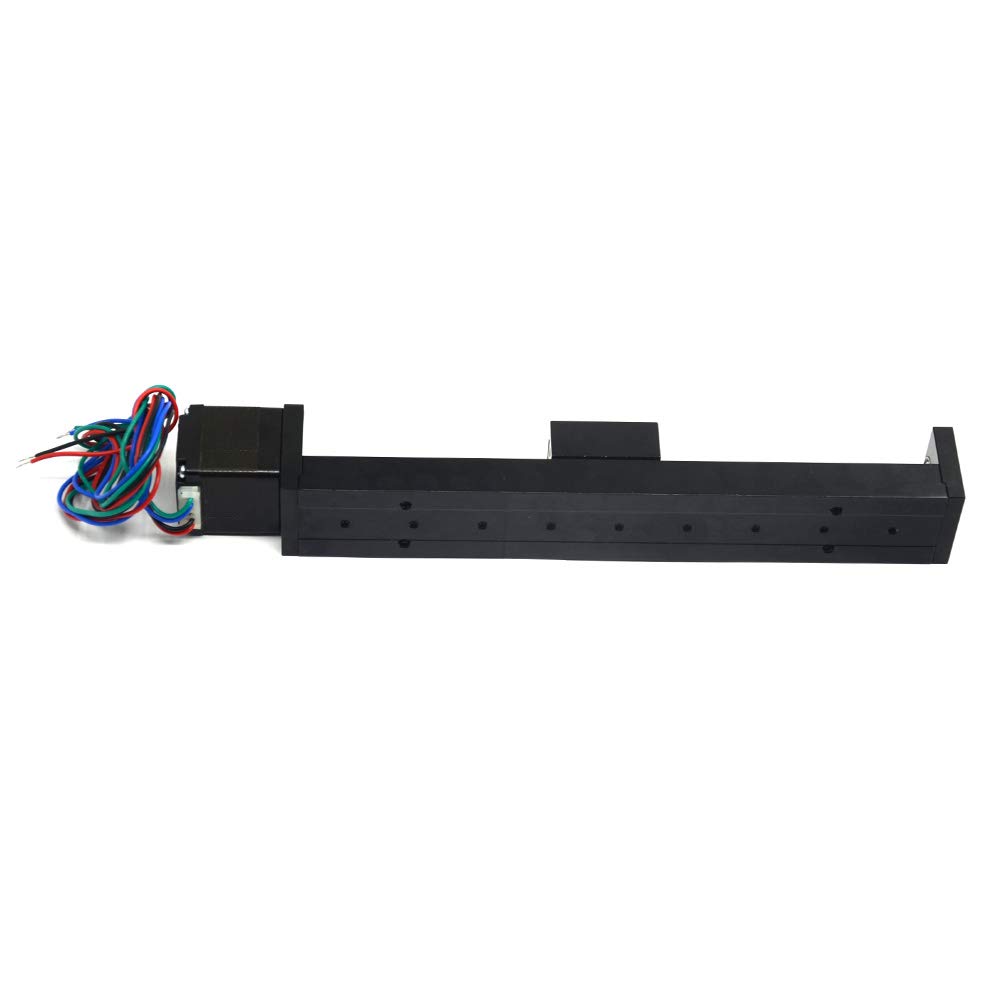

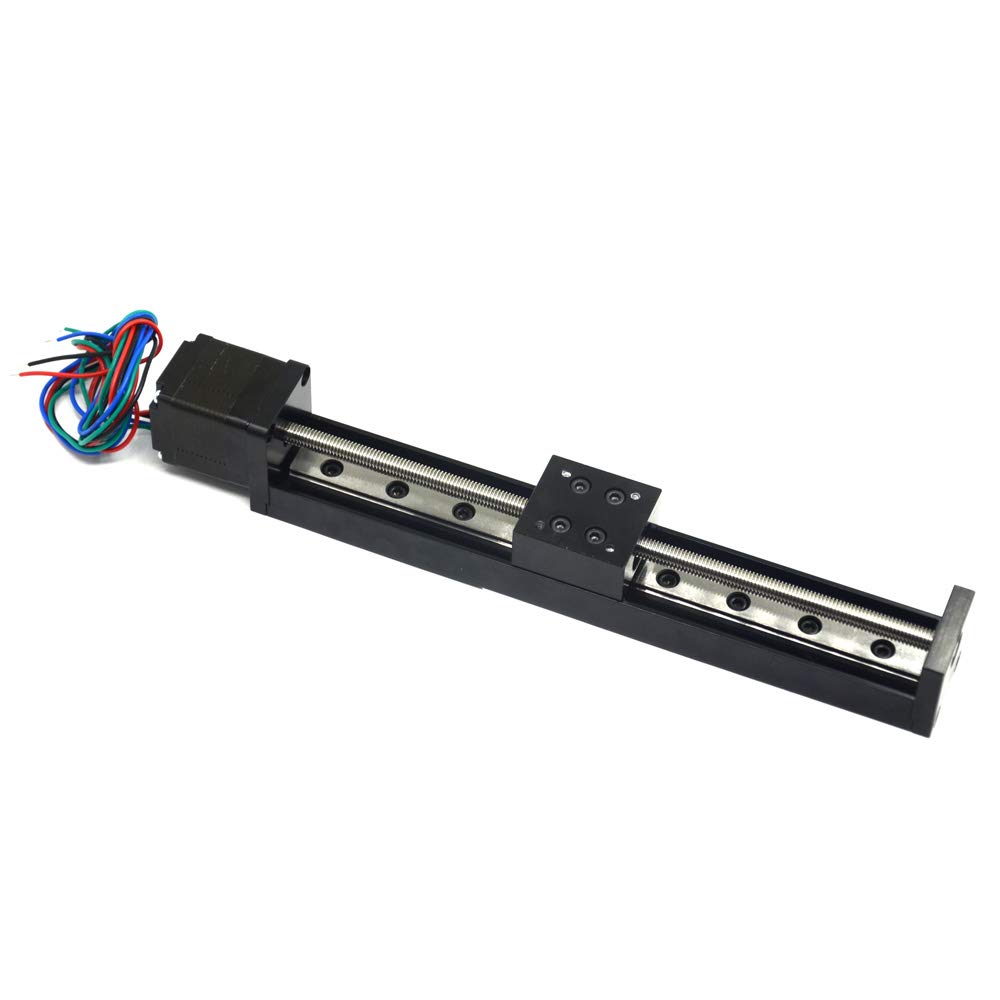

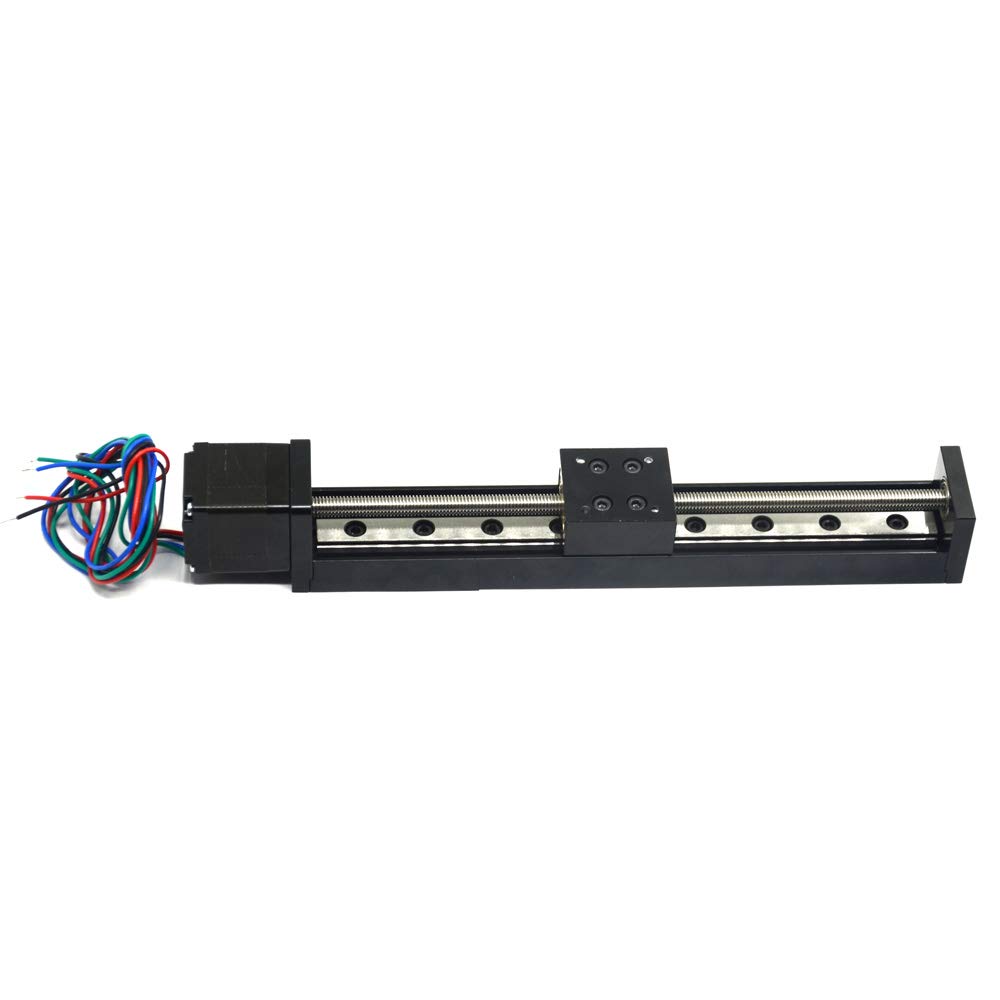

Befenybay 150mm Effective Travel Length Mini Linear Rail Guide Lead Screw T6x1 with NEMA11 Stepper Motor for DIY CNC Router Parts X Y Z Linear Stage Actuator
★★★★★
$86.88
Quantity
1
Worldwide shipping
Fast tracked delivery
30-day returns
Hassle-free returns
Secure checkout
Safe & protected
Great service
Thousands of happy customers
About this item
- 【Load】Horizontal maximum load capacity: 2.5kg; Vertical maximum load capacity: 1kg
- 【Accuracy】Repeat positioning accuracy of ± 0.05mm
- 【Speed】Speed: 0-120mm/min
- 【Motor】Motor size:28*28*30mm,Motor voltage:DC 24V,Current: 0.5A,Step angle:1.8 degrees
- 【Effective Travel】150mm Effective Travel,T6x1:diameter 6mm and lead 1mm pitch 1mm ( The lead screw moves 1mm in one turn)
Product description

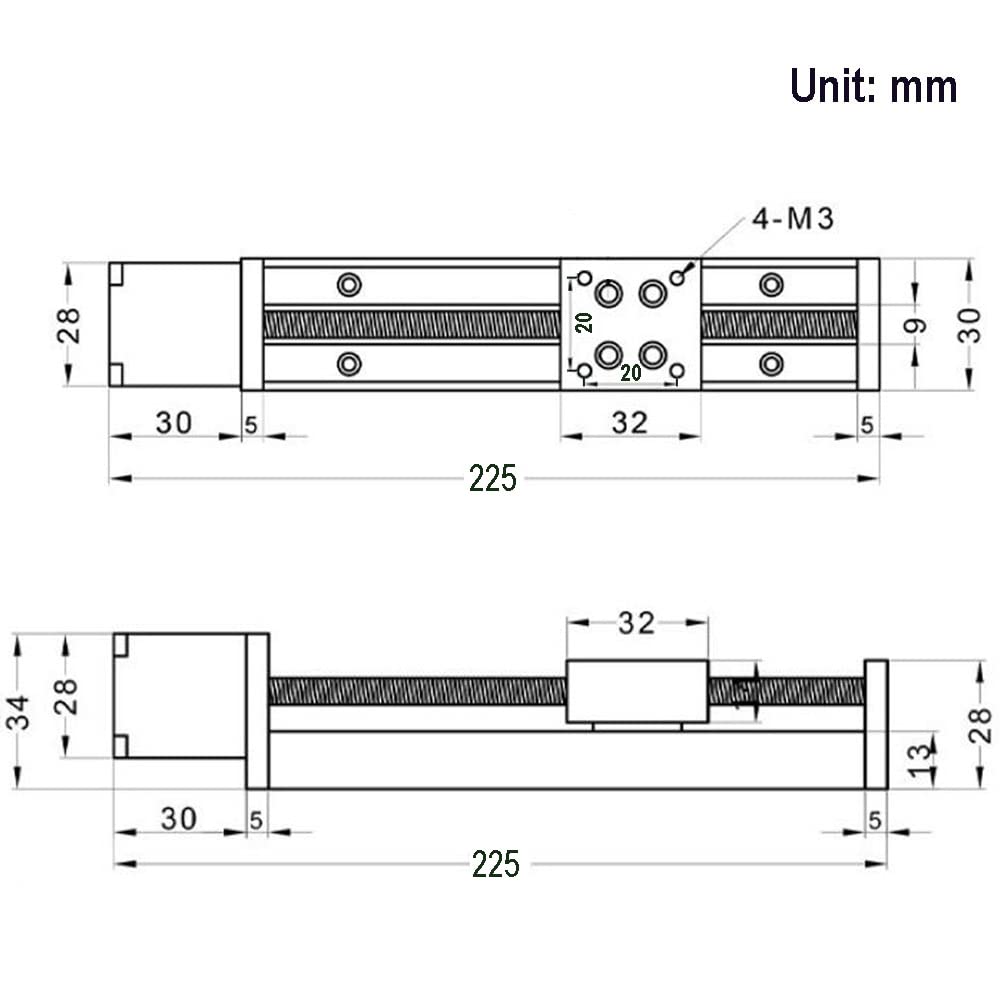

Make sure you have the drive and controller, no drive and controller stepper motor will not work Stepper motor Parameter: Step angle: 1.8 degree Motor flange size: 28mm Motor length: 30mm Holding torque: 6N.cm Voltage:DC 24V Current: 0.5A Resistance: 5.5 ohm Inductance: 3.2 mH Rotor Inertia: 8g.cm Lead wire: 4pcs Wiring: Black:A+ Green:A- Red: B+ Blue: B- Linear Stage Actuator Parameter: Effective Travel Length: 150mm Total length :226mm Type: linear system moulde Lead Screw type: T6x1:diameter 6mm and lead 1mm pitch 1mm Weight: 380g Package Content: 1pcs Linear Stage Actuator with NEMA11 Stepper Motor
