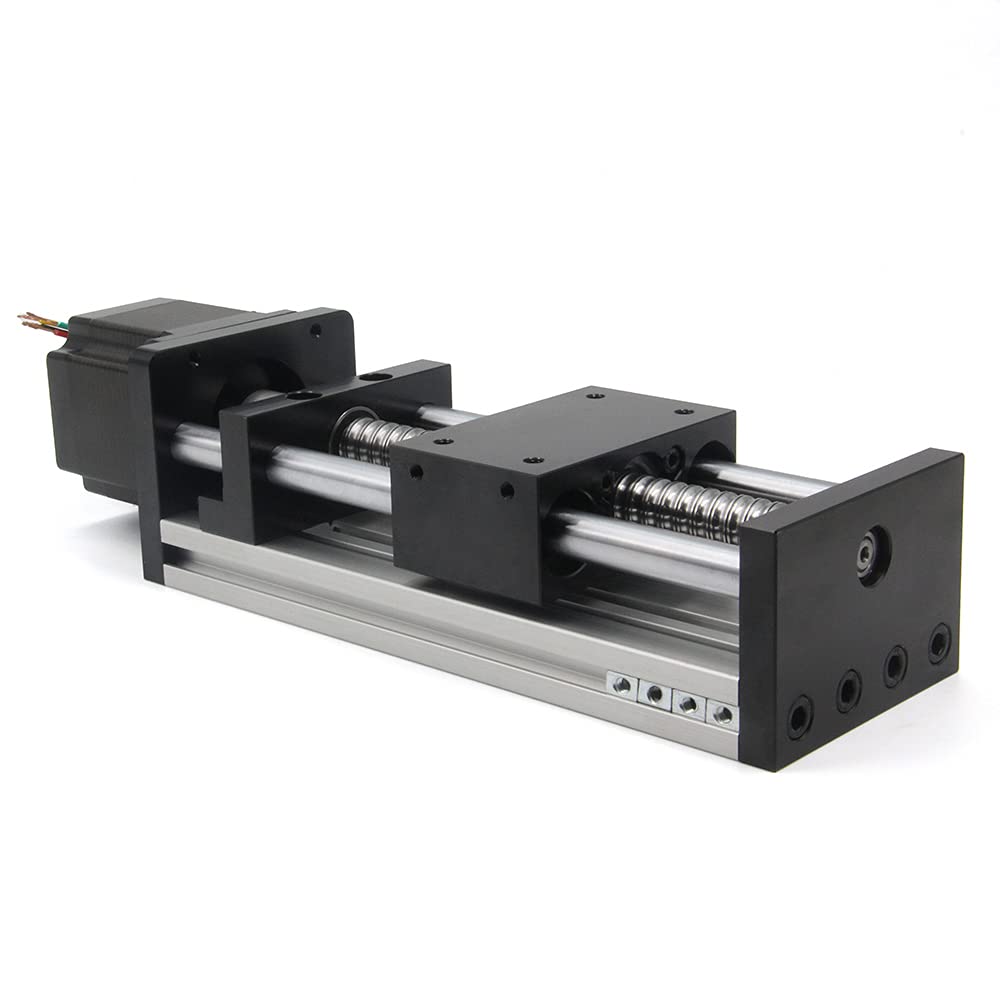

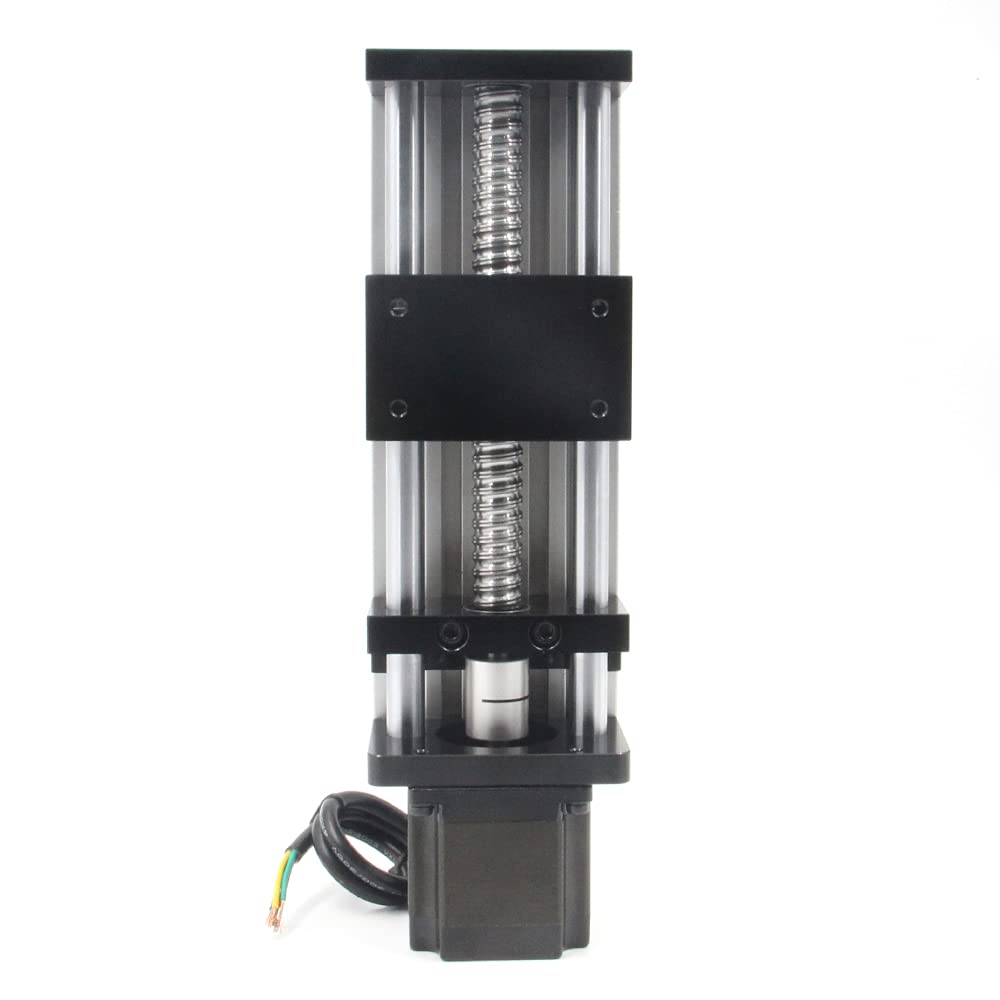

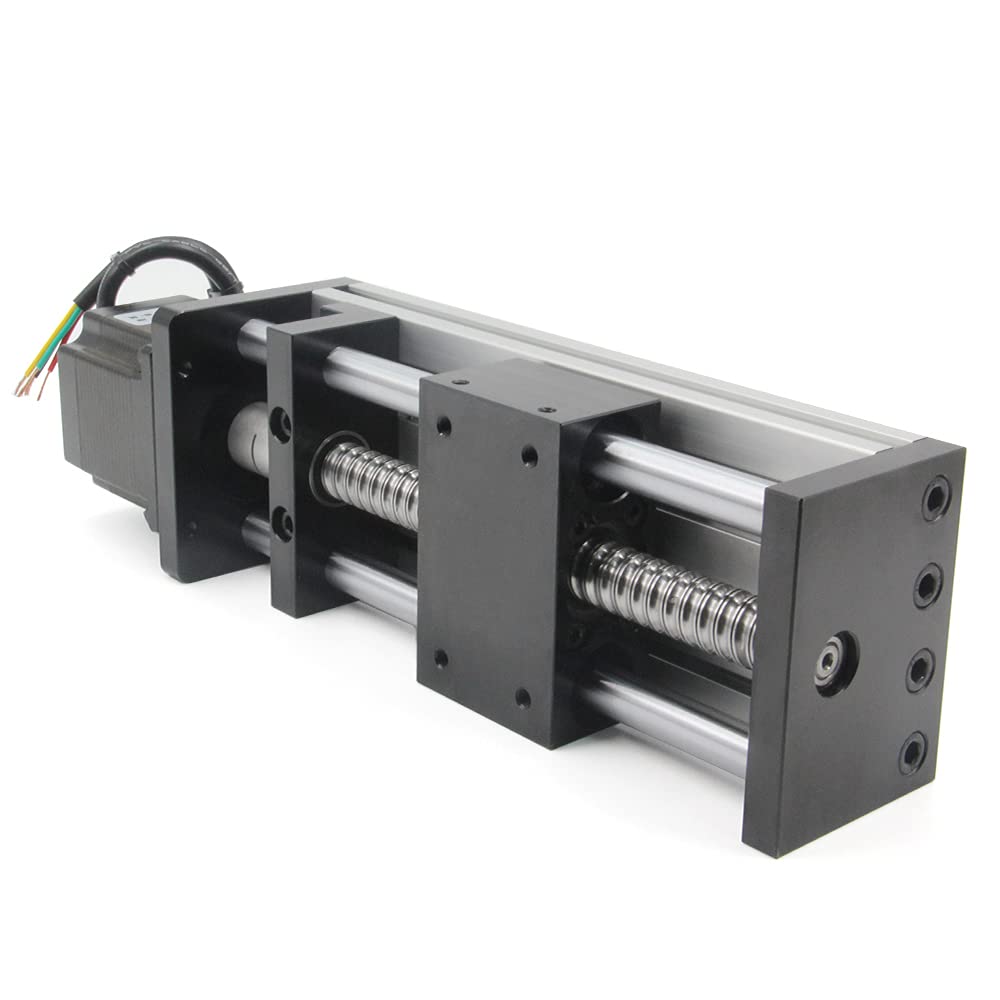

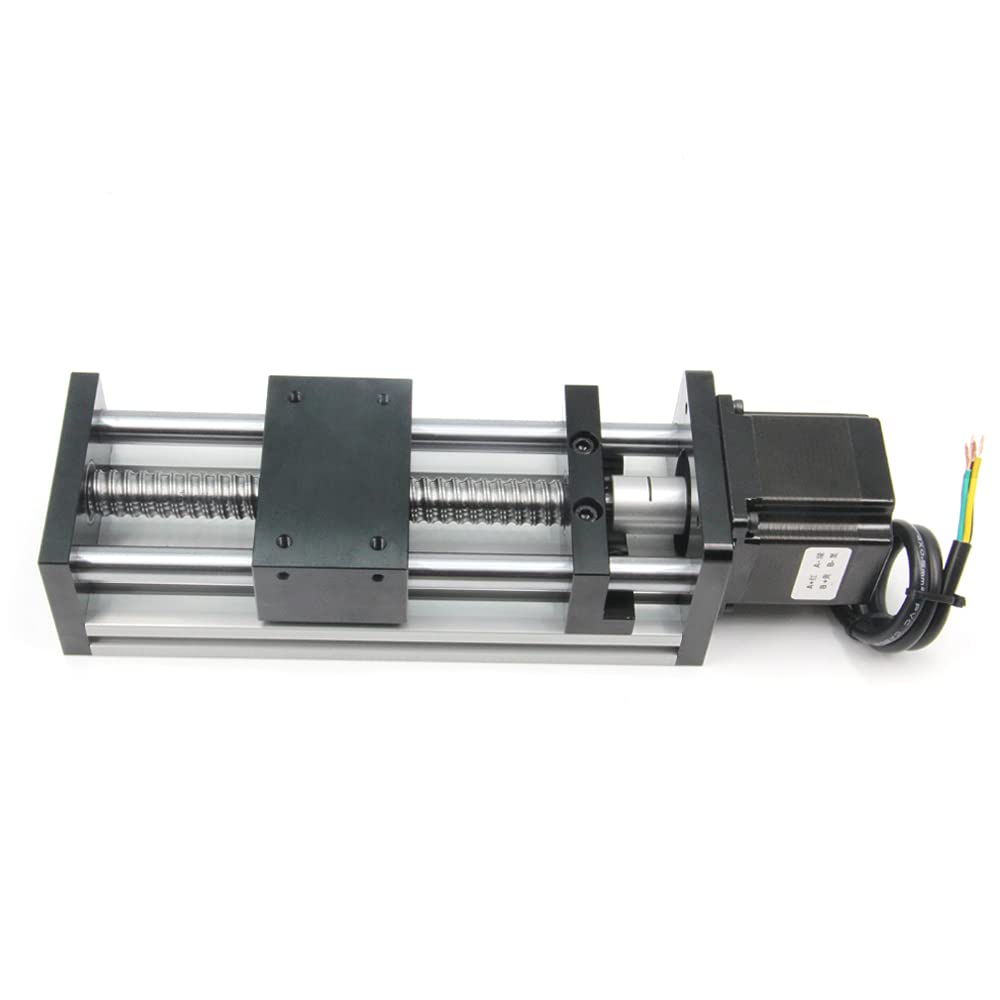

Befenybay 100mm Effective Travel Length Double Optical Axis Guide Ballscrew SFU1605 with NEMA23 Stepper Motor for DIY CNC Router Parts X Y Z Linear Stage Actuator and 3D Printer
★★★★★
$254.99
Options
1 availableQuantity
1
Worldwide shipping
Fast tracked delivery
30-day returns
Hassle-free returns
Secure checkout
Safe & protected
Great service
Thousands of happy customers
About this item
- 【Load】High precision, heavy load resistance SFU1605, Horizontal maximum load capacity: 30kg; Vertical maximum load capacity: 15kg
- 【Accuracy】Repeat positioning accuracy of ± 0.03mm
- 【Speed】Speed: 0-100mm/s
- 【Install】4pcs M5 threaded hole to fix the workpiece
- 【Effective Travel】Effective stroke:100mm, Lead:5mm ( The lead screw moves 5mm in one turn)
Product description
Stepper motor Parameter: Step angle: 1.8 degree Motor flange size: 57mm Motor length: 56mm Holding torque: 1.2N.m Current: 3A Resistance: 0.8 ohm Inductance: 2.4 mH Rotor Inertia: 440g.cm Lead wire: 4pcs Wiring: Red: A+ Green: A- Yellow: B+ Blue: B- Linear Stage Actuator Parameter: Effective Travel Length: 100mm Total length :276mm Type: Optical axis system moulde Ballscrew type: SFU1605 (diameter:16mm, pitch of screw:5mm) Level ballscrew: c7 Weight: 2325g Package Content: 1pcs Optical Axis Actuator with NEMA23 Stepper Motor
