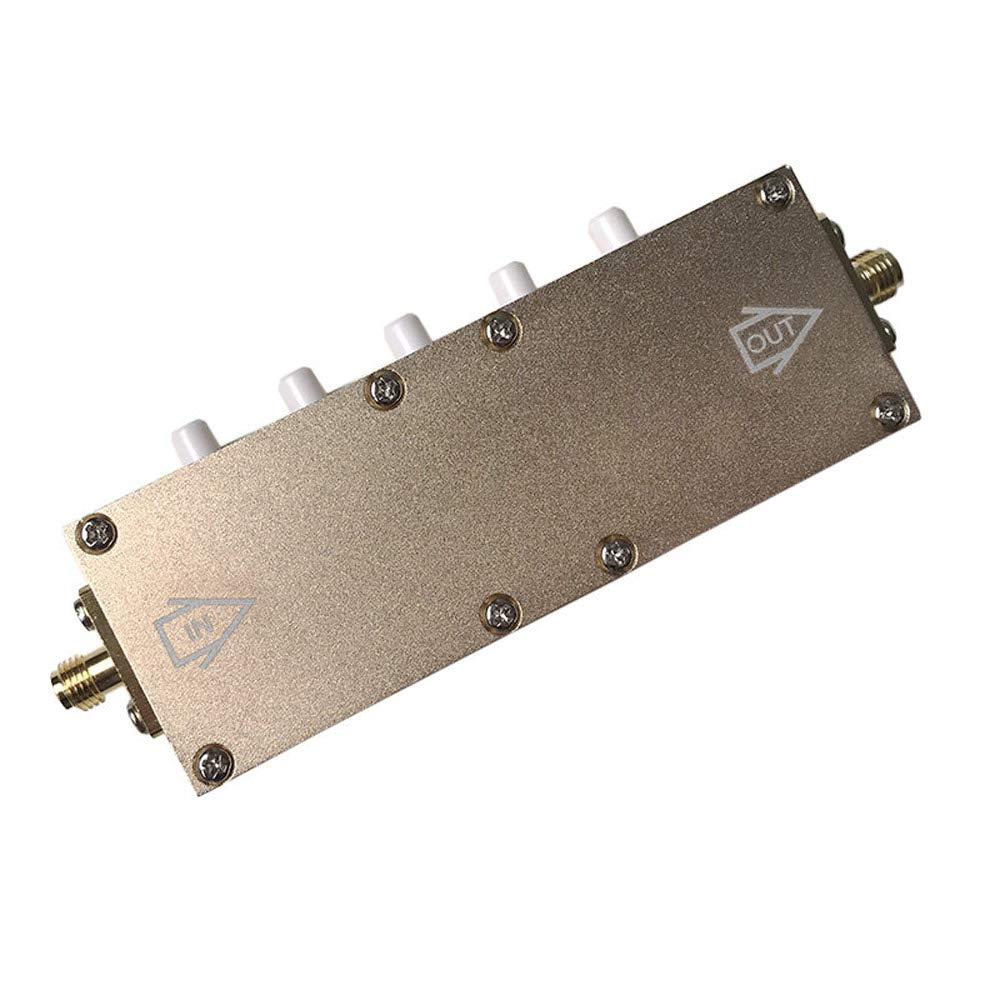

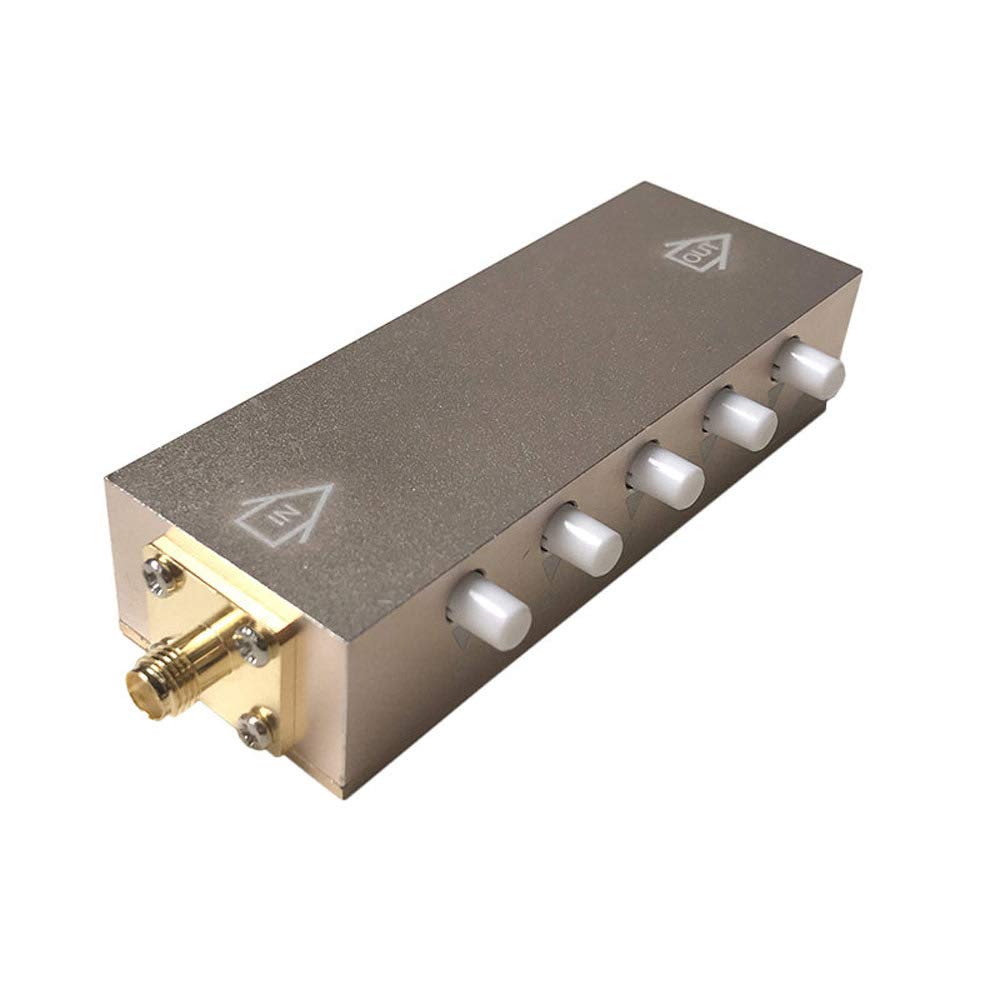

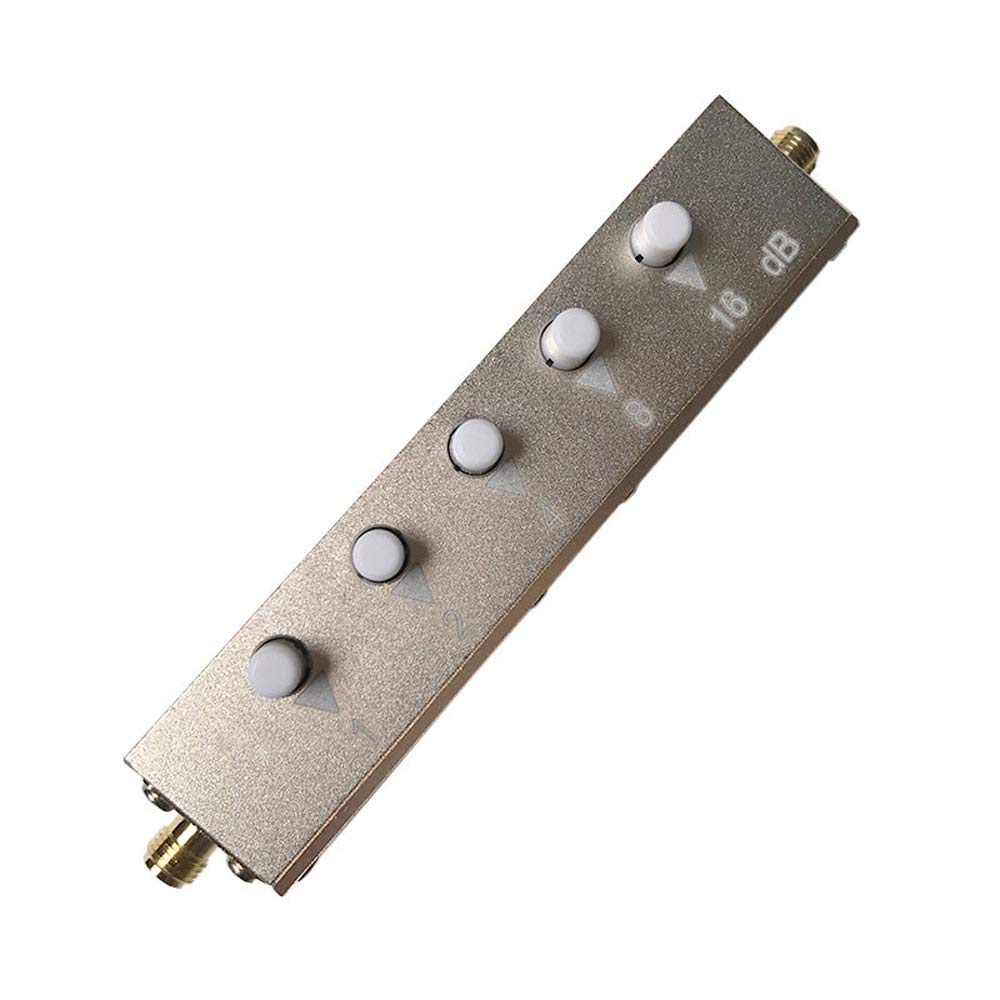

BECEN 0-30dB SMA Female to Female RF Push-Button Step Attenuator - Key-Press Attenuator 3GHz 50ohm

• Item per lot : 1pcs
• Max input power: 5W , Attenuation: 1-30dB

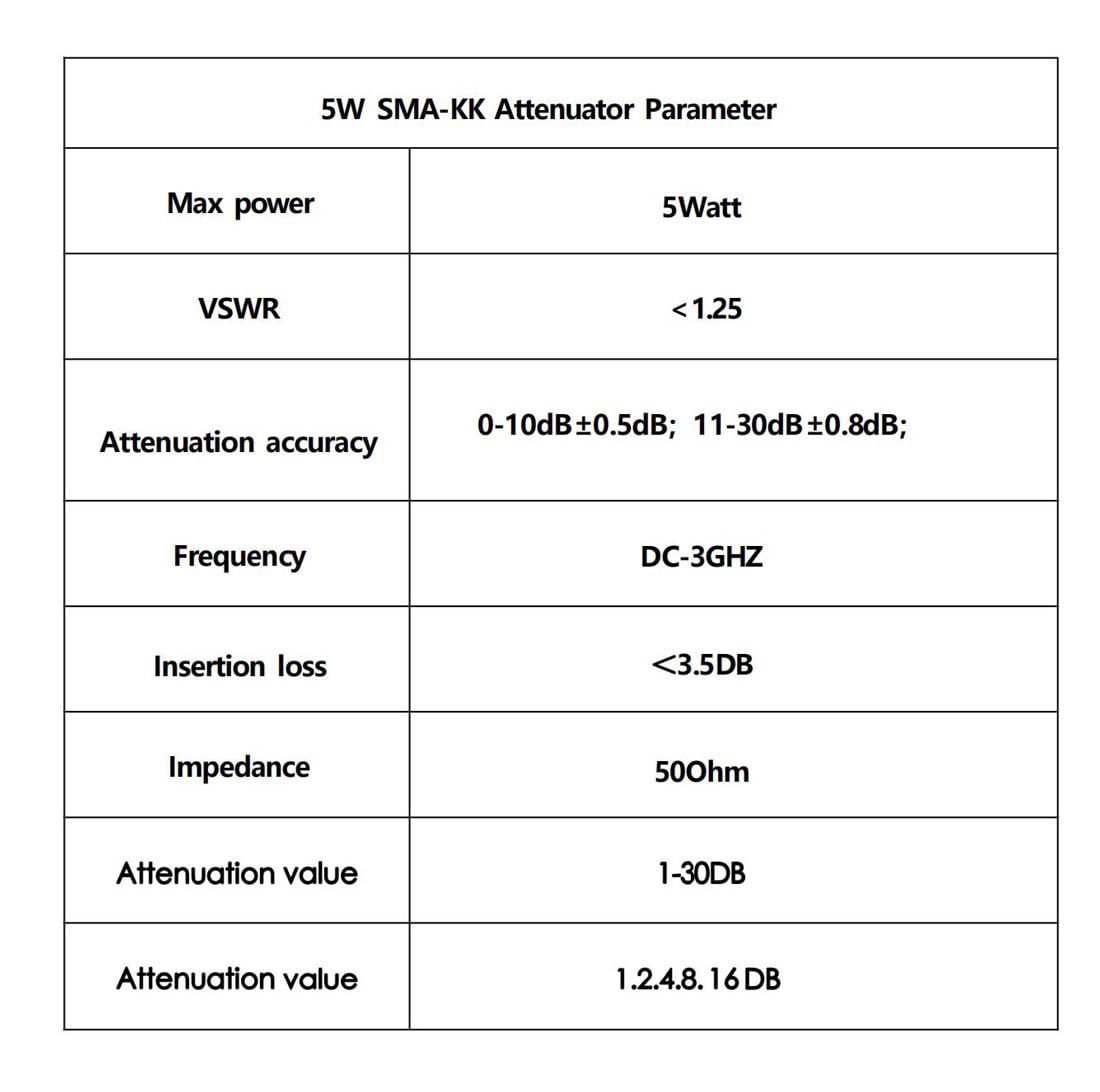

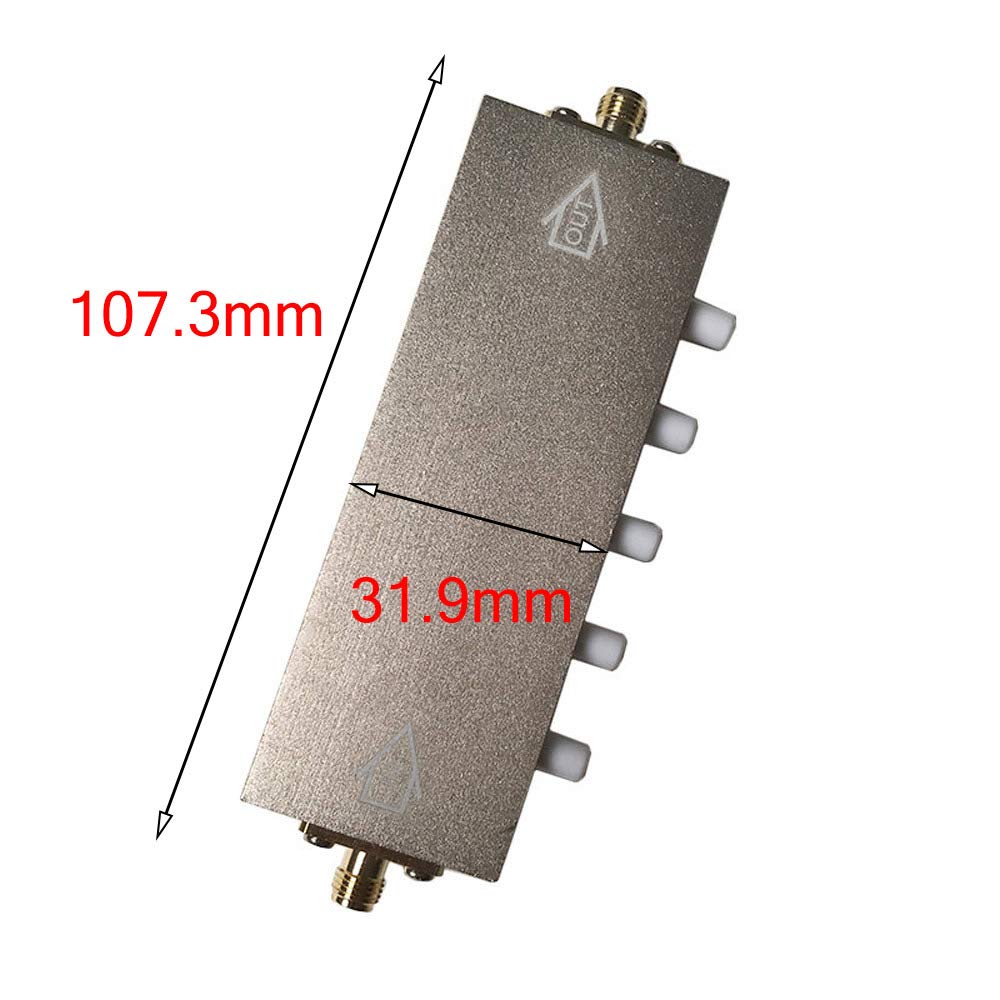

Specifications: Power: 5W Connector: SMA-KK Frequency Range: 3GHZ VSWR (MAX) : ≤1.30 Impendance: 50Ω Temperature Range: -55°C to +125°C Attenuation: 1.2.4.8.16dB 1dB step, 0-10 dB±0.8dB, 10-30 dB±1.3dB Dimension:124*30*20mm Weight: 135g 5W SMA -FF step variable attenuator 30db are used in a wide variety of applications and can satisfy almost any requirement where a reduction in power is needed. Attenuators are used to extend the dynamic range of devices such as power meters and amplifiers, reduce signal levels to detectors, match circuits and are used daily in lab applications to aid in product design. Attenuators are also used to balance out transmission lines that otherwise would have unequal signal levels.
