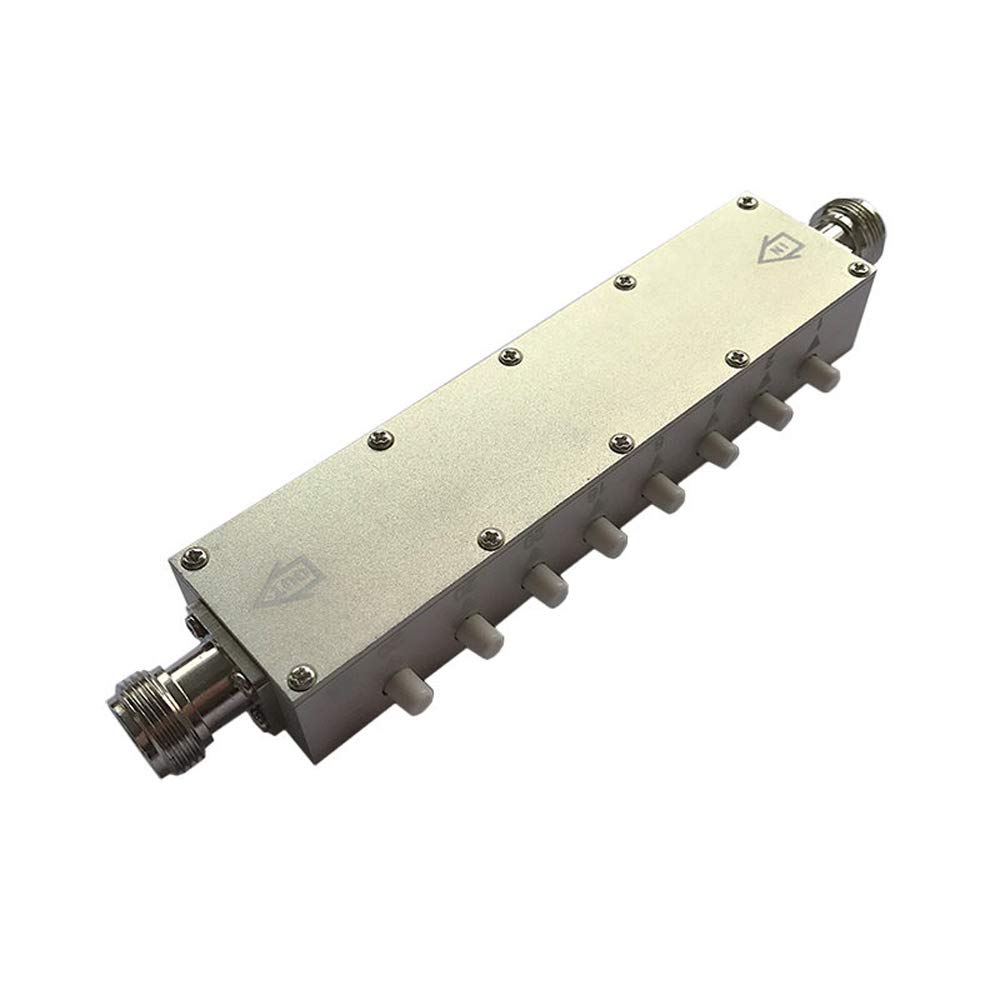

BECEN 0-90dB N-KK RF Push-Button Step Attenuator, Key-Press Attenuator 3GHz 50ohm

• Product name: step rf attenuator
• Max input power: 5 Watt , Attenuation: 1-90dB
• Connector Type: N Female to N Female

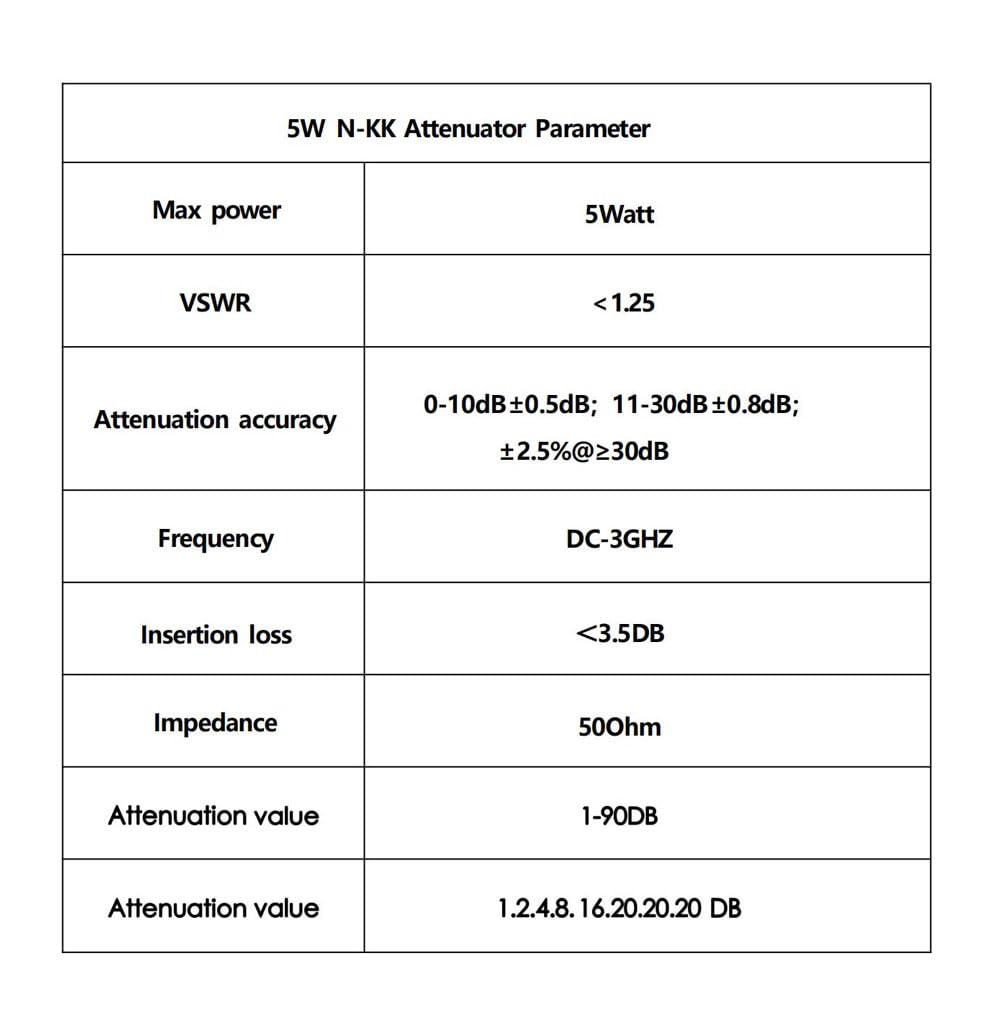

Specifications: Power: 5W Connector: SMA-KK Attenuation 90dB Frequency Range: 3GHZ VSWR (MAX) : ≤1.30 Impendance: 50Ω Temperature Range: -55°C to +125°C Attenuation:1.2.4.6.8.16.20.20.20dB 1dB step±3.5dB Max Dimension: 145*30*20mm Weight: 200g 5W N-KK step variable attenuator 90db are used in a wide variety of applications and can satisfy almost any requirement where a reduction in power is needed. Attenuators are used to extend the dynamic range of devices such as power meters and amplifiers, reduce signal levels to detectors, match circuits and are used daily in lab applications to aid in product design. Attenuators are also used to balance out transmission lines that otherwise would have unequal signal levels.
