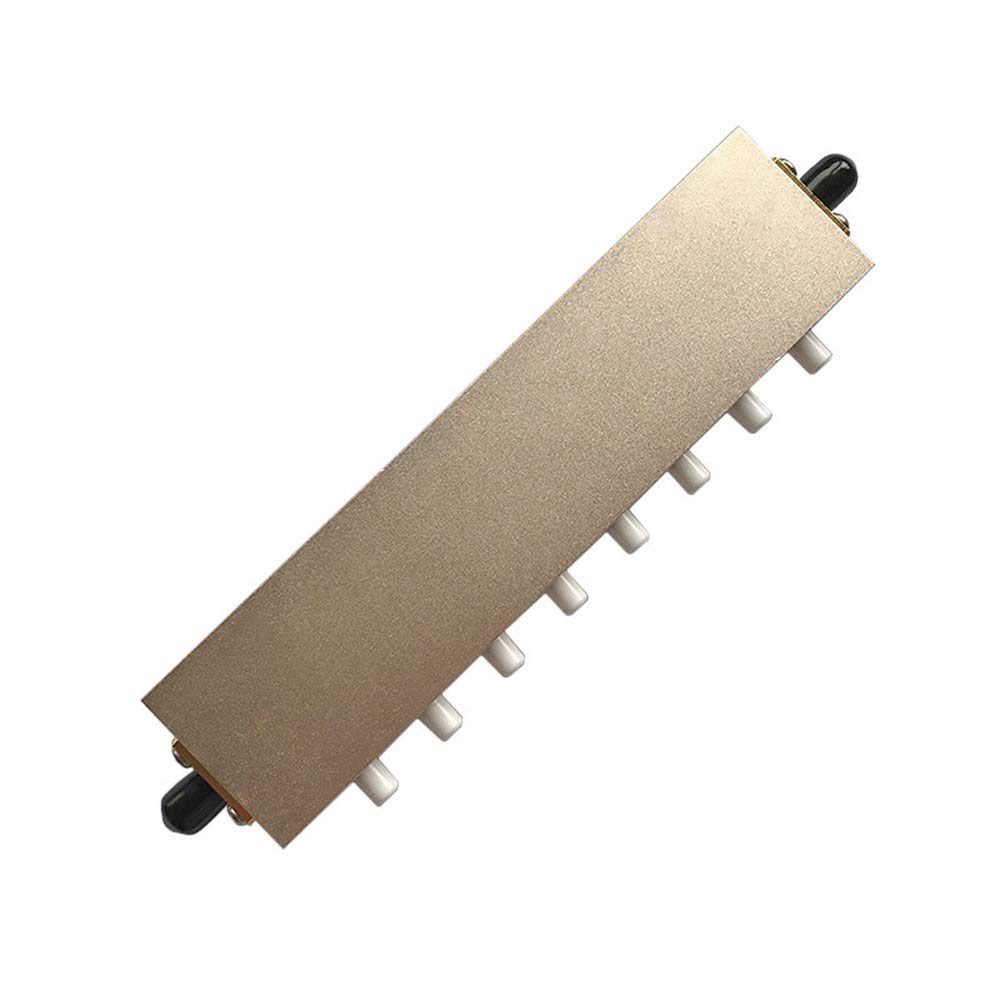

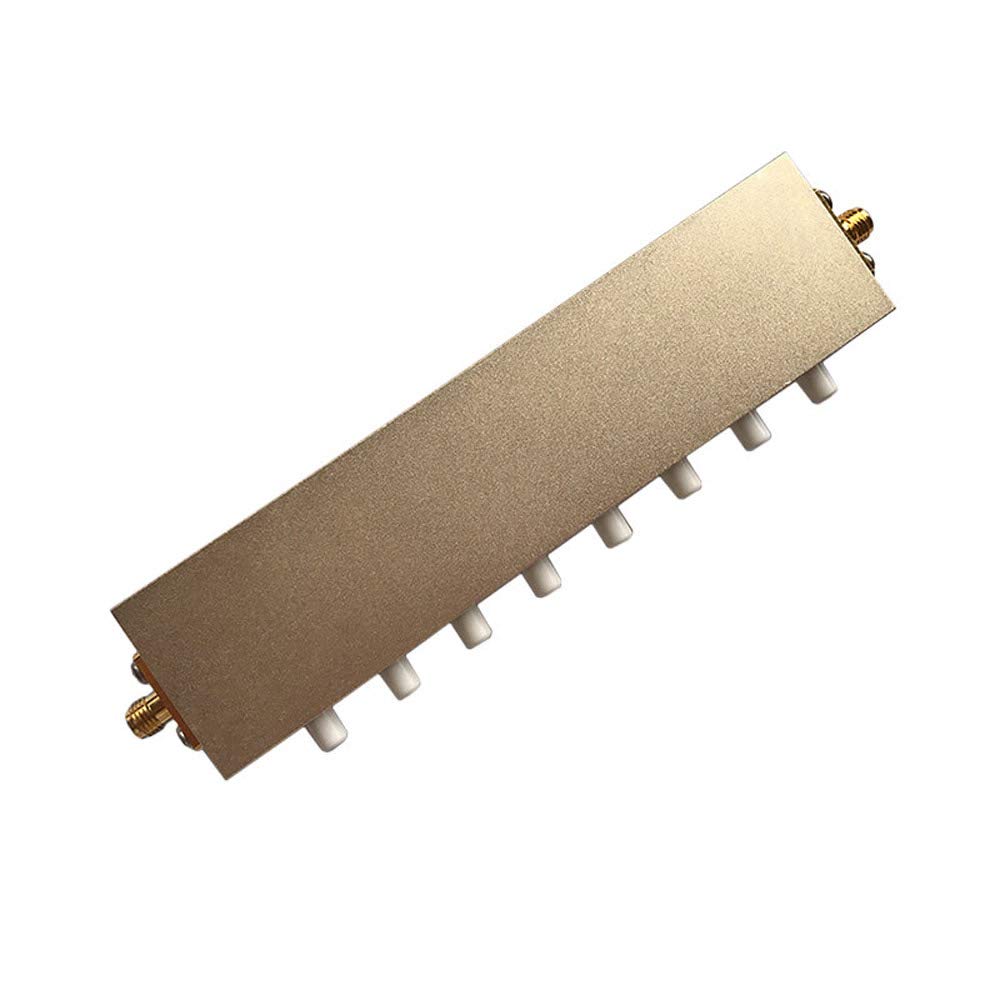

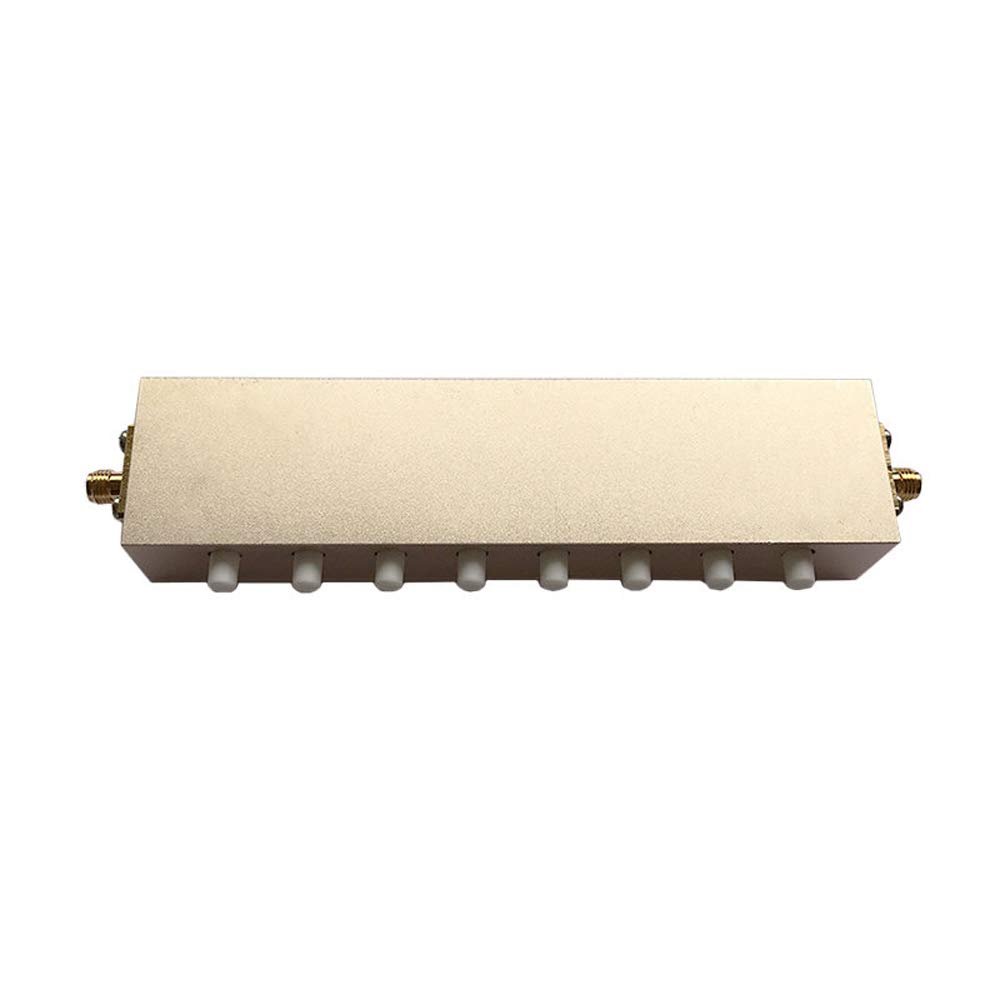

BECEN 1-60dB SMA RF Push-Button Step Attenuator, Key-Press Attenuator 3GHz 50ohm

• Product name: 5 Watt step attenuator
• Max input power: 5 Watt , Attenuation: 1-60dB
• Connector Type: SMA Female to SMA Female

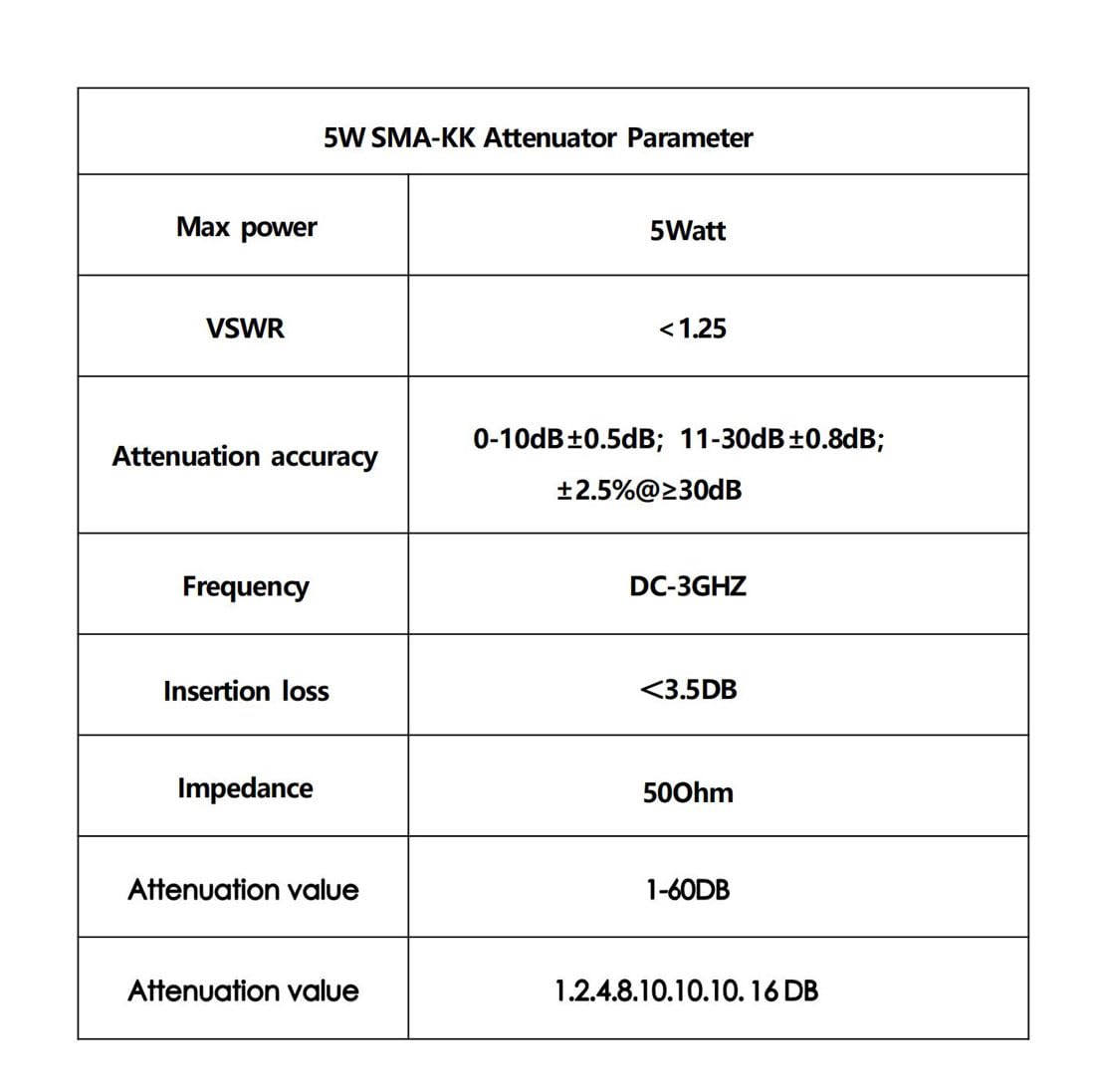

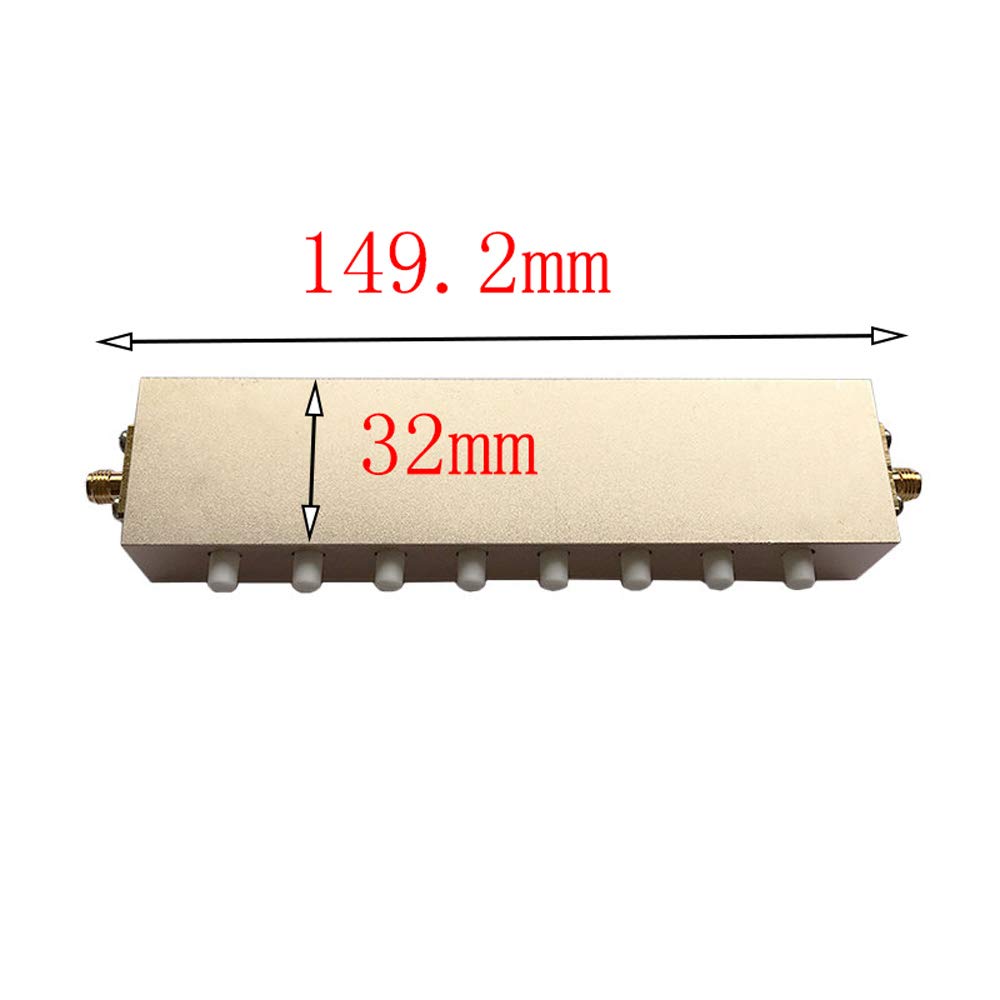

Specifications: Power: 5W Connector: SMA-KK Attenuation 60dB Frequency Range: 3GHZ VSWR (MAX) : ≤1.30 Impendance: 50Ω Temperature Range: -55°C to +125°C Attenuation:1.2.4.8.10.10.10.16dB 1db Step, 0-10 dB±0.5dB, 10-30 dB±0.8dB, ≥50dB±2.5% Dimension: 145*30*20mm Weight: 150g 5W step variable attenuator 60db are used in a wide variety of applications and can satisfy almost any requirement where a reduction in power is needed. Attenuators are used to extend the dynamic range of devices such as power meters and amplifiers, reduce signal levels to detectors, match circuits and are used daily in lab applications to aid in product design. Attenuators are also used to balance out transmission lines that otherwise would have unequal signal levels.
