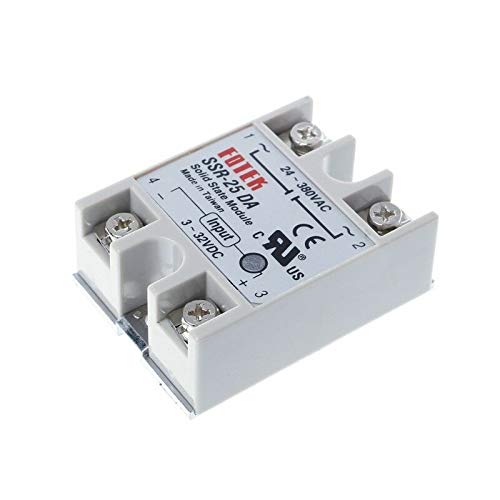

BE-TOOL Solid State Relay, SSR-25DA DC 3-32V Input AC 24-380V Out Single-phase Solid State Relay Module for Pid Temperature Controller

• Product Name: Solid State Relay; Size: 6.25x4x2.3cm/2.46x1.57x0.91inch
• 6 Model available for your choosing, SSR-25DA / SSR-40DA / SSR-50DA / SSR-60DA / SSR-75DA / SSR-100DA
• Solid State Relay ideal for automatic process control application, a must component for temperature controller and other machinery control system.
• Highly reliable,compact size designed to offer user maximum simplicity,fast switching, reduced electromagnetic interference.
• Package included: 1pc x Solid State Relay

Features: Temperature Control AC 24V-380V Solid State Relay Output 25A SSR-25DA With a single sentence, this static relay is ideal for automatic process control application, an indispensable element for temperature controller and other machine control systems. High reliability, compact size, an excellent part for temperature controller and other machinery control systems. Features: Type: SSR-25DA Charging current: 25A (if the current is more than 10A, please strengthen the heat dissipation) Charging Voltage: DC 3-32V Control voltage: 24-380VAC Control current: DC 3-25mA Voltage: ≤1.5V Leakage current: ≤2mA Ignition time: ≤10ms Dielectric strength: 2500 VAC Insulation resistance: 1000m/DC 500V Ambient temperature: -30 to +75 °C. Mounting Methods: Bolting Dimensions: 6.3 x 4 x 2.2 cm. Package includes: 1 x Relay Module Note: - Please allow slight dimension difference due to manual measurement. Thank you for your understanding. - Due to the light and screen setting difference, the item's color may be slightly different from the pictures. Please take the actual product as a reference.
