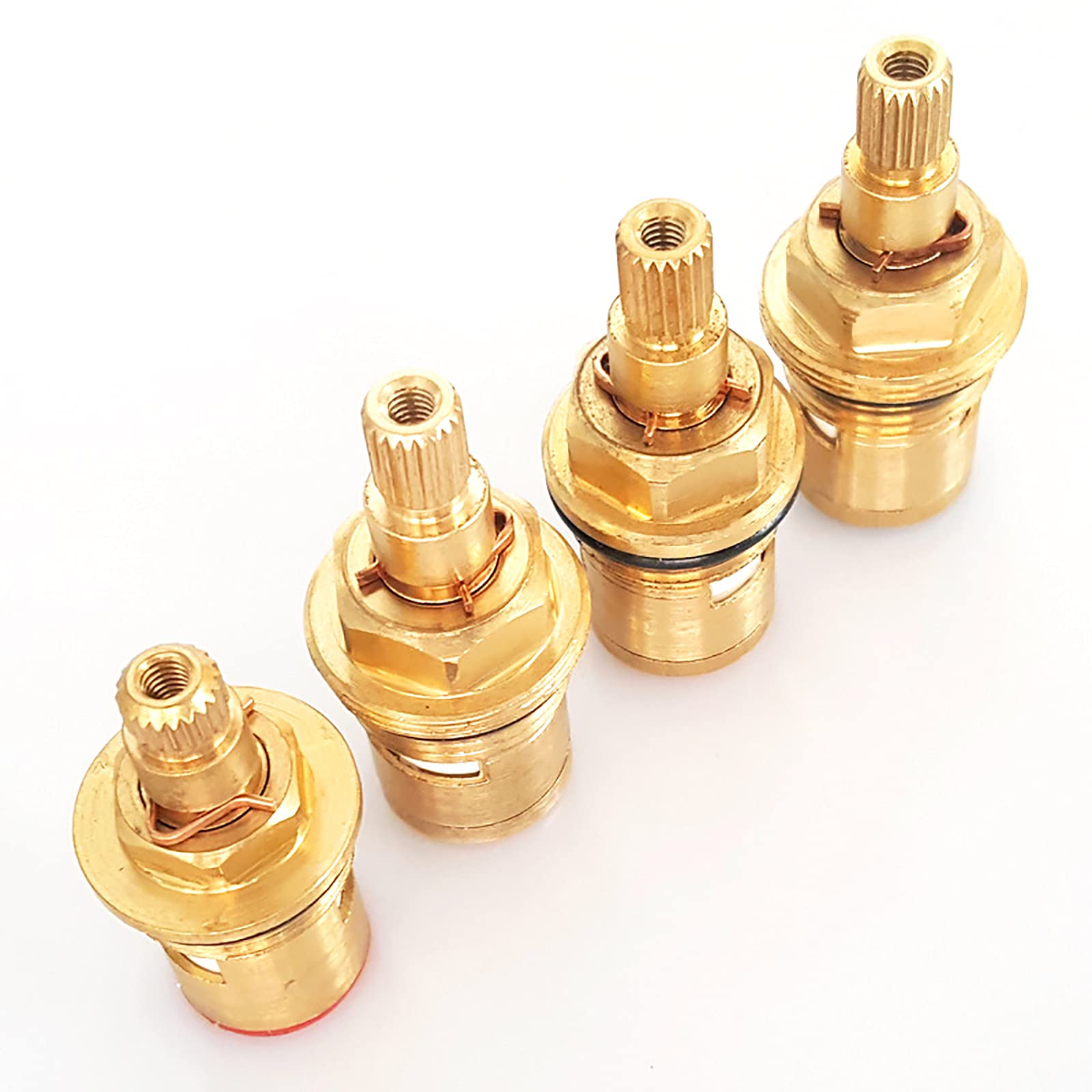

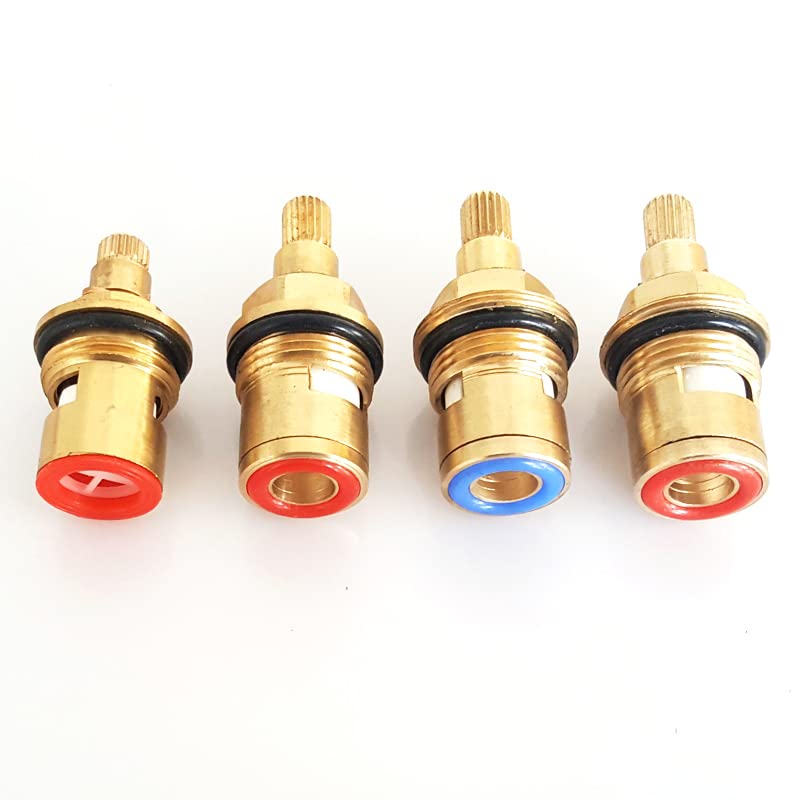

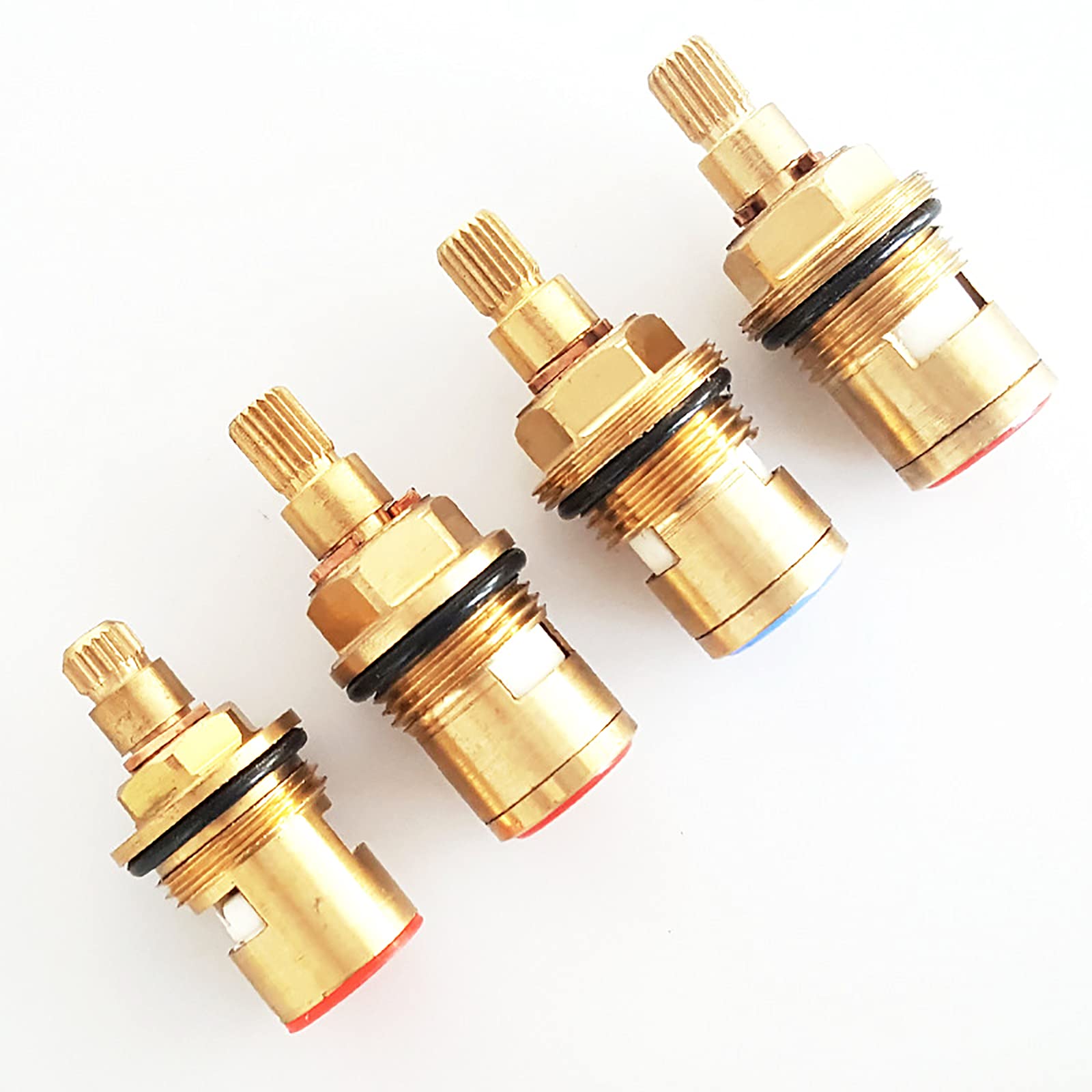

BE-TOOL Ceramic Disc Cartridge Valve 20 Gears Replacement Tap Valve Brass Tap Cartridge Replacement for Bathroom or Kitchen (E-Type Double Thread)

• ◆Made of brass and ceramic, good quality and durable，easy to install
• ◆20 Gears on spline which is also drilled and threaded to fit for a 4mm screw by yourself
• ◆Clockwise (Blue) and Anti-clockwise (Red) to turn the tap on
• ◆Fit for taps of basin in bathroom, kitchen, etc. Suitable for both cold water and hot water
• ◆Package contact: 1Pcs Copper Ceramic Disc Valve

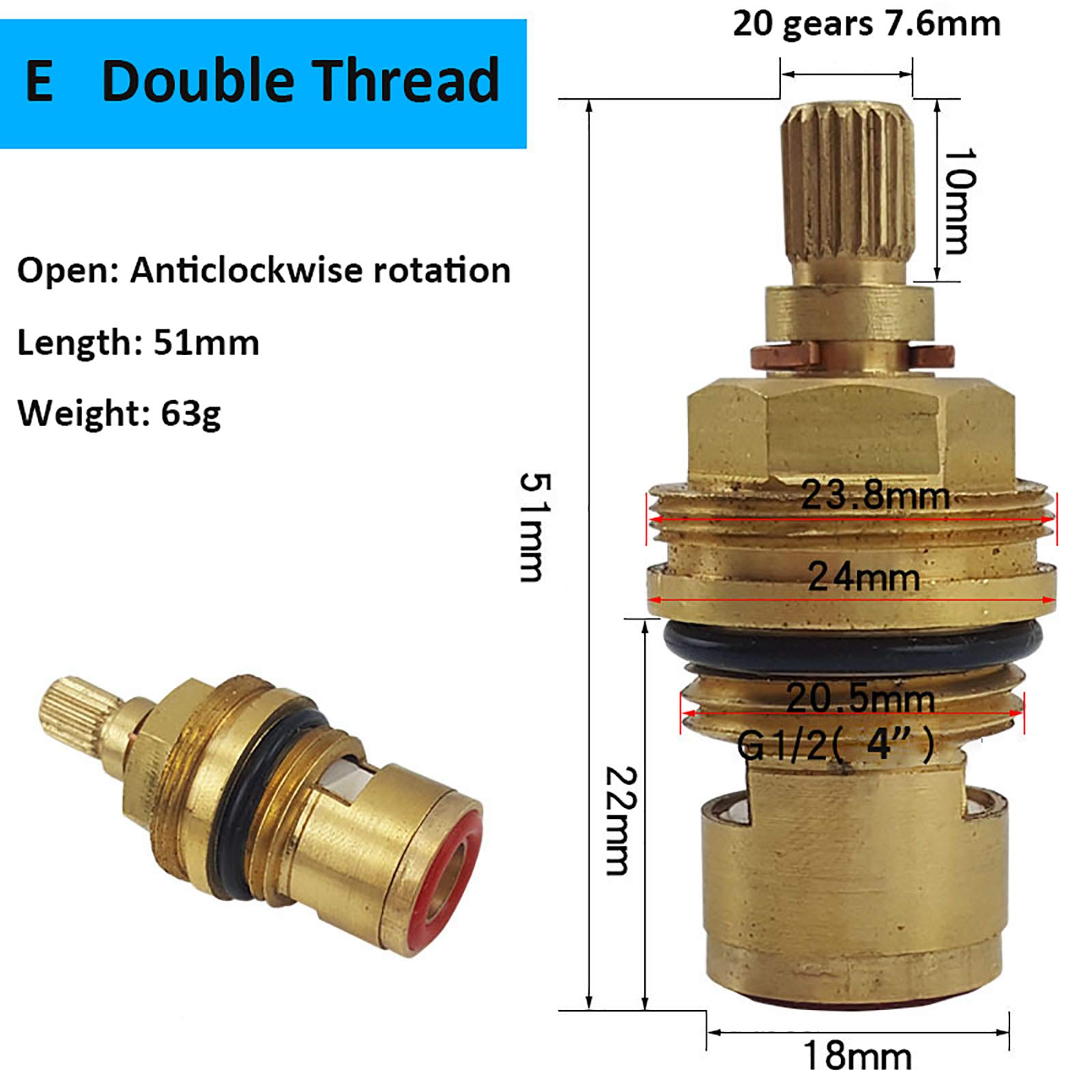

Features: The discs are made of copper and ceramic. Both discs are suitable for both hot and cold water. Will fit most double handles kitchen and bathroom basin taps. 20 Gears on spline which is also drilled and threaded to fit for a 4mm screw. Red colour rubber disc valve is turning clockwise for tap on and, turning anti-clockwise for tap off. This valve with red rubber O ring is usually used on the right hand side. Blue colour rubber disc valve is turning anti-clockwise for tap on and, turning clockwise for tap off. This valve with blue rubber O ring is usually used on the left hand side. Specifcations： Total height:45mm/1.77"; Width:23mm/0.91"; Waist to base distance:24mm/0.94". Spline diameter:8.2mm/0.32"; Number of teeth on spline:20/0.79"; Base diameter:18mm/0.71". Waist diameter:23mm/0.91"; Turn on:Counterclockwise/clockwise(refer to the picture) BSP 1/2" thread. Rubber O ring at the bottom. Material:copper Colour:red&blue random Package Content： 1 x Copper Ceramic Disc Valve
