Battery Protection Module, 14 Series 48V Li Battery Cell BMS PCB Protection Balance Board Module TK14S40A-10M/V1 Applied to Rechargeable Lithium ion Battery, Lithium ion Polymer Battery

• 【High Quality Battery Protection Module 】-- It adopts high current and high withstand voltage discharge MOSS. The internal components are brushed with three anti-adhesive (waterproof, anti-static, anti-interference), stable ans reliable quality. 100% brand new and high quality.
• 【Battery Protection Module Apply To 】-- Suitable for lithium batteries with nominal voltage 3.7V 10-14 strings. Applied to rechargeable lithium ion battery, lithium ion polymer battery.

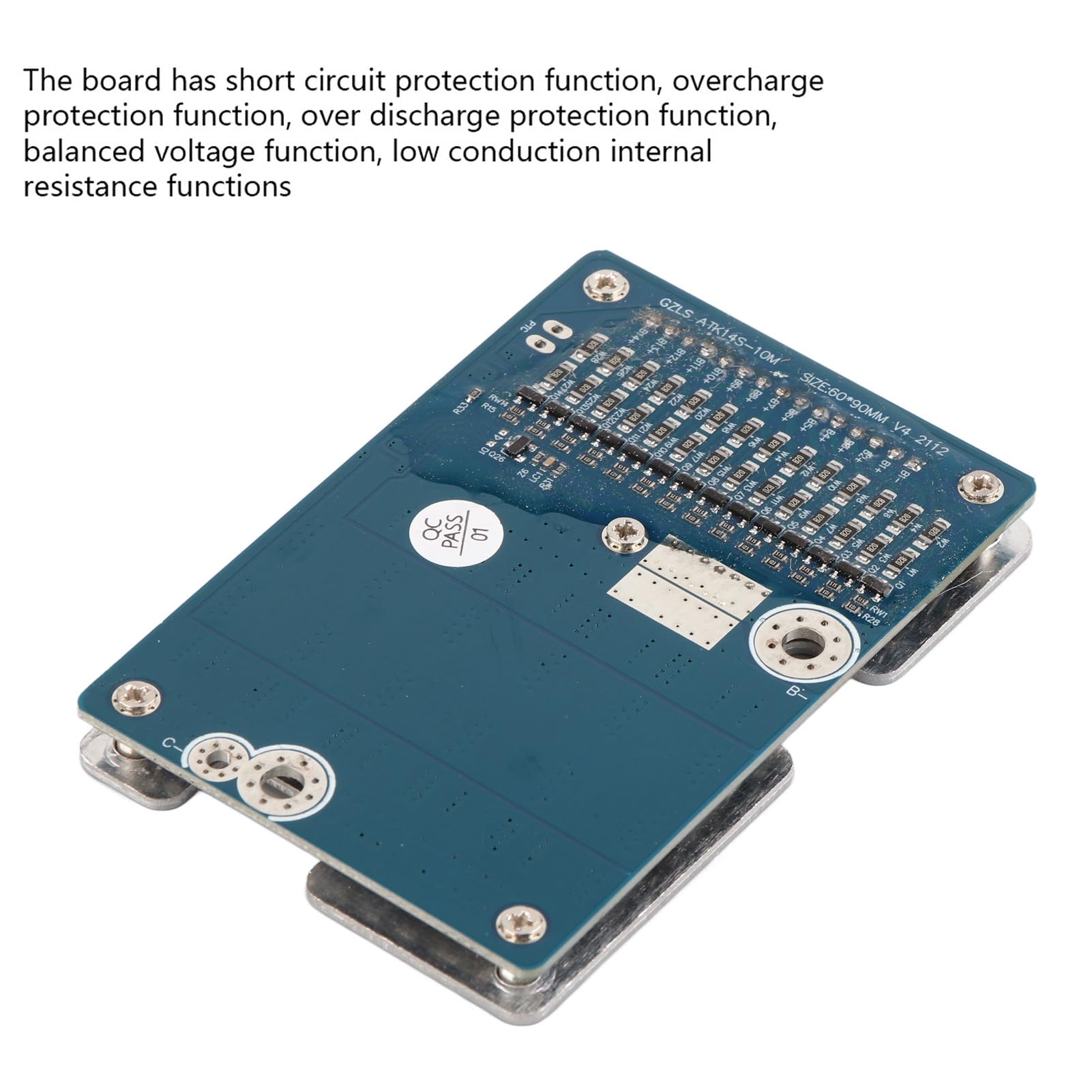

• 【Multifunction 】-- The board has short circuit protection function, overcharge protection function, over discharge protection function, balanced voltage function, low conduction internal resistance functions.
• 【Specification 】-- Single Overcharge Protection Voltage: 5.24±0.025V, Single Overcharge Release Voltage: 4.19±0.05V, Rated Charging Current: 40A, Single-Chip Over-Discharge Protection Voltage: 2.8±0.08V, Single-Chip Over-Discharge Release Voltage: 3.0±0.08V, Discharge Protection Current: 120±10A
• 【Quality Assurance】-- The quality of our products is guaranteed and can be used without hesitation. If you have any questions while using it, please feel free to contact us.

Battery Protection Module, 14 series 48V Li Battery Cell BMS PCB Protection Balance Board Module TK14S40A-10M/V1 Applied to Rechargeable Lithium ion Battery, Lithium ion Polymer Battery. Specifications: Condition: 100% Brand New, Model: TK14S40A-10M/V1, Single Overcharge Protection Voltage: 5.24±0.025V, Single Overcharge Release Voltage: 4.19±0.05V, Rated Charging Current: ≤40A, Single-Chip Over-Discharge Protection Voltage: 2.8±0.08V, Single-Chip Over-Discharge Release Voltage: 3.0±0.08V, Discharge Protection Current: 120±10A, With Or Without Short Circuit Protection: Yes, Short Circuit Protection Recovery Condition: Load-Disconnect, Equilibrium Voltage: 4.25V, Equilibrium Current: ≤26Ma, Internal Resistance: ≤3.5mΩ, Self-Consumption: ≤50uA, Weight: Approx. 108g / 3.8oz, Size: Approx. 60 * 90 * 10.1mm / 2.4 * 3.5 * 0.4in, Package List: 1 * Lithium Battery Protection Balance Board Module, 1 * Connecting Cable, Note: 1. The difference between the split port and the same port: the split port: when charging and discharging, the positive and negative poles are separated; the same port: charging current is the same as the discharge current, and charging and discharging are in the same place. 2. Without balance and balance: balance: when the high-voltage battery is discharged with a resistor, waiting for the low-voltage battery to charge the voltage to achieve the same voltage and improve the performance of the whole battery.
