BAFANG 36V 250W Rear Hub Motor, 700C Ebike Convertion Kit with VD04 Display

• 【Why Choose This ebike Conversion Kit?】This Bafang 36V 250W brushless geared rear hub motor delivers up to 30Nm of torque, with a no-load speed of 295RPM and a maximum speed of 25km/h. It fully complies with European regulations for legally riding electric bicycle on public roads, making it an ideal choice for daily commuting. This ebike wheel motor is laced with 36H*12G spokes, providing higher load capacity and impact resistance, while improving overall durability and service life

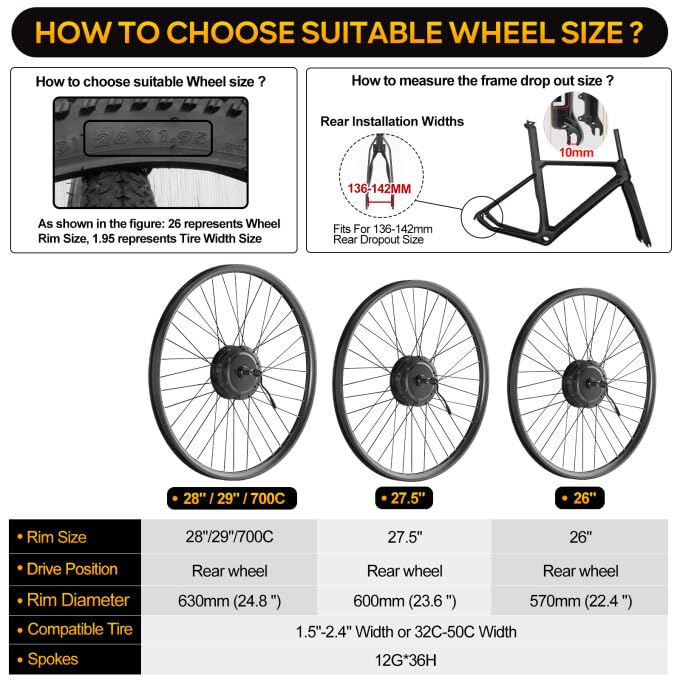

• 【How Do I Know If This Electric Bicycle Motor Fits My Bike?】This motor is compatible with bicycles with a rear dropout spacing of 136-142mm and using thread-on freewheels with up to 9 speeds. It supports 26inch, 27.5inch, 28inch/29inch/700C wheels and can be fitted with tires ranging from 1.5 inches to 2.4 inches in width

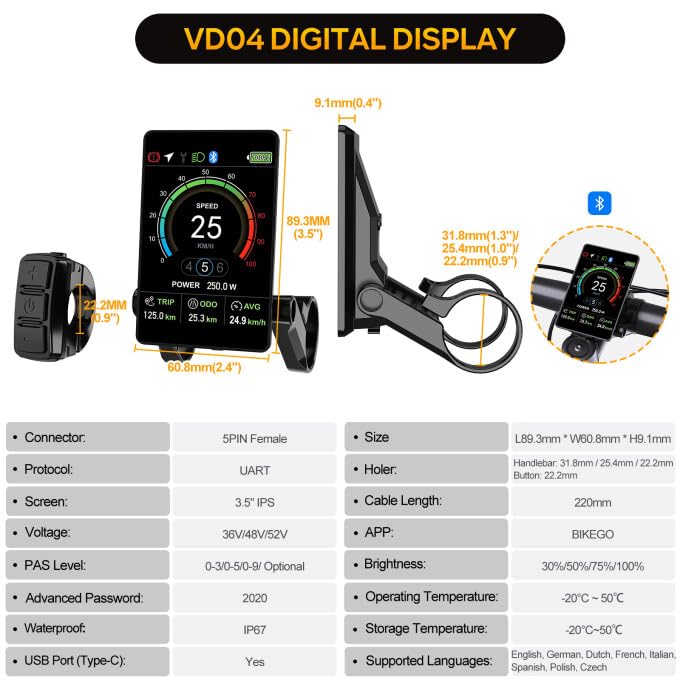

• VD04 HD Smart Display: The VD04 features a 3.5" IPS color screen, providing a clear and detailed display experience. It shows essential riding data in real time, including speed, battery level, assist level, and mileage. With 3/5/9 PAS level options, riders can easily adjust assistance based on different needs. It supports km/mile switching, error alerts, brake reminders and brightness adjustment. Equipped with a Type-C USB port and BIKEGO APP connectivity, offers smart riding management

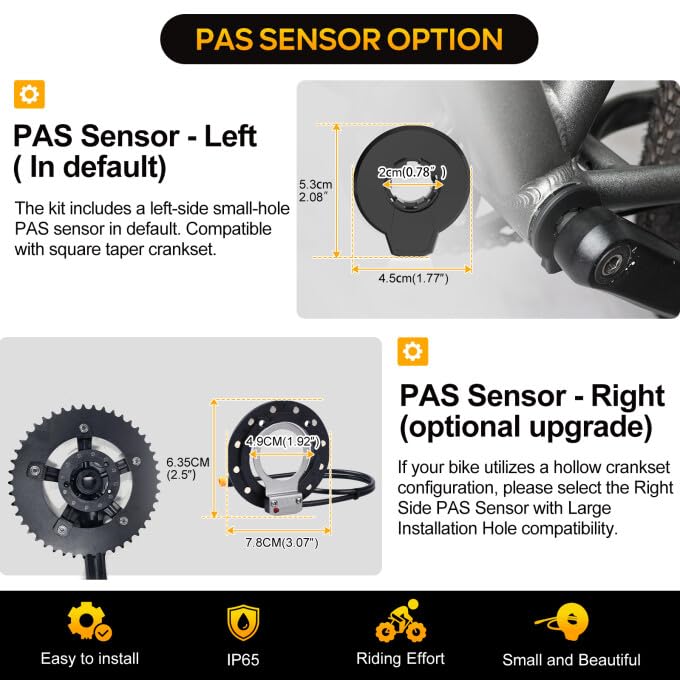

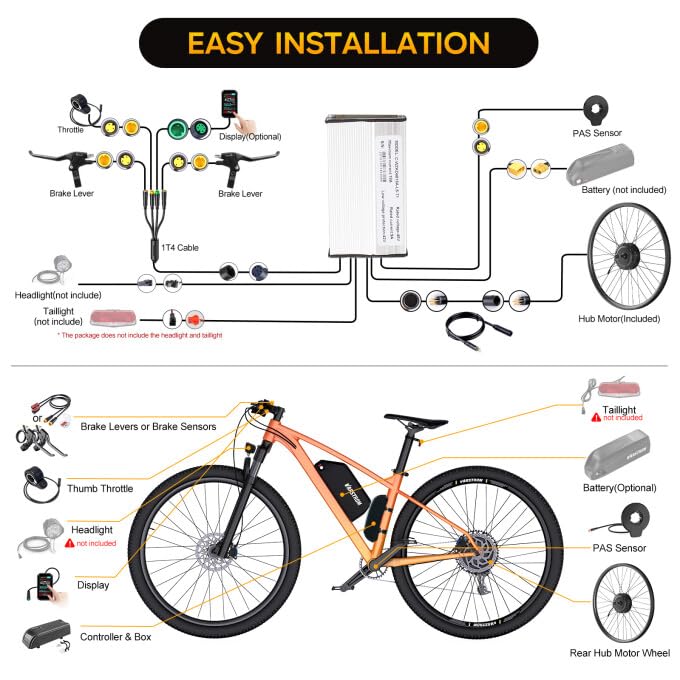

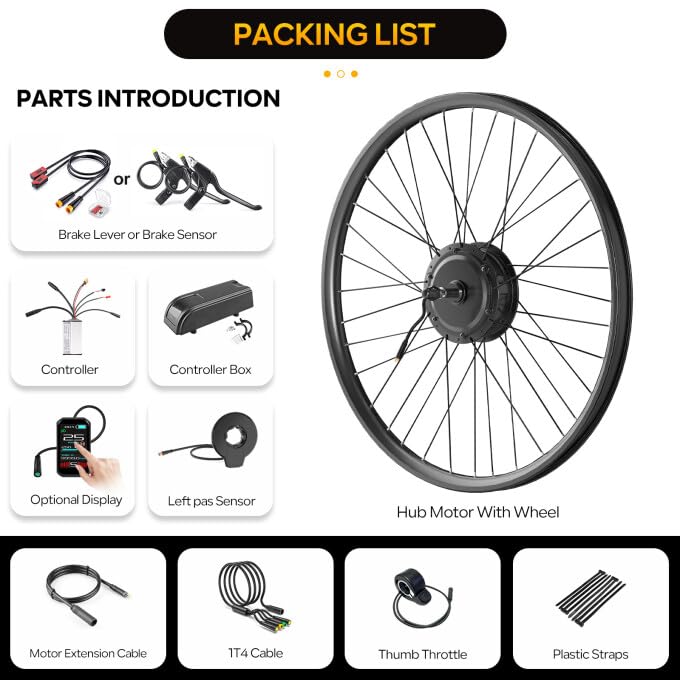

• 【What Will I Get When I Purchase This Electric Bicycle Conversion Kit?】Our motor kit includes a 36V 250W wheel motor, a selectable display, 36V14A controller, brake levers (default option) or brake sensors, left-side PAS sensor, 1T4 cable, thumb throttle (optional connection), motor extension cable, and cable ties. Please note that the thread-on freewheel and battery are not included and need to be purchased separately
• 【What Are the Benefits of Buying a Hub Motor Kit?】After installing a hub motor, your bicycle can be upgraded into an electric bike, reducing fatigue caused by long-distance riding, uphill climbs, and headwinds while still maintaining the joy of cycling exercise. You can adjust the assist level according to your needs, combining daily commuting, physical exercise, and outdoor leisure. It helps improve your quality of life and provides a healthier, freer, and more eco-friendly way to travel

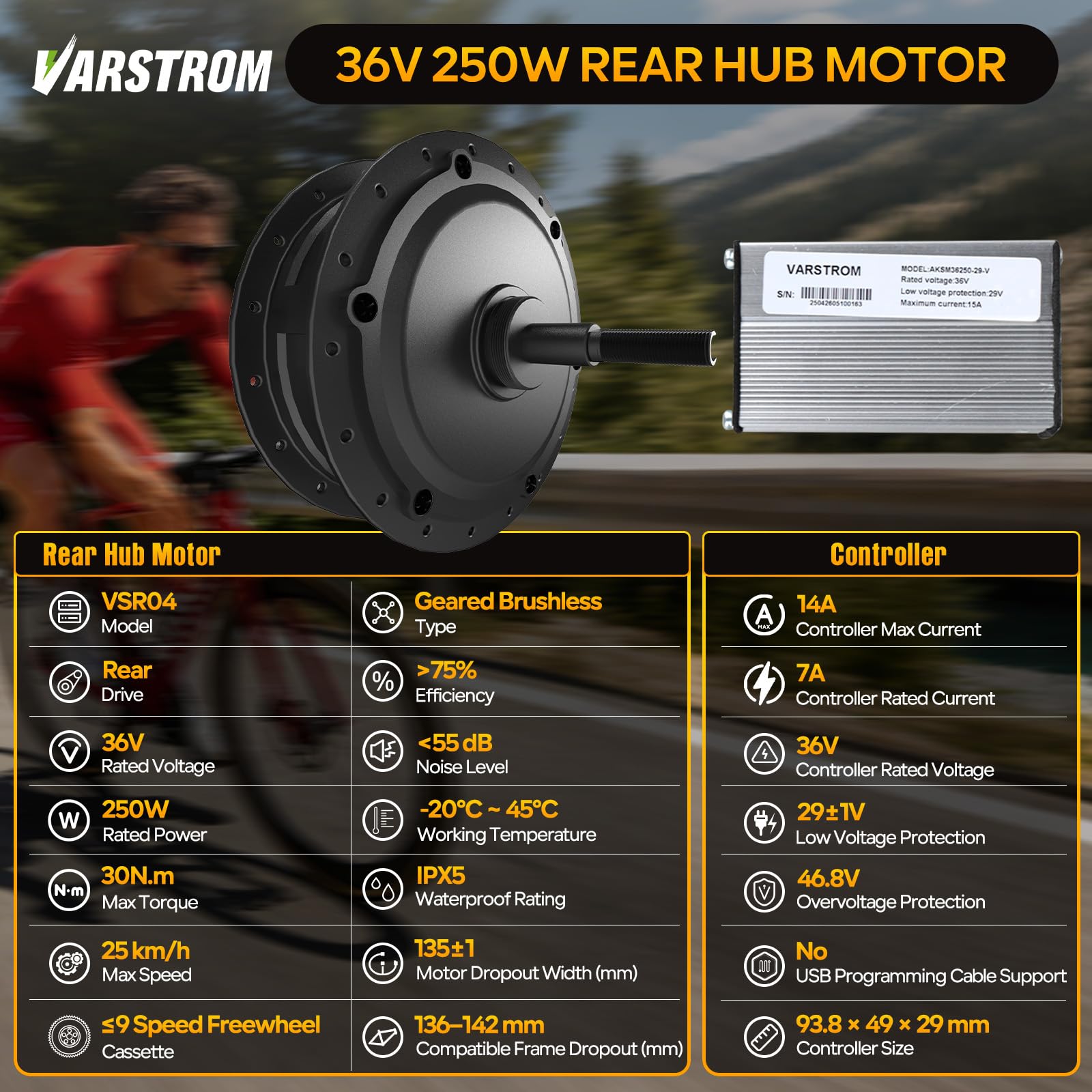

Important Tips: The dropout size (fork width): VSR04 rear hub motor:136-142mm Our rear hub motor is only compatible with thread-on freewheel systems. Specifications: Rated Voltage: 36V Rated Power: 250W Maximum Torque: 30N.m Maximum Speed: 25km/h Operating Temperature: -20°C to 45°C Waterproof Rating: IP-X5 Noise Level: <55 dB Efficiency: >80% Spoke Specifications: 36H x 12G VSR04 rear hub motor:136-142mm Tire Width Compatibility: 1.5" - 2.4" Maximum Controller Output Current: 14A Braking System: Disc Brakes Package Contents: - 1 × 28"/29"/700C Bafang rear hub motor with rim & spokes - 1 × VD04 Display - 1 × Controller - 1 × Controller Box - 1 × Left PAS Sensor - 1 × 1T4 Cable - 1 x User Manual Q&A FAQ 1: Is this rear hub motor kit compatible with my bike? A 1: This rear hub motor kit is compatible with most standard bicycles. Please confirm your bike's rear fork width (dropout size), wheel size, freewheel type (thread-on treewheel), and brake type before purchase to ensure proper fit. FAQ 2: What battery connector is compatible with this motor? A 2: The battery connector of this ebike conversion kit is XT60 (male), so the battery side must be equipped with an XT60 (female) connector for proper connection.
