BAFANG 36V 250W Rear Hub Motor 27,5 Ebike Convertion Kit with SWM58 Display

• 【Why Choose This ebike Conversion Kit?】This Bafang 36V 250W brushless geared rear hub motor delivers up to 30Nm of torque, with a no-load speed of 295RPM and a maximum speed of 25km/h. It fully complies with European regulations for legally riding electric bicycle on public roads, making it an ideal choice for daily commuting. This ebike wheel motor is laced with 36H*12G spokes, providing higher load capacity and impact resistance, while improving overall durability and service life
• 【How Do I Know If This Electric Bicycle Motor Fits My Bike?】This motor is compatible with bicycles with a rear dropout spacing of 136-142mm and using thread-on freewheels with up to 9 speeds. It supports 26inch, 27.5inch, 28inch/29inch/700C wheels and can be fitted with tires ranging from 1.5 inches to 2.4 inches in width

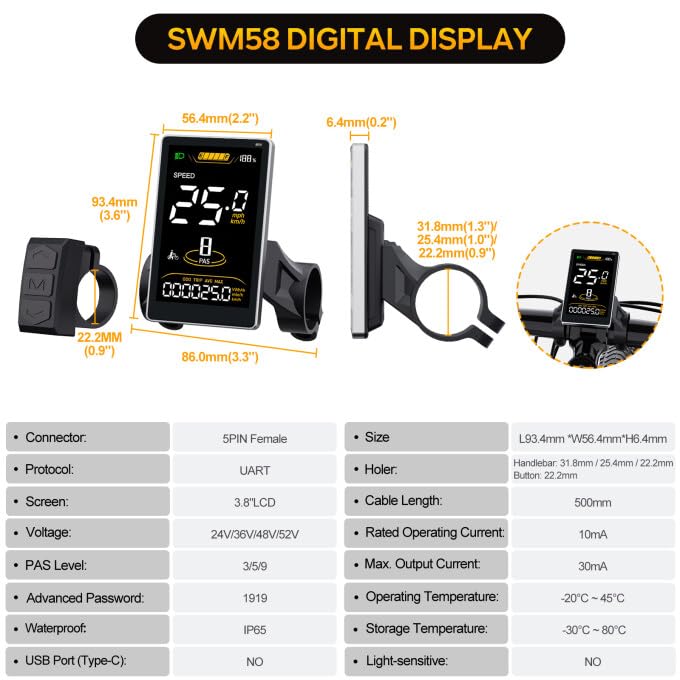

• The SWM58 Large Display: Featuring a spacious 3.8-inch screen and dedicated control buttons, this display provides a simple, convenient, and intuitive user experience. The high-definition HMI color screen delivers clear visibility of essential riding data, including pedal-assist levels, real-time speed, trip distance, battery status, error notifications, and light control. Stay fully informed of your cycling performance and ride information at all times
• 【What Will I Get When I Purchase This Electric Bicycle Conversion Kit?】Our motor kit includes a 36V 250W wheel motor, a selectable display, 36V14A controller, brake levers (default option) or brake sensors, left-side PAS sensor, 1T4 cable, thumb throttle (optional connection), motor extension cable, and cable ties. Please note that the thread-on freewheel and battery are not included and need to be purchased separately
• 【What Are the Benefits of Buying a Hub Motor Kit?】After installing a hub motor, your bicycle can be upgraded into an electric bike, reducing fatigue caused by long-distance riding, uphill climbs, and headwinds while still maintaining the joy of cycling exercise. You can adjust the assist level according to your needs, combining daily commuting, physical exercise, and outdoor leisure. It helps improve your quality of life and provides a healthier, freer, and more eco-friendly way to travel

Important Tips: The dropout size (fork width): VSR04 rear hub motor:136-142mm Our rear hub motor is only compatible with thread-on freewheel systems. Specifications: Rated Voltage: 36V Rated Power: 250W Maximum Torque: 30N.m Maximum Speed: 25km/h Operating Temperature: -20°C to 45°C Waterproof Rating: IP-X5 Noise Level: <55 dB Efficiency: >80% Spoke Specifications: 36H x 12G VSR04 rear hub motor:136-142mm Tire Width Compatibility: 1.5" - 2.4" Maximum Controller Output Current: 14A Braking System: Disc Brakes Package Contents: - 1 × 27.5" Bafang rear hub motor with rim & spokes - 1 × SW-M58Display - 1 × Controller - 1 × Controller Box - 1 × Left PAS Sensor - 1 × 1T4 Cable - 1 x User Manual Q&A FAQ 1: Is this rear hub motor kit compatible with my bike? A 1: This rear hub motor kit is compatible with most standard bicycles. Please confirm your bike's rear fork width (dropout size), wheel size, freewheel type (thread-on treewheel), and brake type before purchase to ensure proper fit. FAQ 2: What battery connector is compatible with this motor? A 2: The battery connector of this ebike conversion kit is XT60 (male), so the battery side must be equipped with an XT60 (female) connector for proper connection.
