BACOENG 1 1/4" DN32 Brass BSP 2 Port Motorized Ball Valve (AC110-230V CR202 2 Wires Normally Closed Electric Ball Valve)

• Valve Body: 1 1/4" DN32 Brass BSP 2 Way; Normally Closed; Orifice Size: 29mm, Full Bore
• Actuator: AC110-230V; Wiring type: CR202 Two wires control (Spring Return When Power Off); Metal Gears Inside; With Indicator.
• Protection Class: IP67; Maximum Working Pressure: 10 bar; Open/close Time: 3-5 sec; Max Torque: 2 N·m (A20 Series)
• Smart shape, Perform reliably, no leak, large flow, lifespan of 80,000-100,000 cycles.
• This motorized valve is a good replacement of solenoid valve. 1) It can be installed at any angle and direction, and can work in moist conditions. 2) Limit Switches Inside, automatically cuts off power when fully open or fully closed, this reduces likelihood of overheating and no power expended.

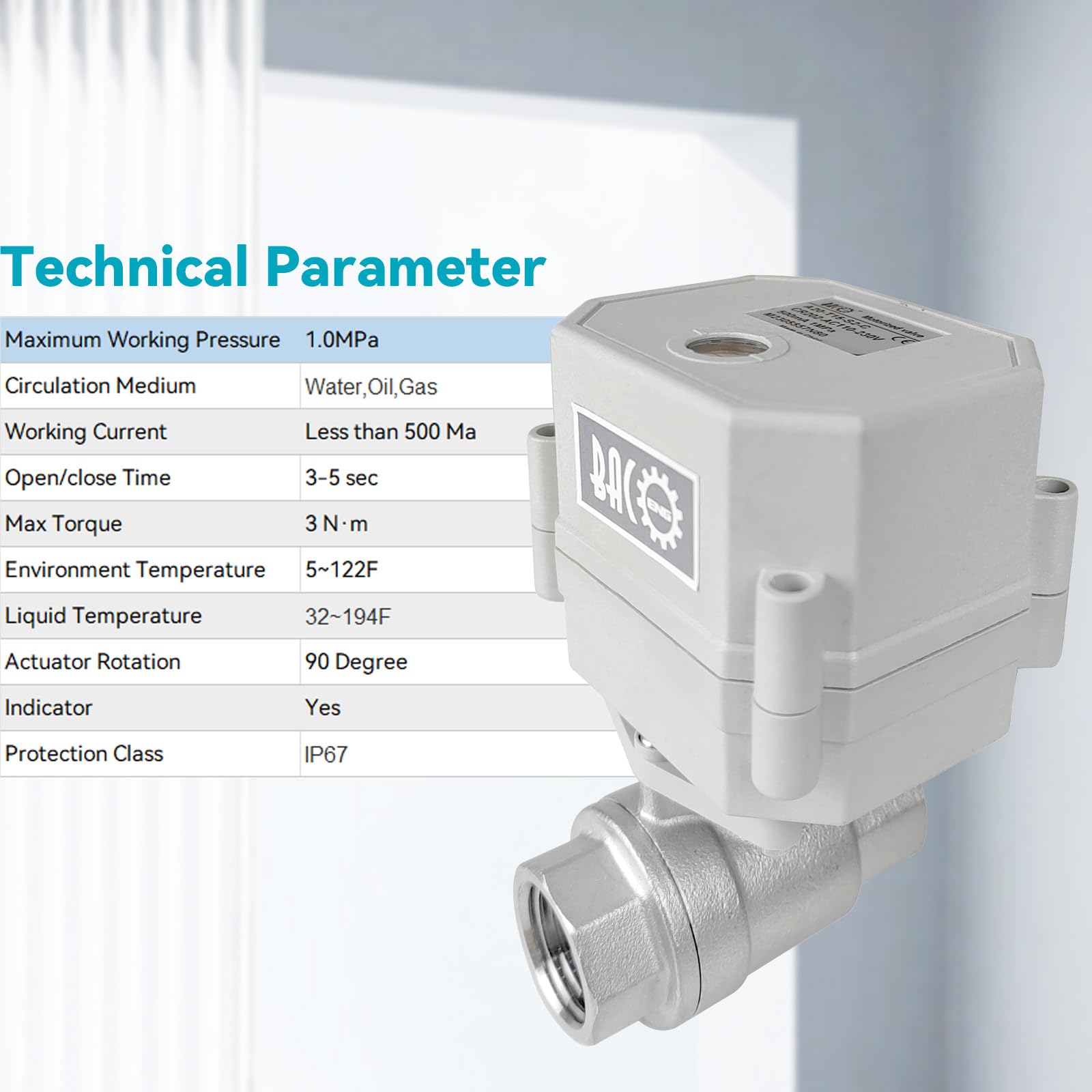

Technical Parameter: Product size: 1 1/4" DN32 BSP Rated Voltage: AC110- 230V Wiring Control Methods: CR202 Valve Body Material: Brass Actuator Material: Engineering Plastics Sealing Material: EPDM and PTFE Cable Length: 0.5m Maximum Working Pressure: 10 bar Circulation Medium: Water,Oil,Gas Working Current: Max 500 mA Open/close Time: 3-5 sec. Max Torque: 2 N·m (A20 Series) Environment Temperature:-15~50 Celsius Liquid Temperature: -5~100 Celsius Manual Override: NO Indicator: Yes Protection Class: IP67 Application: 1. HVAC 2. Water treatment 3. Chemical process 4. Small industrial equipment for automatic control 5. Regular watering the flowers, Timing humidification,Air compressor drain at regular time. Features: 1. Smart shape, Perform reliably, large output torque, Lifespan of 80,000-100,000 times, convenience for all kinds of requirements. 2. Float ball design, no leak, large flow, the valve is bi-directional ball valve, regardless of inlet and outlet , most suitable for heavy dirt and long time no action. 3. High protection class, can work in moist conditions. 4. POM cooperate with metal gear, the POM gear is used in high-speed level to reduce noise, At the same time metal gear is applied at the low-grade to ensure the reliability of the gear. 5. Electrical and mechanical limit integrated design, accurate localization, high consistency, put an end to swing of valve.
