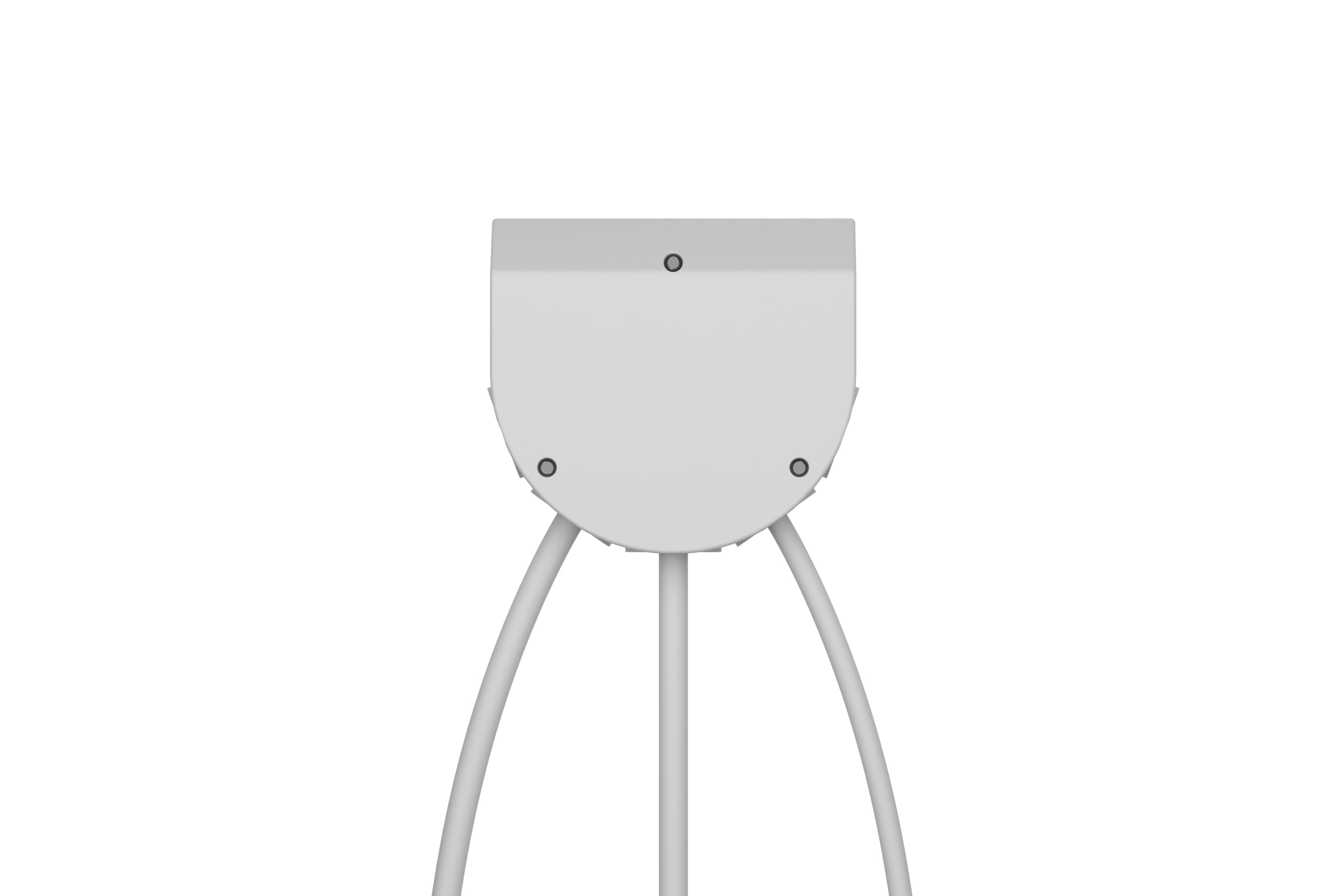

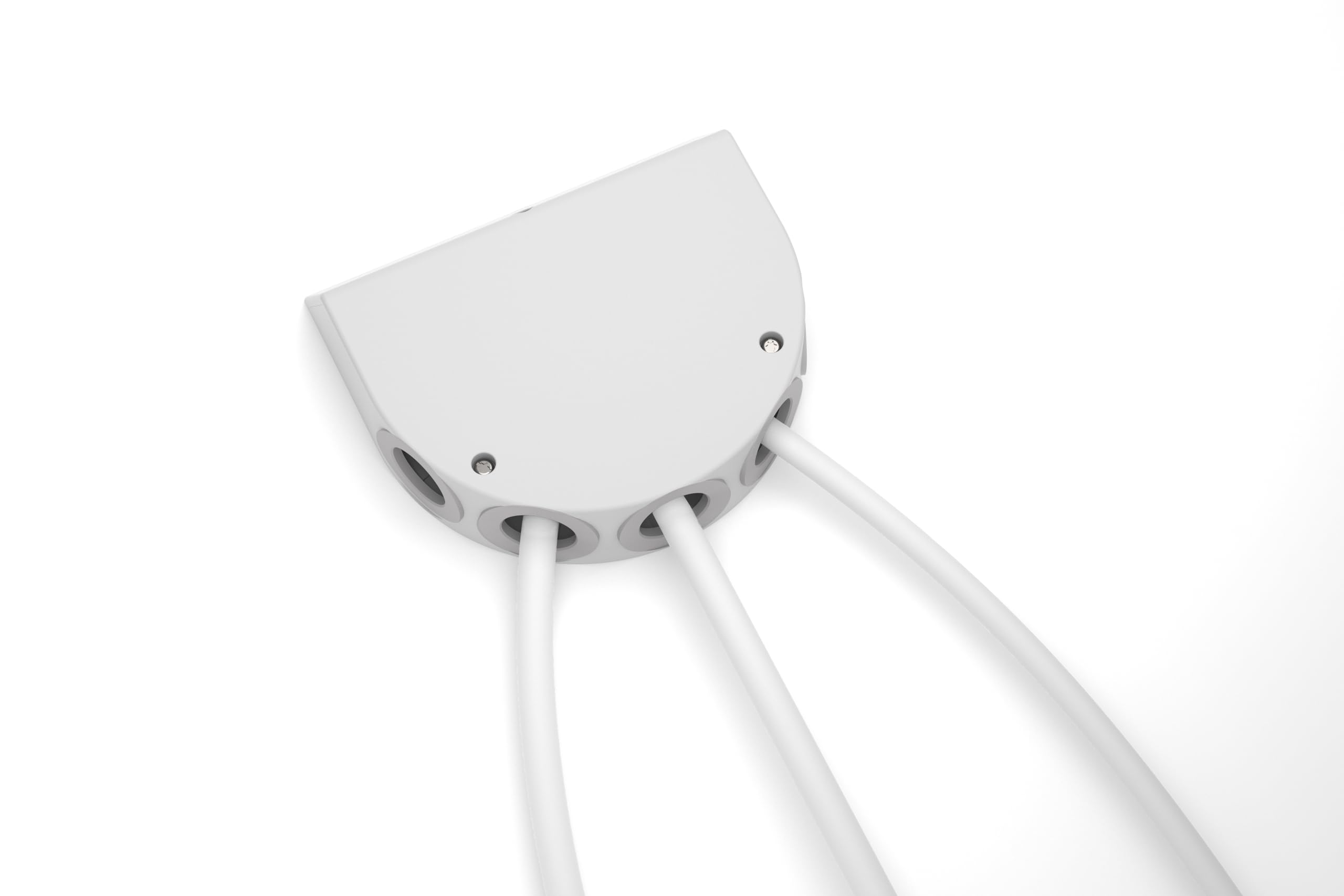

Bachmann 923.000 Kitchen Connection Box Qty: 1

• Power Distribution for Getrennt built-in kitchen devices – possible use existing hob connection dose
• Cost saving, since no Nachträgliches installation of sockets required, low installation depth (about 34 mm), Wiederanschließbare WAGO terminals
• Grey, with eyelets for screw mounting, Power Requirements up to 10 kw, kitchen Junction Box 2 m cable set,
• Also compatible with induction verwendbar
• With eyelets for screw mounting, Power Requirements up to 10 kw

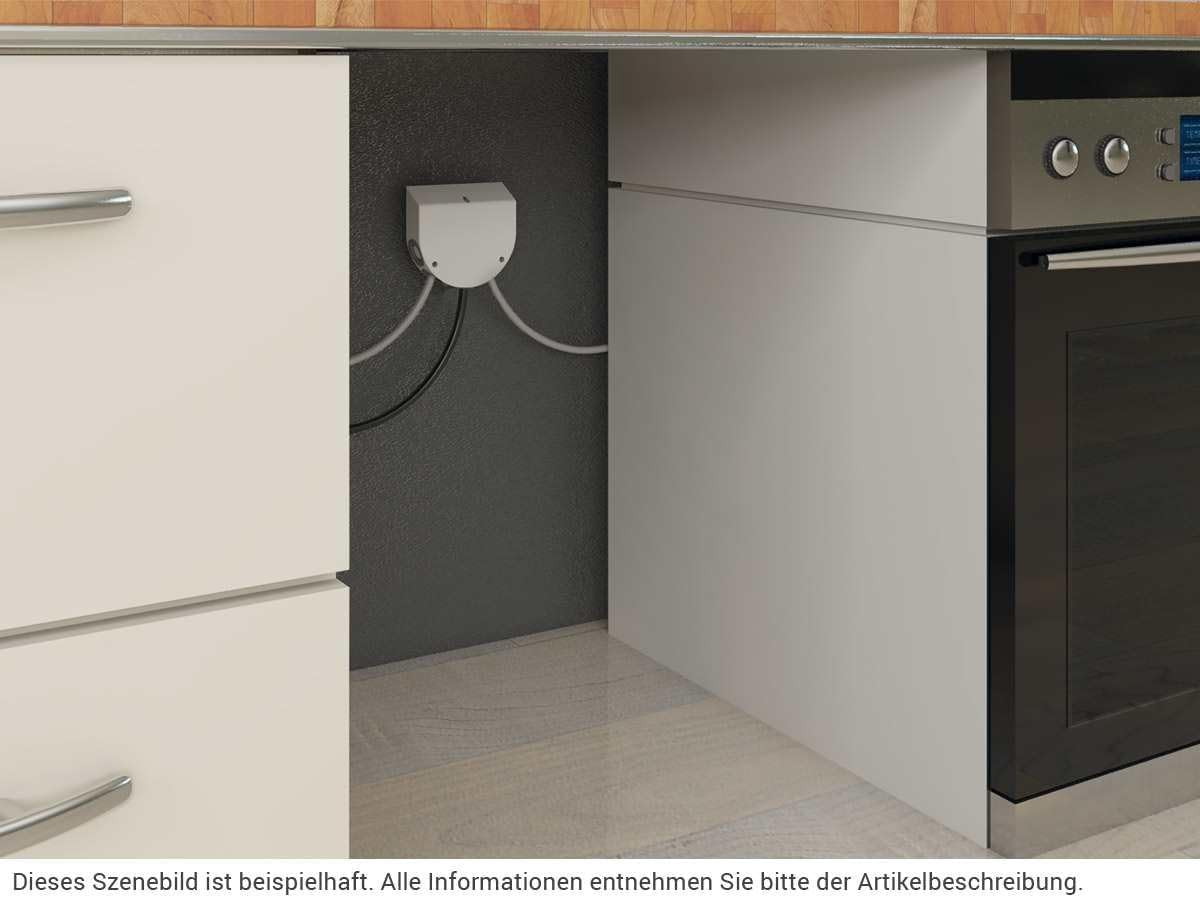

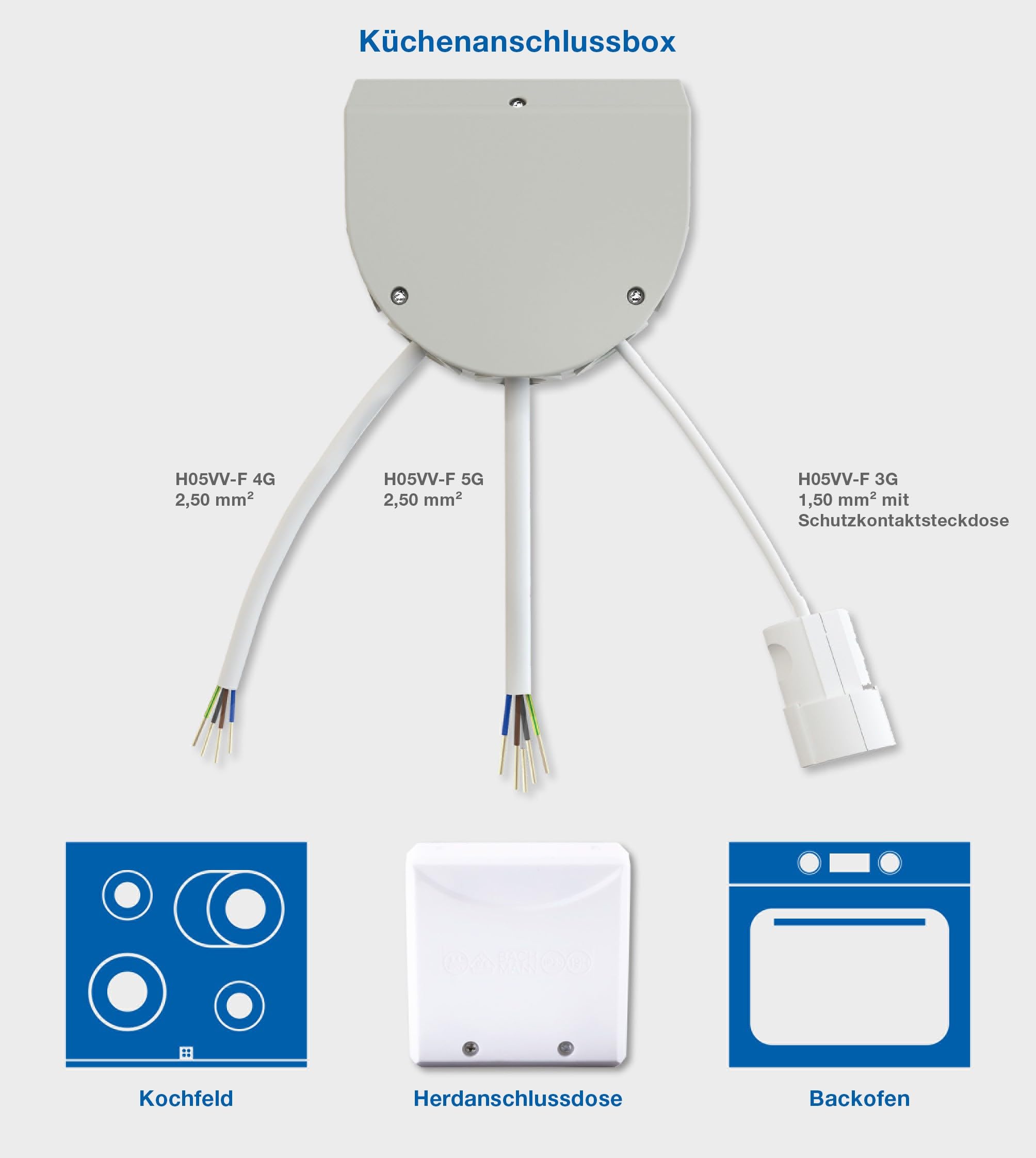

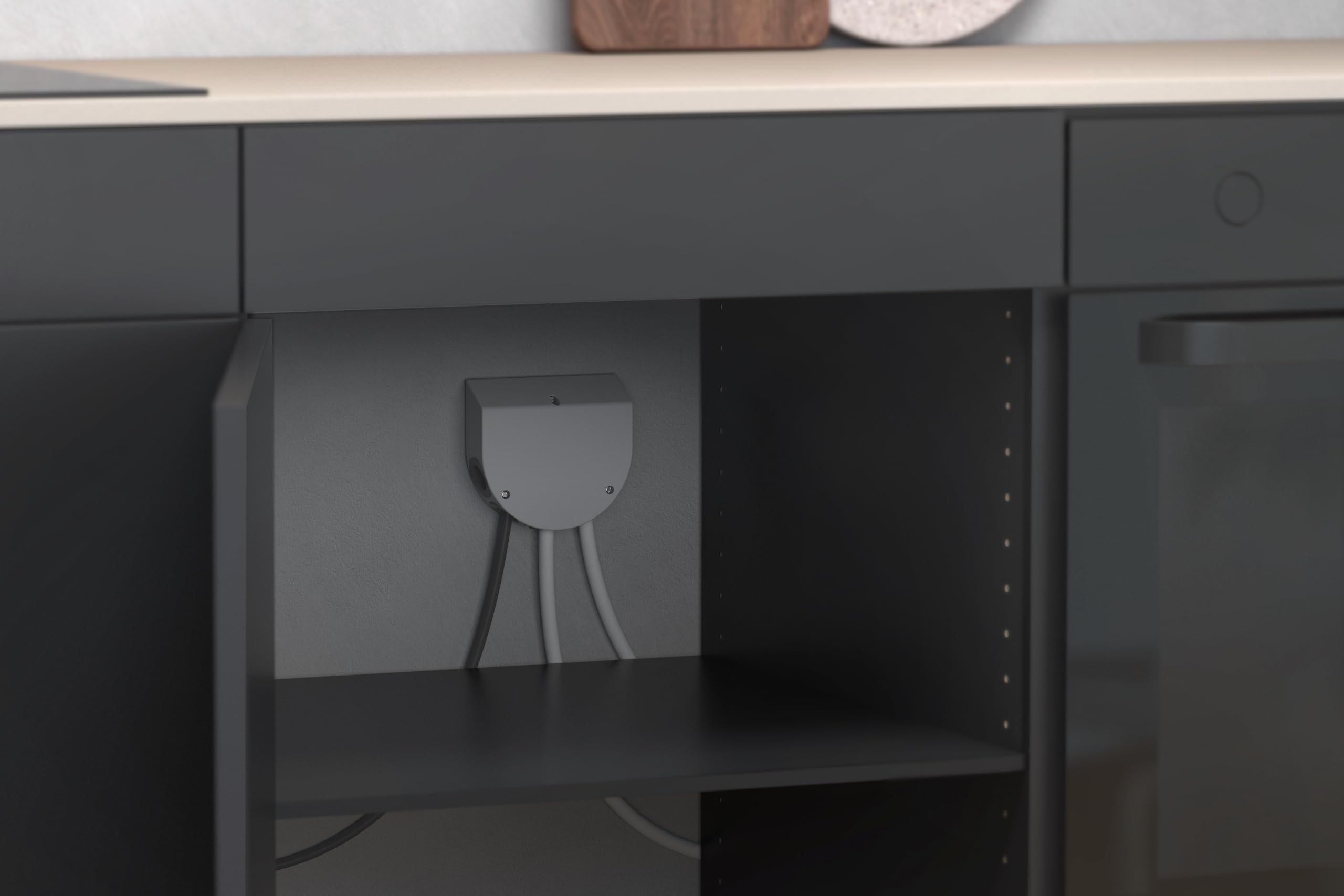

Kitchen Junction Box The Universal mounting aid for connection of hob and oven the kitchen Junction Box provides universal mounting support for the kitchen. They are widely used when hob and oven should not be used combined device when installed. The kitchen Junction Box serves as a power distribution for separately Built-in kitchen tools to provide these Central Made from an existing cooker connection box with power. It is available in 4 different Zuleitungs variations and allows a flexible use, depending on environment of the kitchen. No need to completely of additional sockets which makes both cut costs and time required for the installation of the kitchen appliances. Junction Box: Grey, with eyelets for screw mounting, Power Requirements up to 10 kW H05VV-F 5g 2.5 mm 2 for cooker connection box H05VV-F 4G 2.50 mm 2 for stove H05VV-F 3G 1.50 mm 2 with connector suitable for use in the oven  Wiederansc close smoothly with internal Wago terminals (Series 222)  protection class Overall Product IP20  Material: Plastic Color: Grey RAL 7035 (box), White (connections and socket)  3x Cable inlet over membrane (IP54), internal strain relief  2x additional membrane/Cable inlet without internal strain relief boots – Delivery Form: Packaged in a polybag,  Poly Bag labeled with Bachmann label,  Cables rolled; Package Content: 1 x Dish Junction Box , 1 Data Sheet
