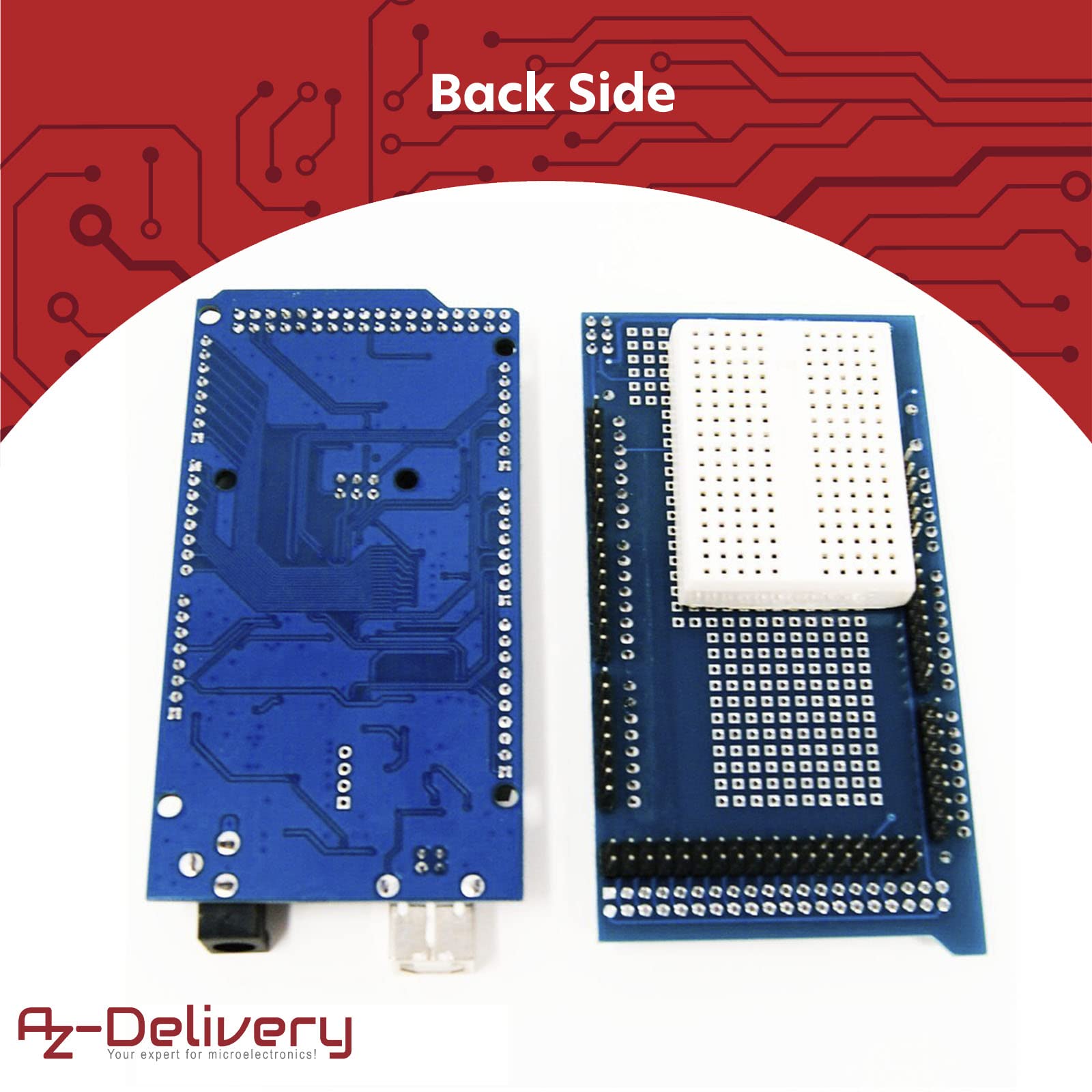

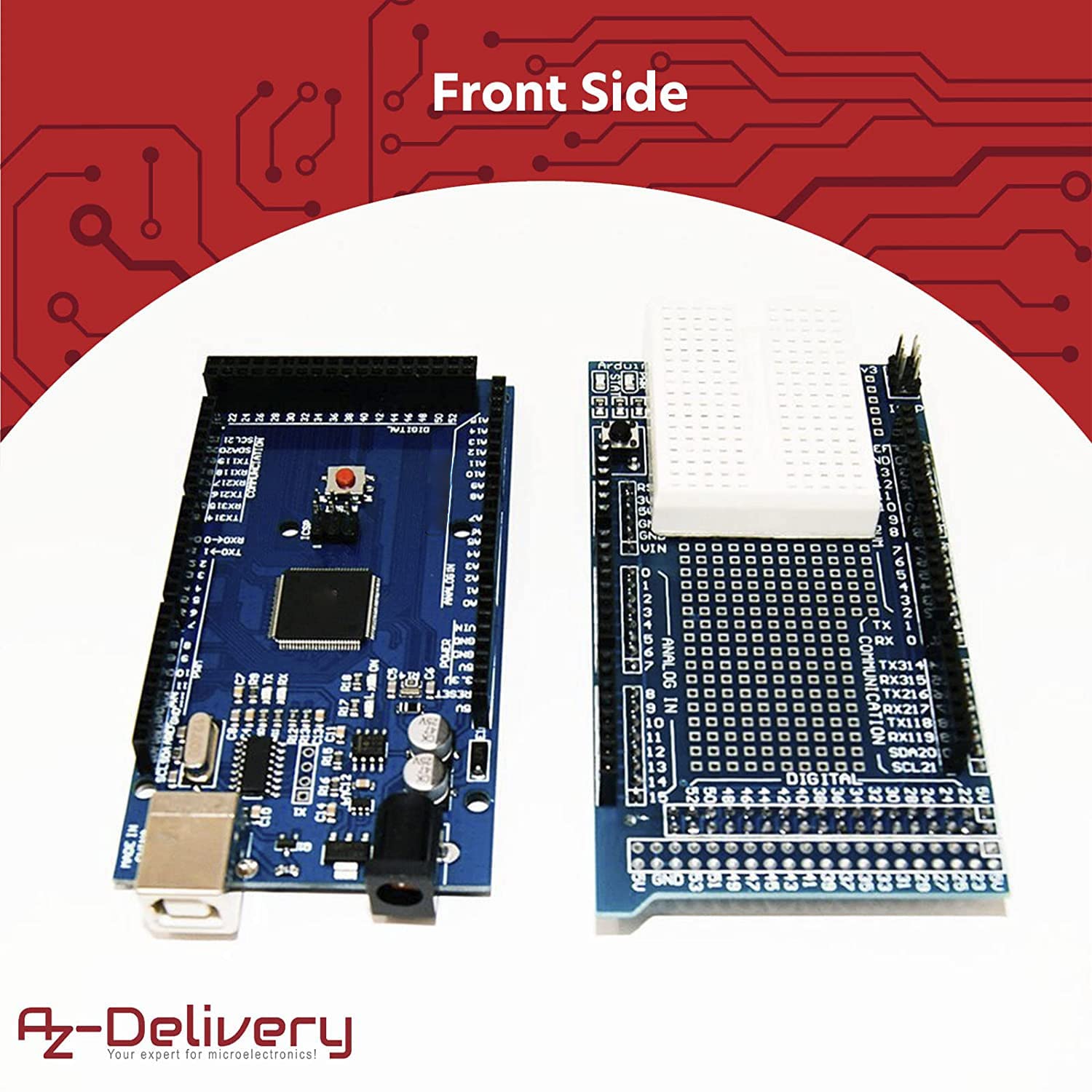

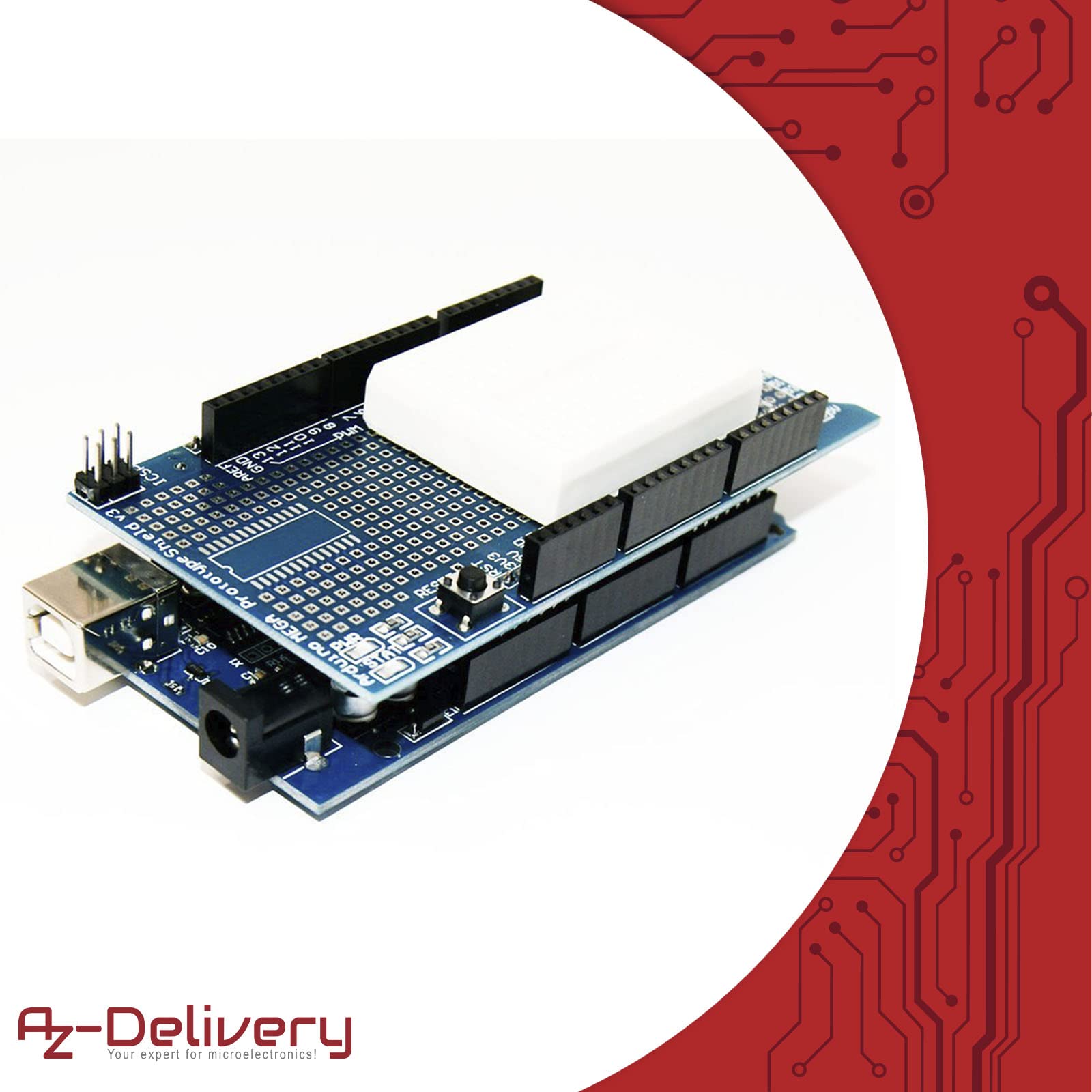

AZDelivery AZ-MEGA2560-Board Bundle with Prototype Shield including eBook

• ✅ 100% pin and code compatible with the original AZ-MEGA2560-Board
• ✅ AZ-MEGA2560-Board chipset with 16 MHz clock frequency, 256 KB flash memory (incl. 8 KB for bootloader), 8 KB SRAM and 4 KB EEPROM memory; simple PC connection via CH340G USB converter.
• ✅ This product includes an E-Book that provides useful information on how to begin your project, it helps with a quick setup and saves time on the configuration process. We provide an array of application examples, full installation guides and libraries.

Buying the AZ-Delivery AZ-MEGA2560-Board saves you money, but gives you the full power of the original. With the same pin layout and AZ-MEGA2560-Board chipset, you don't have to make any code adjustments and can access the full range of shields compatible with the original Mega. The AZ-MEGA2560-Board can be operated directly on the PC or optionally via an external voltage source with 5.5 x 2.1 mm plug (min. 6V, max. 20V; 7-12V are recommended). A CH340G converter takes over the communication with the PC via USB. Even extensive sketches with up to 248 KB memory can be uploaded (8 KB of the 256 KB flash memory is occupied by the bootloader). Furthermore, the 16 MHz high-clock AZ-MEGA2560-Board has 8 KB SRAM and 4 KB EEPROM memory. 54 digital I/O pins are available, 15 of them with 8-bit PWM as well as 6 external interrupt pins and 16 analog inputs with 10 bit resolution. Two hardware serial connections, SPI and I²C, handle the data transmission. AZ-Delivery Your expert for microelectronics If you are looking for the high quality products for Raspberry Pi, AZ-Delivery Vertriebs GmbH is the right company to get it from. You will be provided with numerous application examples, full installation guides, eBooks, libraries and assistance from our technical experts.
