AZDelivery 5 x Compatible with MT3608 DC-DC Power Supply Adapter Step Up Module compatible with Arduino including eBook

• ✅ AZ-Delivery MT3608 DC-DC Power Supply Adapter Step Up Module is Step Up converter for stepless and efficient high voltage level control (energy loss < 7%).
• ✅ Input Voltage of the AZ-Delivery MT3608 DC-DC Power Supply Adapter Step Up Module is: 2 V - 24 V.
• ✅ AZ-Delivery MT3608 voltage regulator is ideal for raising voltages to a required level, with the output Voltage span from 5 V to 28 V.
• ✅ Dimensions of the AZ-Delivery MT3608 DC-DC Power Supply Adapter Step Up Module are approximately (LxWxH): 36 mm x 17 mm x 6.5 mm.
• ✅ This product includes an E-Book that provides useful information on how to begin your project, it helps with a quick setup and saves time on the configuration process. We provide an array of application examples, full installation guides and libraries.

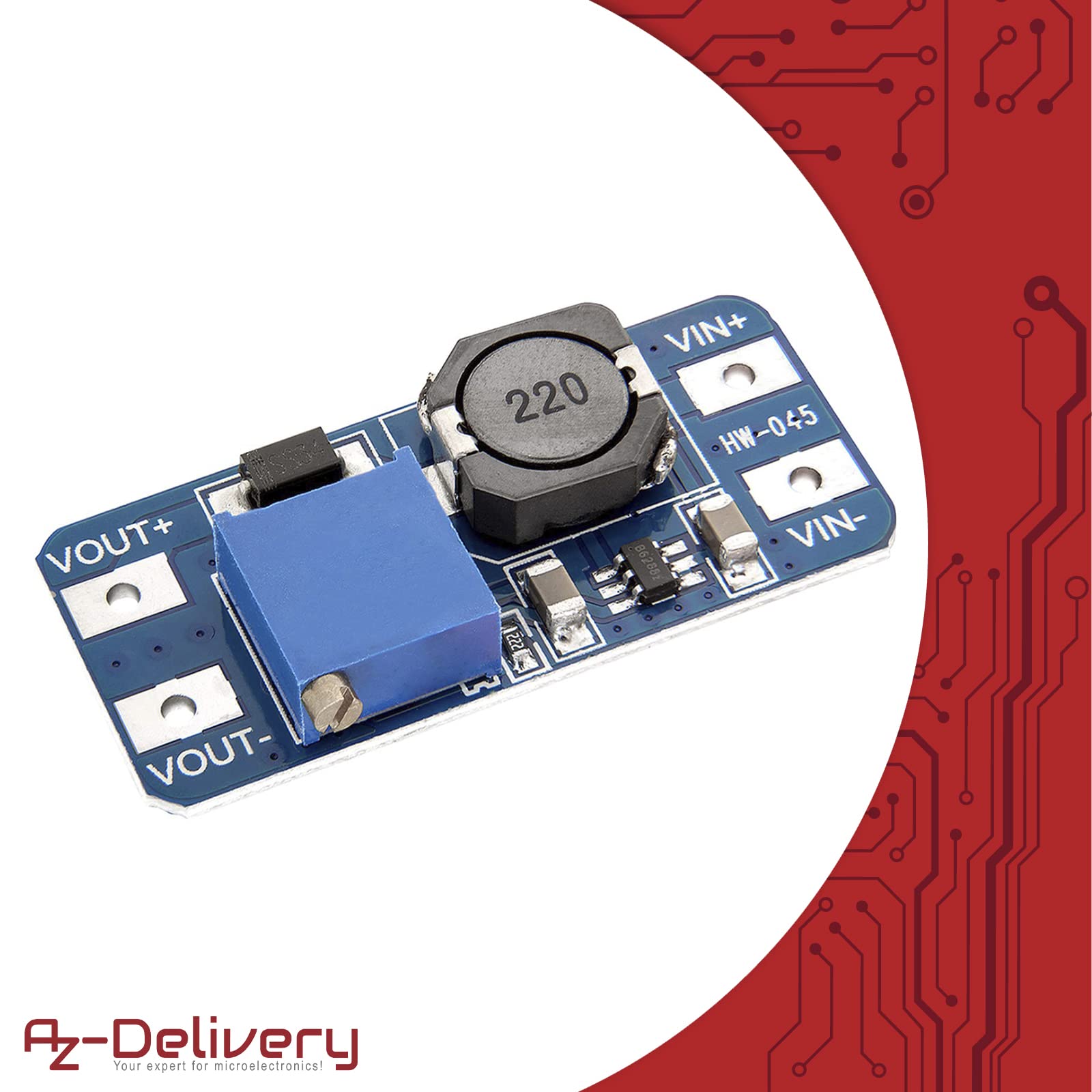

AZ-Delivery MT3608 DC-DC Power Supply Adapter Step Up Module features the MT3608 2 Amp step up (boost) converter, which can take input voltages as low as 2 V and step up the output to as high as 28 V. The MT3608 features automatic shifting to pulse frequency modulation mode at light loads. It includes under-voltage lockout, current limiting, and thermal overload protection. MT3608 DC-DC Power Supply Adapter Step Up Module has a multi-turn trimpot (potentiometer) which you can use to adjust the output voltage. The control range of the adjusting screw is approximately 25 turns. To increase the voltage, turn it counterclockwise. It may happen that the screw only has an influence on the output voltage after 20 turns. With less than 7% loss, AZ-Delivery MT3608 DC-DC Power Supply Adapter Step Up Module is very efficient and makes powering your device easier, without having to connect multiple power sources to power your device. If you are looking for the high quality products for Raspberry Pi, AZ-Delivery Vertriebs GmbH is the right company to get them from. You will be provided with numerous application examples, full installation guides, eBooks, libraries and assistance from our technical experts.
