AZDelivery 3 x PCA9685 16-Channel 12-bit PWM Servo Driver compatible with Arduino and Raspberry Pi Including E-Book!

• ✅ AZ-Delivery PCA9685 16-Channel 12-bit PWM Servo Driver for Raspberry Pi and other Micro Controllers is PWM driver with 12-bit resolution (4096 steps) for up to 16 separately controllable devices, up to 6 V operating voltage.
• ✅ PCA9685 16-Channel 12-bit PWM Servo Driver is highly compatible with 3.3 V - 5 V I²C connection with choice of 62 selectable addresses, up to 992 PWM signals are controllable with only one controller.
• ✅ This handy PCA9685 Servo Driver has Polarity Reversal protection and 220 Ohm resistance at each output for comfortable Servo and LED control.

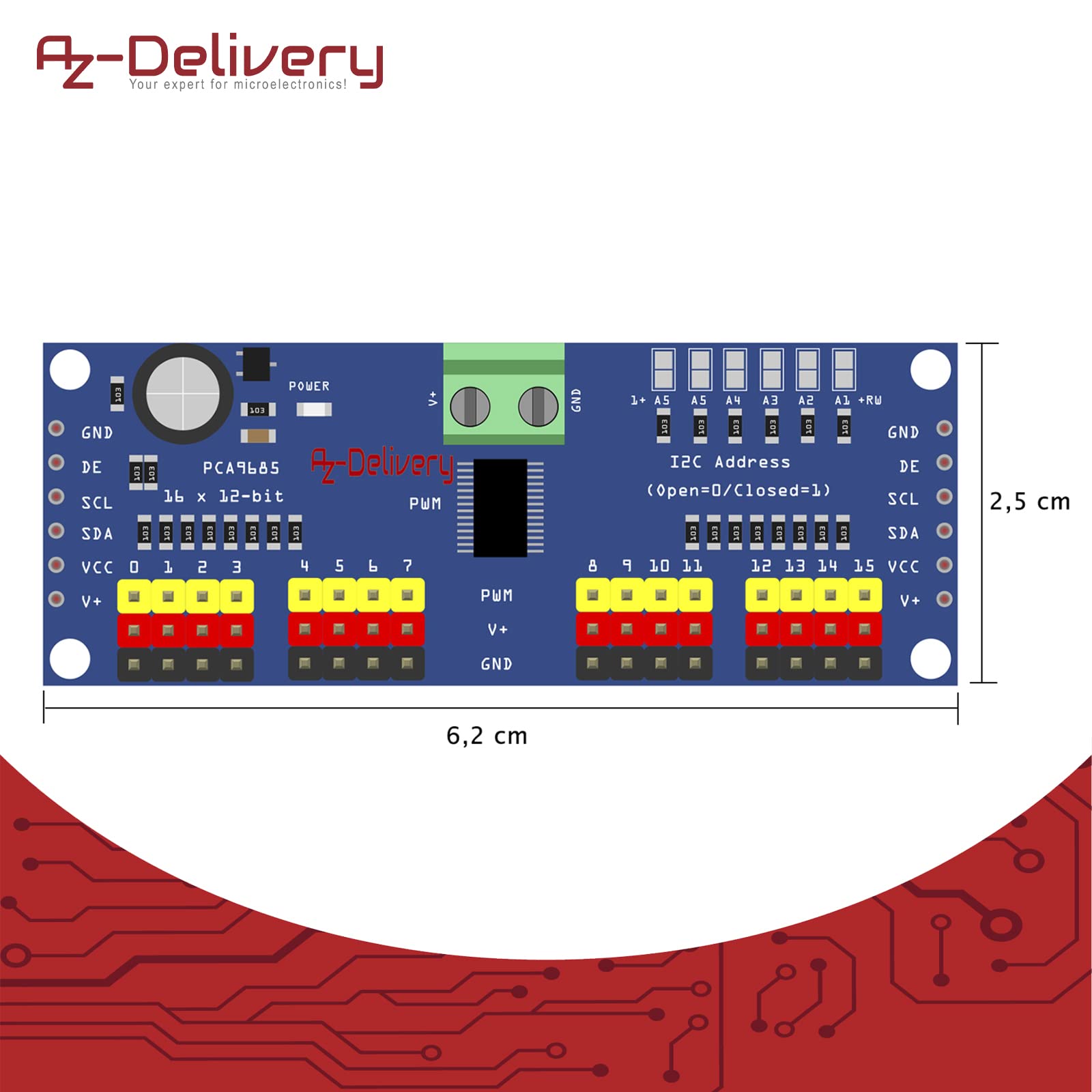

• ✅ Dimensions of the AZ-Delivery PCA9685 16-Channel 12-bit PWM Servo Driver for Raspberry Pi and other Micro Controllers are (L x W x H): 62 mm x 25.5 mm x 15 mm (68 mm including Pins).
• ✅ This product includes an E-Book that provides useful information on how to begin your project, it helps with a quick setup and saves time on the configuration process. We provide an array of application examples, full installation guides and libraries.

AZ-Delivery PCA9685 16-Channel 12-bit PWM Servo Driver for Raspberry Pi and other Micro Controllers is the perfect choice for any project that requires a lot of servos. The PCA9685 comes with its own clock. So your controller only has to transmit changes and the driver transmits the signals independently. The Daisy-Chain-Layout of the board allows the comfortable connection of up to 62 separately controllable driver with just one controller. With an adjustable pulse frequency of up to 1.6 kHz and 4096 steps for each of the 16 outputs, even the finest signal changes are possible. AZ-Delivery Your expert for microelectronics If you are looking for the high quality products for Raspberry Pi, AZ-Delivery Vertriebs GmbH is the right company to get it from. You will be provided with numerous application examples, full installation guides, eBooks, libraries and assistance from our technical experts.
