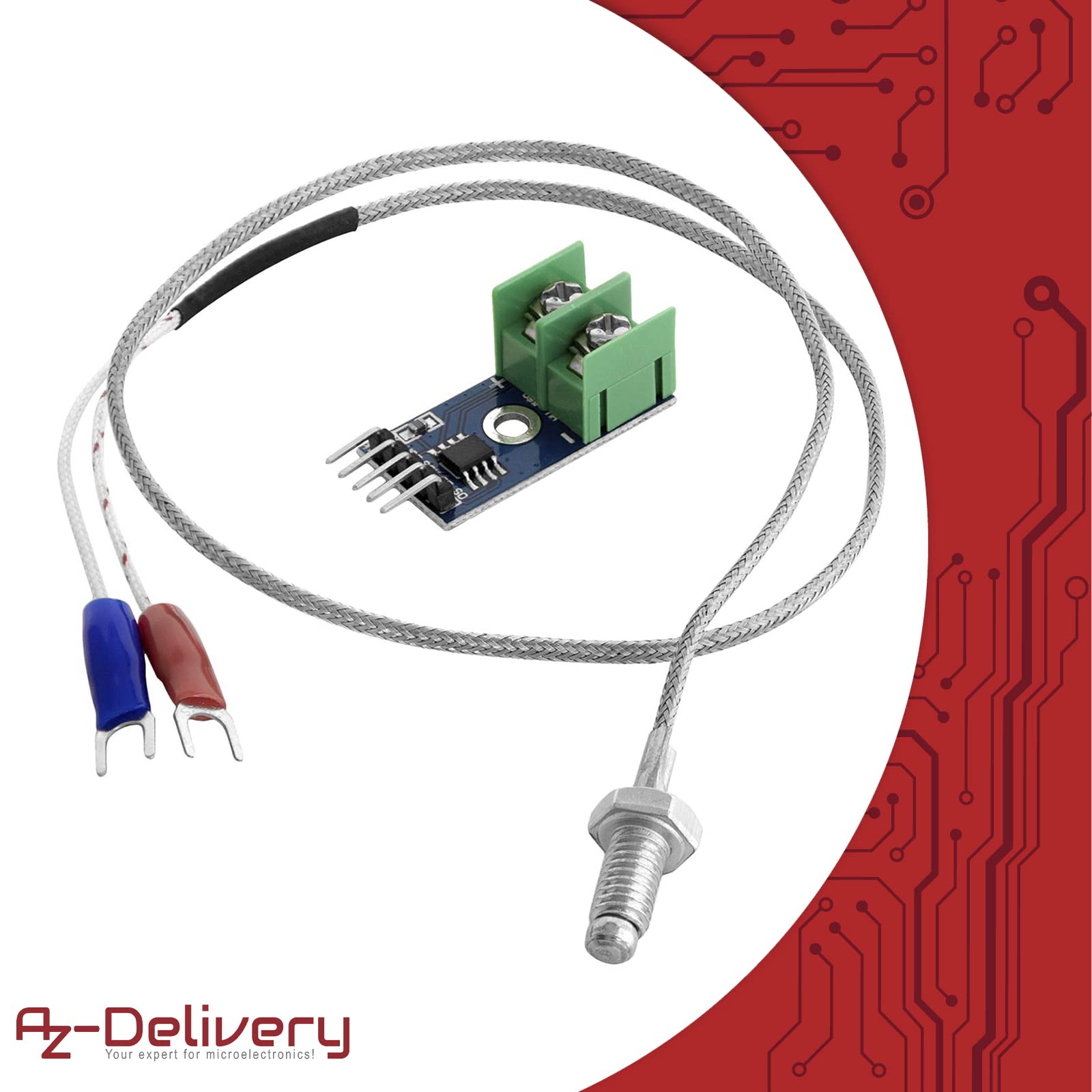

AZDelivery 3 x MAX6675 Temperature Sensor K Type Thermocouple compatible with Arduino and Raspberry Pi including E-Book!
About this item
- The AZ-Delivery MAX6675 comes with a probe that can withstand very high temperatures of up to 1250 degrees Celsius and measure correctly from 0 to 1024 degrees Celsius
- The resolution of the thermal sensor is 0.25 degrees Celsius
- Operating voltage (module) 3 V to 5.5 V
- Weight: approx. 4 g and size 15 mm x 25 mm x 13 mm
- โ This product contains an e-book that contains useful information about the beginning of your project, it helps with a quick setup and saves time in the configuration process. We offer a range of application examples, complete installation guides and libraries.
Product description

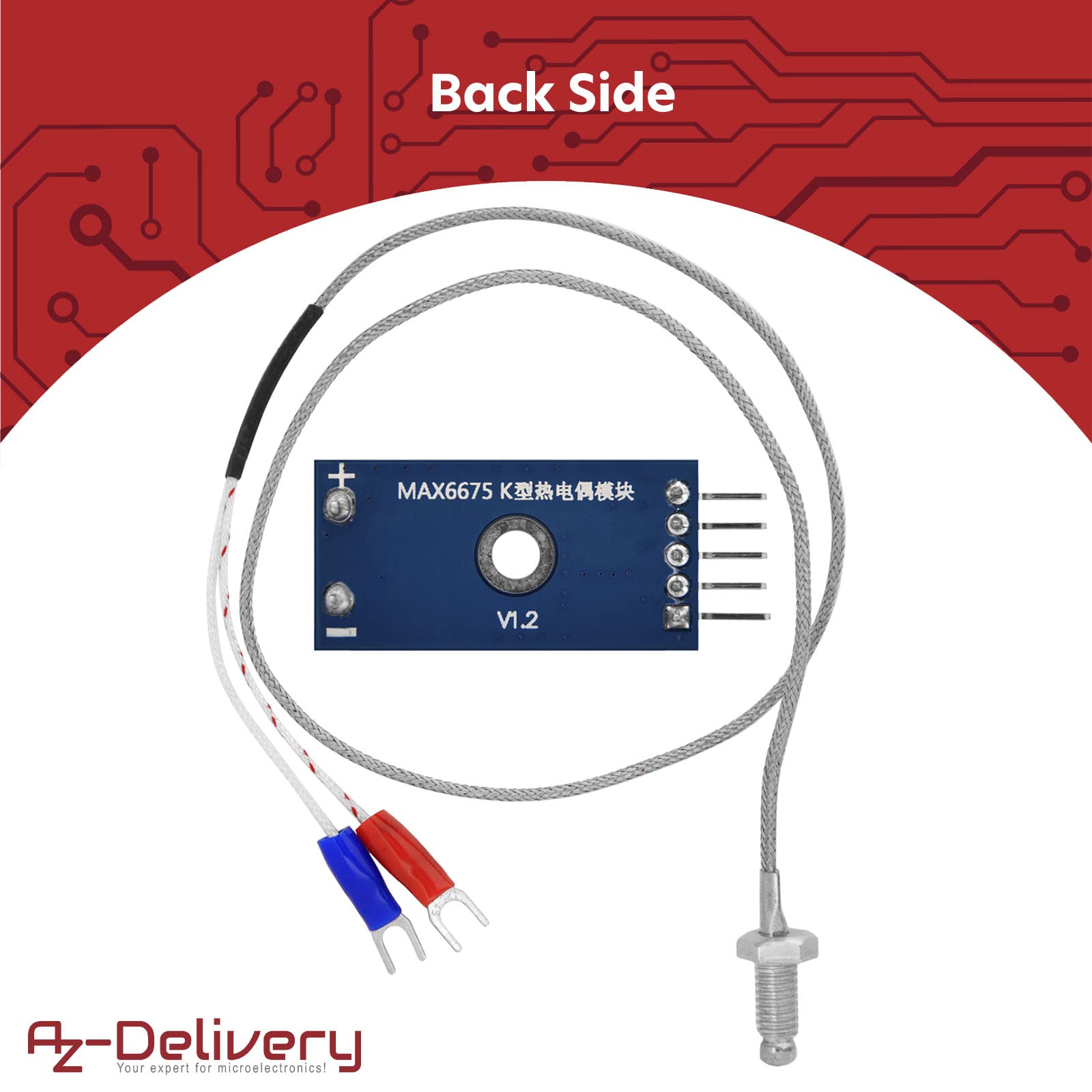

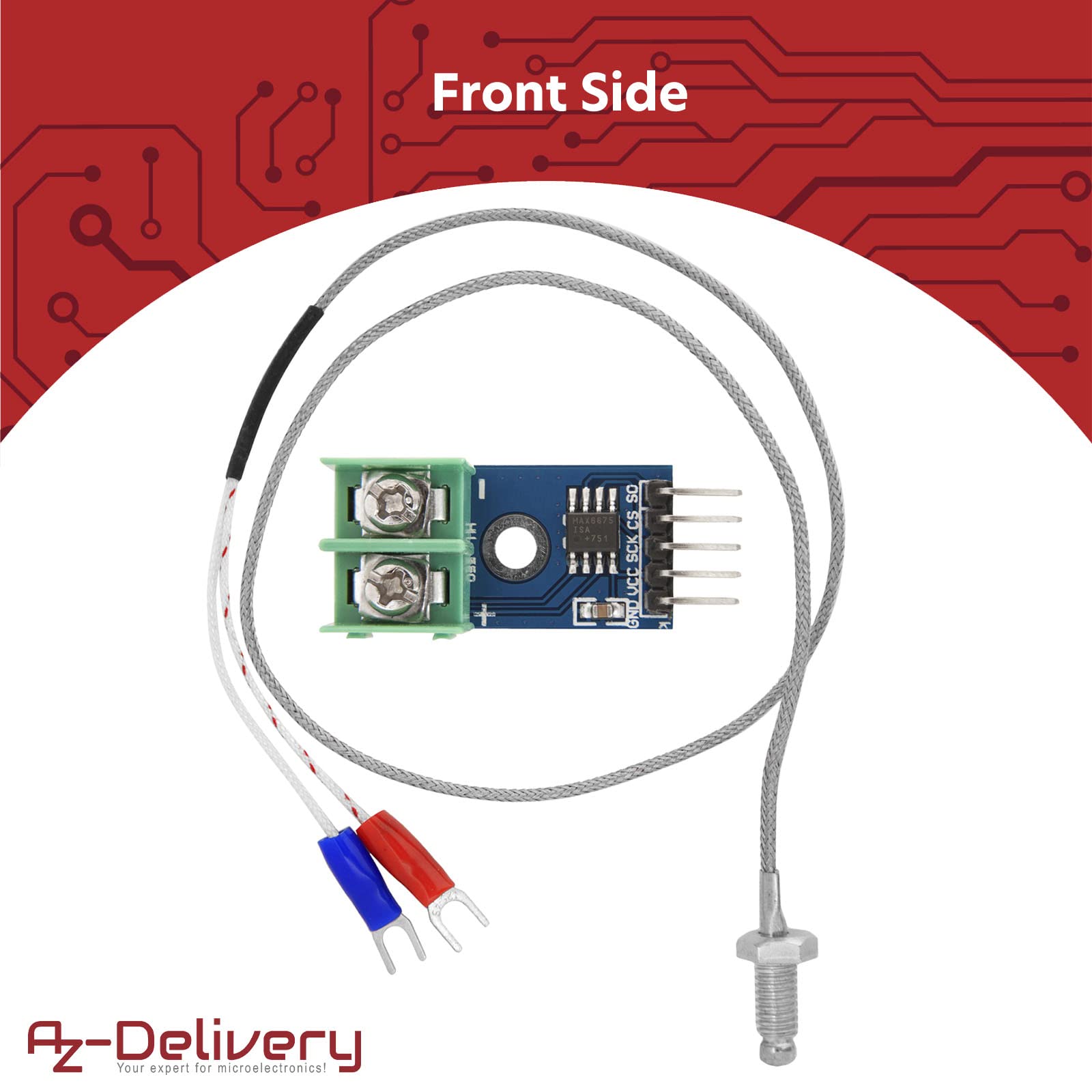

Description The AZ-Delivery MAX6675 comes with a probe that can withstand very high temperatures of up to 1250 degrees Celsius and measure correctly from 0 to 1024 degrees Celsius. The resolution of the thermal sensor is 0.25 degrees Celsius. Operating voltage (module) 3 V to 5.5 V. Weight: approx. 4 g and size 15 mm x 25 mm x 13 mm. wiring diagram The MAX6675 module has two connection sides, one to the microcontroller and one to the sensor (+ and -). Module MAX6675 with microcontroller GND (Ground)GND VCC5V SCK (Serial Clock) 10 CS (Chip Select) 9. SO (Serial Output) 8 Module MAX6675Thermal Sensor + Red Blue
