AYWHP 20 kg Servo Motor High Torque Digital RC Servo - Metal Gear, DS3218 180° Control Angle Digital Servo Motor, High Precision Servo Motor for 1/10 RC Car, Robot Compatible with Arduino

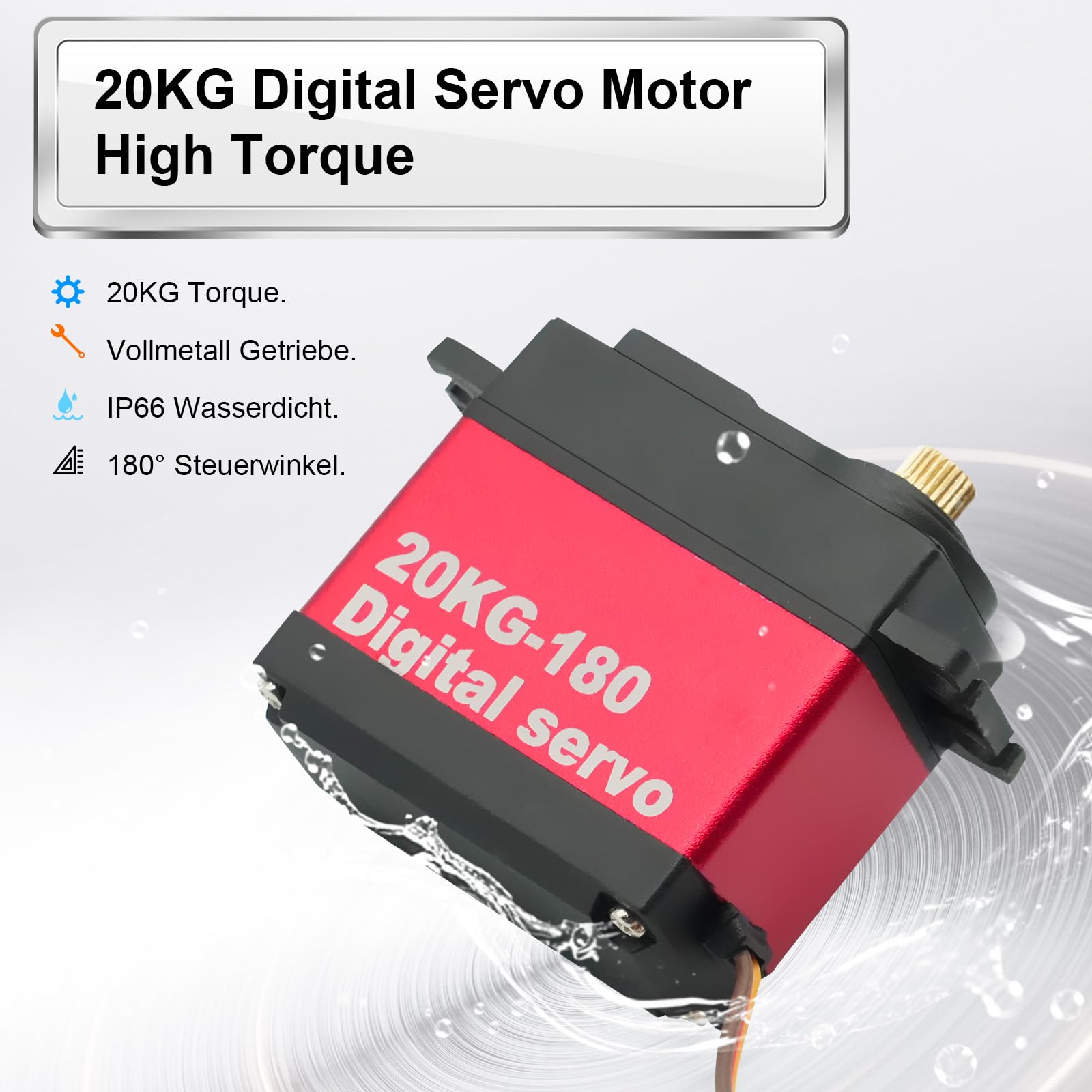

• High torque performance: with up to 20 kg · cm at 4.8 V and 22.8 kg · cm at 6.8 V, the 20 kg servo motor offers exceptional performance for heavy RC models and demanding applications. The digital RC servo ensures precise control and fast response times.

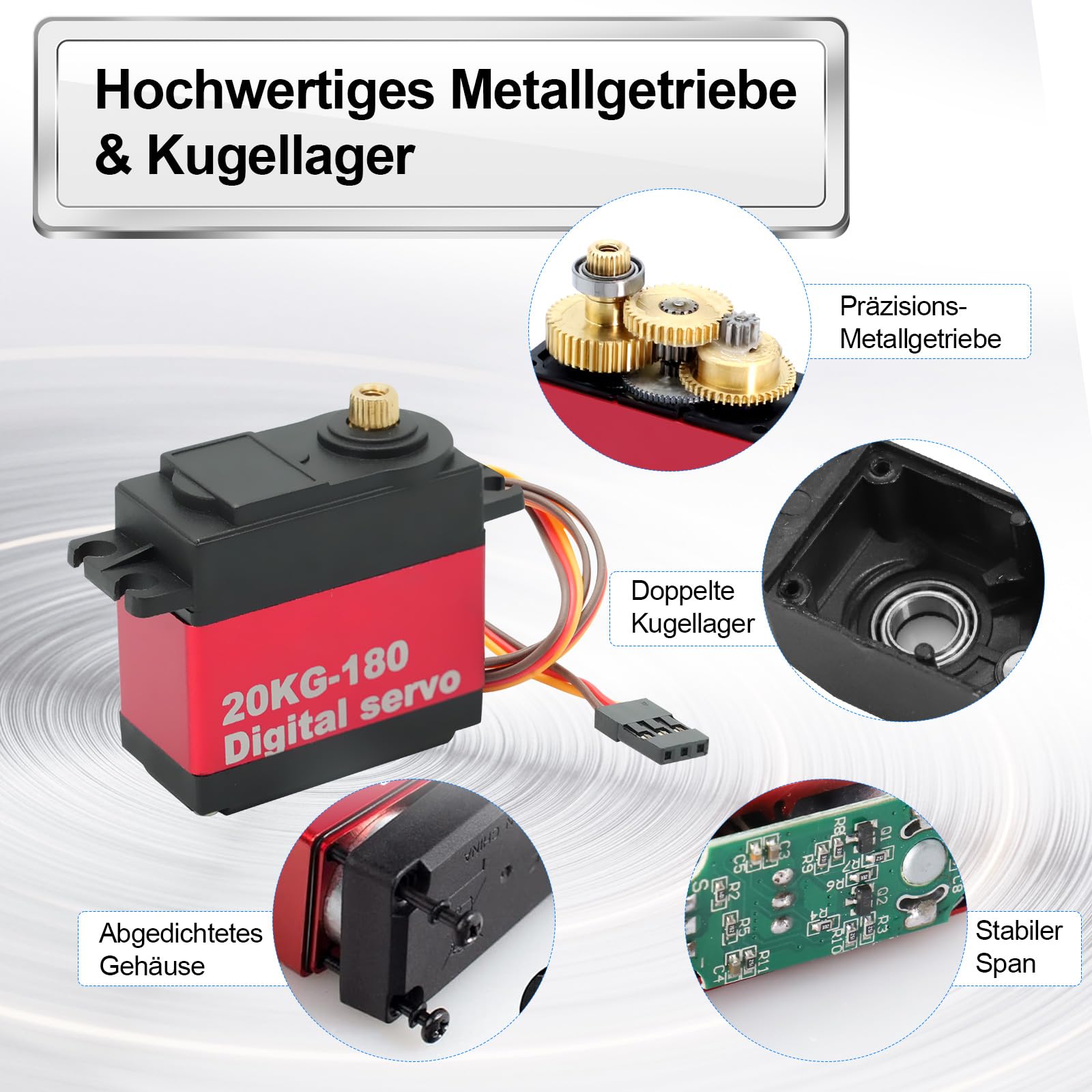

• HEAVY DUTY METAL GEARS: Equipped with metal gears, the servo motor ensures high durability and resistance to wear and tear. The servo motor is ideal for use in demanding RC projects where longevity is crucial.
• PRECISE CONTROL & FAST RESPONSE TIME The digital RC servo offers fast response times and precise movements with 0.18s/60° at 4.8V and 0.14s/60° at 6.8V. Perfect for RC cars and robots that require precise control.
• Waterproof Design The servo motor is equipped with IP66 waterproof rating, so it works reliably in different weather conditions. It is ideal for use on RC crawlers and off-road vehicles.

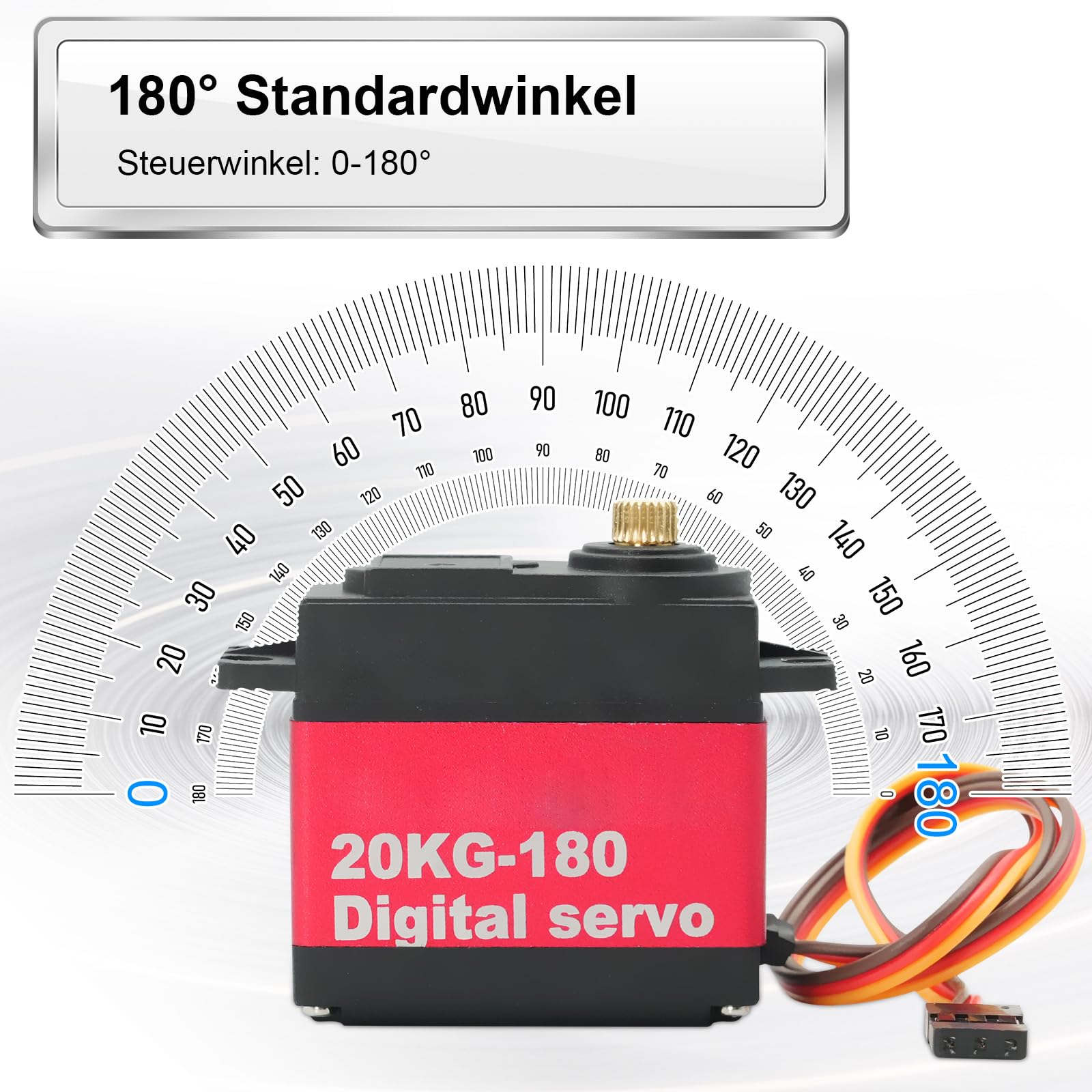

• Wide range of applications: this digital RC servo is versatile and suitable for RC cars, flight models and robots. With an operating voltage of 4.8V to 6.8V and a control angle of 180°, it offers wide compatibility for various RC projects.

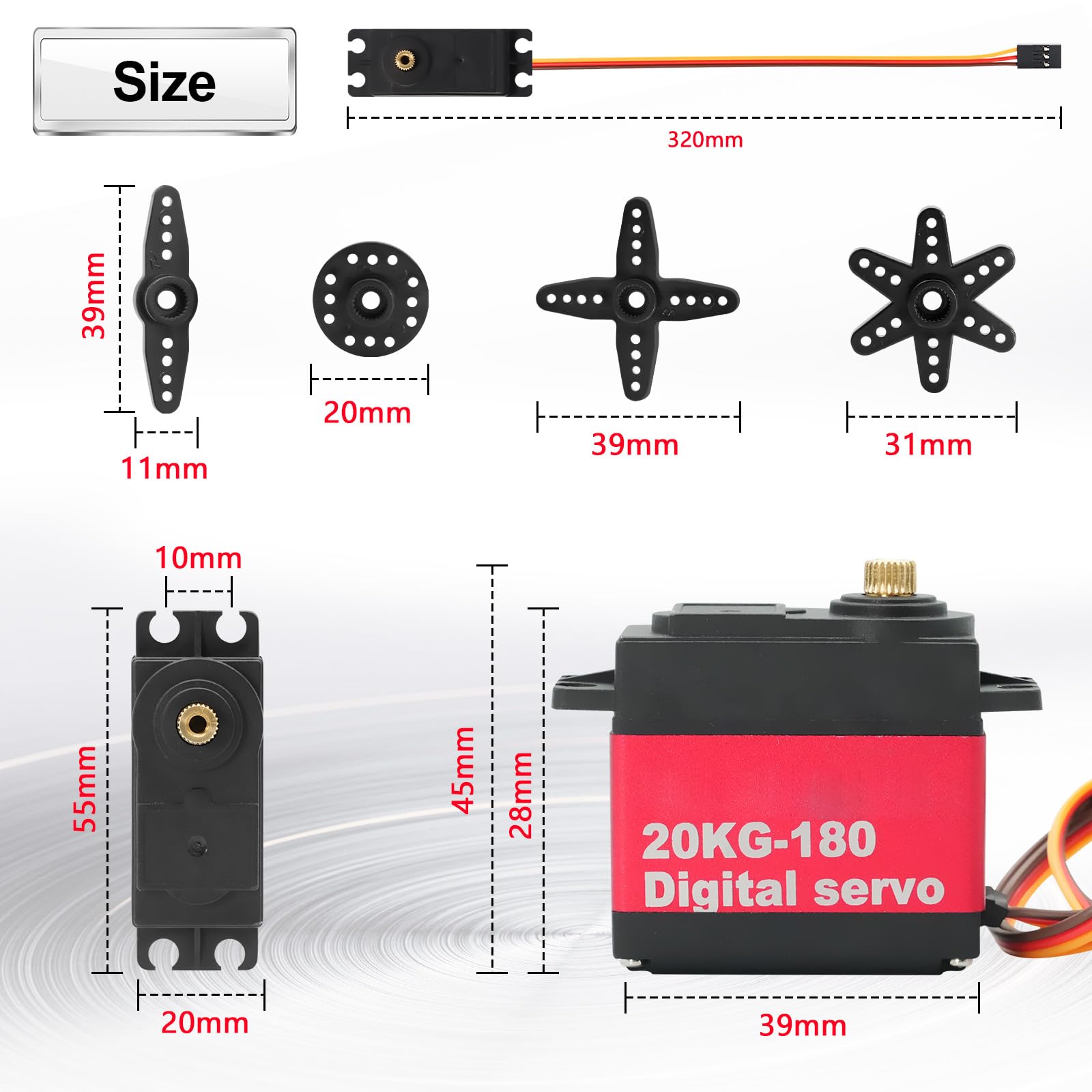

Technical specifications: Motor: digital RC servo motor. Torque: 20.5 kg cm (4.8 V) / 22.8 kg cm (6.8 V). Rotation angle: 180° at 2.5ms pulse width. Response time: 0.18s/60° (4.8V) / 0.14s/60° (6.8V). Operating voltage: 4.8-6.8V DC. Current consumption: 2100 mA ± 10% (4.8 V) / 2700 mA ± 10% (6.8 V). Pulse range: 500-2500μsec (0-180°). Dead band width: 3μsec. Neutral position: 1500μsec. Mechanical properties: Housing: CNC aluminium + PBT plastic. Transmission: 5-stage metal gear Bearing: double ball bearings. Connection: 25T metal servo arm (diameter 5.9 mm). Cable length: 320 mm ± 5 mm. Dimensions: 40.0 x 20.5 x 40.5 mm (L x W x H). Weight: 56 g ± 5%. SPECIAL FEATURES: Waterproof according to IP66 standard. Integrated overload protection. High-precision digital control. Robust metal housing for RC use. Compatible with 1/10 model vehicles Areas of use: RC model making (cars, boats, robots). Robotics and Automation Industrial Control Systems Note: This digital servo motor requires a compatible RC receiver or control. The maximum power is achieved at 6.8 V operating voltage.
