AyeVision Sound Card, 6 Channel External Sound Card USB 2.0 External 7.1 5.1 Surround Sound Optical S/PDIF Audio Sound Card Adapter for PC Laptop Recording Compatible with Windows 10/8/7/XP

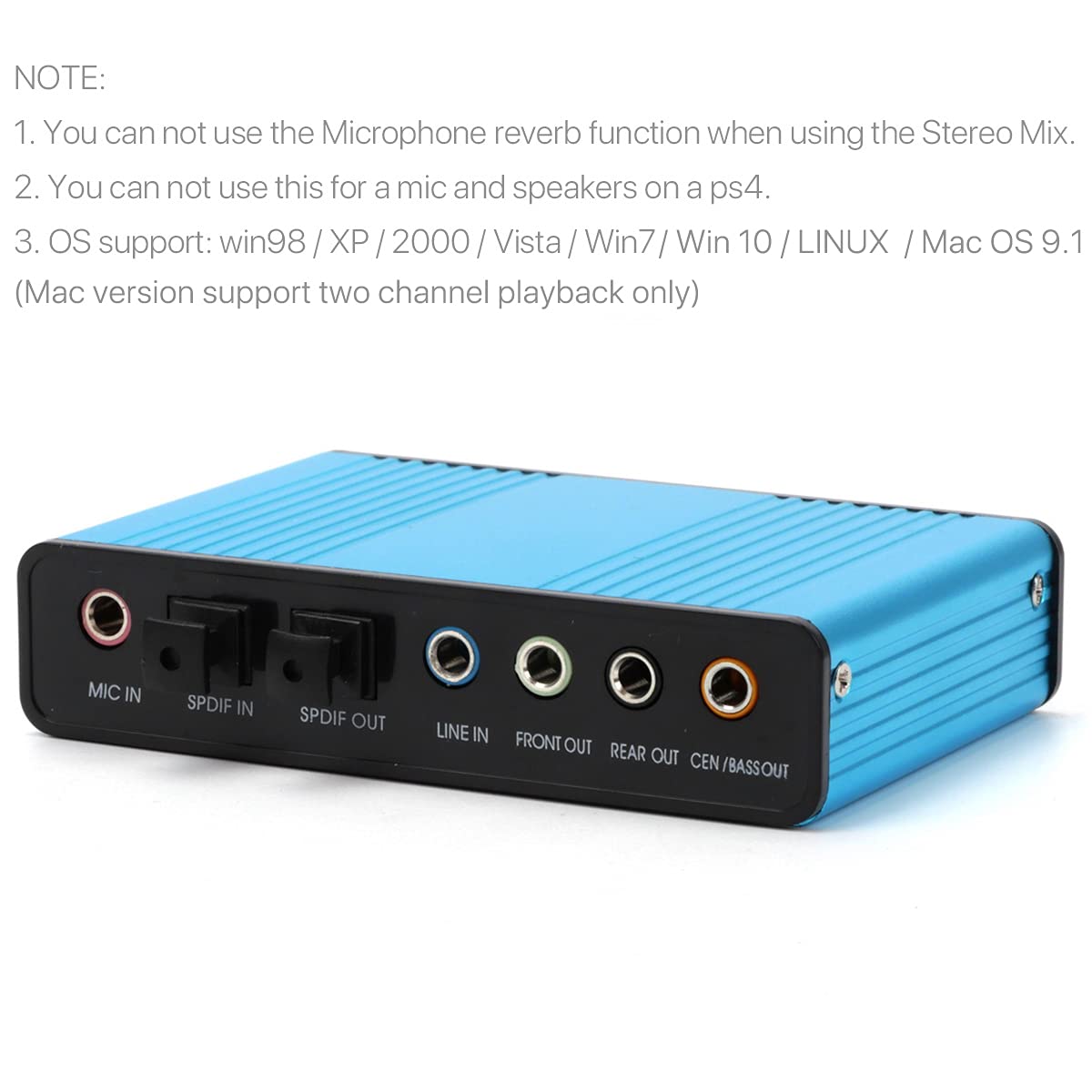

• Note: You can not use the Microphone reverb function when using the Stereo Mix. USB sound is and USB audio controller. It supports 32KBz, 44.1khz. (which two need driver or application software support) and 48Khz sampling rate in digital recording, 48KHz sampling in digital nalog audio playback.
• In digital playback mode, it receives audio stream from PC via USB interface and transmits audio data according to the AESEBU, IEC60958, SPDIF consumer interface standards. Only R L channel PCM audio in 5.1 channel can be conveyed in digital playback
• In digital recording mode, it receives SPDIF digital audio input and sends back to PC through USB. Three sampling rates, includes 32KHz,44.1KHz are automatically locked internally. In analog recording mode, a fixed 48KHz sampling rate is supported by analog audio recording.
• OS support: LINUX / win98 / XP / 2000 / Vista / Win7 / Win 10 / LINUX / Mac OS 9.1 (Mac version support two channel playback only). If you want the fiber output to support 5.1-channel output, you must have the following conditions:1.The sound source must be DTS 5.1 channels, such as 3D games, HD movies. If it is a general MP3 or general 2-channel video, you can only have 2-channel effect.
• The player settings are important: if it is set up with PowerDVD software from the fiber output "Passthrough" through. Meaning that the sound card is only responsible for the fiber signal output, not decoding. Dispensers strongly recommend KMP this player, the function is very powerful.3. After the fiber output must be AC3 / DTS decoder, or built-in AC3 / DTS decoder amplifier and the like. Compare with similar items.

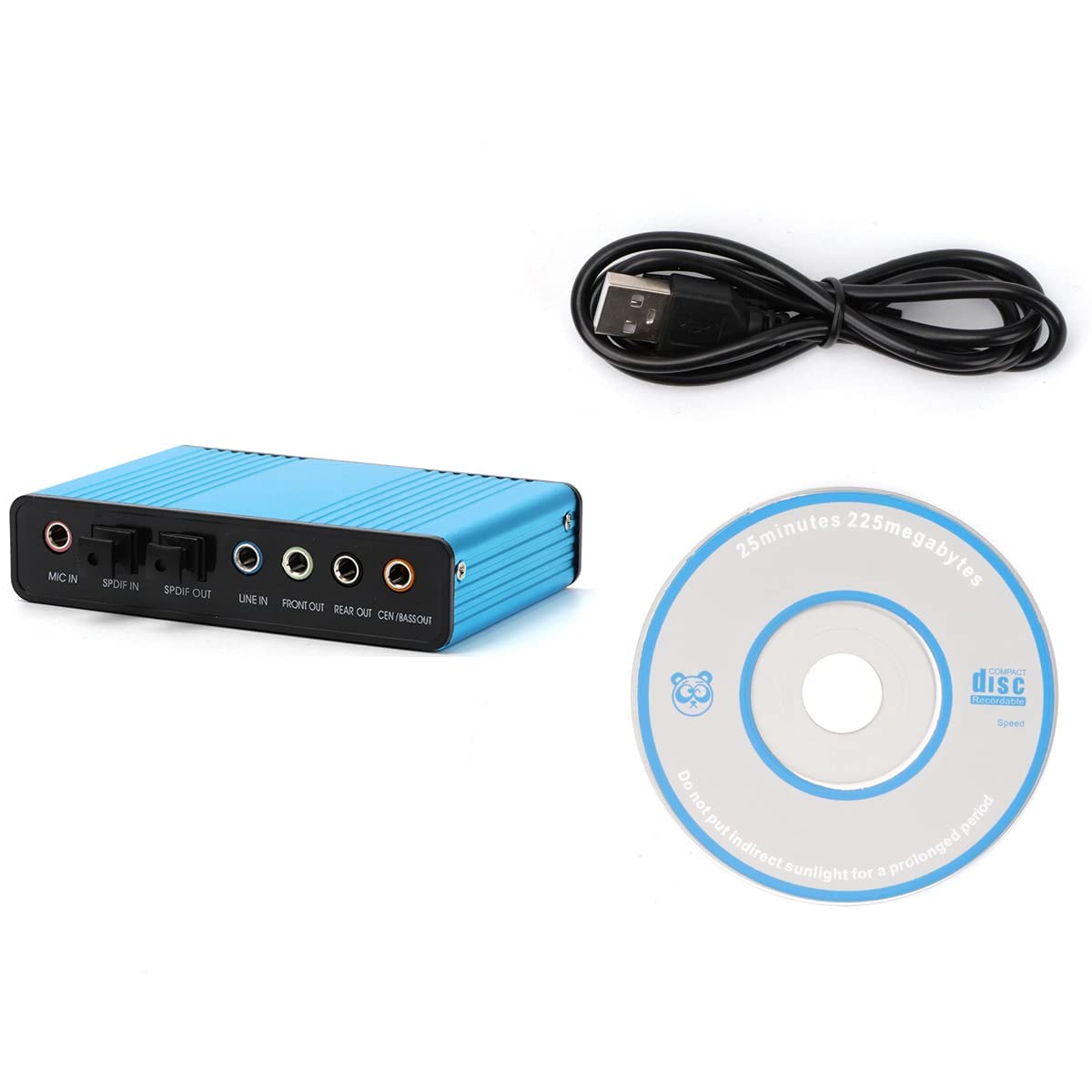

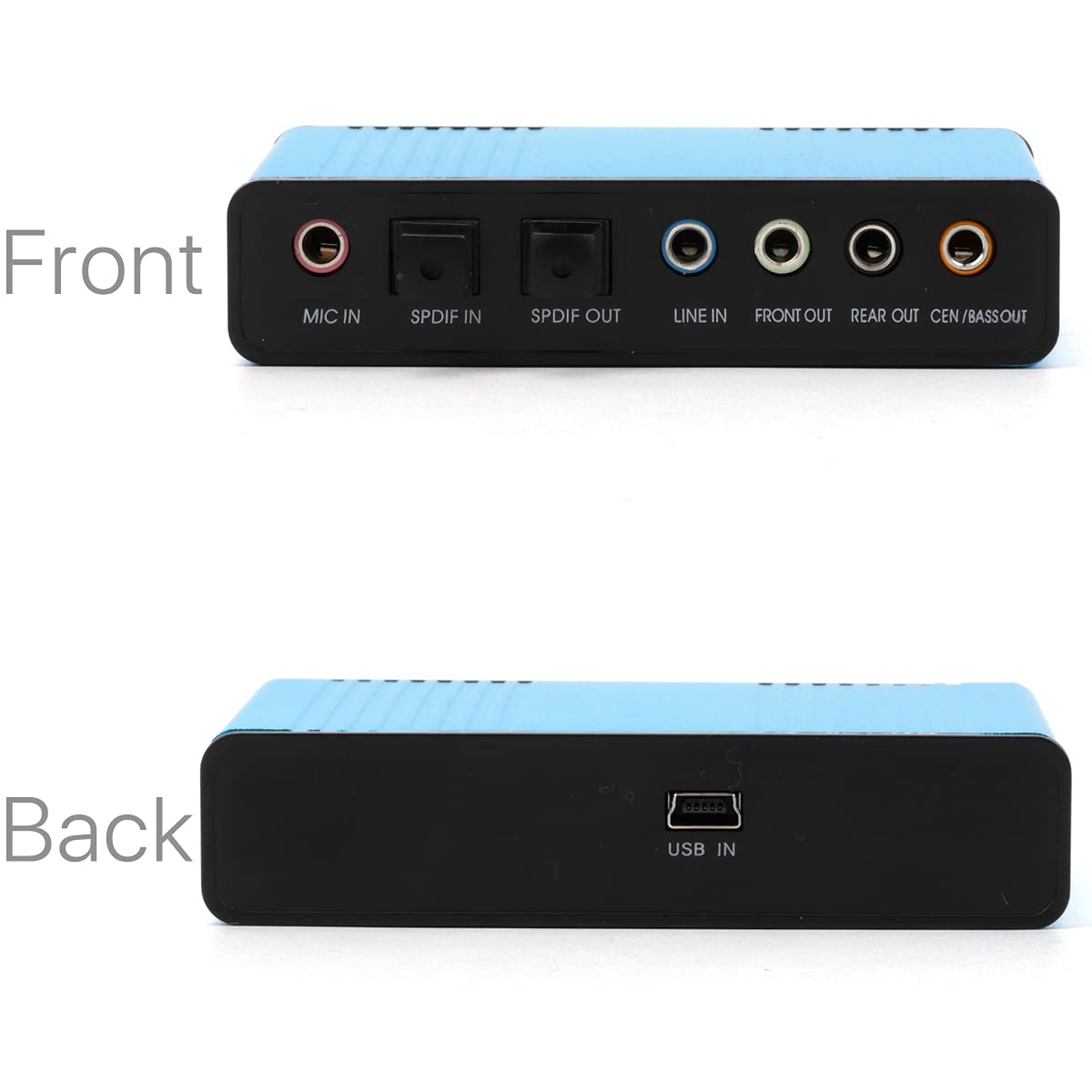

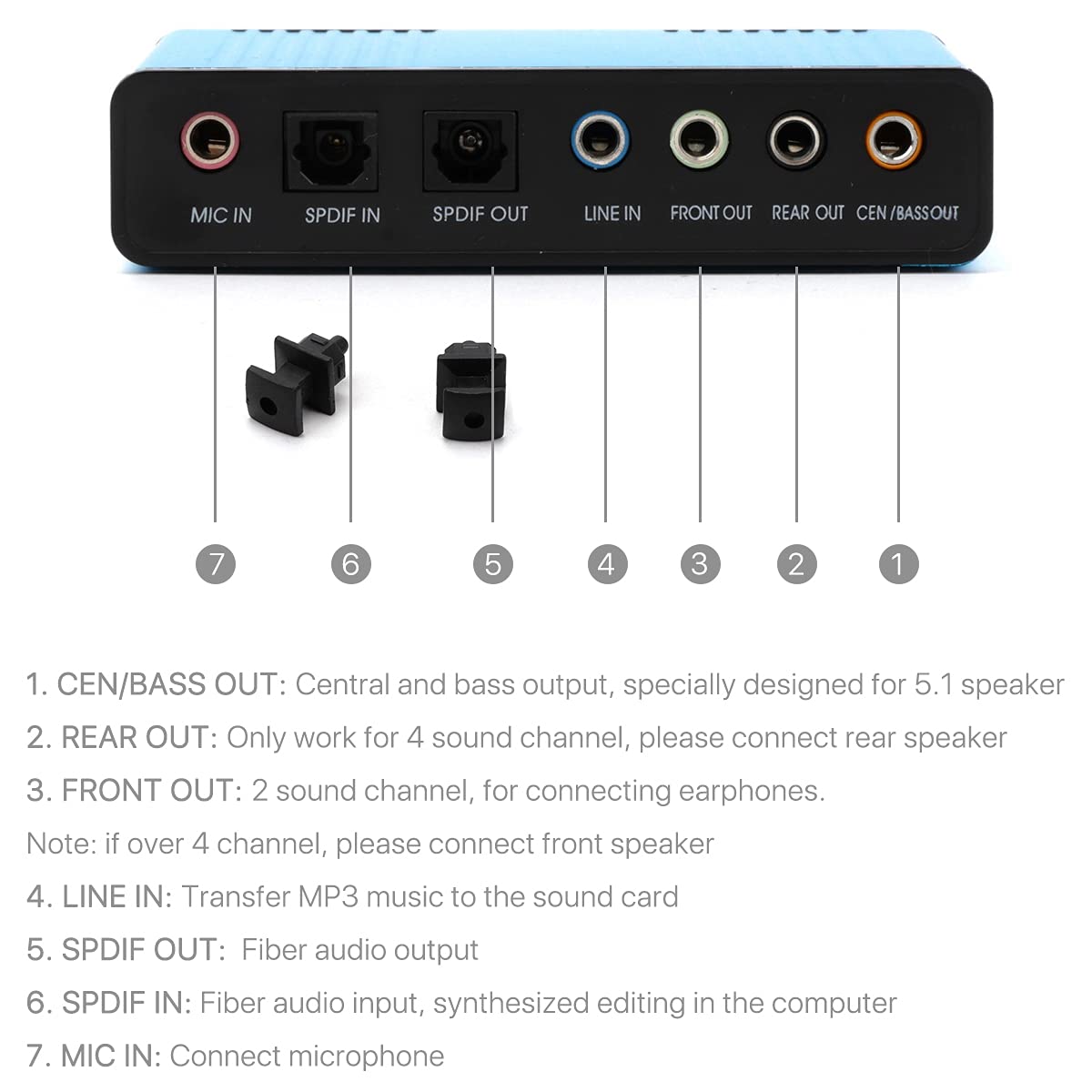

Specifications Chipset: Cmedia CM6206 Colour: Blue Inputs: SPDIF in, Line in, Mic in Outputs: SPDIF out, Front out, Rear out, Cen/Bass out Sampling Rate Support: 32KHz, 44.1KHz and 48KHz sampling rate in digital and analog recording USB Compliant Support: USB specification V1.1, USB audio device class V1.0 Transmission speed: full speed 12Mbit What's in the Package 1 x USB Audio Card 1 x Driver Mini CD 1 x Mini USB Cable Note Note: You can not use this for a mic and speakers on a ps4. Because the PS4 will have no way of knowing what the device is. F&Q Question: Did everything right but can't get front lt an rt speakers to work? Any suggestions? Suggestions: 1-Test outputs with a set of headphones or speakers that you know work maybe test them with your phone, ipod, etc. 2- Restart the computer, make sure a working USB cable is connected on both ends the same goes for headphone cables, may sound a little condescending but it happened to the best of us. 3- Make sure drivers are installed (the folder on a disc called something like CM6206-LX you can download from http://www.cmedia.com.tw/EN/DownloadCenter_Detail2.html you will have to register by putting a user name and password I had to enable pop-ups for the website to be able to download) 4- Check if the device is set as default "PLAYBACK DEVICE" by right-clicking on the speaker icon in the on the lower right corner of your desktop next to the clock and selecting "PLAYBACK DEVICES" (you will have 3 to 4 options) and select something like "USB multi-channel audio device", I'm sorry but I don't have it in front of me, but I will tell you that the device will give you two options one analog and one digital which is for the optical out (the one with the plastic plug), you want to select the ANALOG for the standard headphone plugs.
