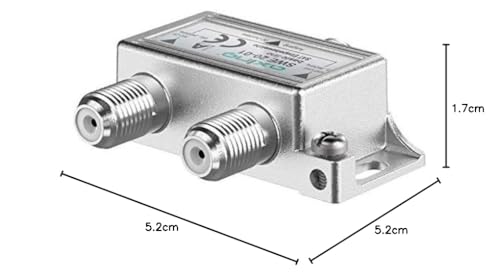

Axing SWE 20-01 SAT / terrestrial combiner 2-way (DC pass to LNB) for injection of FM Freeview DVB-T to satellite signal

• For combination of signals from satellite antenna and aerial eg. Freeview
• Terrestrial signal can be inserted to SAT signal, then distributed via one coaxial cable (it is recommend to split the signal with a TV wall socket)
• DC-pass from combined output to Sat input (to power LNB from satellite receiver)
• Frequency range: Terrestrial 5-862 MHz, SAT 950-2400 MHz, combined signal 5-2400 MHz
• Metal housing with F-connectors, high shielding according to Class A

Product Description With this inlet switch, you can combine satellite signals and terrestrial (DVB-T, FM, DAB + or cable TV) on one line. No need to use a further cable. The combined signal is distributed via coaxial cable and can be split again at an antenna socket. A filter is installed in the combiner which can also be used to separate the combined signal. The satellite connection port has a passage for DC and control signals such as DiSEqC. The metal housing is high-shielded, the shielding dimension corresponds to class A. The transmission loss is max. 2.5 dB in the terrestrial range (5-862 MHz) and in the satellite range (950-2400 MHz). Box Contains combiner
