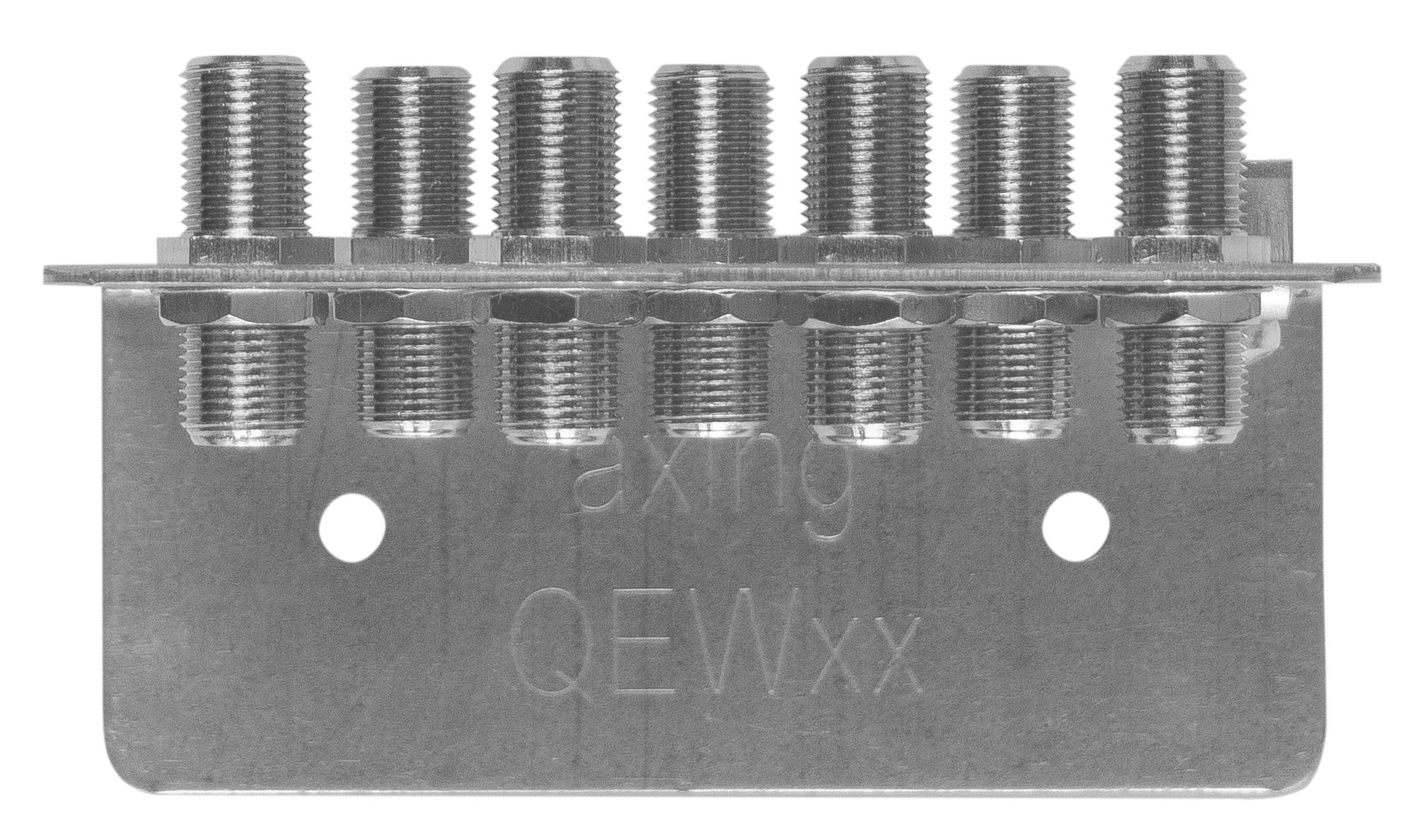

Axing QEW 7-50 Earthing Angle 7-Way Potential Compensation Coaxial Earth Block Galvanised

• For grounding and potential equalization of coaxial cable networks (cable TV and multimedia or Internet) according to EN 60728-11
• For installation in distribution and mounting cabinet, complies with the specifications of Vodafone Kabel Deutschland
• With 7 high-quality F-double sockets and connection for external potential equalization
• Shielding parameter according to EN 50083-2/A1 > 105 dB, transmission loss 28 dB (frequency range 5-2200 MHz)
• Also suitable for satellite distribution with multi-switch or antenna system

Product Description With this earthing angle, the required grounding of coaxial cable networks is easy to implement. The grounding angle ensures grounding and potential compensation according to EN 60728-11. It can be installed in CATV cable cabinets and complies with the specifications of Vodafone Kabel Deutschland. The connection to the potential equalization is on the outside. To dissipate fault currents (potential compensation), the grounding angle is connected to the main earthing rail via a 4 mm² copper cable (not included). Ground angle material: galvanised steel. The built-in F-double sockets (premium-line F-double sockets CFA 26-02) meet the highest standards. The shielding factor is > 105 dB, the transmission loss 50 dB, 86...862 MHz >40 dB, 950 - 2200 MHz > 28 dB. Box Contains Earthing angle with F-double sockets
