AV Access 70M(230ft) 4K60Hz HDMI Wall Plate Transmitter (HDBaseT), VGA + HDMI Ports, HDR10 and 3D, over RJ45/Cat5e/6a/7, IR + RS232 + EDID, HDCP 2.2, 3.5mm Aux, Work with POE Receiver

• 【𝟒𝐊@𝟔𝟎𝐇𝐳 𝐕𝐆𝐀 + 𝐇𝐃𝐌𝐈 𝐄𝐱𝐭𝐞𝐧𝐝𝐞𝐫】AV Access professional wall plate transmitter comes with VGA and HDMI inputs( HDMI priority) and a HDBaseT output. It supports high resolution up to 4K@60Hz 4:2:0 8bit with HDR10 3D Effect over cat5e/6a/7 signal cable. It supports HDMI1.4 and HDMI 2.0b (4K/UHD @60Hz with 4:2:0 chroma subsampling only). It supports fantastic audio effect such as Dolby Atmos, DTS:X, Dolby TrueHD, DTS-HD Master and LPCM 2.1/ 5.1/ 7.1CH.PCM 2.1/ 5.1/ 7.1CH.
• 【𝗔𝗱𝘃𝗮𝗻𝗰𝗲𝗱 𝗖𝗼𝗻𝗳𝗶𝗴𝘂𝗿𝗮𝘁𝗶𝗼𝗻】AV Access HDBT HDMI Receiver supports Bi-directional IR and RS232 control, control over IR remote or RS232. It supports HDMI 1.4/2.0b and HDCP 2.2 to prevent video content from copying. It supports automatic EDID management, automatically choose the most suitable resolution for your devices.
• 【𝗙𝗮𝗿-𝗥𝗲𝗮𝗰𝗵𝗶𝗻𝗴 𝗨𝗽 𝘁𝗼 𝟳𝟬𝗠/𝟮𝟯𝟬𝗳𝘁】AV Access HDMI Transmitter with IR Control supports long distance transmission without data loss and latency, it is far-reaching up to 40M(130ft) for uncompressed 4K@60Hz signal and 70m( 230ft) for 1080P@60Hz signal.
• 【𝗚𝗿𝗲𝗮𝘁 𝗖𝗼𝗺𝗽𝗮𝘁𝗶𝗯𝗶𝗹𝗶𝘁𝘆】AV Access 4K HDMI Extender Faceplate Transmitter supports standard HDCP 2.2/1.4. It is compatible with all operating system, such as windows, Linux, MacOS etc. It works perfectly with PC, PS3/PS4, X BoX, DVD Player, Apple TV, Satellite Box, Cable Box, Android Box etc. Note: It must work with PoH receiver.
• 【𝗖𝗲𝗿𝘁𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻 𝗮𝗻𝗱 𝗣𝗿𝗼𝘁𝗲𝗰𝘁𝗶𝗼𝗻】AV Access HDBT Extender is certificated by FCC and CE. It provides built-in Surge/ Lightning Protection and superior ESD Protection: +/- 8KV (Air-gap discharge) +/- 4KV (contact discharge) to prevent thunder strikes. 1-Year-Warranty and Life-Time customer service.

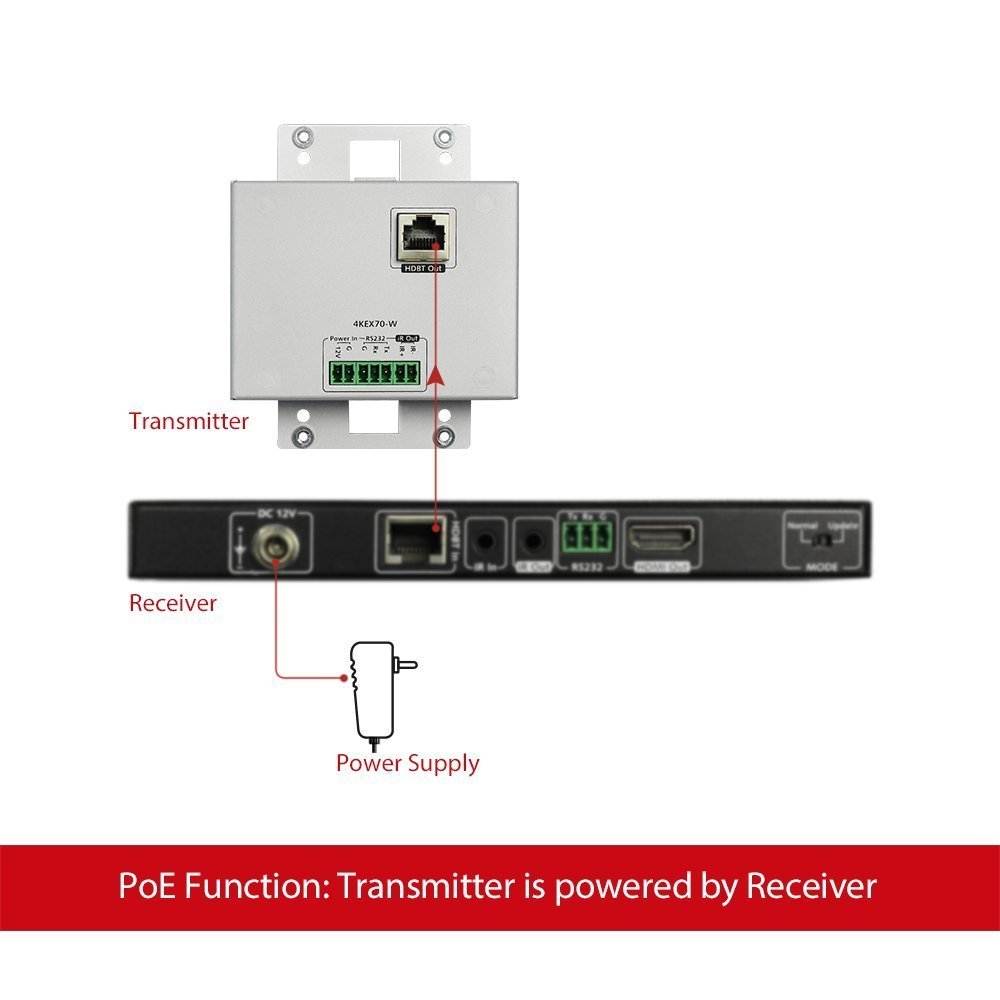

<b>What is HDBaseT? </b> <br>HDBaseT is a standardized, zero latency, video distribution technology that's <br>revolutionizing HDMI distribution. HDBaseT uses an advanced method of modulation that <br>enables you to distribute uncompressed HDMI audio and video along with additional signals <br>such as IR, RS232. <br><br><b>Extend More with HDBaseT</b> <br>The extender offers HDBaseT technology with HDMI, IR, and RS232 control in a single <br>CAT X cable, for complete end-to-end control. Offering greater versatility than traditional <br>HDMI extenders or HDMI cabling alone HDBaseT is the clear choice for every integrator and <br>system designer. <br><br><b>Overview</b> <br>4KEX70-W is an in wall 4K HDBT transmitter which includes an HDMI input, a VGA input and a HDBT output, and is designed to work with an HDBT receiver such as the 4KEX70-RX-PSE. It supports resolutions up to 4K@60Hz 4:2:0 8bit and HDCP for the HDMI signal. It can reliably extend the HDMI signals up to 40M at 4K and 70M at 1080P over a CAT6a / 7 cable, or up to 35M at 4K and 60M at 1080P over a CAT5e / 6 cable. <br><br>This wall plate features one-way PoH function, allowing it to receive power from an HDBT receiver with built-in PSE. <br><br><b>General Information</b> <br>【HDCP】HDCP2.2/HDCP1.4 <br>【Resolution Supported】4960x2160@24/25/30/60Hz, 3840x2160@24/25/30Hz,1080p <br>【Transmission Distance】 [Via Cat5e/6: 4K: 35M, 1080P:60M]. [Via Cat6a/7: 4K: 40M, 1080P: 70M]. <br>【Audio Format】Stereo,PCM5.1/7.1,Dolby True HD,DTS-HD Master Audio <br>【Control method】Bi-directional IR+RS232 <br>【Power Supply】3.5mm Phoenix Male Connector <br><br><b>Package Contents</b> <br>HDBT Transmitter 4KEX70-W x1 <br>3-Pin 3.5mm Phoenix Male Connector x1 <br>2-Pin 3.5mm Phoenix Male Connector x2 <br>2-Gang US Decora Wall Plate Cover with matching screws x1 <br>Flat Head Installation Screw (#6-32*20mm) x4 <br>User Manual x1
