BELEY Smoke Leak Detectors Smoke Tester Automotive Fuel Leak Detectors EVAP Smoke Machine Leak Tester Pipe Leakage Tester for 12V Vehicles (SDT-206)

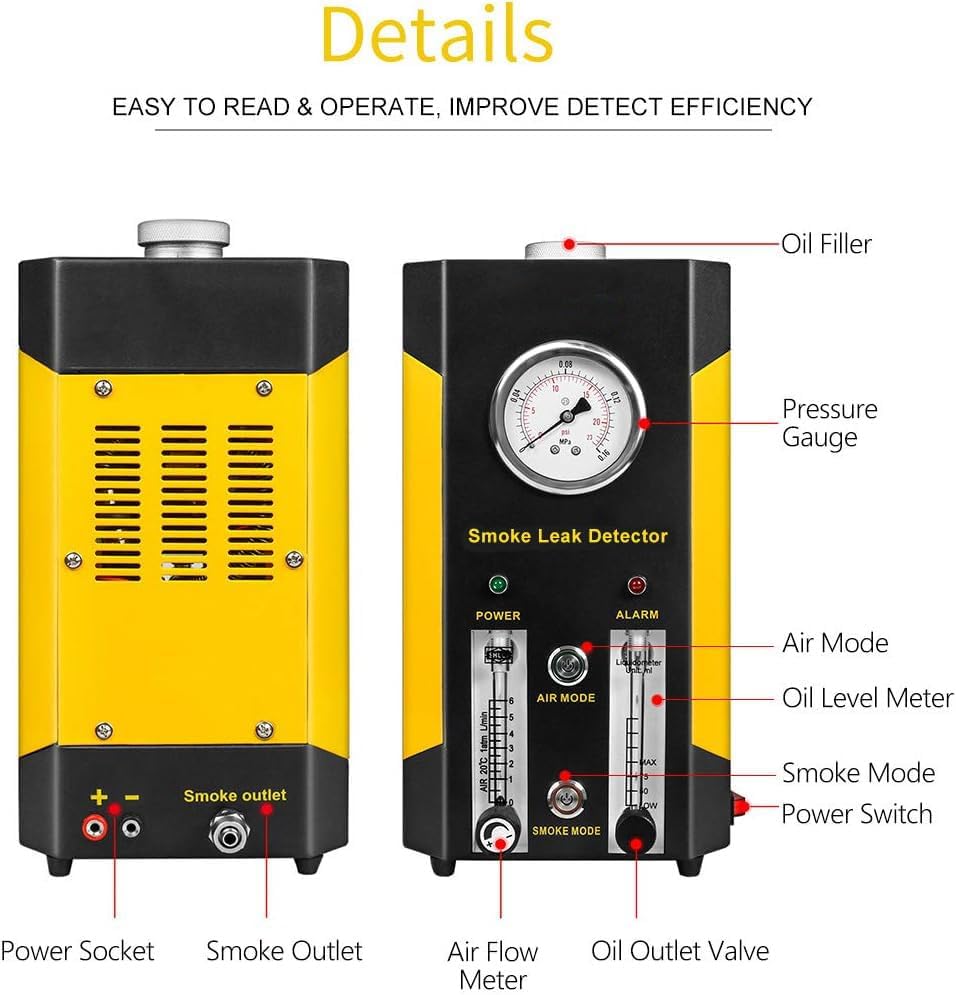

• PRESSURE GAUGE - Smoke Leak Detector with a pressure gauge, you can quickly determine the degree of leakage of the pipeline by observing the pressure change

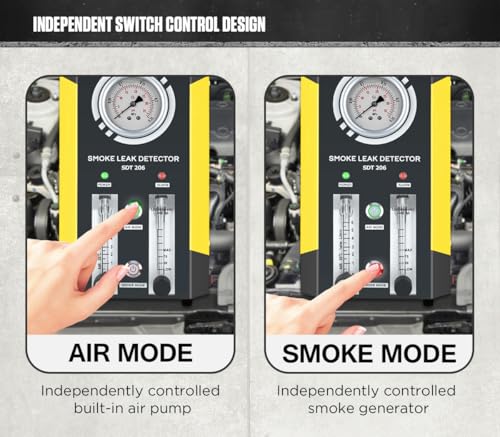

• BUILT-IN AIR PUMP - The Leak Detector comes with its own air pump, so there is no need to connect to other air supply equipment, making it easy to complete the test at any location
• MAXIMUM SMOKE OUTPUT IN 30s - The Leak Tester produces a maximum amount of smoke within 30 seconds of pressing the switch to quickly locate leaks.The EVAP Smoke Machine produces a dense smoke output to detect even the smallest of leaks. It is safe and reliable because it does not require the vehicle to be started. The smoke output is healthy and harmless
• SAFETY PROTECTION - This smoke leak detector can intelligently cut off the power, when exceeding 167 °F, the power will automatically shut off

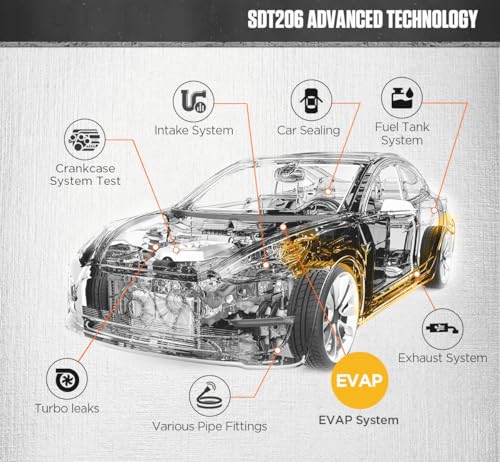

• BE SUITABLE FOR - Quickly smoke test EVAP systems, turbo leaks, intake systems, exhaust systems, cooling systems, automotive sealing, fuel tank systems, various pipe fittings and more. Suitable for all types of vehicles such as motorcycles, snowmobiles, off-road vehicles, ATVs, light trucks and speed boats

Kindly Note: 1 Avoiding test smoke-sensitive parts with this machine. 2 The machine can work on EVAP system with specific adapter (pressure of machine was larger than EVAP request ). 3 Don't work with the machine continuously more than 8 minutes. Bottom of the machine will give out heat, be careful! 4 Inject paraffin oil or baby oil in machine before detecting (oil is not included in the pack) OPERATING WAYS 1.Open the engine cover, and hang the detector in the cover. 2.Disconnect the pipe that needs to be connected with detector. If the pipe needs to be disconnected in the middle, please secure the other side with a rubber stopple. 3.Secure this side with proper taper stopple/pipe, and connect it with smoke output tube. 4.Connect detector with DC12V battery: red with positive, black with negative. Do not connect in a contrary way. 5.Turn on the power switch and POWER lights up to indicate that the power supply of the smoke generator is normal. Press AIR MODE then pump starts to work. SMOKE MODE can start working only after the mode is started. 6.In about 3 minutes, the pipe will be filled with smoke. Check the leak points. Please use head lamp if necessary. 7.After leak detection, please connect well the wires and pipe. 8. Please repair the leak part timely with specific tool. Package Includes: 1x Unit Set (Due to shipment policy, testing oil not included.)
