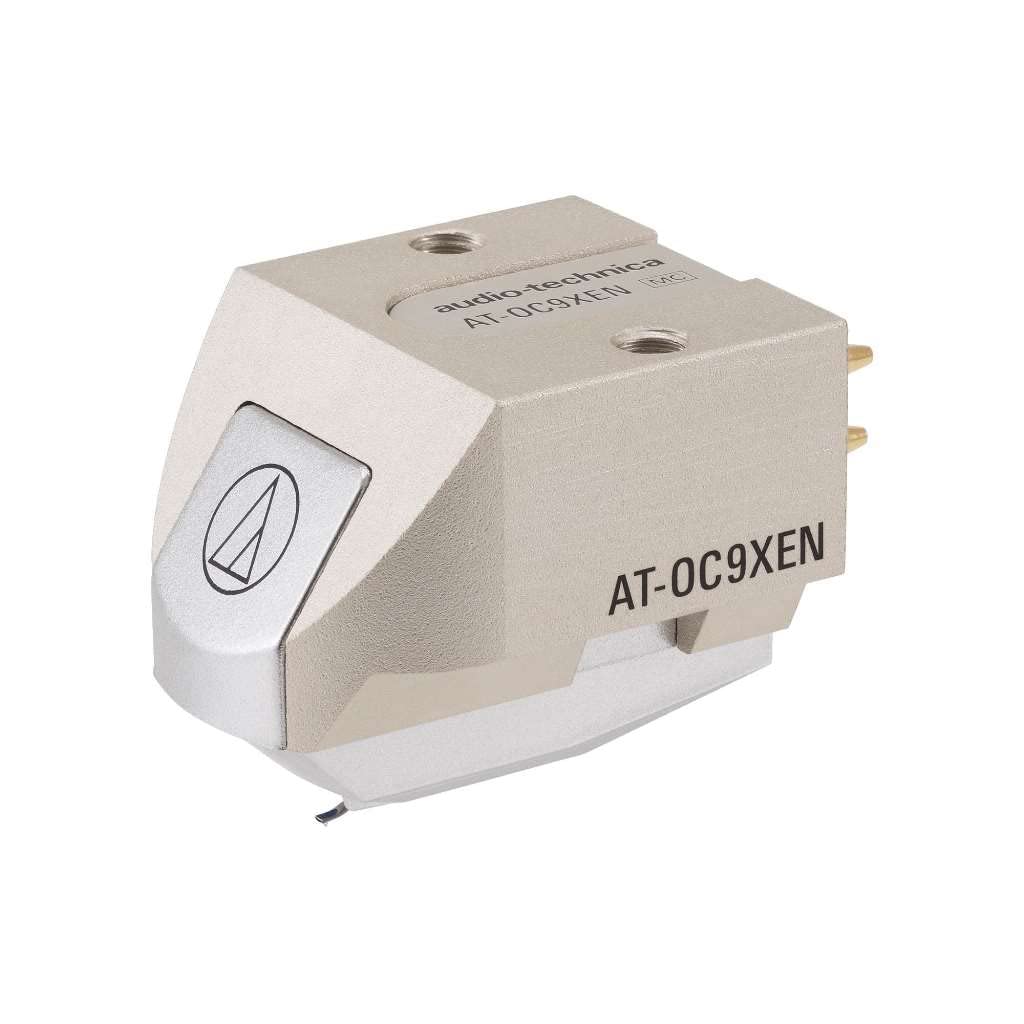

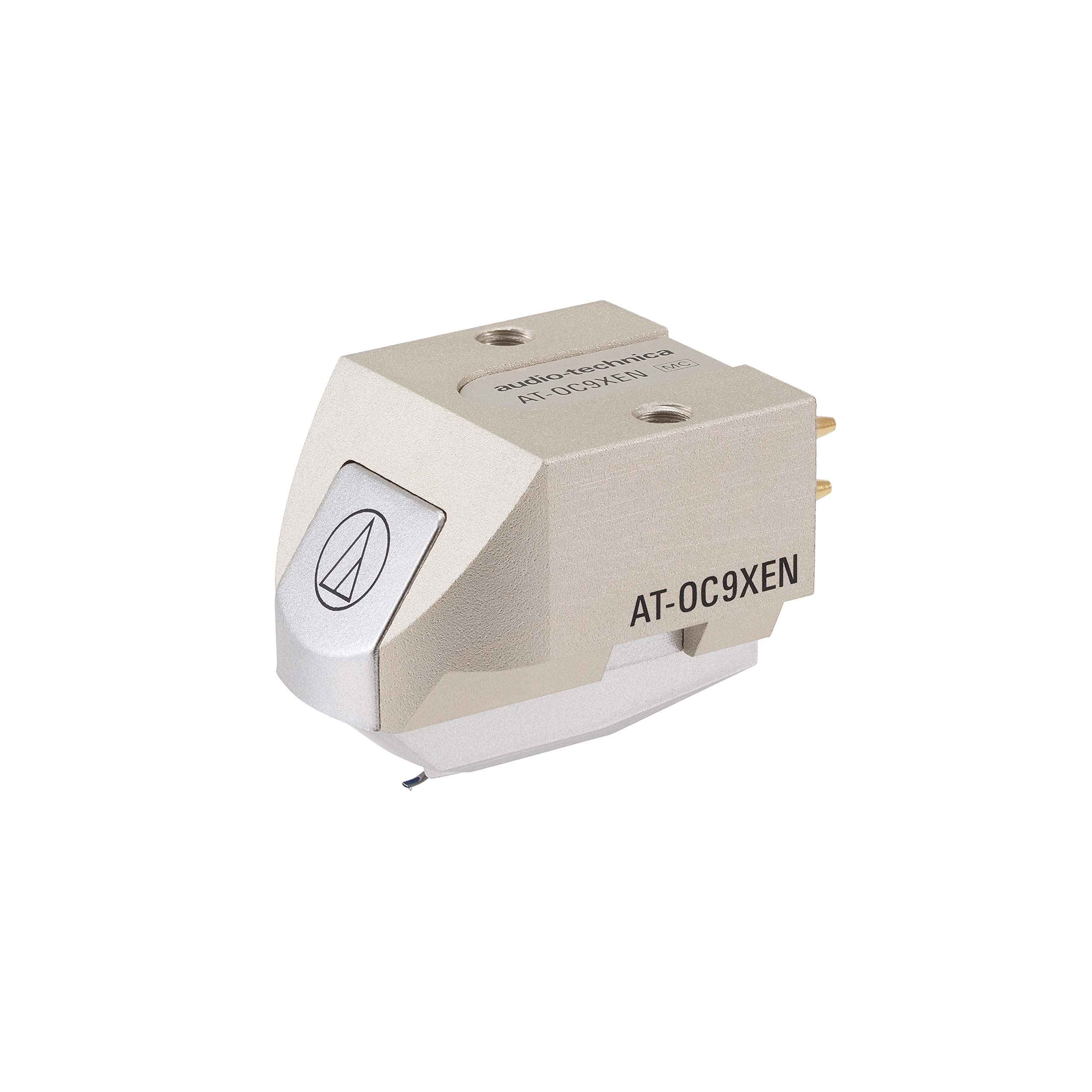

Audio-Technica AT-OC9XEN MC Cartridge

• Model AT-OC9XEN Mounting 1/2' centers / Threaded inserts Frequency Response 20 to 30,000 Hz Body Material Aluminium Channel Separation 25 dB (1 kHz) Output Channel Balance 1.5 dB (1 kHz) Output Voltage 0.35 mV (at 1 kHz, 5 cm/sec) Vertical Tracking Angle 20 degrees Vertical Tracking Force Range 1.8 to 2.2 g (standard 2.0 g) Stylus Shape Elliptical Nude Stylus Size 0.3 x 0.7 mil Stylus Construction Nude squa
• re shank Cantilever Aluminium pipe Coil Impedance 12 Ohms (1 kHz) Coil Inductance 25 mH (1 kHz) DC Resistance 12 Ohms Static Compliance 20 x 10 - 6 cm / dyne Dynamic Compliance 9 x 10 - 6 cm / dyne (100 Hz) Terminal Pins Brass Wire Used for Coil PCOCC (Copper by Ohno Continuous Casting process.) Recommended Load Impedance Min 100 Ohms Cartridge Weight 7.6 g Dimensions 17.3 (H) x 16.8 (W) x 25.7 (L) mm A

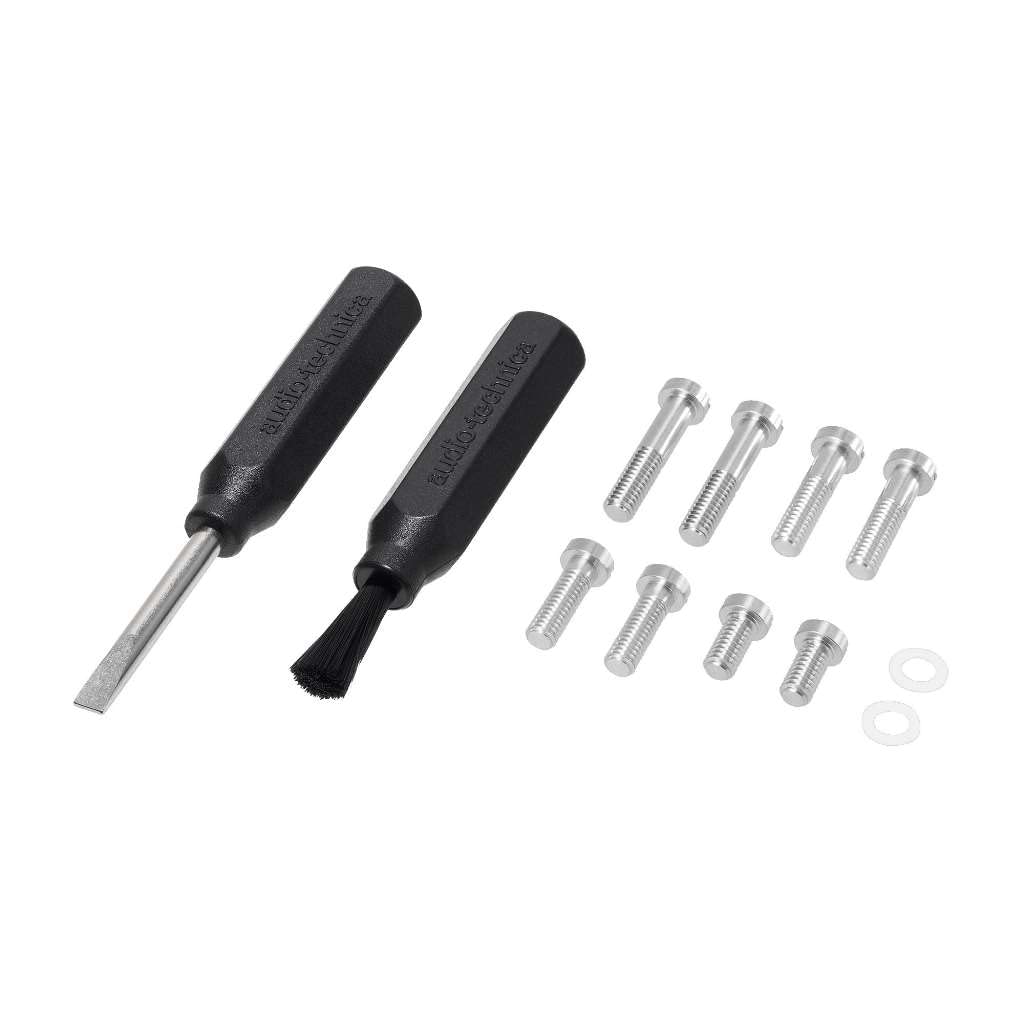

• ccessories Included 1 non magnetic screw driver
• 1 brush
• 2 washers

The at-oc9xen dual moving coil cartridge with nude elliptical stylus is designed to provide outstanding channel separation. The pure copper by Ohio continuous casting (PCOCC) coils ensure pure audio transmission and are aligned in a reverse v-shaped formation to exert less pressure on the stylus, thereby minimizing distortion. Audio quality is further enhanced by a rigid aluminum body that reduces resonance, a neodymium magnet and pure Iron yoke that increase the magnetic energy, and the low-mass nude elliptical stylus on an aluminum cantilever that accurately tracks the record groove. The cartridge body has been pre-threaded, enabling it to be mounted to a head shell or integral tonearm with just two screws – no nuts required.
