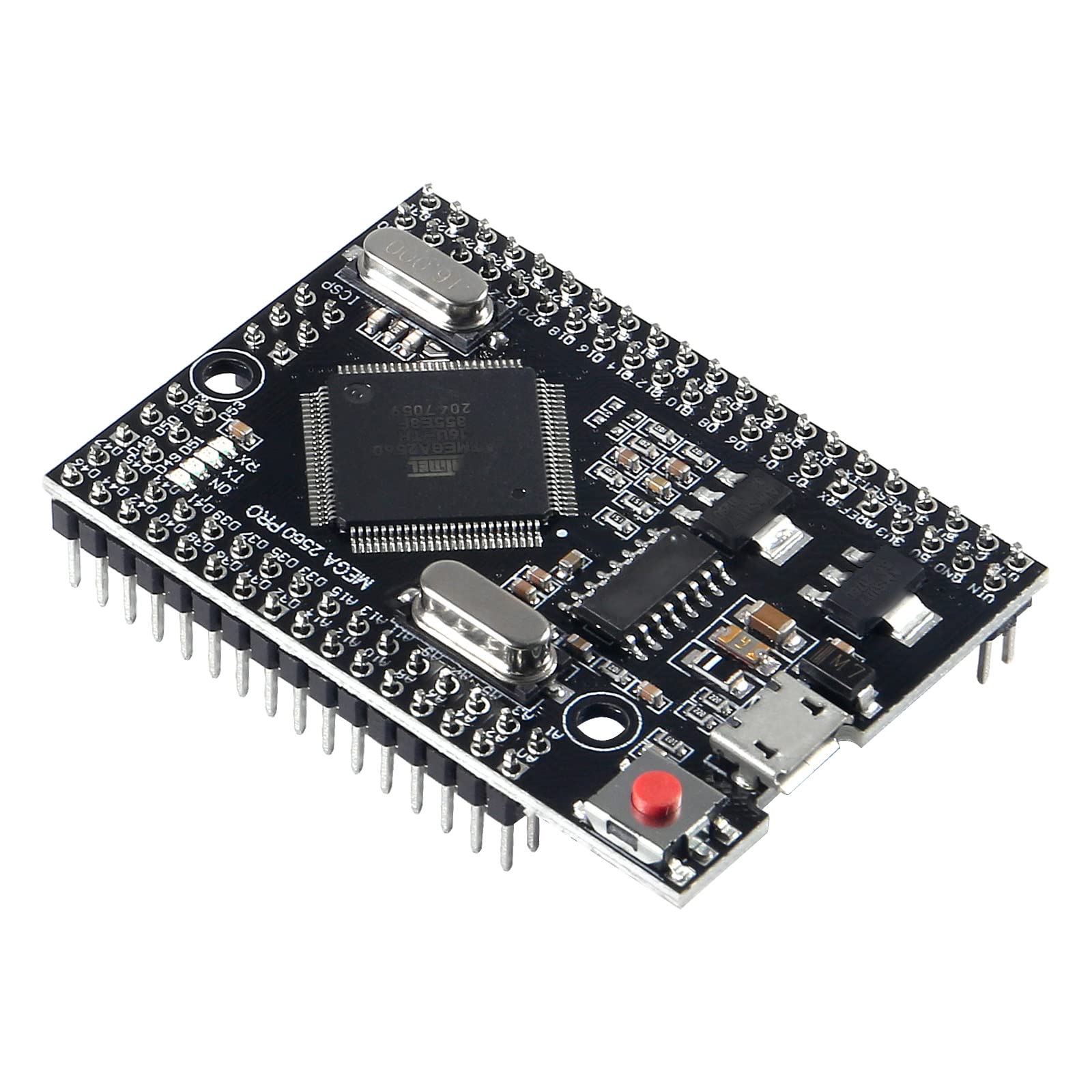

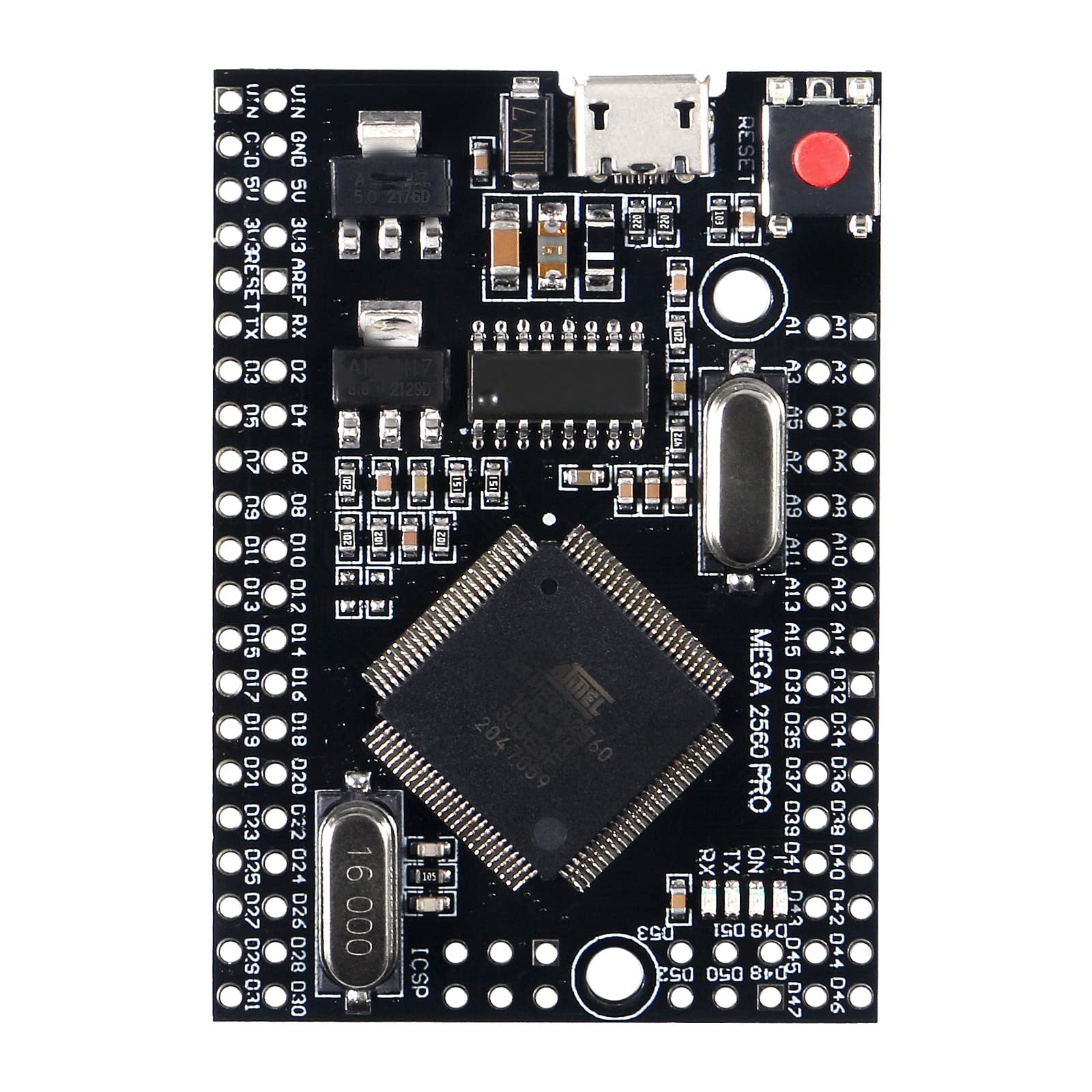

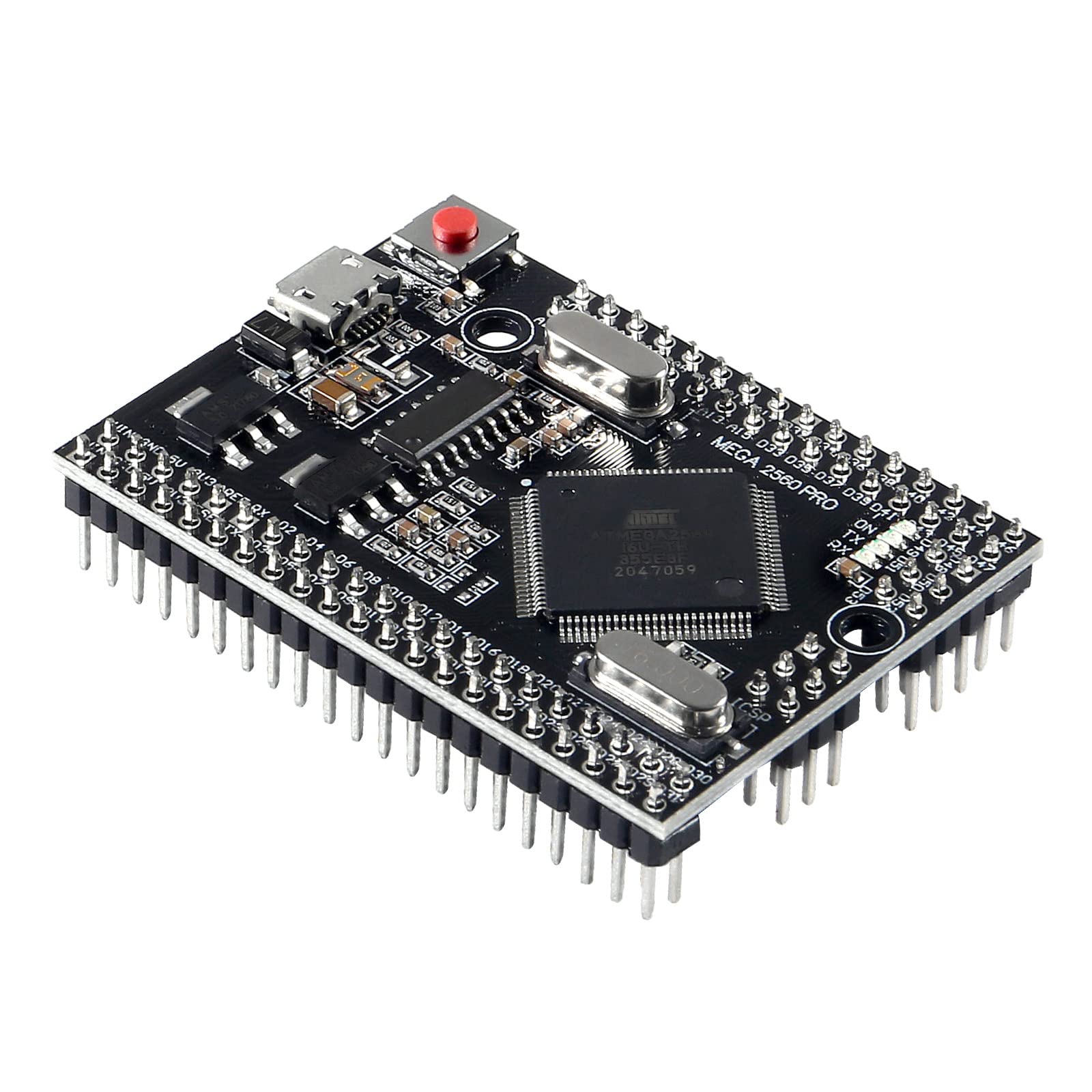

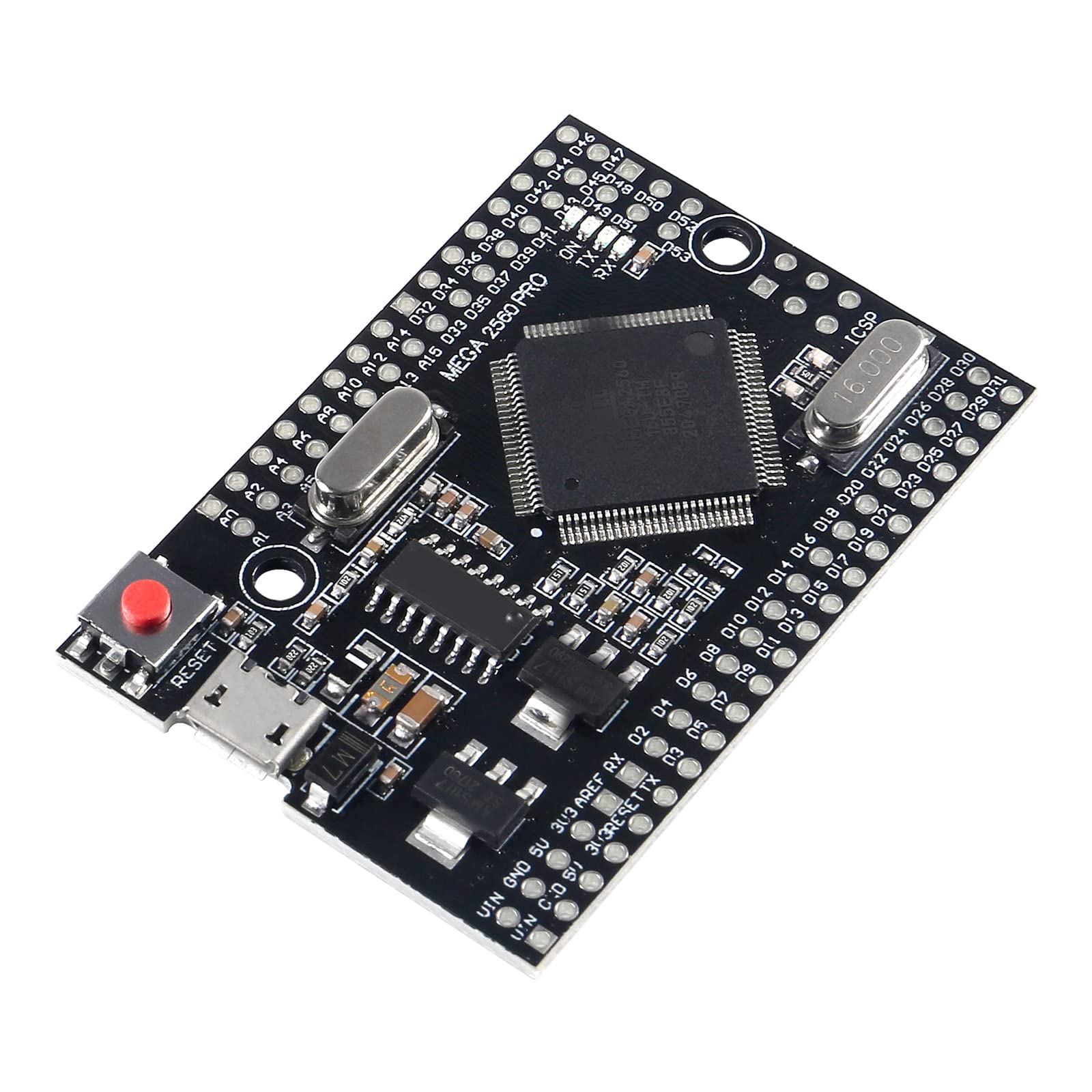

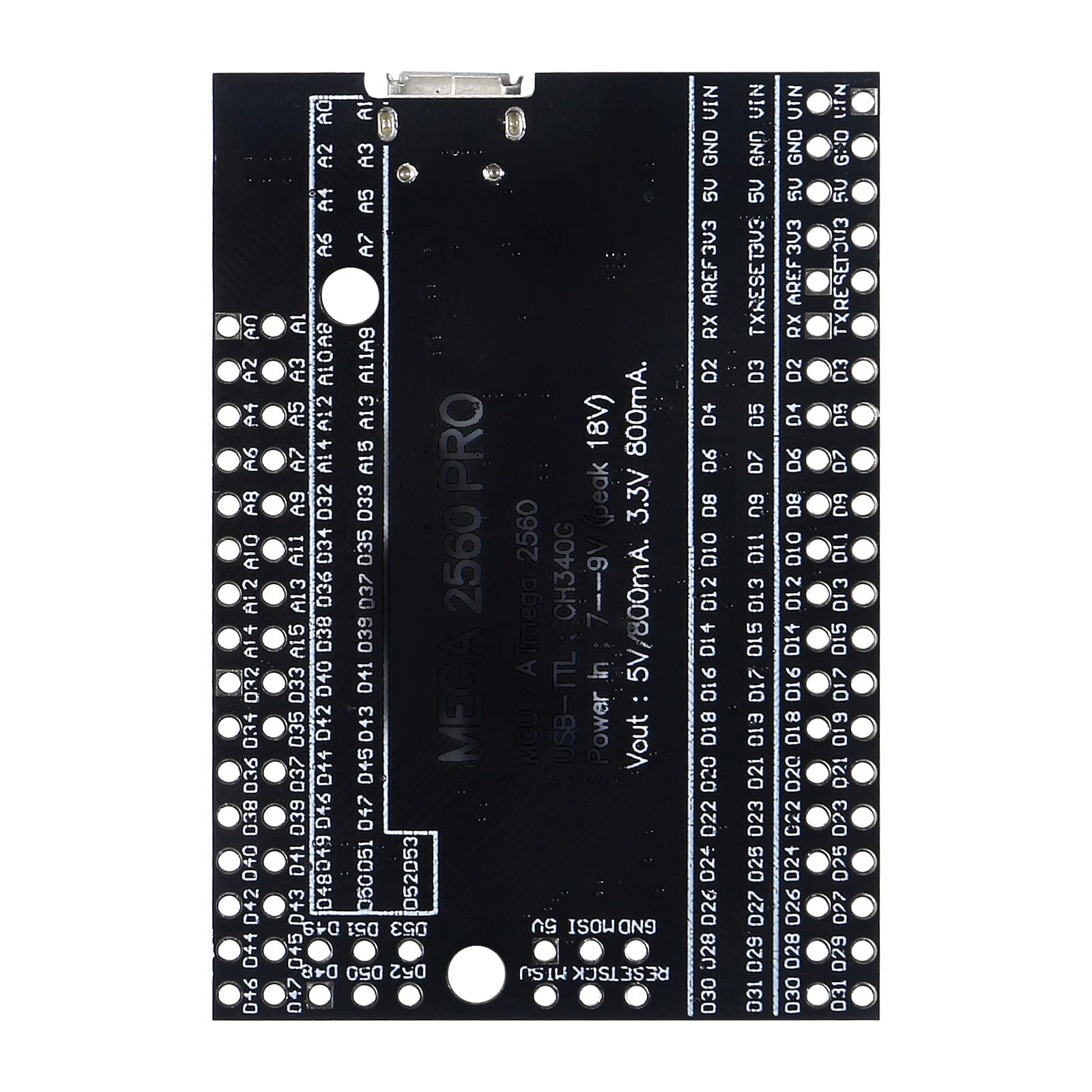

ATMEGA Pro 2560 Embed ATMEGA2560-16AU USB development board module

• ATmega 2560 compatible with Mega 2560 board. Built-in ATmega & 2560 Atmel microcontroller and CH & 340G USB-UART interface chip
• The board uses the CH & 340G chip as a UART-USB converter. Flash memory: 256 KB, of which 8 KB used by the bootloader; SRAM: 8 KB; EEPROM: 4 KB; clock frequency: 16 MHz
• The board uses the CH & 340G chip as a UART-USB converter. If you work on the frequency of 12 MHz, you will get a stable result of data exchange (the drivers need to be installed on the computer)
• You can power the on-board power supply via the microUSB port or the heads
• The voltage regulator (LDO) can handle the input voltage from 6 V to 9 V (peak 18 V) DC. Output current for 5 V - approx. 800 mA, for 3.3 V - approx. 800 mA (note that the higher the input voltage, the lower the output current)

It's a good solution to making your final project on a solder proto board. Board with similar functionality as Ardu & ino Mega & 2560. It's an embedded board but just as stable and uses the original ATmega & 2560 (16 MHz) chips. The board uses the CH & 340G chip as a UART-USB converter. If you work at a frequency of 12 MHz, you will get a stable result of data exchange (you need to install drivers on the computer). You can supply the board with power via the microUSB connector or the pin headers. The voltage regulator (LDO) can handle an input voltage of 6V to 9V (peak 18V) DC. Output current for 5V - approx. 800mA, for 3.3V - approx. 800mA (Please note that the higher the input voltage, the lower the output current). This will reliably power most of your first few projects. Package include: 1 x ATMEGA & 2560-16AU development board
