Asynchronous Vibrating Motor for Mechanical Equipment, Concrete Vibrator Motor Vibration Motor(Single Phase 30W)

• ADJUSTABLE ECCENTRICITY BLOCK - Adjust the angle of the eccentricity block, can continuously adjust the excitation force, meet all kinds of requirements.
• HIGH QUALITY MATERIALS - Aluminum alloy shell, lightweight quality, fast heat dissipation, rapid temperature rise. Adopt imported bearings, quiet and smooth operation, long service life.
• GOOD INSULATION PERFORMANCE - High temperature resistant pure copper enameled wire, all-copper winding, stator vacuum dip painting, insulation quality guaranteed. The junction box is sealed with resin adhesive, with good sealing and insulation performance.
• DUSTPROOF AND MOISTUREPROOF - The machine shell is precision casting, with O-ring on the edge, fully enclosed structure design, with dustproof and moistureproof function. Special power cable anti-vibration protection cover to prevent long-term damage caused by cable vibration.
• WIDELY USED - Apply in mining, metallurgy, coal, electricity, construction, chemical, medical equipment, food machinery, etc.

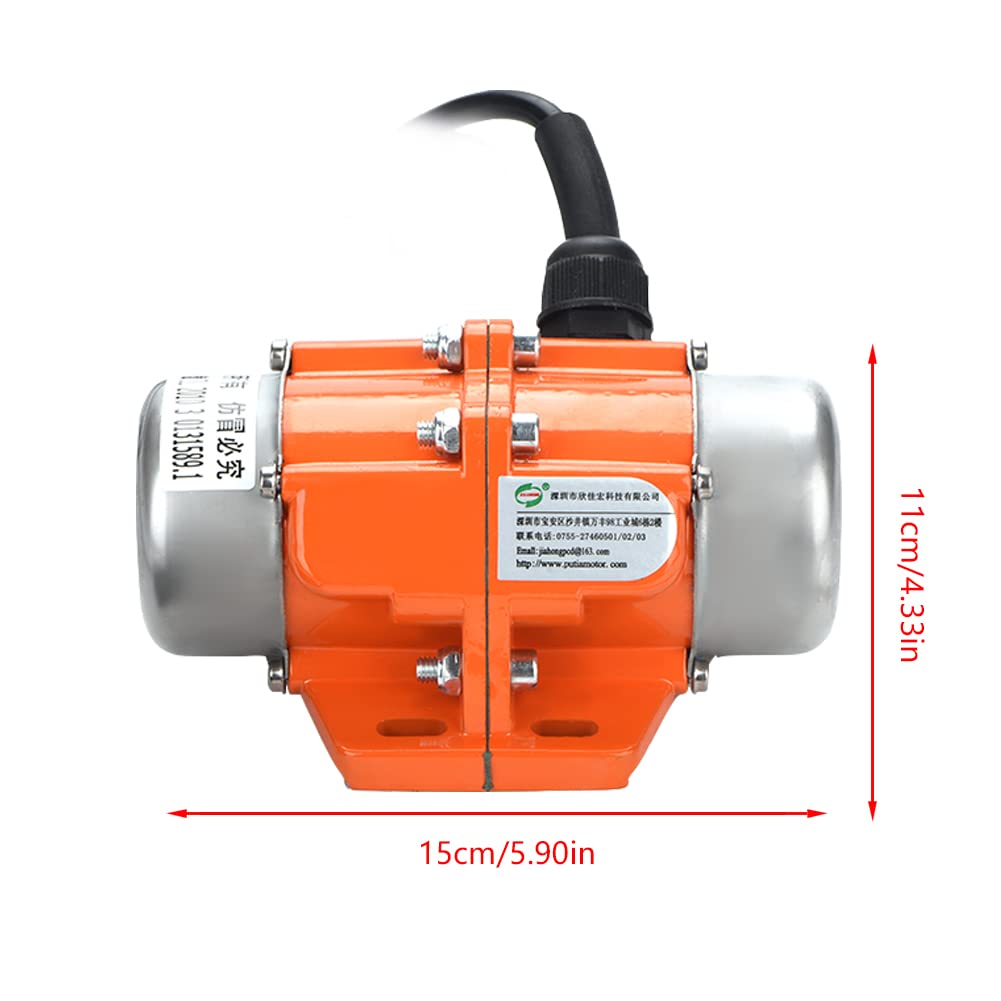

Features: Name: Vibrator Motor Rated speed: 3000 rpm Rated voltage: 220 V single phase, 380 V three phase Type: 1 phase 30W, 3 phase 30W, 1 phase 40W, 3 phase 40W, 1 phase 50W, 3 phase 50W, 1 phase 60W, 3 phase 60W, 1 phase 70W, 3 phase 70 W, 1 phase 80 W, 3 phase 80 W, 1 phase. 90W, three phase 90W, single phase 100W, three phase 100W (optional) Size: 30W-40W: 15 x 11cm/5.91 x 4.33in, 50W-100W: 17.7 x 11cm/6.97 x 4.33in Weight: approx. 1792-2400g Wiring method: 1 phase: green and yellow wire: ground wire, the other two wires: one connects the live neutral, the other connects the live wire (arbitrarily). 3 phase: three wires can be connected to ground/neutral/live wire at random Package included: 1 x vibrator motor
