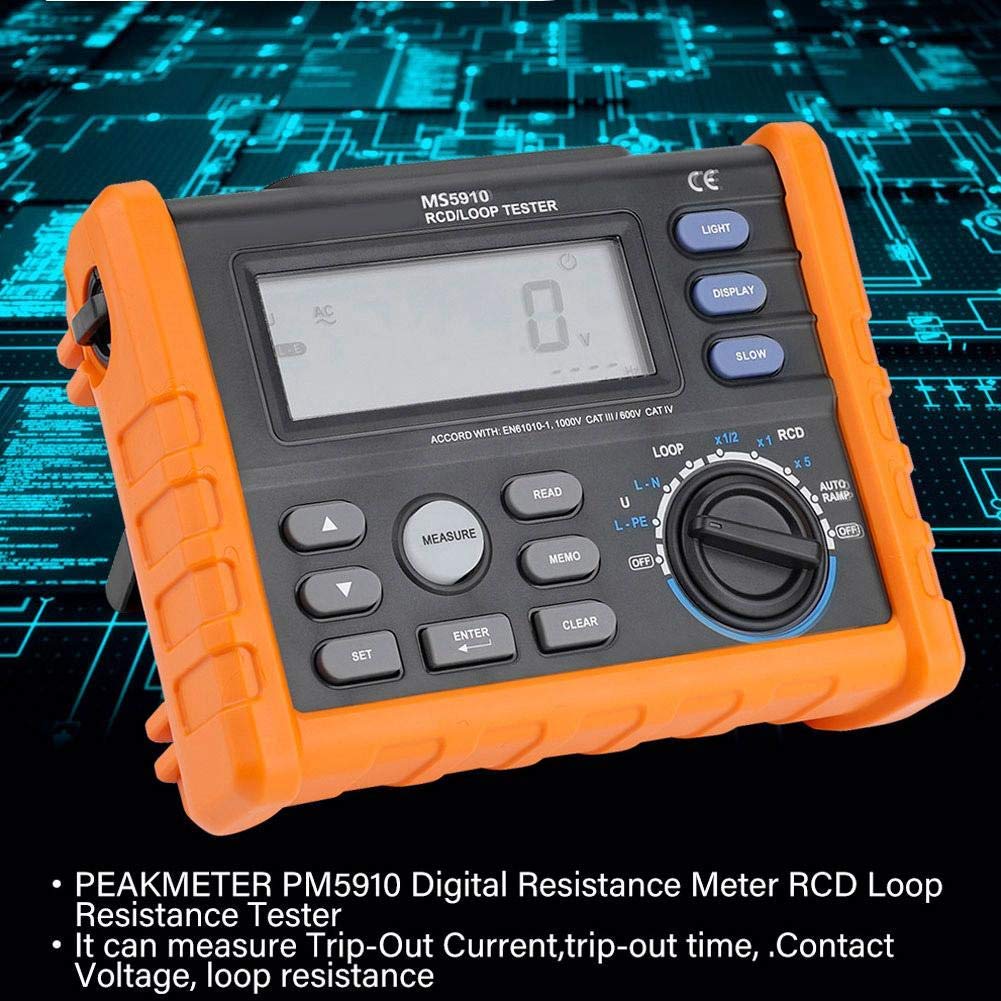

MS5910 Digital Multimeter, Insulation Resistance Multi Tester with Backlit, Trip-Out Current, Trip-out Time, Contact Voltage, Loop Resistance RCD Tester

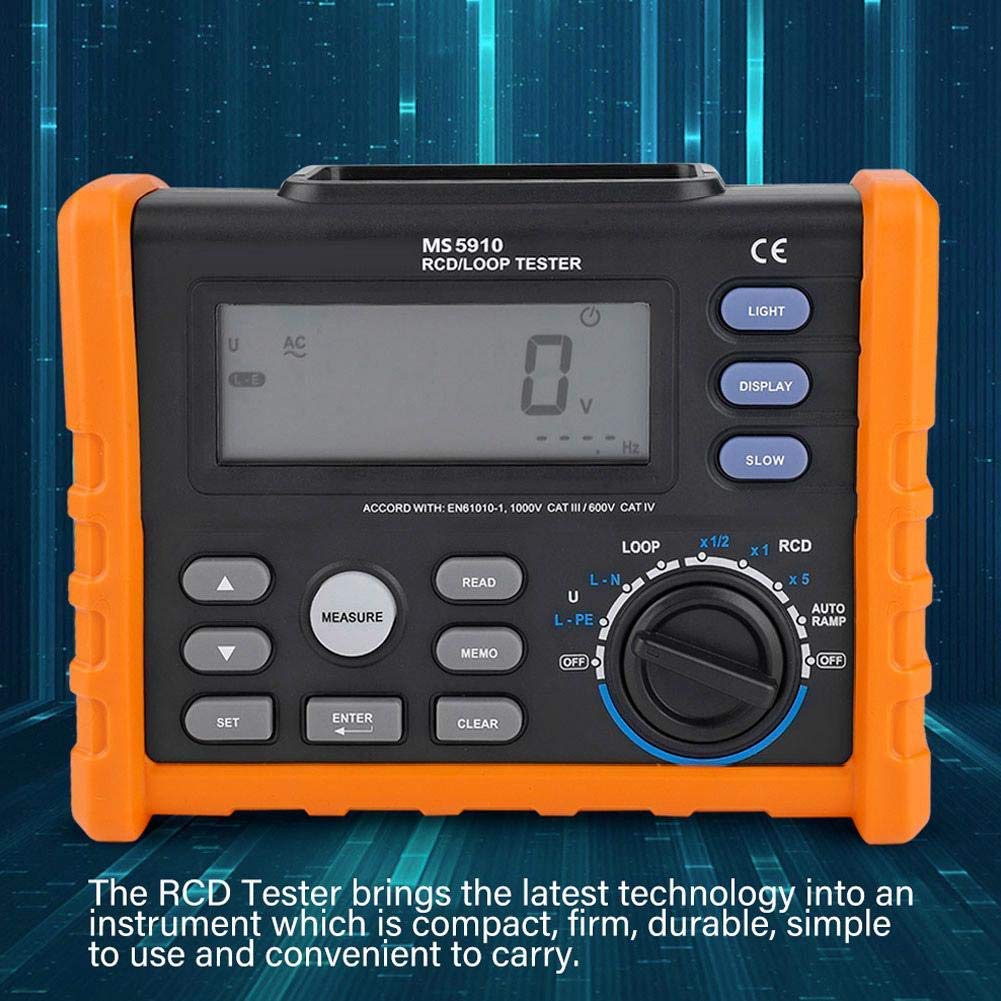

• The RCD Tester brings the latest technology into an instrument which is compact, firm, durable, simple to use and convenient to carry.
• It can measure Trip-Out Current,trip-out time, Contact Voltage, loop resistance
• 100 groups of test result can be stored

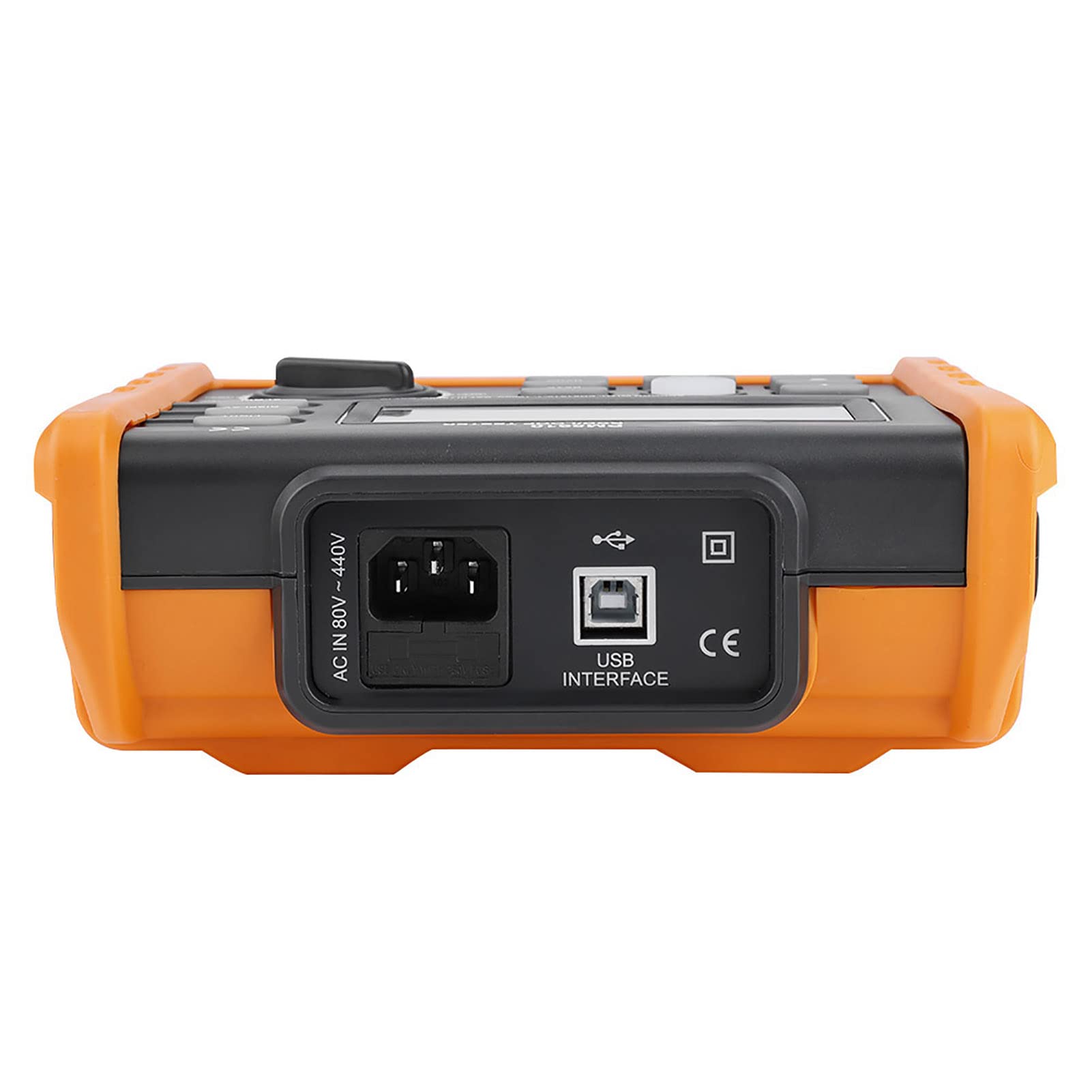

• Data stored in host machine can be transmitted to PC via a USB2.0 interface
• Features backlight Indication, Auto Power Off, Auto/manual range

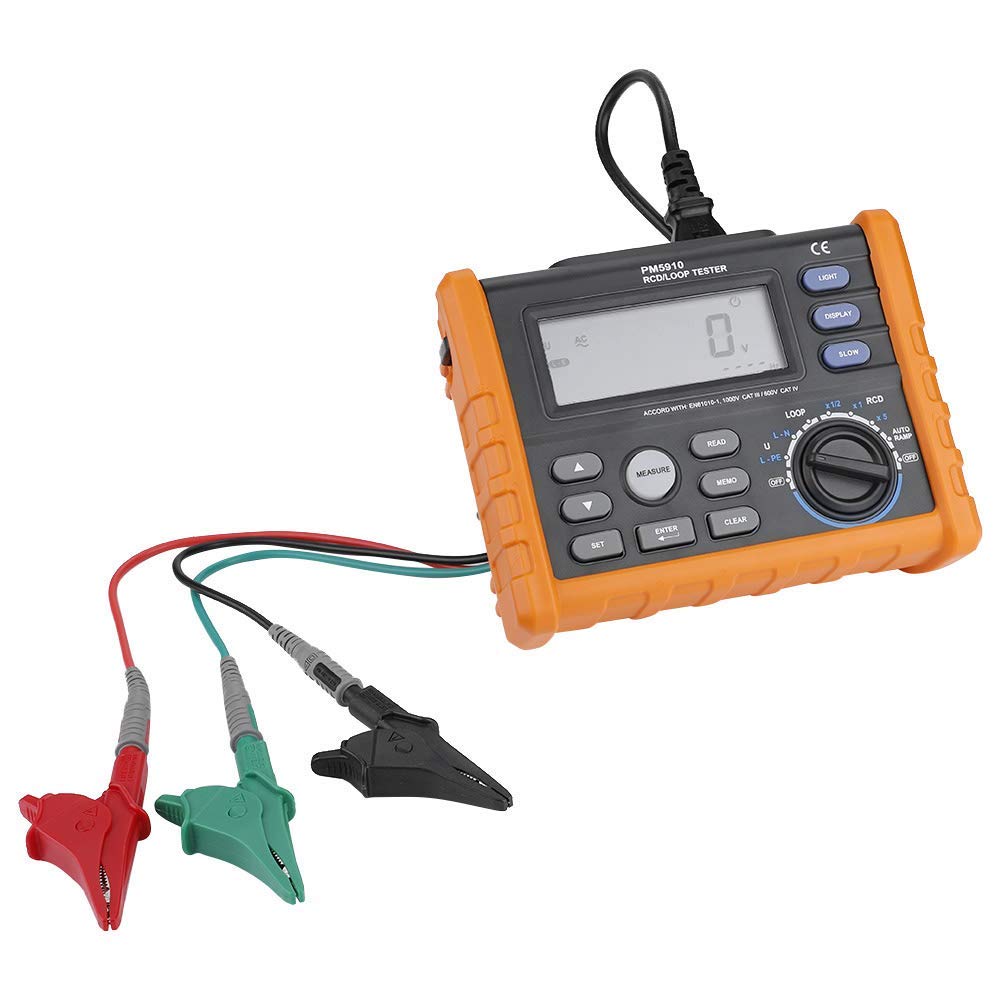

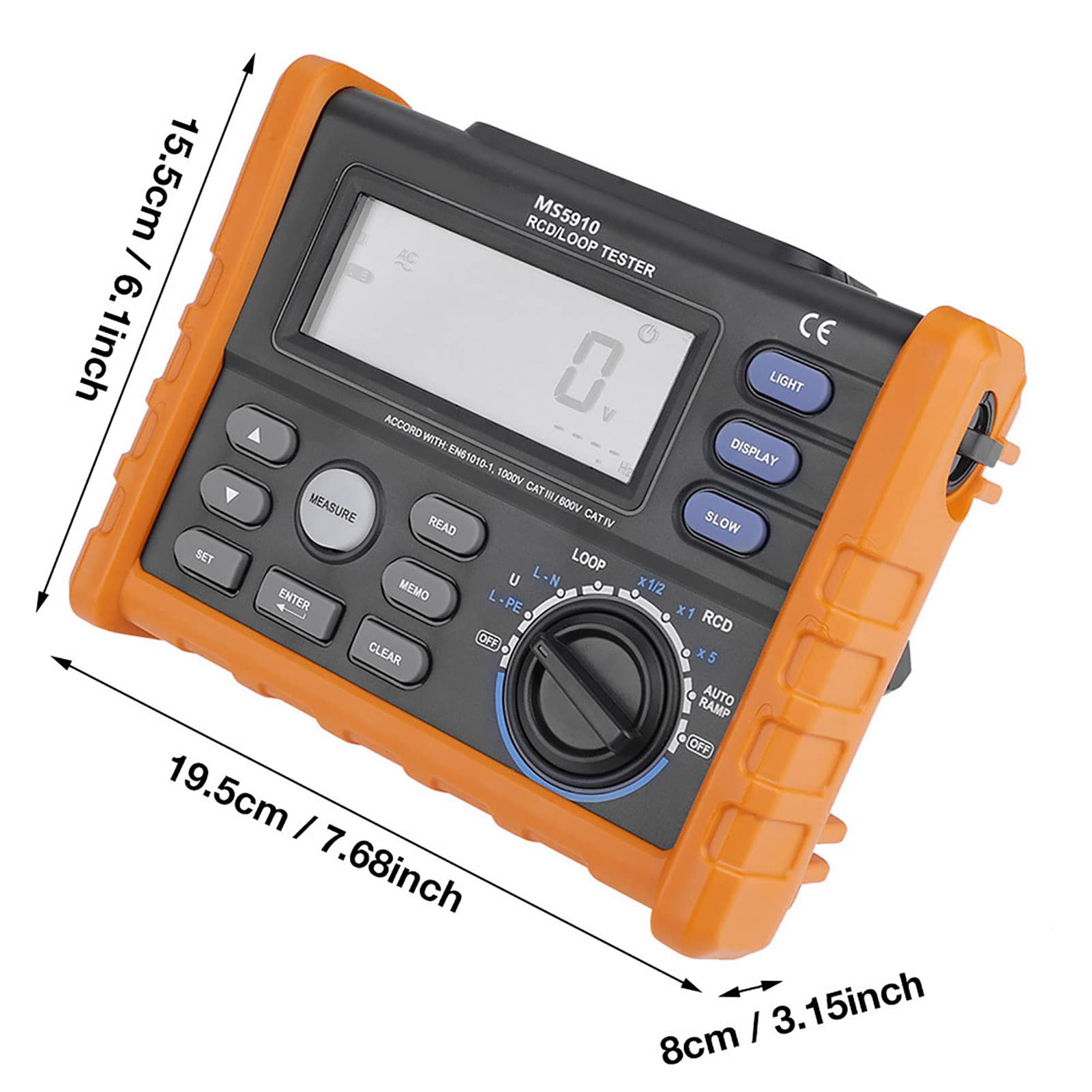

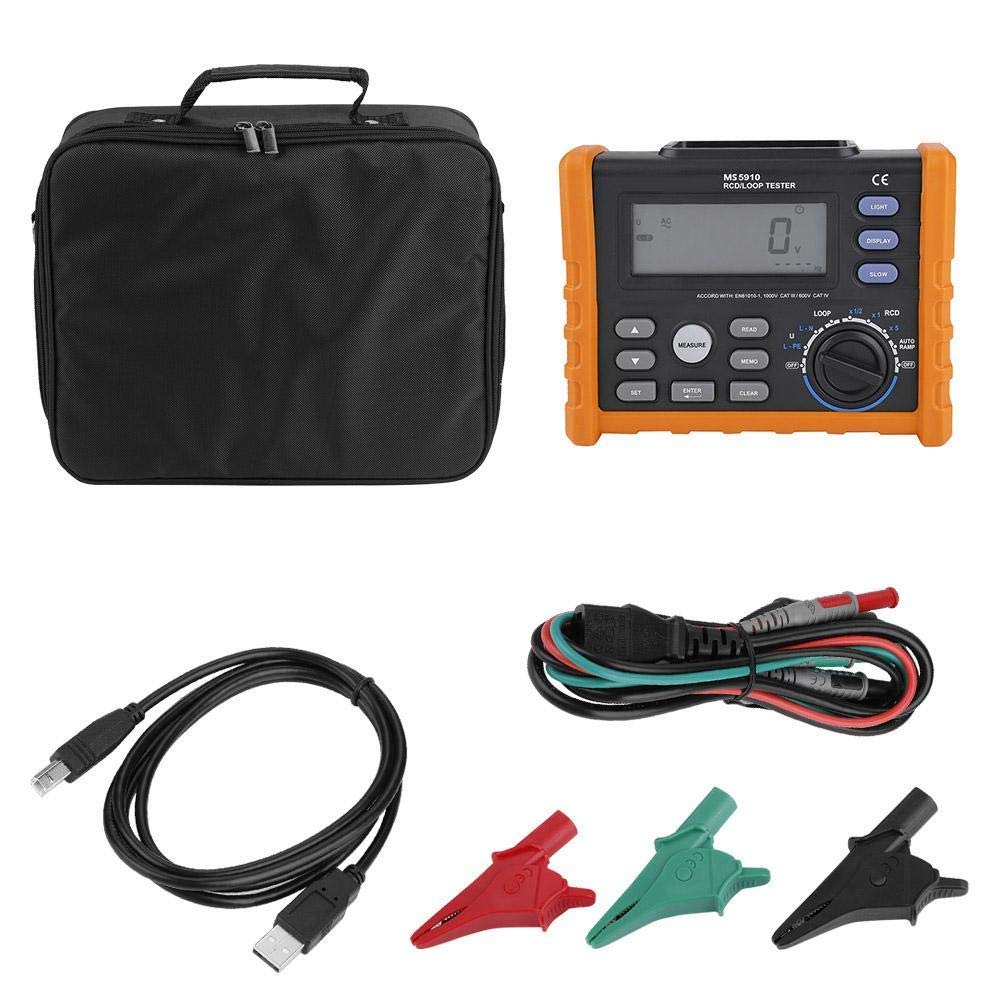

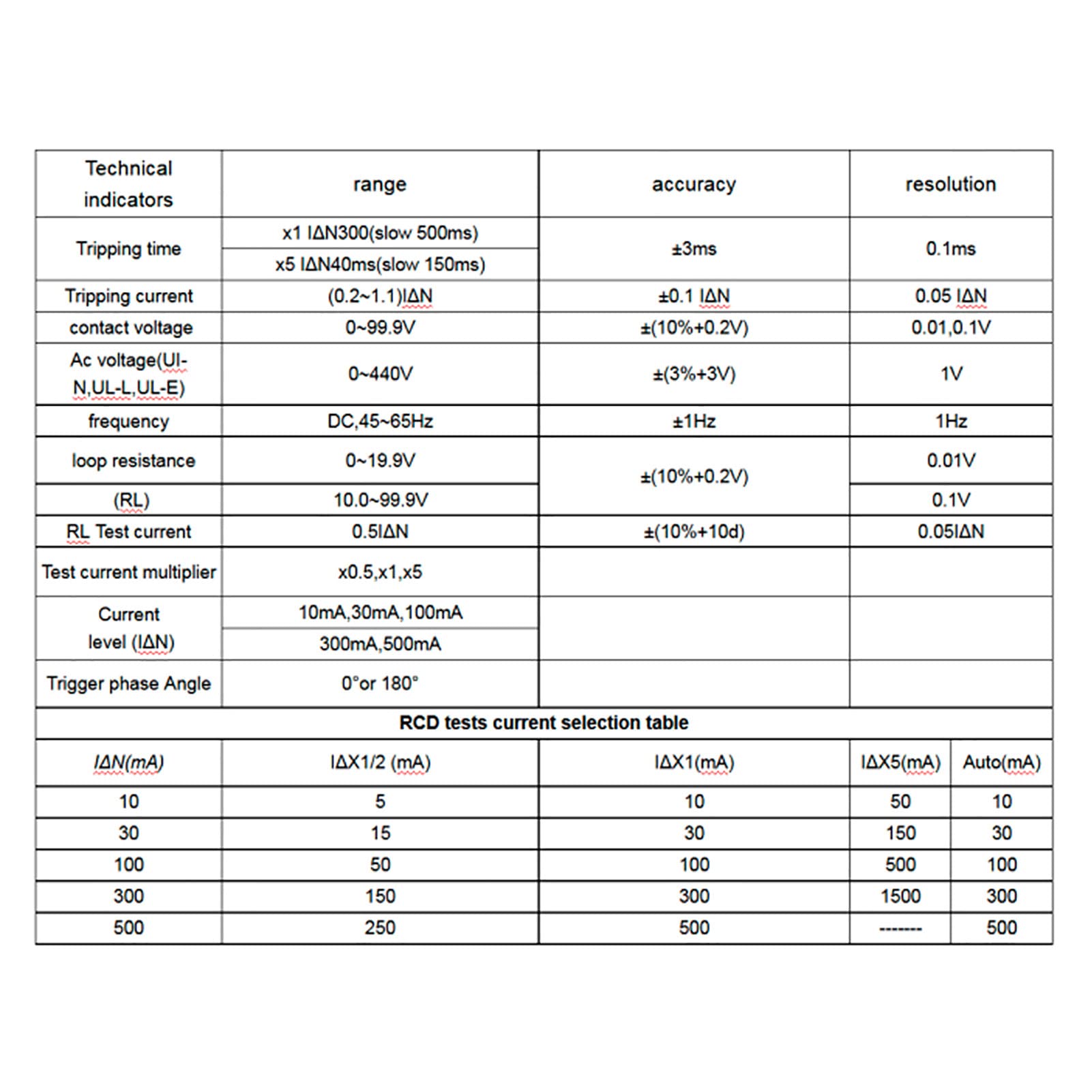

Features: With the function of overheating Alarm, Low Battery Voltage Alarm High reliability, stability and accuracy. It is the ideal tool for electrical inspection and repair. Specifications: Brand: PEAKMETER AC voltage measurement: 0V-440V Frequency measurement: DC,45Hz-65Hz Multiplying power of measurement current: 0.5, 1 and 5 Standard/selective type current measurement lever: 10, 30, 100, 300, 500mA Power supply: 6x 1.5V AA batteries(not included) Storage elevation: 12,000m Usage elevation: 2,000m CAT III 600V; 3000 CAT II 600V Size:195*155*80mm/7.68*6.1*3.15in Weight: 2194g. Note: Support Loop resistance (RL) measurement, can be displayed at a minimum of 3 ohms. Package includes: 1 * RCD/LOOP tester MS5910(batteries not included) 1 * test lead 3 * crocodile clip 1 * USB cable 1 * black bag 1 * Instructions
