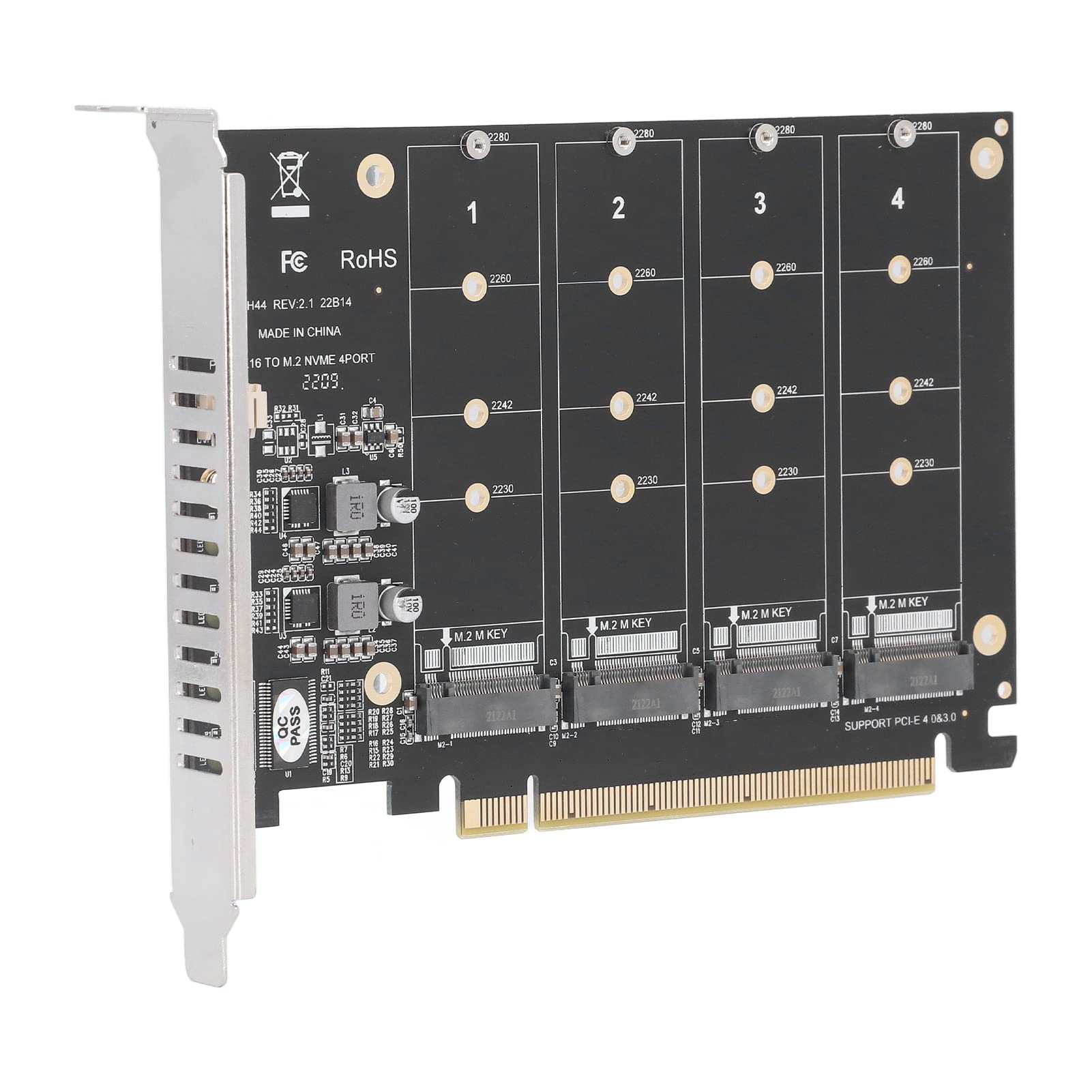

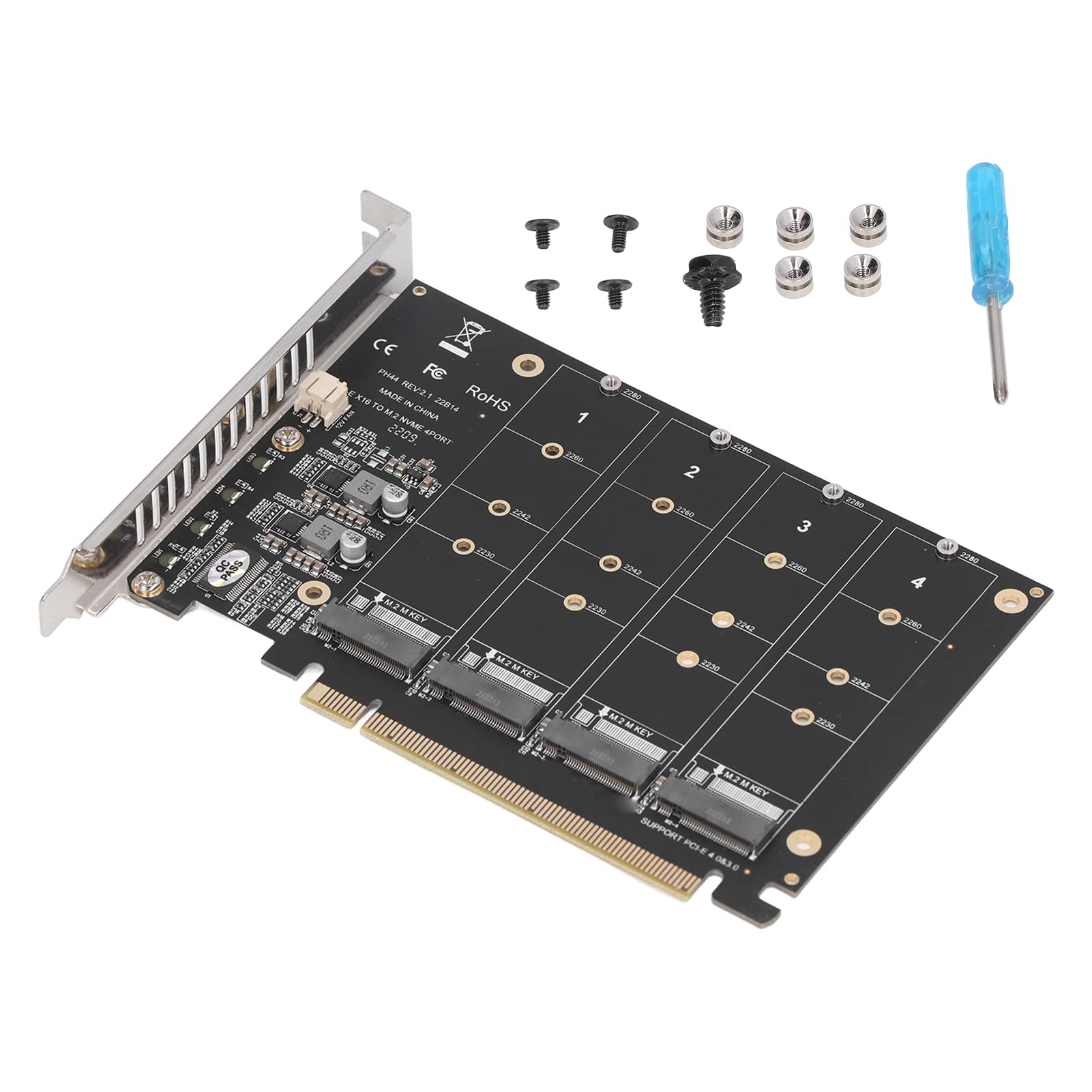

ASHATA M.2 NVME SSD to Pcie X16 Adapter, 4 Port High Speed 4x32Gbps M.2 Pcie Signal Splitting Array Card with Individual LED Indicator for Computers, Stable Transmission

• 4x32Gbps: PCIE X16 4 Port expansion card, 4x32Gbps full speed signal, simultaneous expansion, fast operation.
• PCIE X16 Interface: 4 Port SSD array card, solidly structure, thick PCB, stable PCIE X16 interface, defend your important data.
• LED Indicator: For win10, soft RAID can be realized, the consistency of 4 disks is good, and the RAID is stable. 4 disks correspond to 4 LED indicators, the SSD access LED will light up, and the SSD read, write LED will flash.
• Support Transmission Protocol: The motherboard supports PCIE split or PCIE RAID function and supports PCIE 3.0, 4.0 transmission protocol.
• Stable Operation: no disk drop, no slowdown, no blockage, high power DC power chip, to ensure stable operation of M2.NVME SSD.

How to Use: 1. The motherboard must support The motherboard supports PCIE split function, able to set PCIE X4X4X4 or 4X4 mode; the motherboard supports PCIE RAID function; for ASUS motherboard supports HyperM.2X16 expansion card function; different motherboards PCIE split channel number is different, some motherboards PCIE RAID is X8 + X4 + X4, this motherboard 4 bit M.2 card can only support 3 M.2 SSDs or devices, 2 bit M.2 card can only support 1 M.2 SSD or device, if you need to use this product properly please select the correct motherboard; many motherboards are shared PCIE channel, make sure the motherboard can support the PCIE split function, but can not identify so many M.2 SSDs or devices, please remove or replace other PCIE devices slots, such as graphics cards, expansion cards, onboard NVME SSDs, etc. Server motherboards, X299, X399 motherboards many have the ability to split. 2. CPU support is required, the CPU should have enough channels, generally low end CPU does not have enough PCIE channels so may not be able to support, in the purchase of the CPU can refer to the motherboard introduction to make the right choice Specification: Item Type: M.2 NVME SSD to PCIE X16 Adapter Material: PCB Model: PH44 Support Hard Disk: M.2 NVME Protocol SSD, M.2 PCIE Device Transmission Speed: 4x32Gbps Package List: 1 x Expansion Card 5 x Nuts 5 x Screws 1 x Screwdriver
