ASHATA DC-DC 10-60V to 12-97V 1500W 30A Voltage Step Up Converter Boost CC CV Power Supply Constant Current Module with Smart Temperature Control Fan for Solar Street lamp, LED Lighting CV Driving

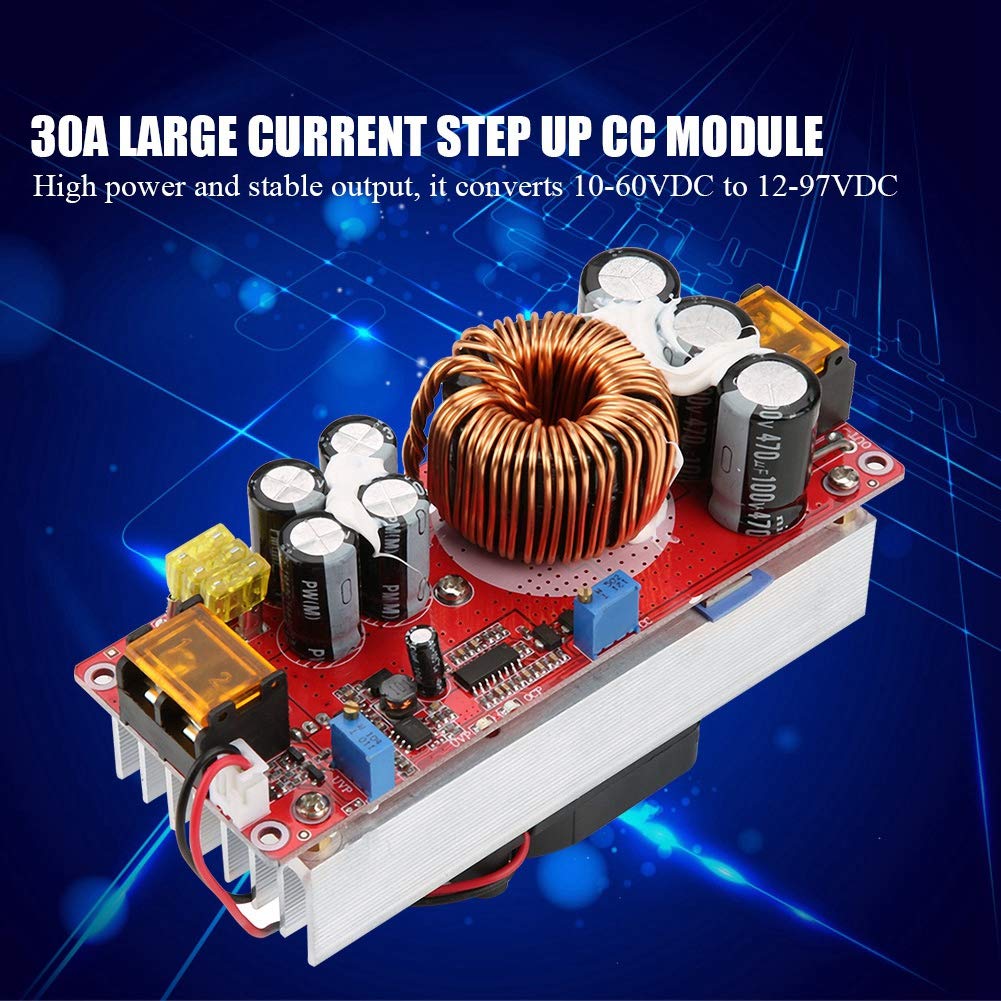

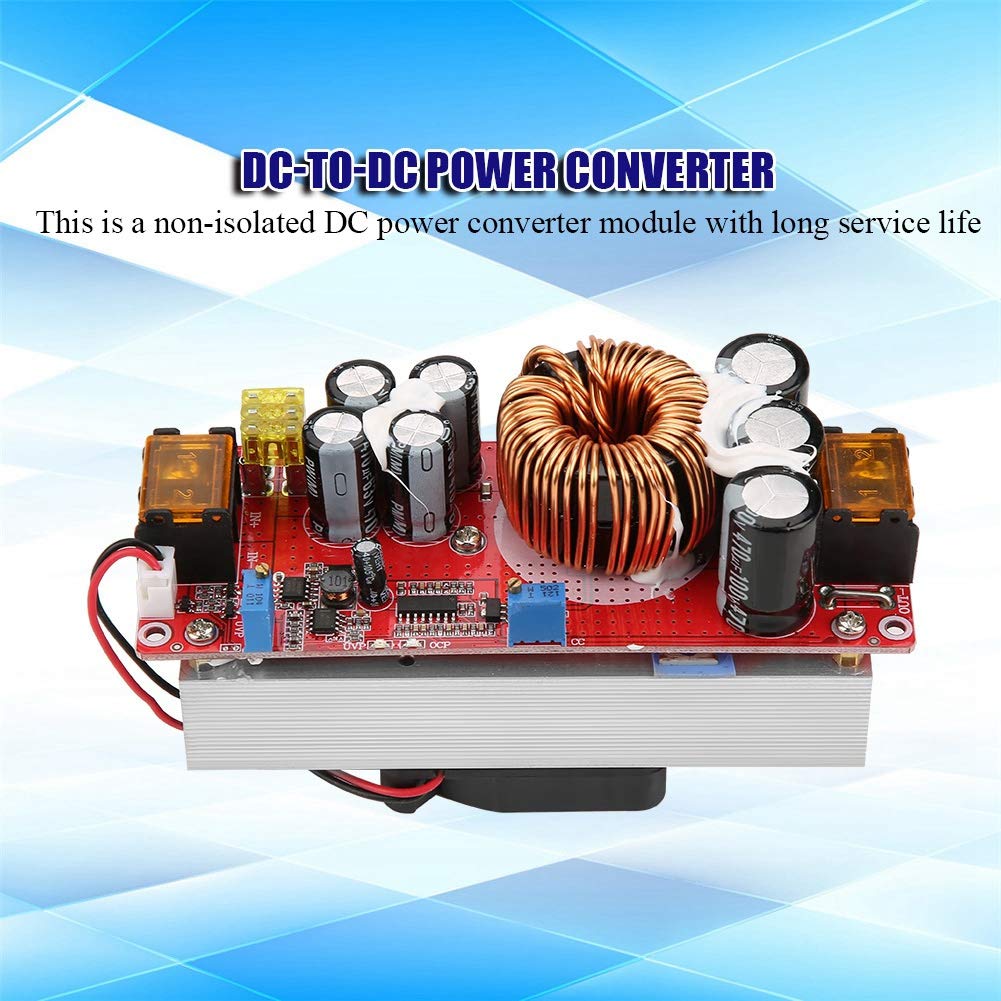

• 【Boost Power Converter】 - This 1500W step up constant current module is nonisolated stepup module (boost), it converts 1060V DC to 1297V DC, high power and stable output.
• 【High Conversion Rate】-- High quality components ensures high conversion efficiency, up to 97%, and efficiency is related to input/output voltage, current and voltage difference. It features high stability and high precision.

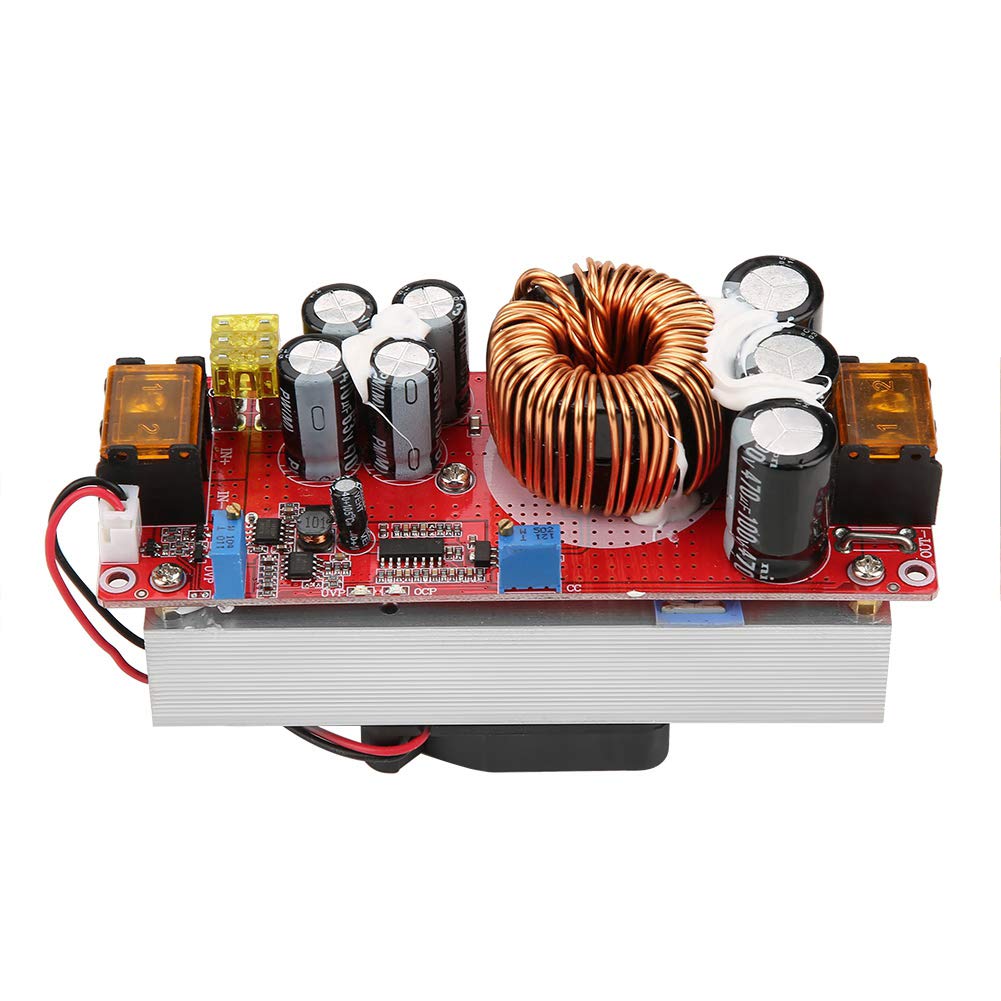

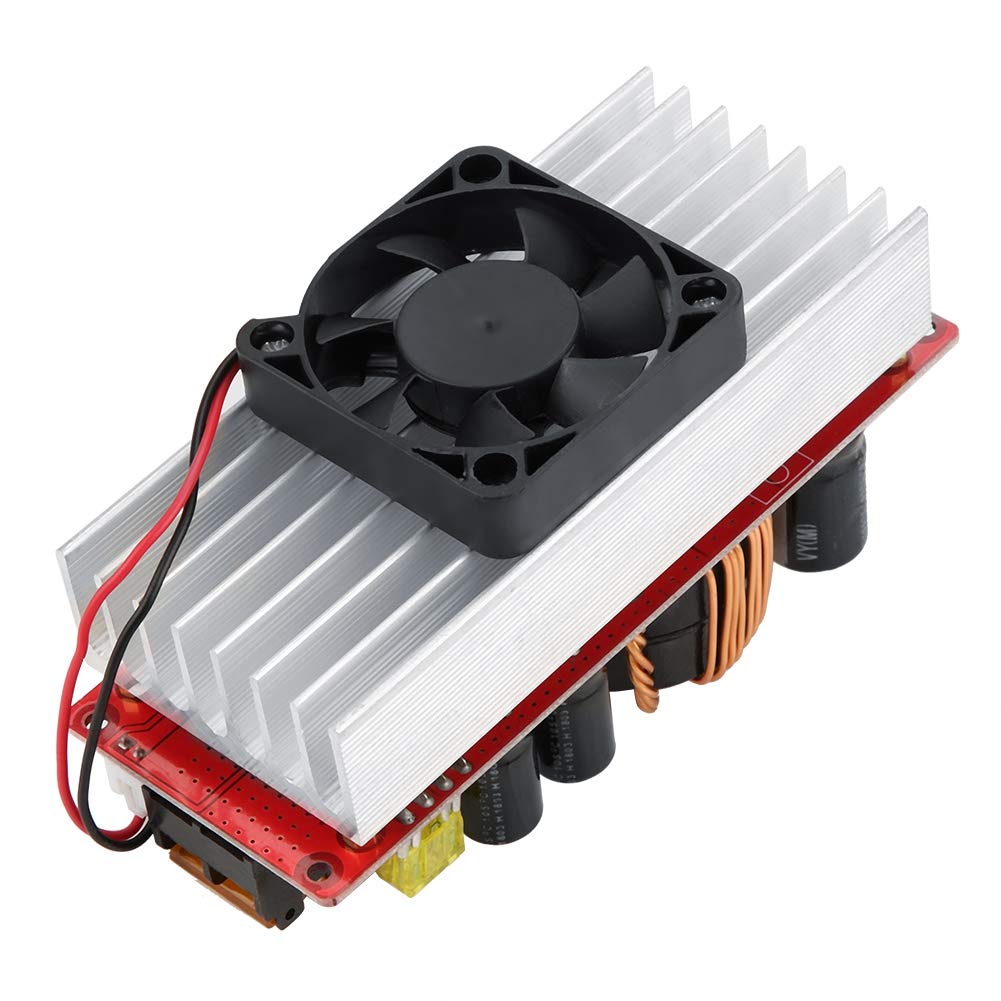

• 【Fast Cooling】 -- The boost module is equipped with smart temperature control fan, which will automatically work when temperature reaches about 60, and stop when temperature drops below 60, which would ensure better heat dissipation and quick cooling.
• 【Wide Application】 -- This step-up power supply module is widely used for high power solar street lamp driving, various LED lighting CV driving, vehiclemounted and mobile device power supply, DIY adjustable CV CC power supply, solar power charging, and various batteries charging
• 【Best Service】- If there are any using problems or unsatisfactory with our products, please feel to contact us, our professional customer service team will consult the issues with sincerity.

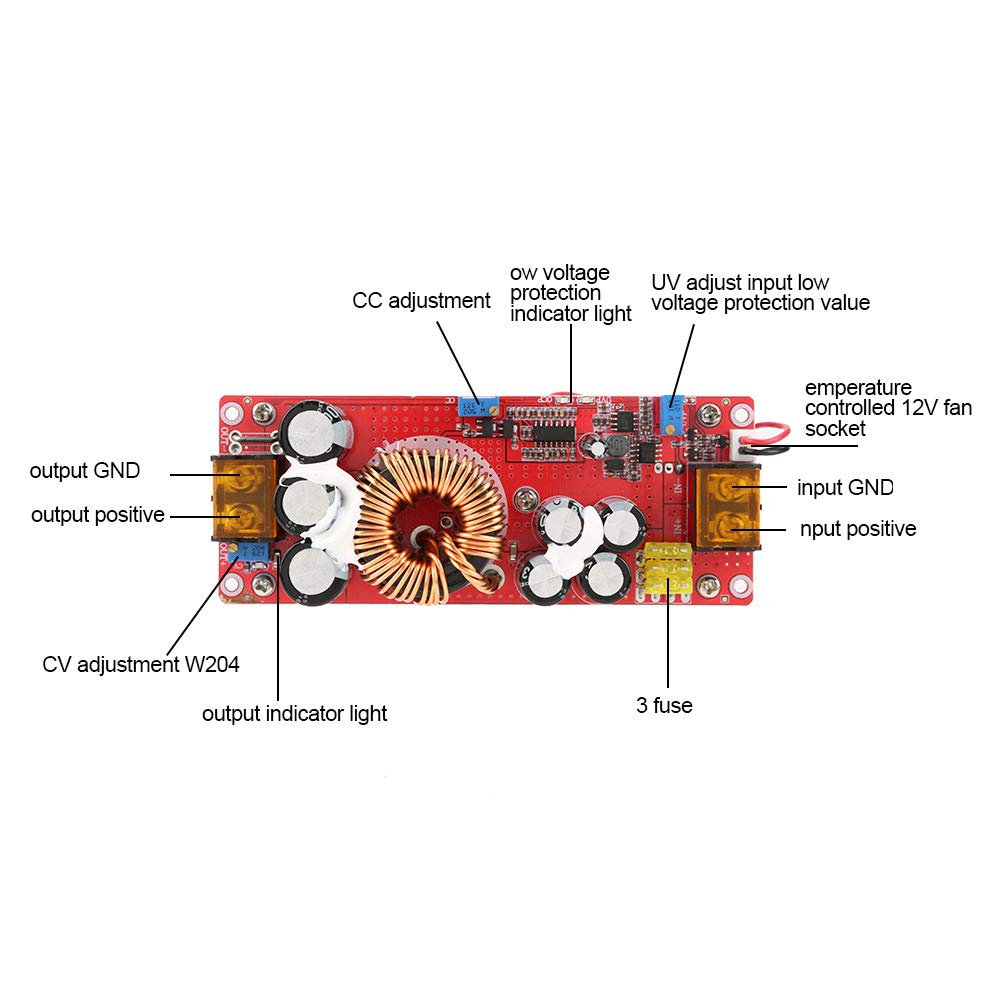

Specification: Name: 1500W step up constant current module Type: Non-isolated step-up module (BOOST) Input Voltage: DC10V to 60V Input Current: 10V-30V input voltage, maximum current is 35A-40A; 31-60V input voltage, maximum current is 30A-35A Quiescent Current: 15mA(when convert 12V to 20V, higher output voltage will increase quiescent current) Output Voltage: 12-97V continuously adjustable (cannot be used to step down voltage) Output Current: 22A (related to the input and output voltage difference, the greater voltage difference is, the smaller output current will be. please enhance heat dissipation when current is over 15A) Reverse Input Yes (150A power MOS reverse protection) Input Low Voltage Yes (10V-50V adjustable, self-recovery) Frequency: 150KHz Conversion Efficiency: 92% to 97% (Efficiency is related to input/output voltage, current and voltage difference. The smaller difference is, the higher efficiency will be) Input Over Current Yes (automatically protect when input is more than 40A, and power supply voltage will not increase) Short Circuit Yes (input 60A fuse) please operate carefully, try not to cause short circuit. Reverse Input Yes ((150A power MOS tube, can be connected reversely for long time) Installation Method: Four 3mm standoffs Wiring Method: Terminal blocks (Please use large current copper wire) Package list: 1 * Module
