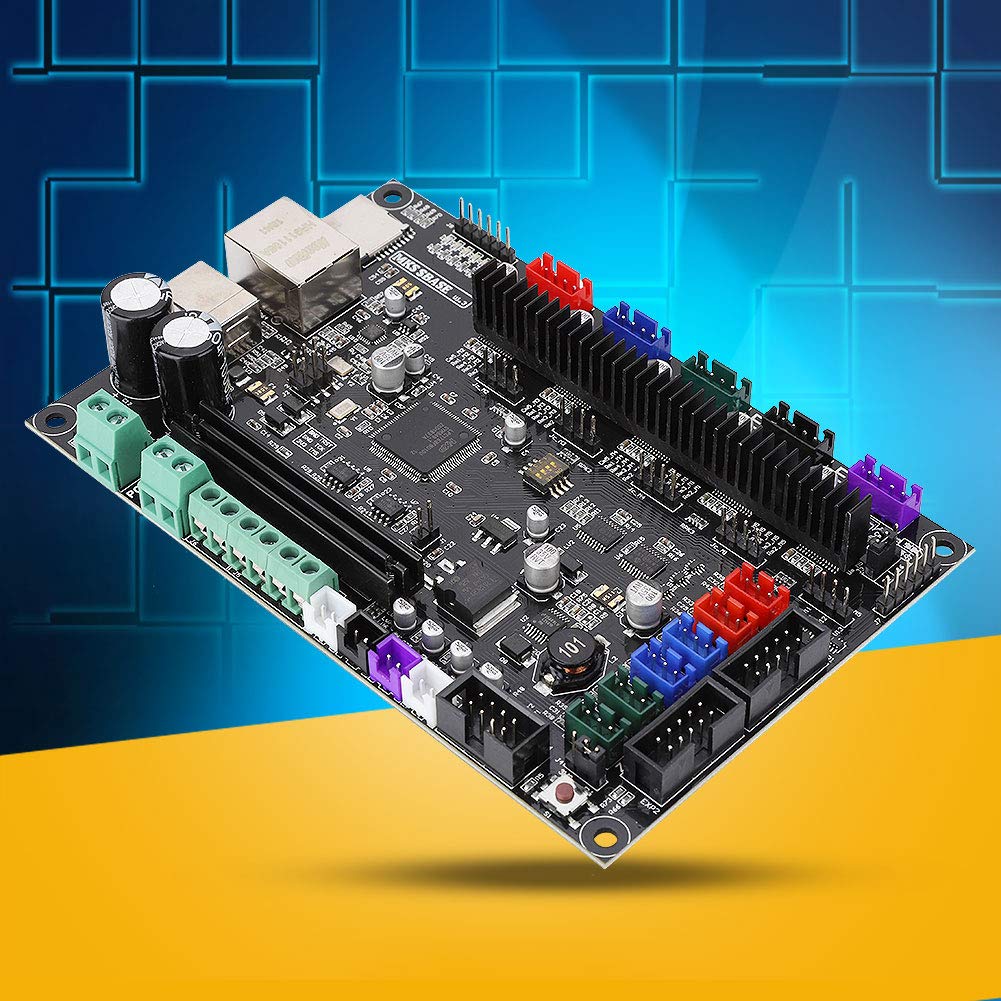

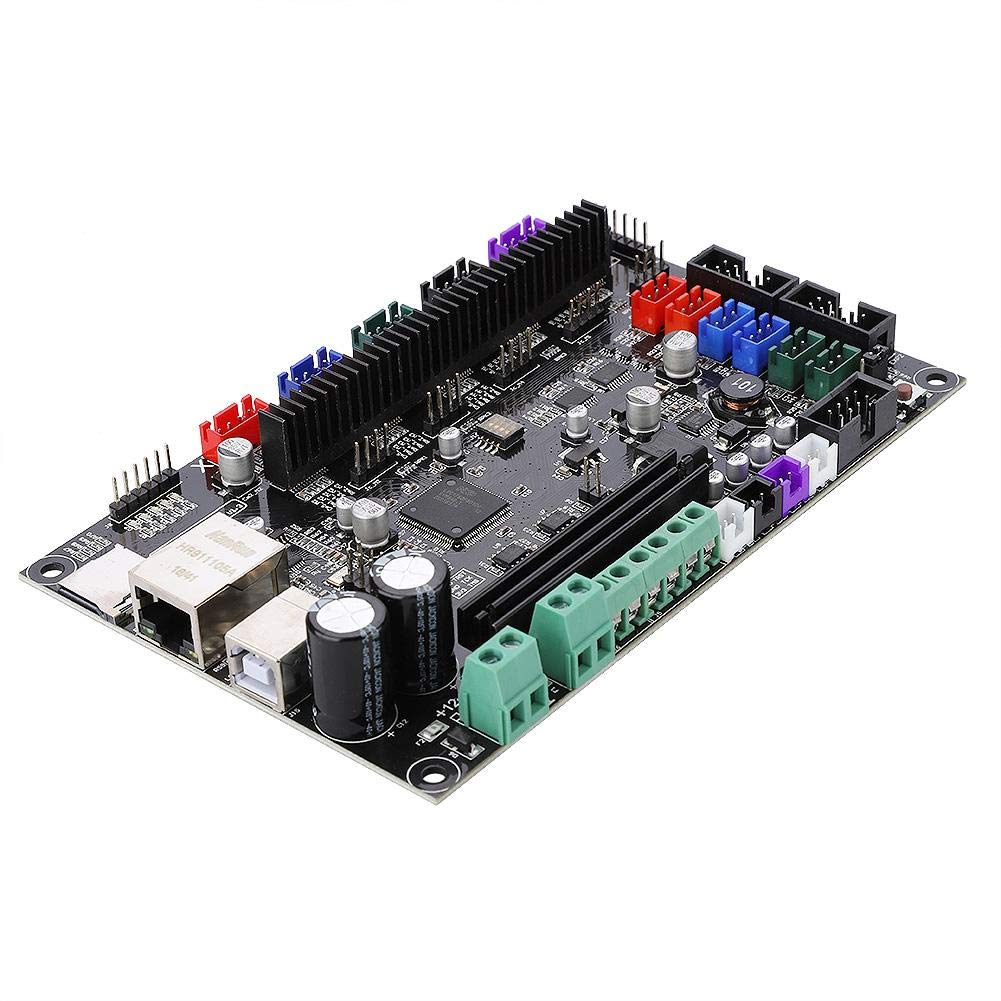

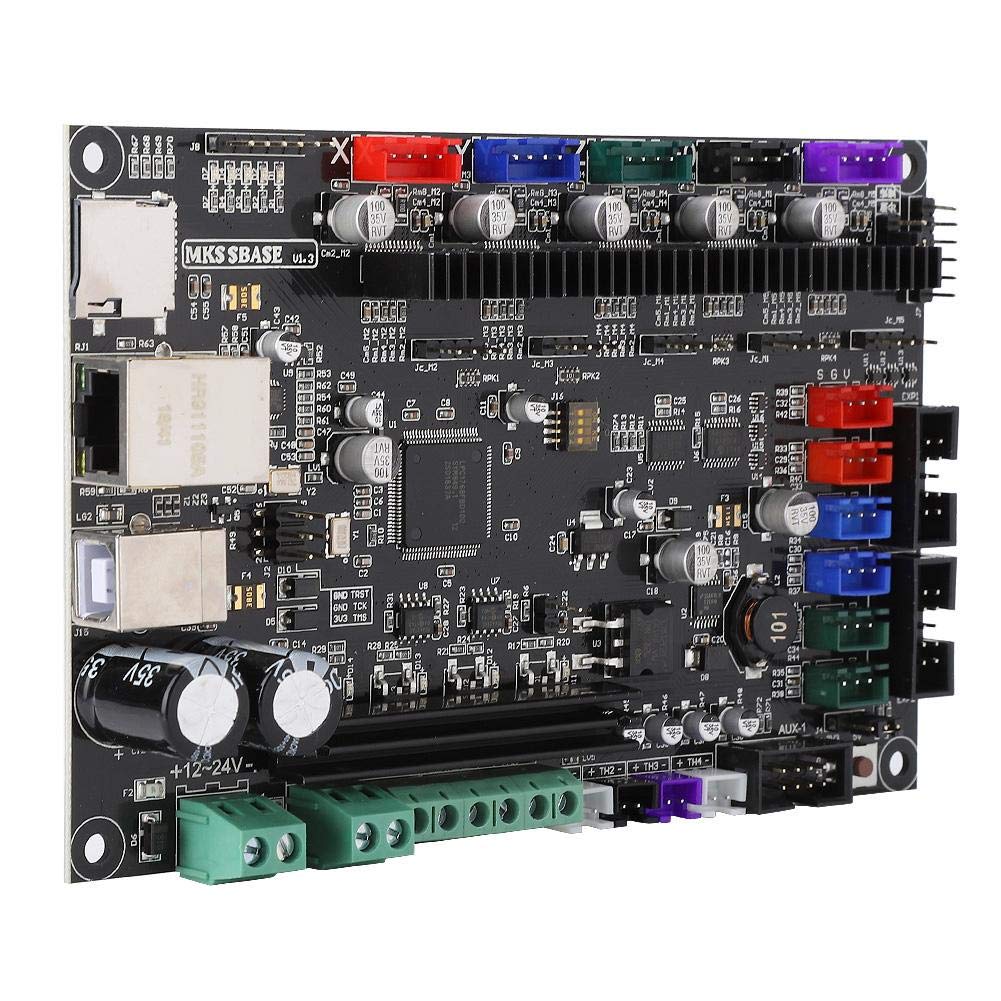

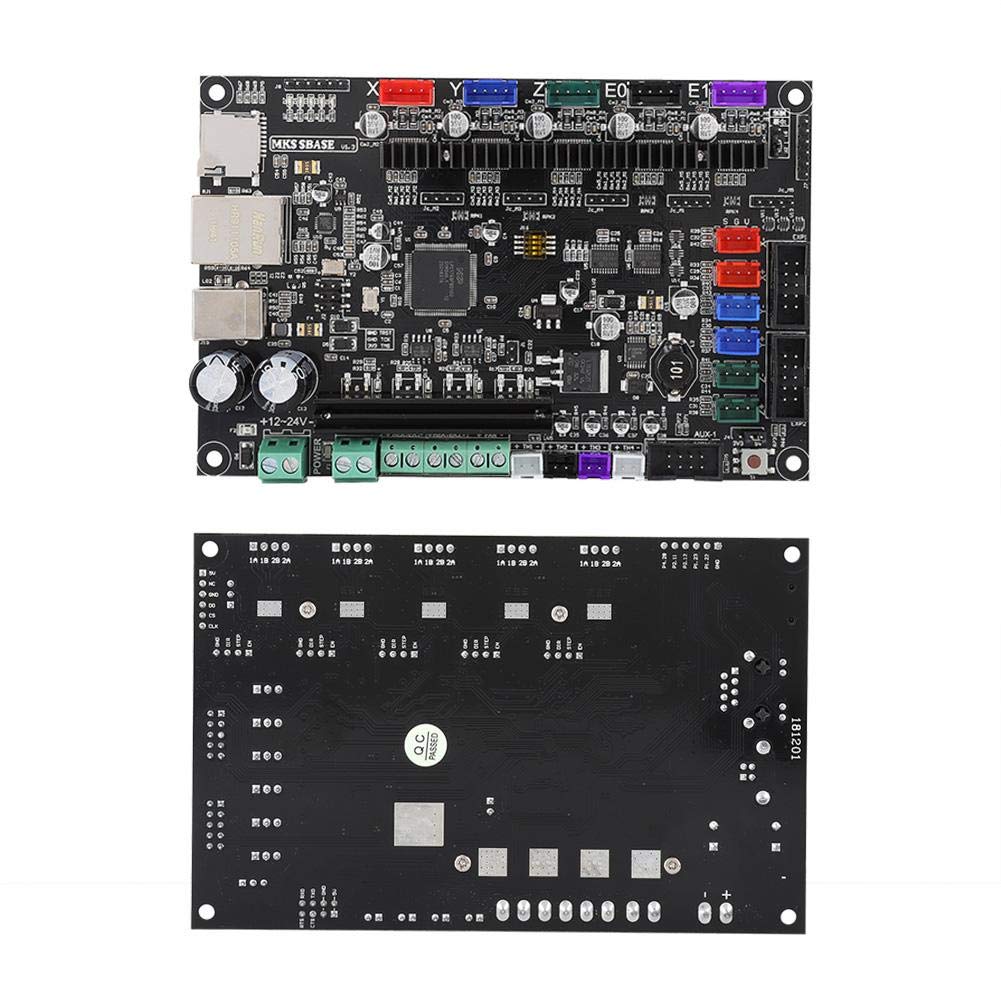

MKS SBASE V1.3 3D Printer Controller Board, 32-bit 100M Cortex-M3 LPC 1768 Mainboard Motherboard, Supports 8825 Driver, 12864 LCD, MKS TFT28 Touch Screen

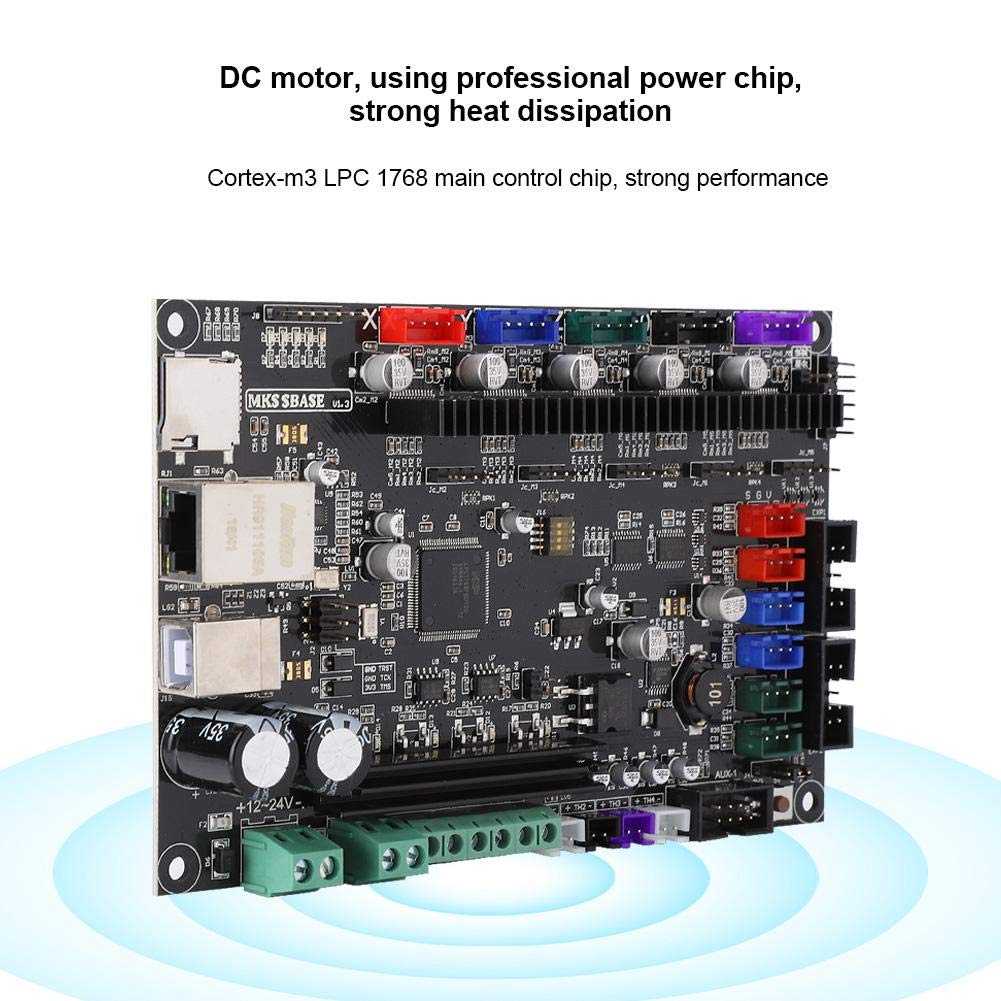

• With the Cortex-M3 LPC 1768 32-bit 100M main control chip, performance greatly improved.
• Highly modular open source firmware support for easy secondary development, eliminating the hassle of not being able to master the central code.

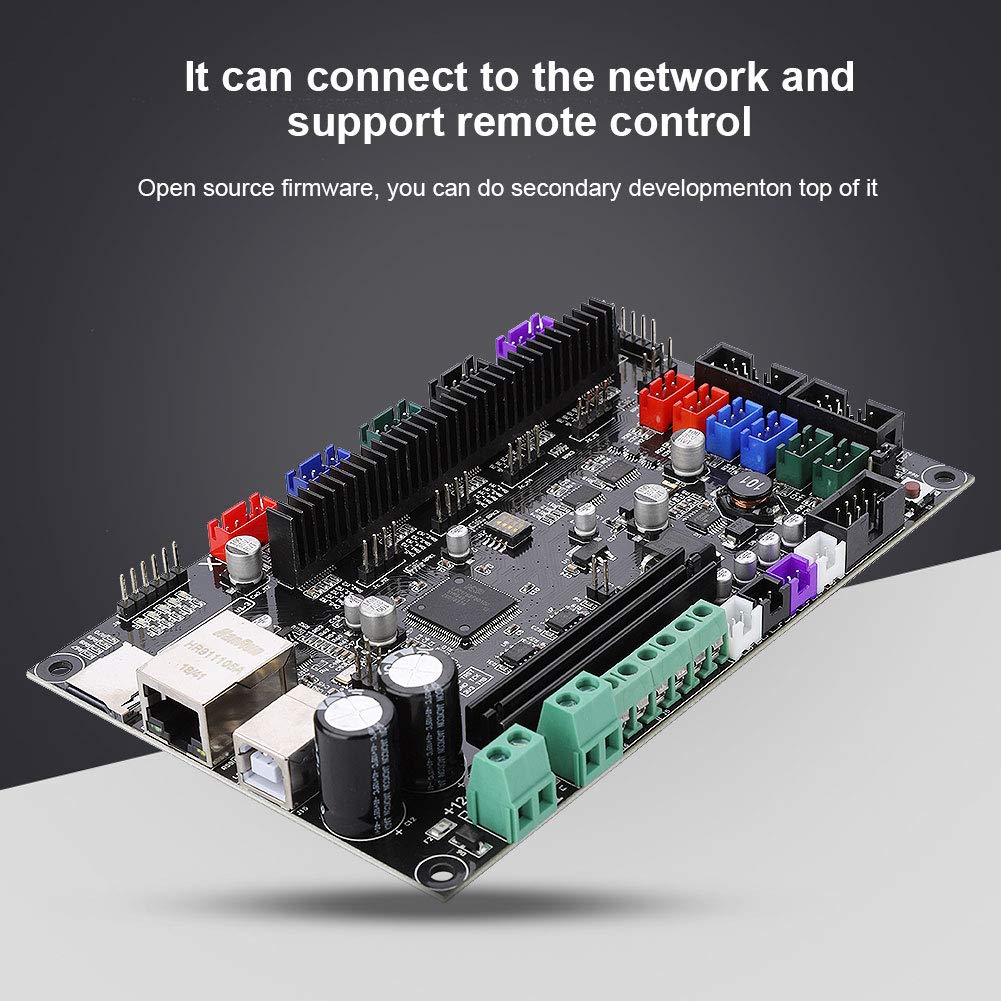

• Supports network functions, through the network line can be connected directly to the network, the use of the browser can achieve remote control.
• Using 8825 as a engine, supporting 32 subdivisions, performance exceeds 4988 by using the SOP package, better heat dissipation.
• Step by step motor current is set up directly, and there is no need to worry about damaging the dimmer or potentiometer when adjusting the current.

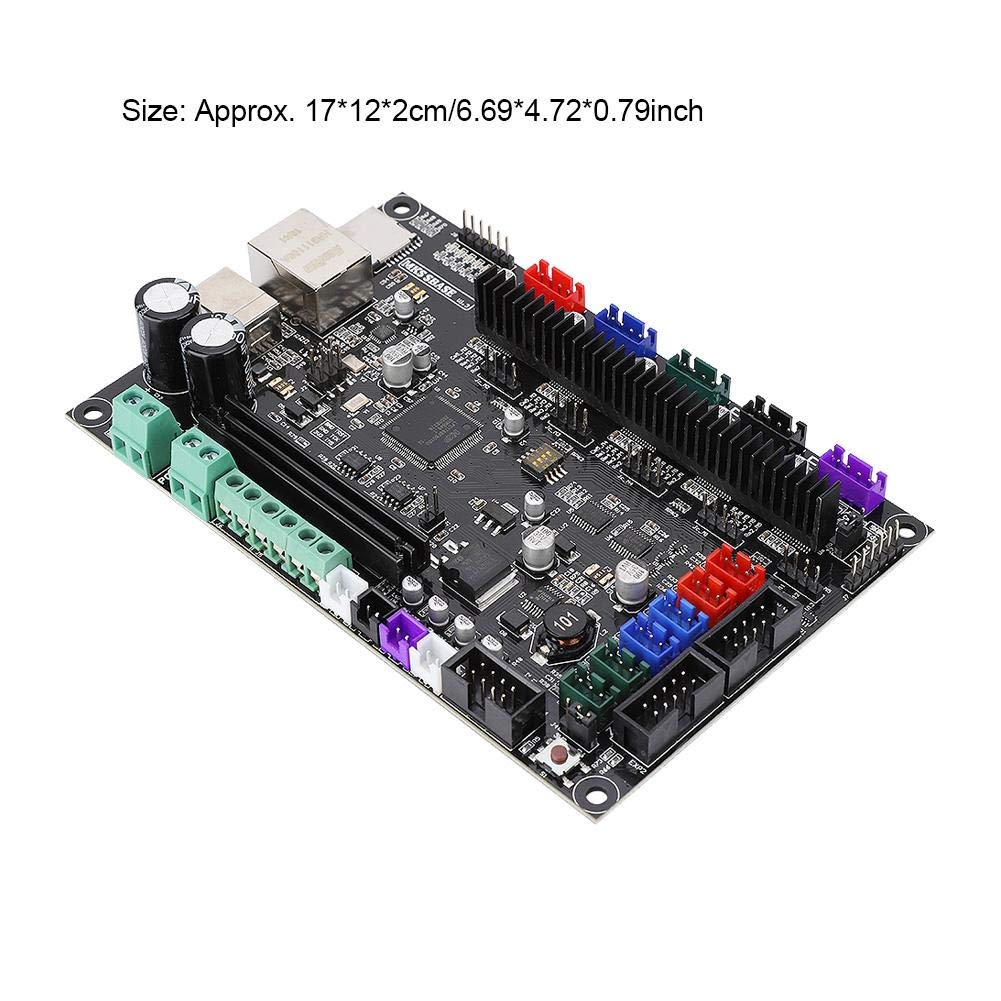

Specifications: Material: PCB Size: approx. 17 x 12 x 2 cm/6.69 x 4.72 x 0.79 inches. Colour: as shown in the picture. Project type: motherboard Model: MKS SBASE V1.3 Suitable for CNC laser, 3D printer, engraving machine TLDA: MCU LPC1768 Compatible with Smoothieboard 3D Printer Motherboard Control Panel MKS SBASE V1.3 32 bit motherboard Auxiliary product (not included): 4 stepper motors 3 end of race: end of race Package list: 1 x motherboard. 1 x USB Note: Before turning on, double check whether positive and negative are connected to the wrong side, if it is because the user is connected to the wrong side of the power supply and is burned, we do not guarantee this type of problem! Do not plug or unplug the motor when the power is on, which may cause the variator to burn, do not adjust the current while the engine is running. The right way to do it is to disconnect the power supply, unplug the engine, and then turn it on again.Adjust the potentiometer and measure the voltage in the potentiometer until the measured voltage is the same as expected. Currently, MKS SBASE can only use the TFT series and the LCD12864 display, but not the 2004 OLED display.
