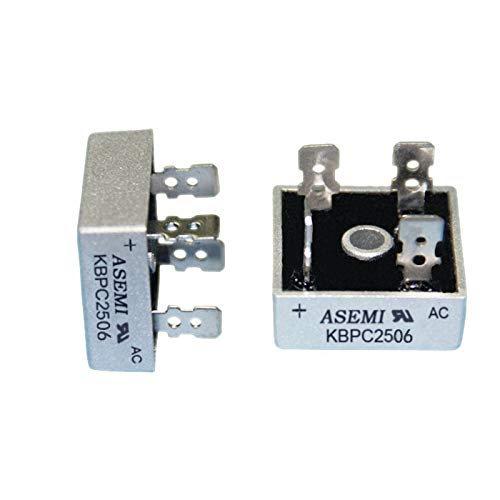

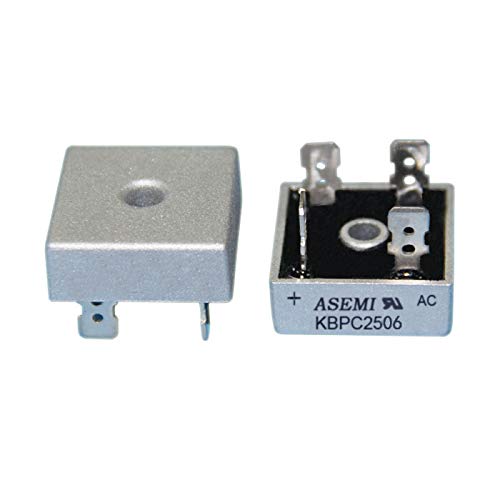

ASEMI KBPC2506 Metal Case Rectifier Bridge Diode 600 V 25 amp for Elevator / Air Conditioner

• 【Type Number】KBPC2506, the high current and high voltage electrical parameters can replace low parameters in the same type line. Example: KBPC2510 can be KBPC2508/KBPC2506/KBPC2504 etc. Replace
• 【Chip】: High quality built-in test line with large chip and high precision to monitor electrical parameters
• 【Features】: laser printing is not easy to fade, oxygen-free copper pins have good conductivity
• Packaging: 2 pieces packed in exquisite environmentally friendly boxes or bags, which not only reduce damage during transport, but can also be recycled and reused
• 【Applications】Switching power supply, LED lights, integrated circuits, mobile communication, computer, control devices for industrial automation, automotive electronics, LCD TV, IoT, smart home, medical equipment, cooker and other small appliances.

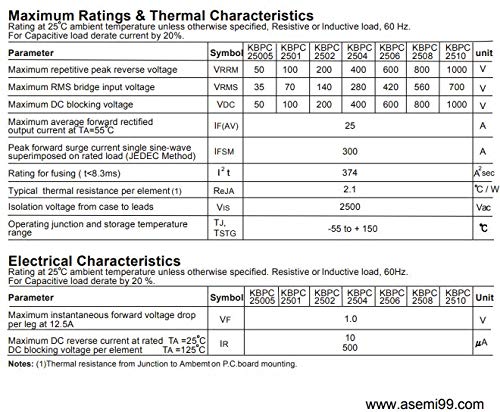

Brand: ASEMI. Product type: KBPC2510 bridge rectifier. Package type: through hole. Input voltag: AC1000V. Output voltage: DC1000 V. Average anode current: 25A. Maxi peak reverse voltage: 1000 V. Maxi peak forward voltage: 1000 V. Reverse peak current: 25A. Frequency: high frequency. Power: medium power. Material: silicone, metal. Packaging/case: KBPC-4. QTY: 2 pieces
