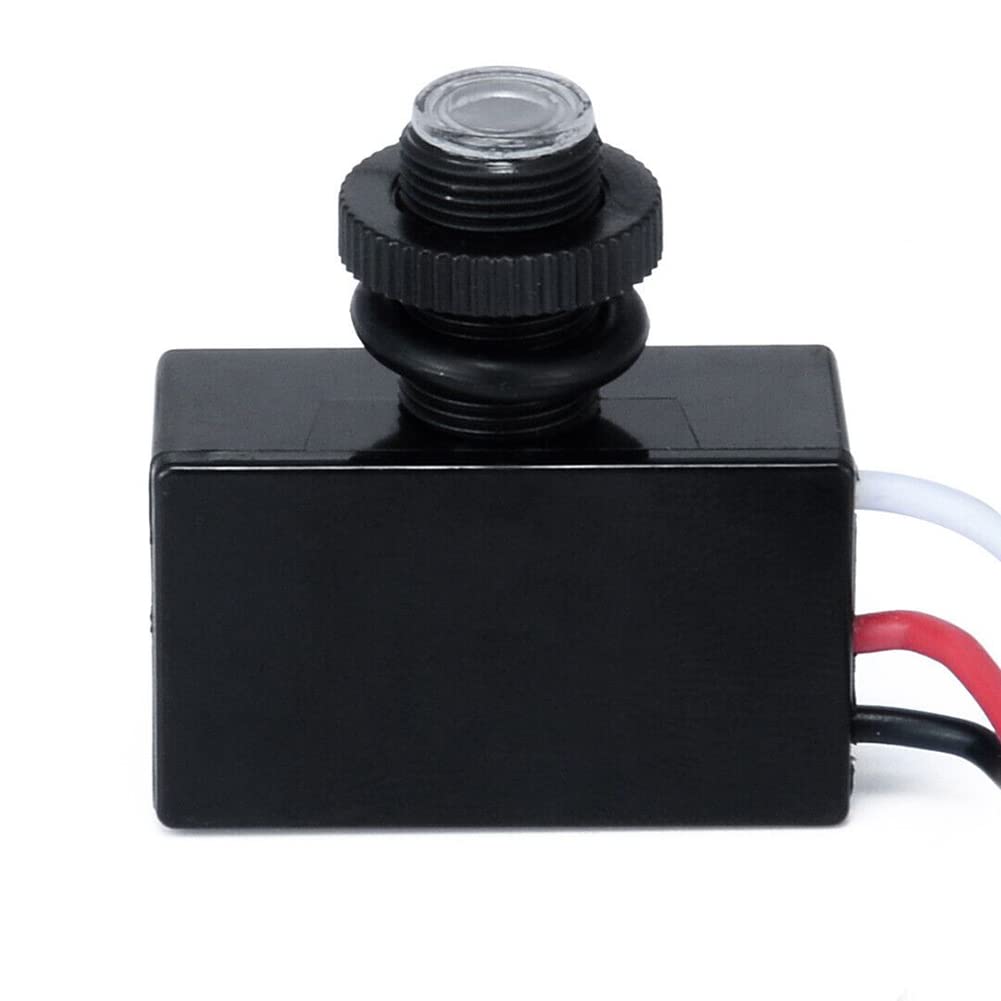

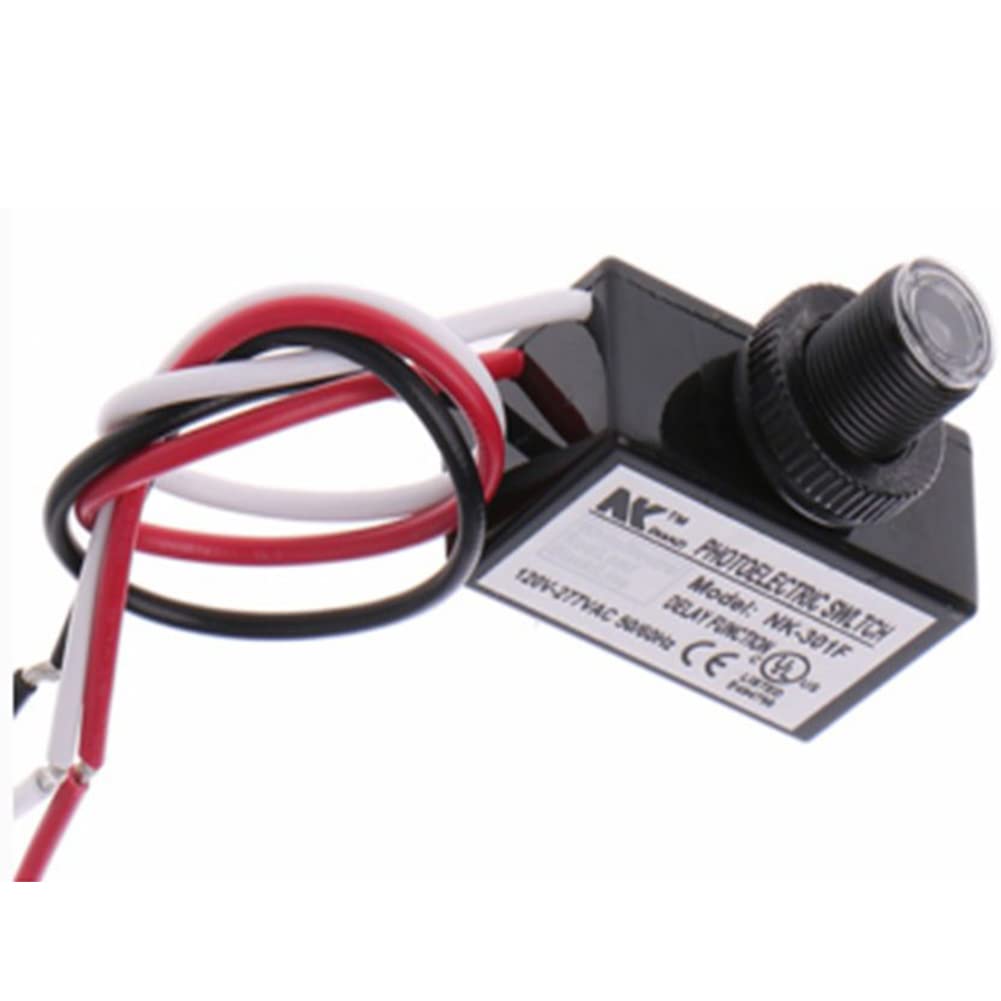

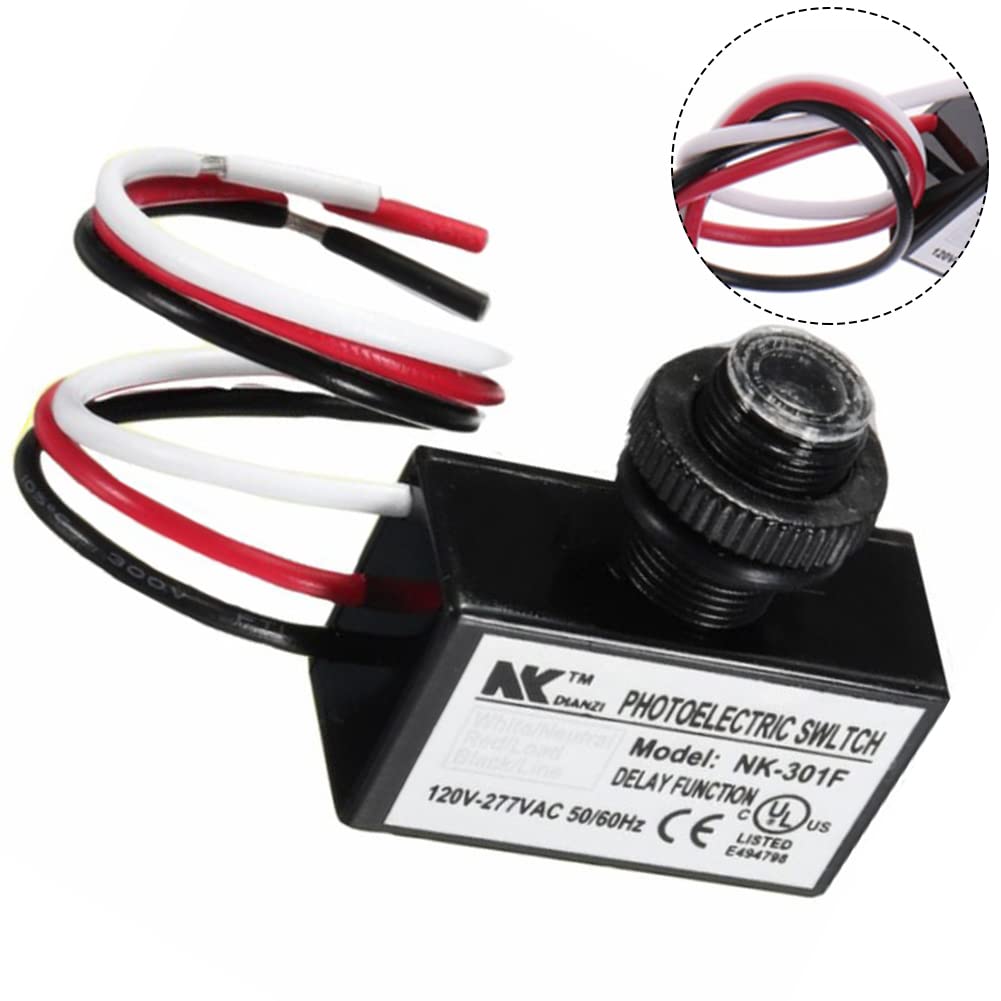

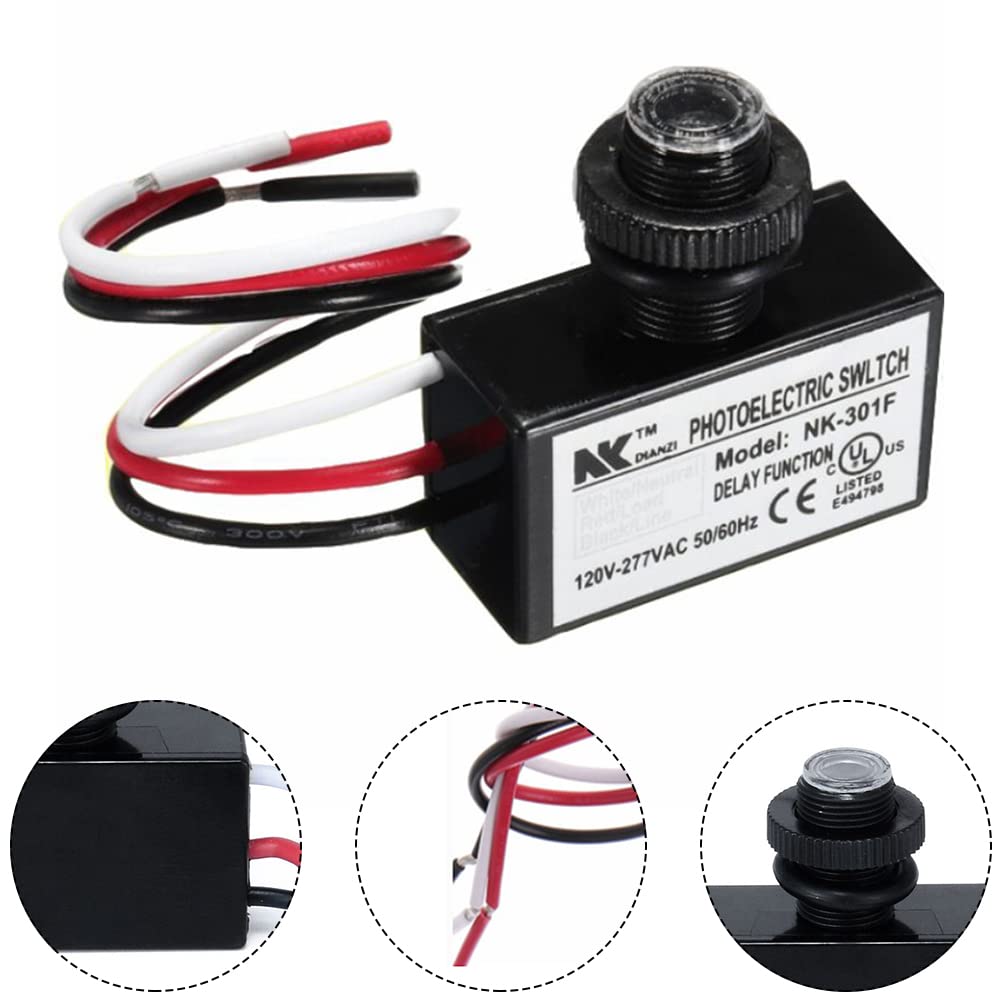

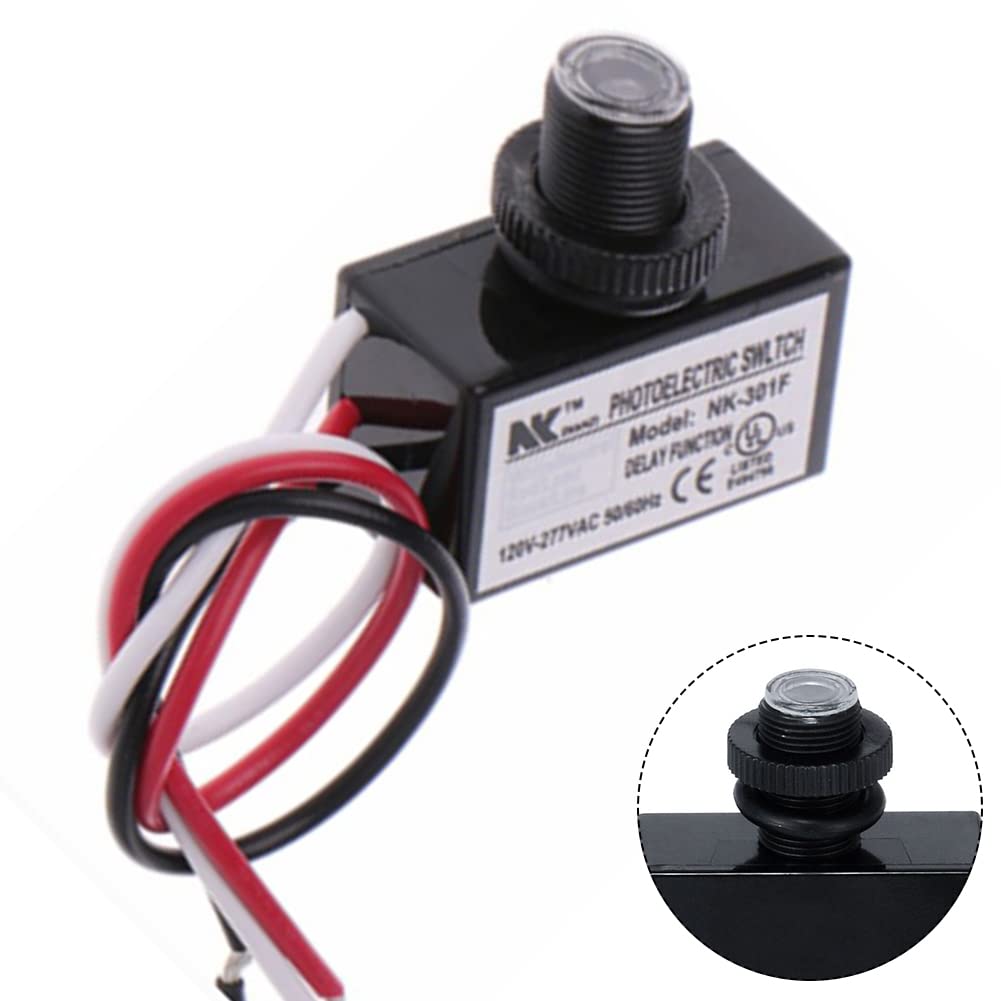

ARMYJY 120-277V Dusk to Dawn Sensor Photoelectric Switch Light Photocell Sensor Light for street lights, wall packs, barn lights

• -This photocell sensor is perfect for street lights, wall packs, barn lights and any other outdoor fixture that you need to have a dusk to dawn feature.
• -Internal IC import components, program control circuit anti-interference design, outdoor same light perception conditions, multiple sensors synchronous opening, induction for PRECISION, high sensitivity.
• -Wiring Method:White Line + Black Line Connection (Input),White Line + Red Line Connection (Output),The White Line is the common line.
• -Small volume light controller is easy to install.
• -Save energy, safe and reliable, long service life.

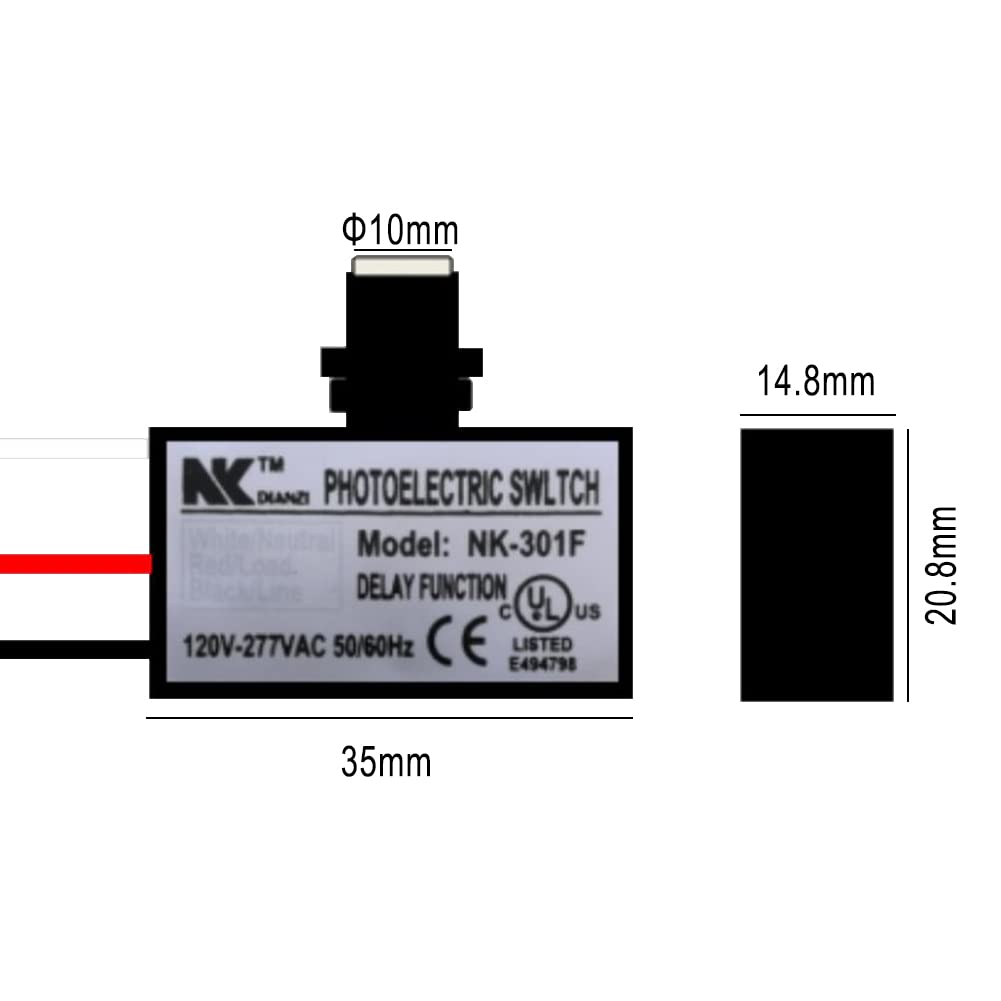

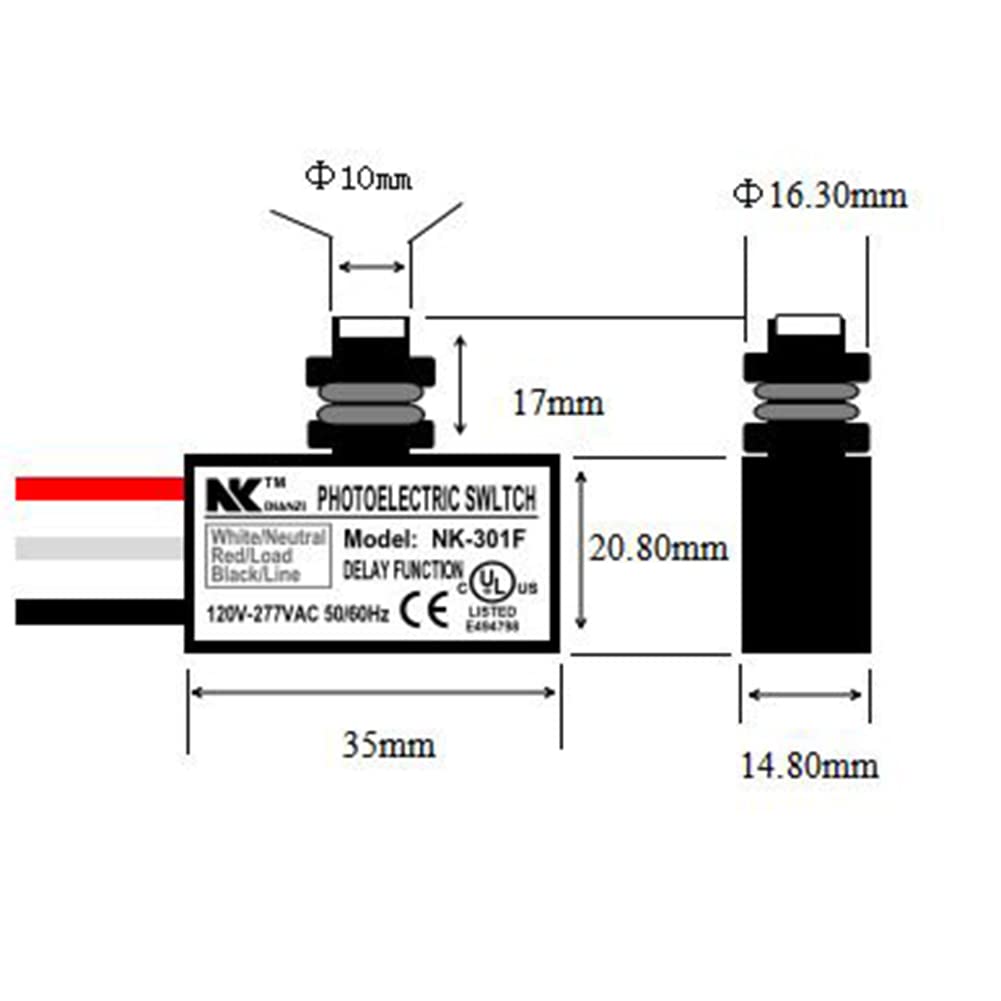

Specifications: Size(approx.):35x20.8x14.8mm(L*W*H) Length(approx.):150mm（AWG#18） Brand: NK Model: NK-301F Voltage Range: AC 80V~277V Rated Voltage: AC 120V/220V Rated Load: 200W/400W Rated Frequency: 50/60Hz Power Consumption: 0.5 Max Sensitivity:10-20LUX On / 40-70LUX Off Anti-jamming Delay: About 12 Seconds Ambient Temperature: - 25℃ ~ + 70 ℃ Relative Humidity: 99% RH Inductive Head Rain Proof Grade: IP65 Working Life: More Than 5000 Times NK-301F AC80~277V Photoelectric Switch Photo for CEll Flush Mount Button Photo Control Waterproof UL for CErtification: for CE for CErtification Package Contents: 1pc Photoelectric Switch
