Arducam 5 Megapixels 1080p OV5647 Camera Module with CS Mount Lens for Raspberry Pi Model A/B/B+, Pi 2 and Raspberry Pi 3

• High-Definition video camera for Raspberry Pi Model A or B, B+, model 2, Raspberry Pi 3
• Omnivision 5647 sensor in a fixed-focus module with replaceable Lense
• Still picture resolution: 2592 x 1944
• Integral IR filter
• Max video resolution: 1080p

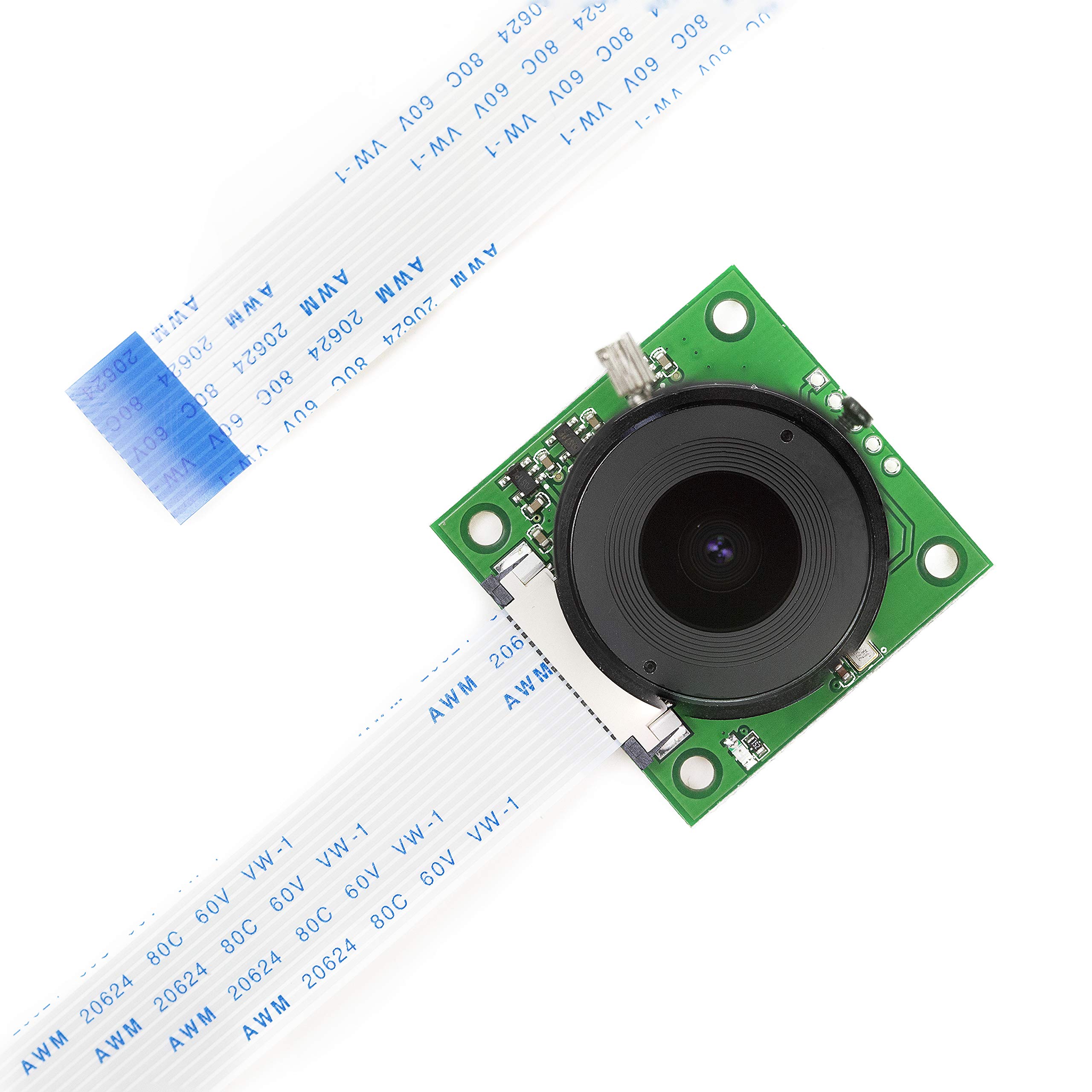

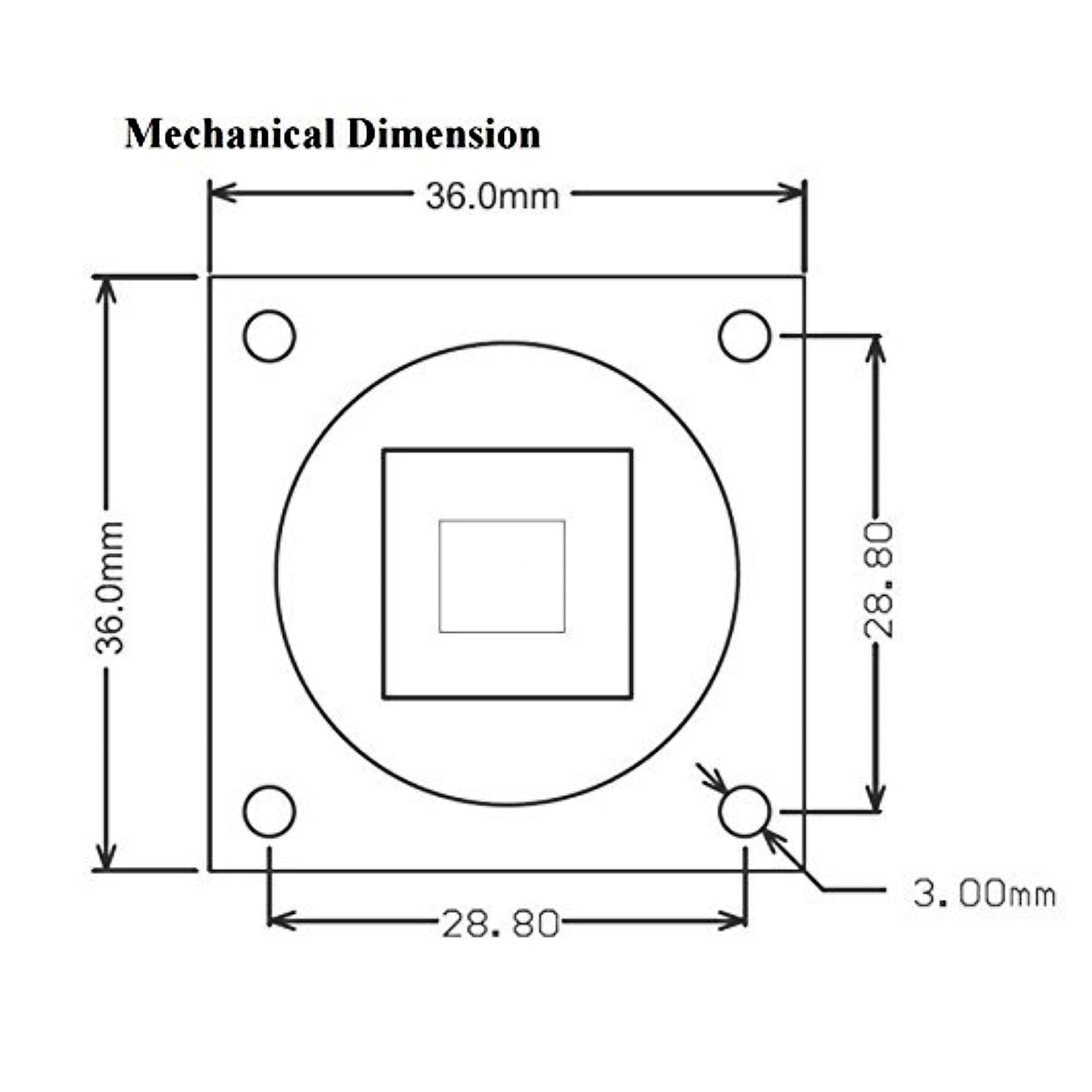

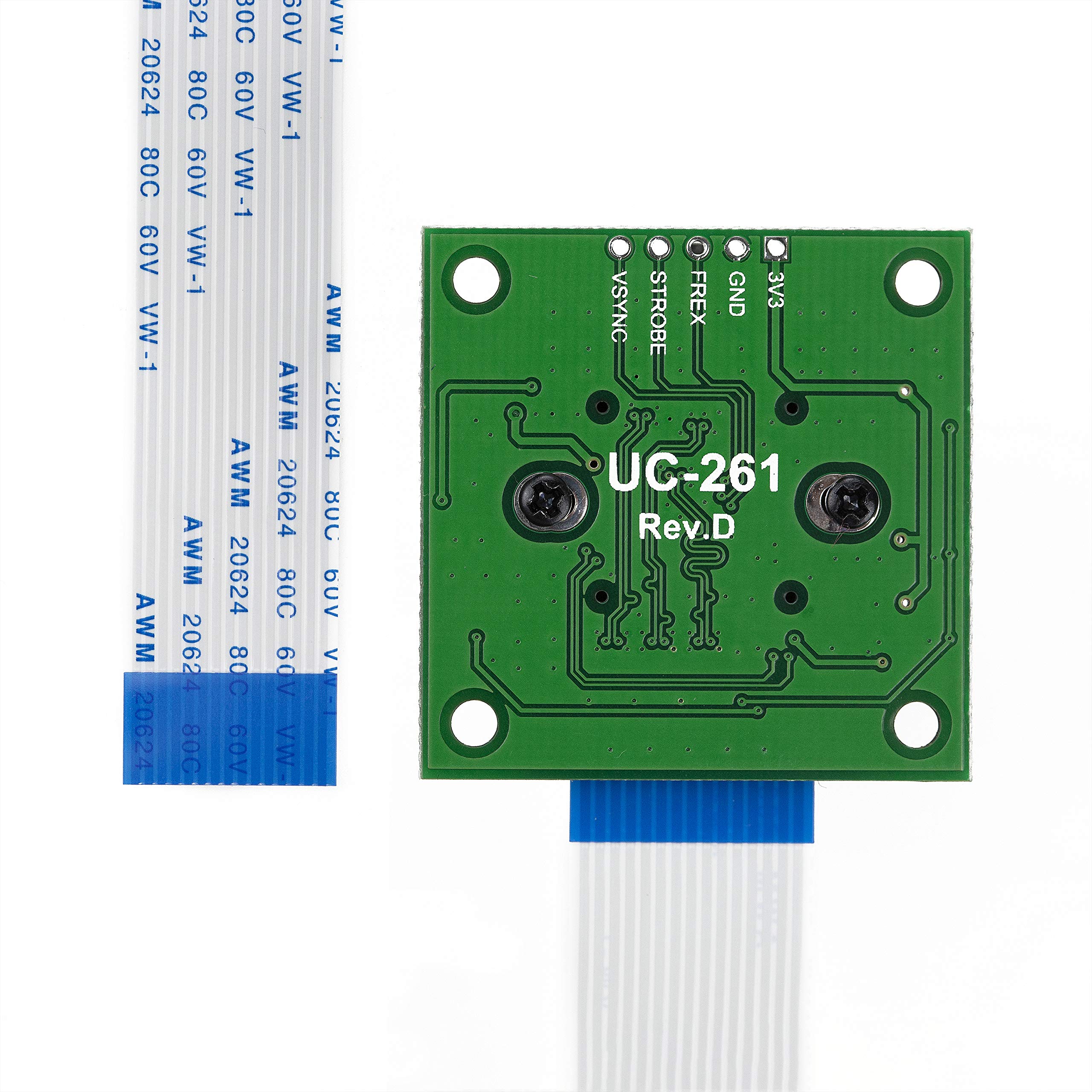

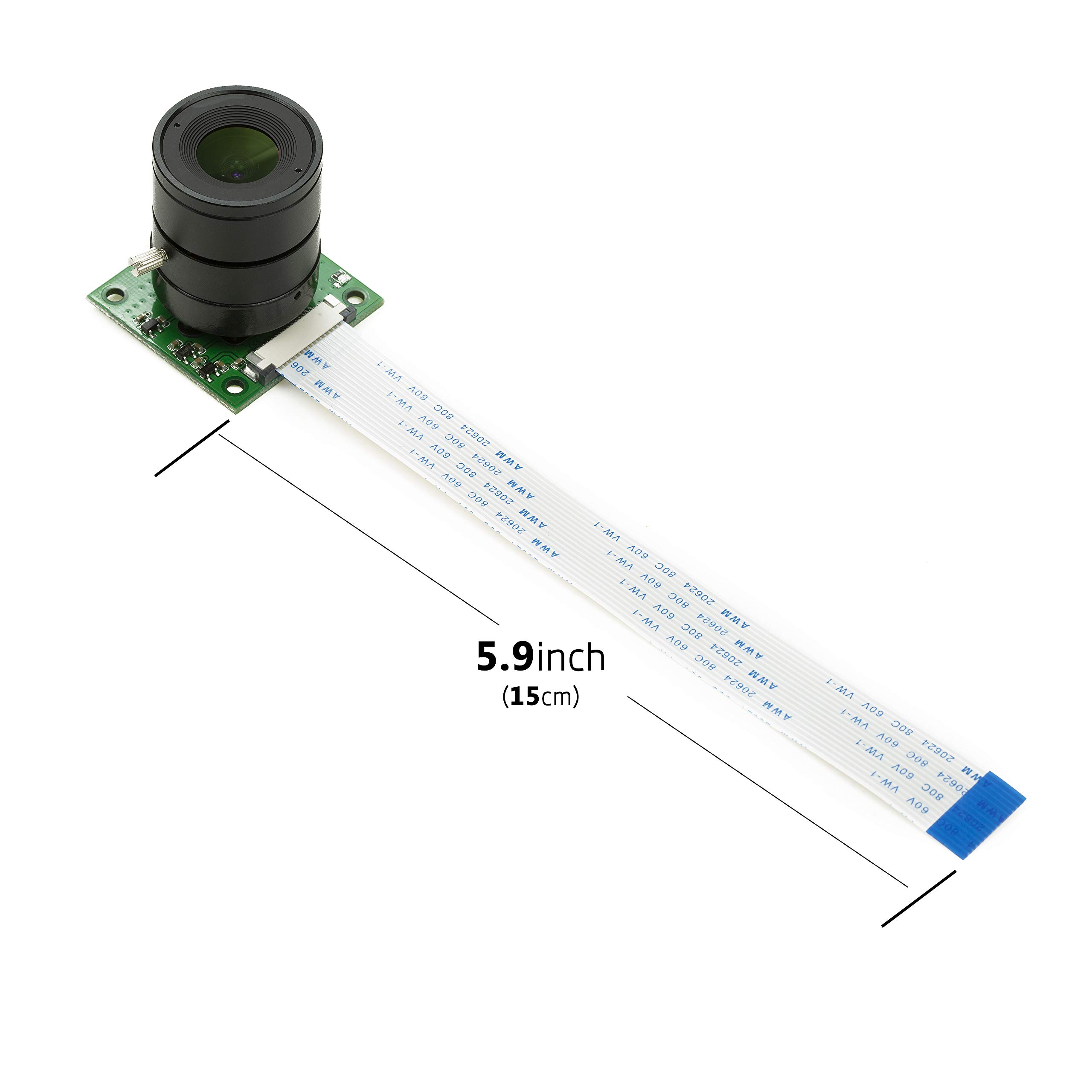

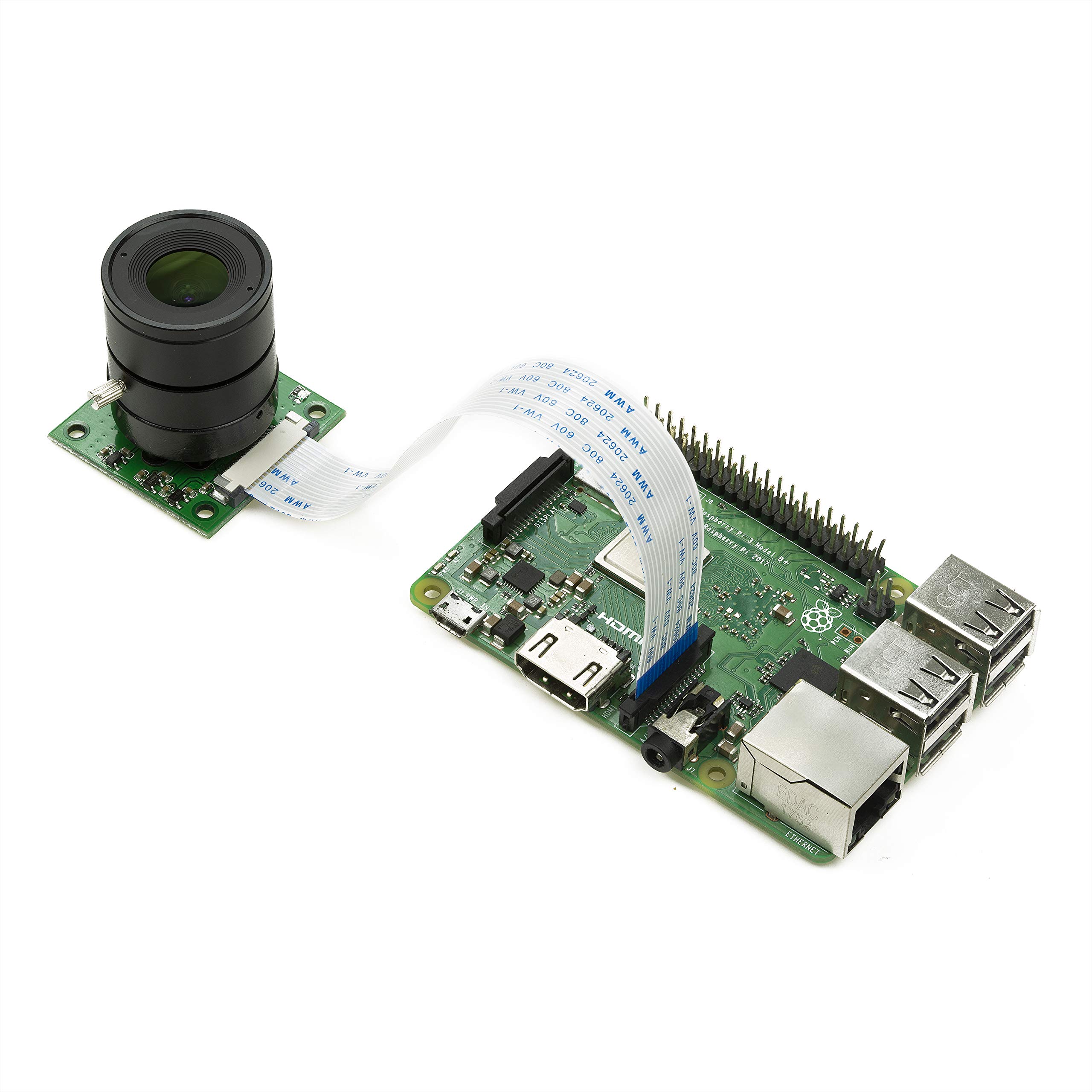

The ArduCAM team now released a revision C add-on camera module which is fully compatible with official Raspberry Pi board. It optimizes the optical performance than the previous Pi cameras, and give user a much clear and sharp image. Also it provides the FREX and STROBE signals which can be used for multi-camera synchronize capture with proper camera driver firmware. It attaches to Raspberry Pi by way of one of the two small sockets on the board upper surface. This interface uses the dedicated CSI interface, which was designed especially for interfacing to cameras. The CSI bus is capable of extremely high data rates, and it exclusively carries pixel data. The camera is supported in the latest version of Raspbian, Raspberry Pi's preferred operating system. The board itself is tiny, at around 36mm x 36mm. It connects to Raspberry Pi by way of a short ribbon cable. The camera is connected to the BCM2835/BCM2836 processor on the Pi via the CSI bus, a higher bandwidth link which carries pixel data from the camera back to the processor. Feature: Lens holder: CS mount Max frame rate: 30fps Integral IR filter 15 cm flat ribbon cable to 15-pin MIPI Camera Serial Interface (CSI) connector The Camera Lens for Raspberry Pi Camera Board is LS-2716CS Packing included: 1pcs Camera Board /w CS mount Lens(LS-2716CS) fully compatible with official Raspberry Pi Camera board 1pcs 15cm 15pin FPC cable NOTE:Raspberry Pi not included
