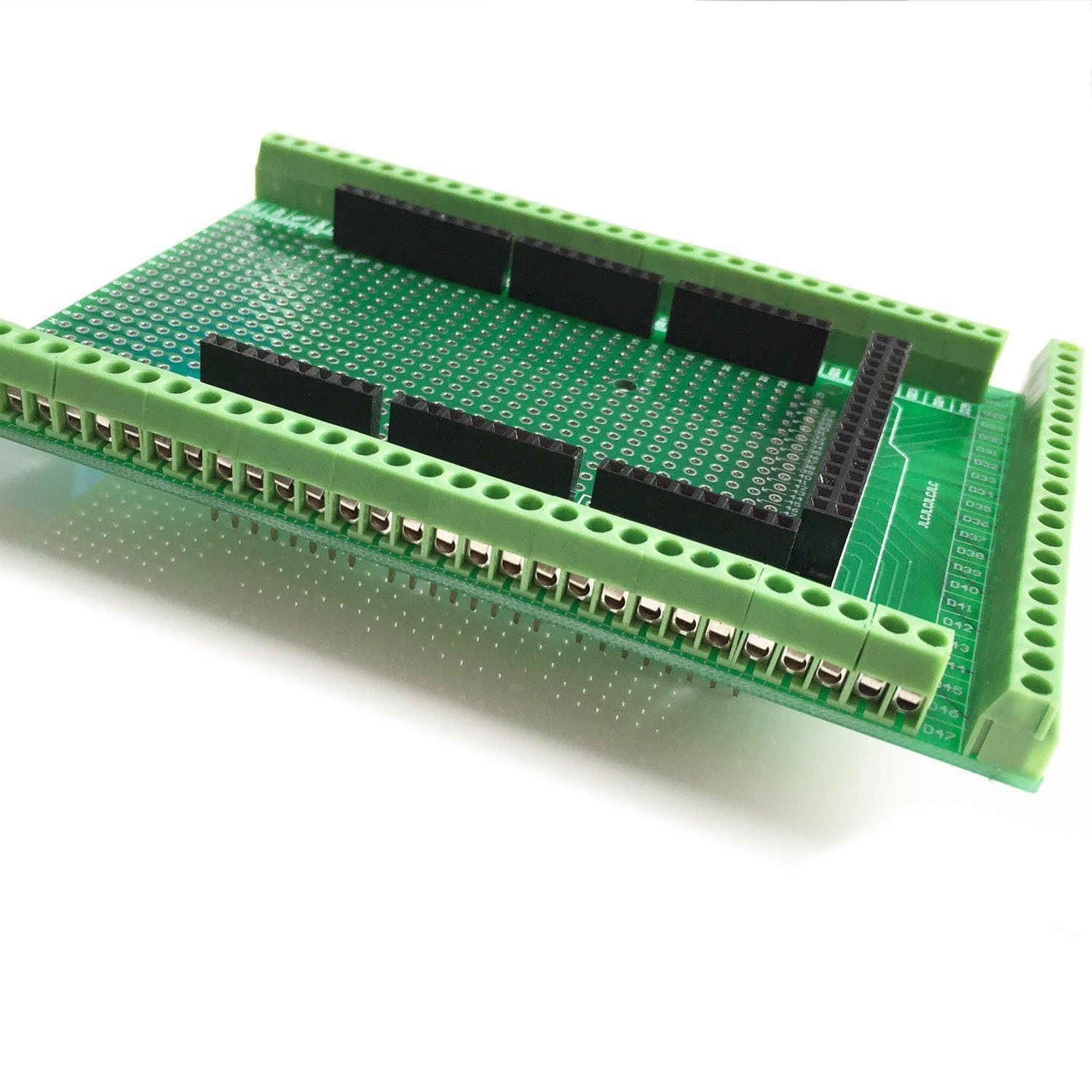

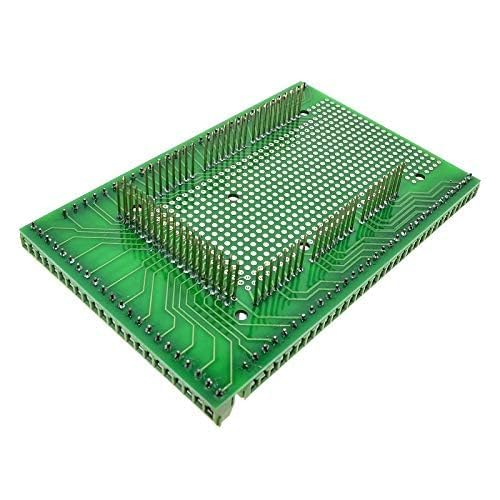

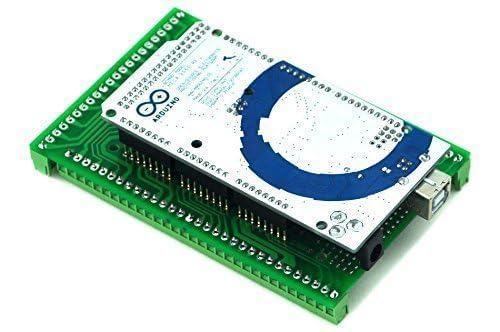

ICQUANZX ARCELI Prototype Screw/Terminal Block Shield Board Kit For MEGA 2560 R3 DIY Soldered

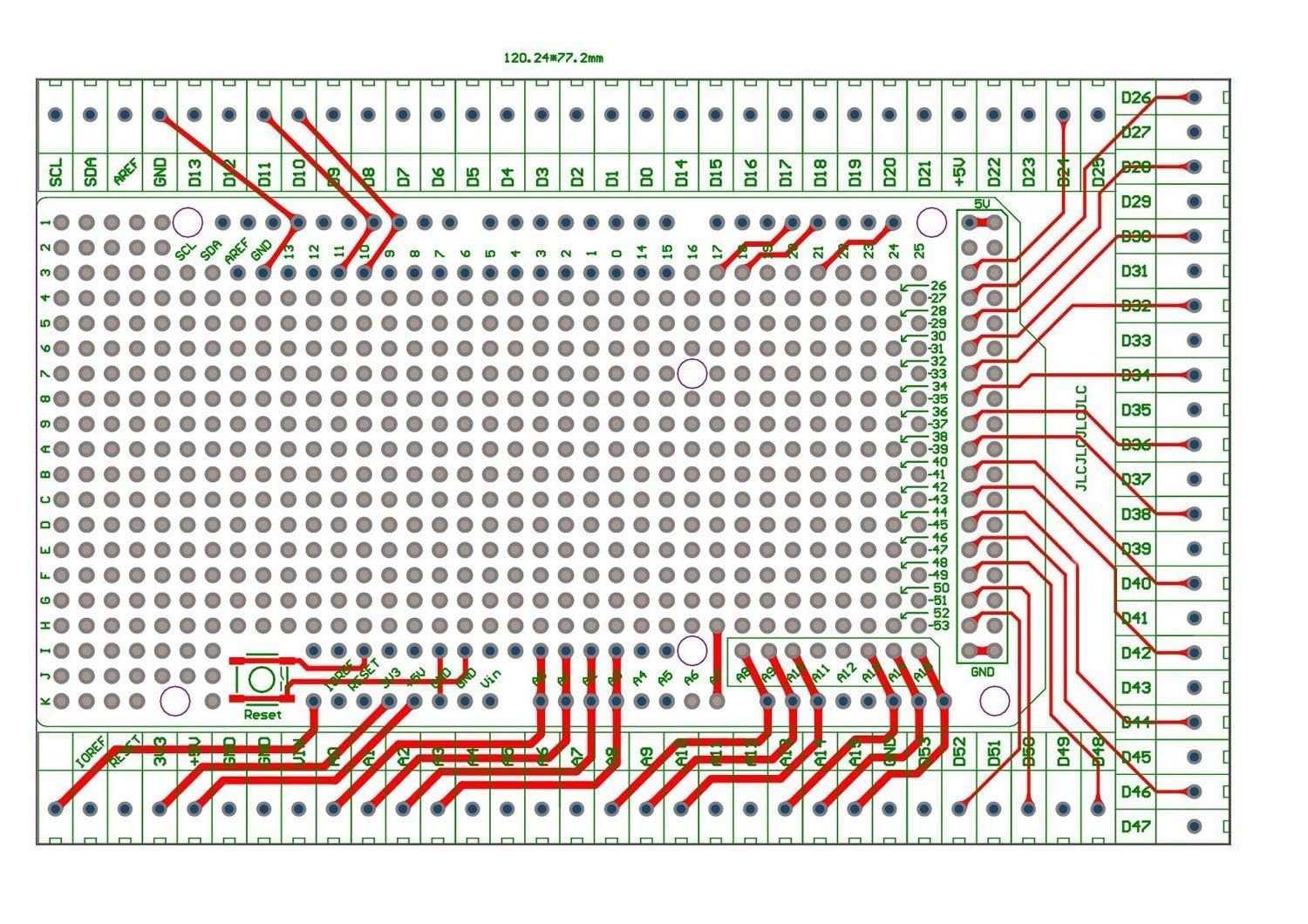

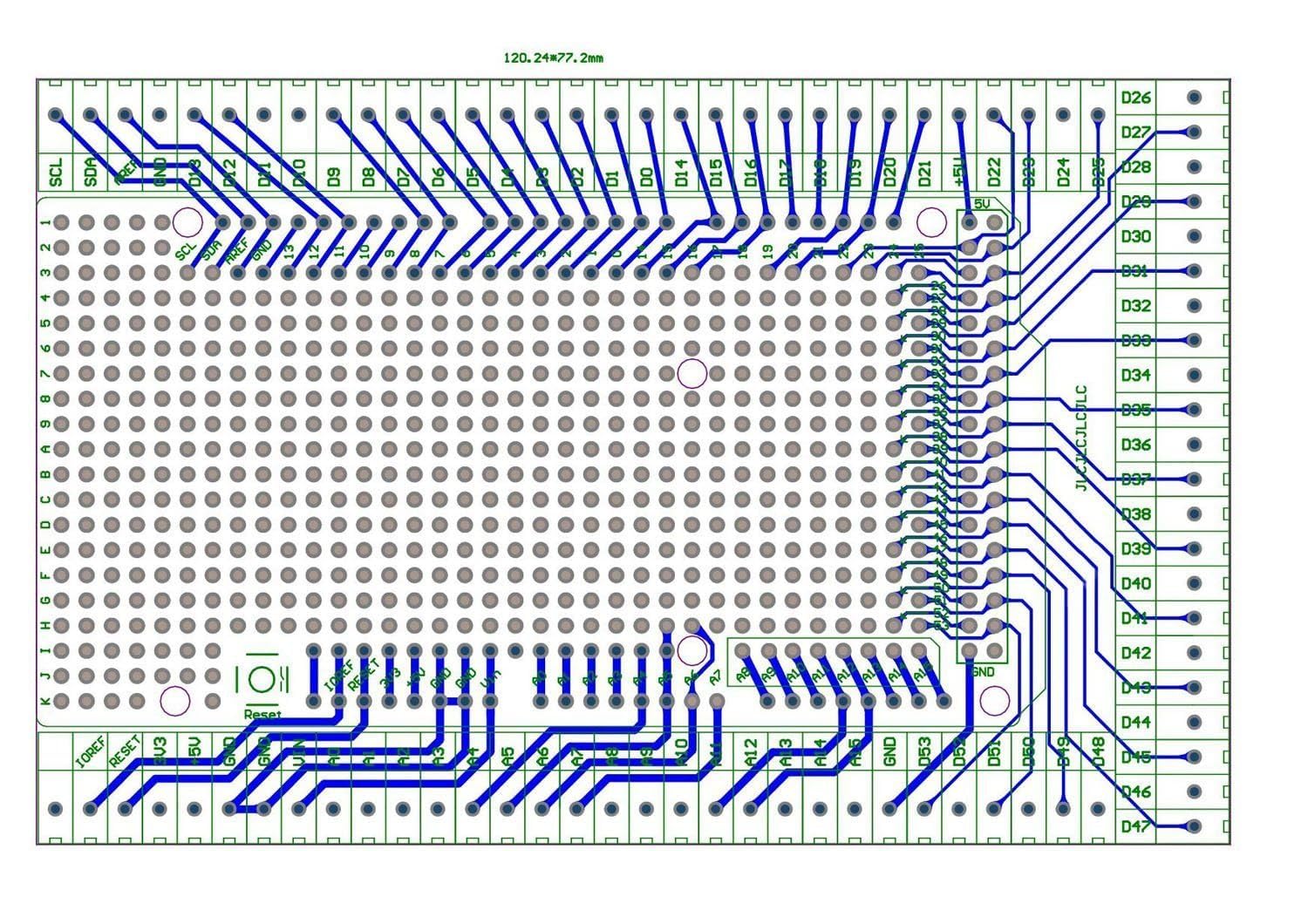

• PCB: FR-4 glass fibre PCB, double copper layers, size 120 mm x 78 mm. Pads grid / pitch 2.54 mm / 0.1 inches, hole diameter 0.8 mm. Terminal block pitch 3.5 mm / 0.138 inches, hole diameter 1.2 mm.
• Terminal block: pitch 3.5 mm / 0.138 inch mini terminals, total 84 pins (3-pin x 24 pieces, 2-pin x 6 pieces). Wire range 26 ~ 16AWG, strip length 5 mm, screws M2 steel, pin header and cage brass.
• Female header: pitch 0.1 inches / 2.54 mm, pin length 15 mm / 0.59 inches, single row 10pin x1pcs, single row 8pin x 5pcs, double row 18pin x1pcs.
• Note: This is not an original Arduino product. It is only a replacement accessory from Arceli

PCB: FR-4 fiber glass PCB, dual copper layers, size 120mm x 78mm. Pads grid / pitch 2.54mm / 0.1", hole diameter 0.8mm. Terminal block pitch 3.5mm / 0.138", hole diameter 1.2mm. Terminal block: Pitch 3.5mm / 0.138" mini terminal blocks, total 84 pins(3pole x24pcs, 2pole x6pcs ). Wire range 26~16AWG, strip length 5mm, screws M2 steel, pin header and cage brass. Female header socket: Pitch 0.1"/2.54mm, pin length 15mm / 0.59" Single row 10pin x1pcs, singal row 8pin x 5pcs, dual row 18pin x1pcs. Note: This is not an original Arduino product. It only a substitute accessories from ARCELI Package includes: 1 x PCB board
