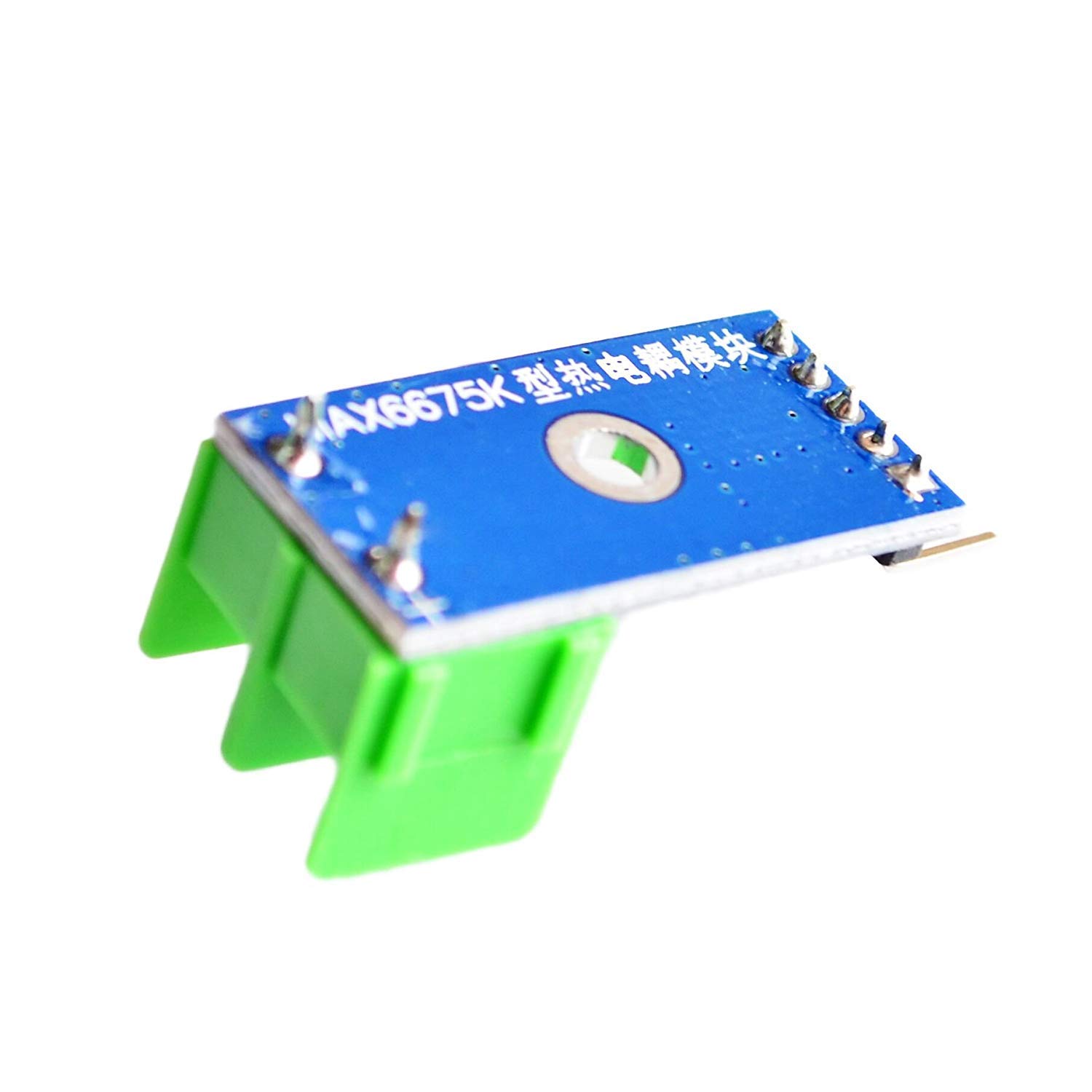

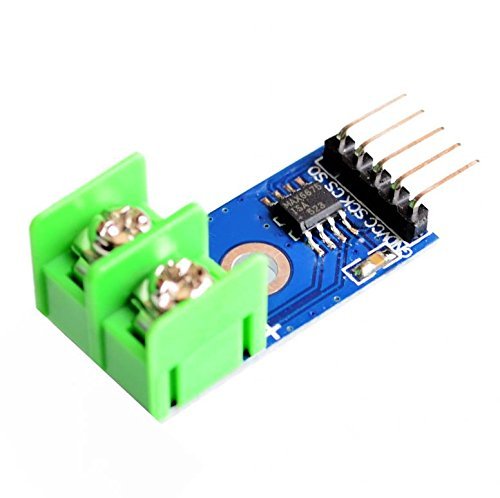

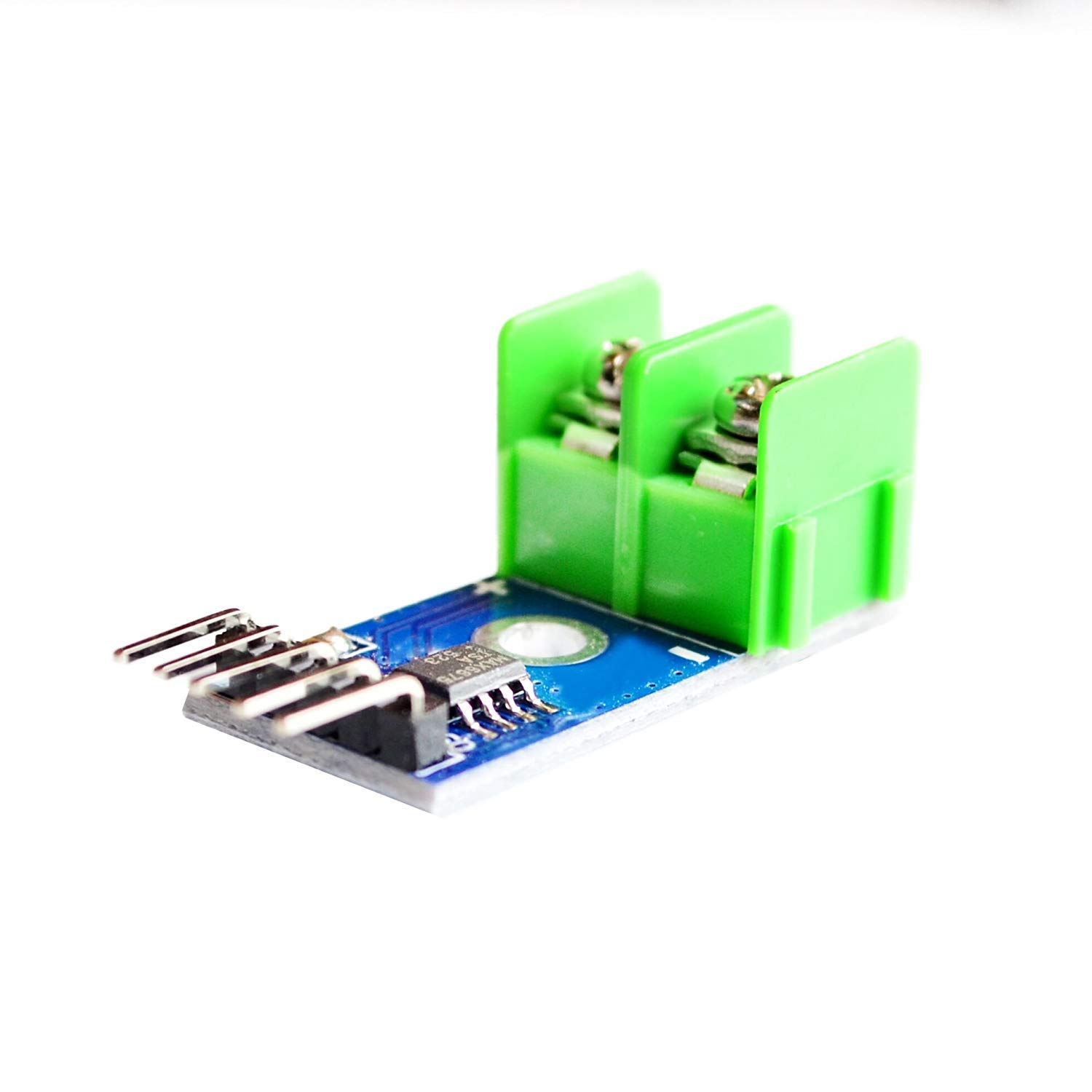

ARCELI MAX6675 Module + K Type Thermocouple Thermocouple Sensor Temperature 0~600℃

• Easy serial SPI port temperature output
• High ohmic differential inputs
• Wide operating voltage range 3. 0~5 5 V, working current: 50 mA
• Module interface: GND VCC SCK CS SO
• On-chip cold point compensation

Features: Easy serial SPI port temperature output. Temperature range 2.0 °C ~ 600 °C, the converter temperature resolution of 0.25 °C. On-chip cold point compensation. High ohmic differential inputs. Thermocouple Break Detection Wide operating voltage range 3. 0~5 5 V, working current 50 mA. The operating temperature range of -20 ℃ ~ 85. 2000V of ESD signal. Module interface: GND VCC SCK CS SO Supply voltage: 3 ~ 5 V DC. Module size: 15 mm x 25 mm. Package list: 1 x SainSmart MAX6675 module. 1 x SainSmart K thermocouple. 1 x SainSmart DuPont line
