ARCELI Dual Stage 12V(DC) Digital Temperature Controller Fahrenheit Thermostat

• Fahrenheit and Celsius display can be selected
• Alarm when the temperature exceeds the limit value or when a sensor error occurs

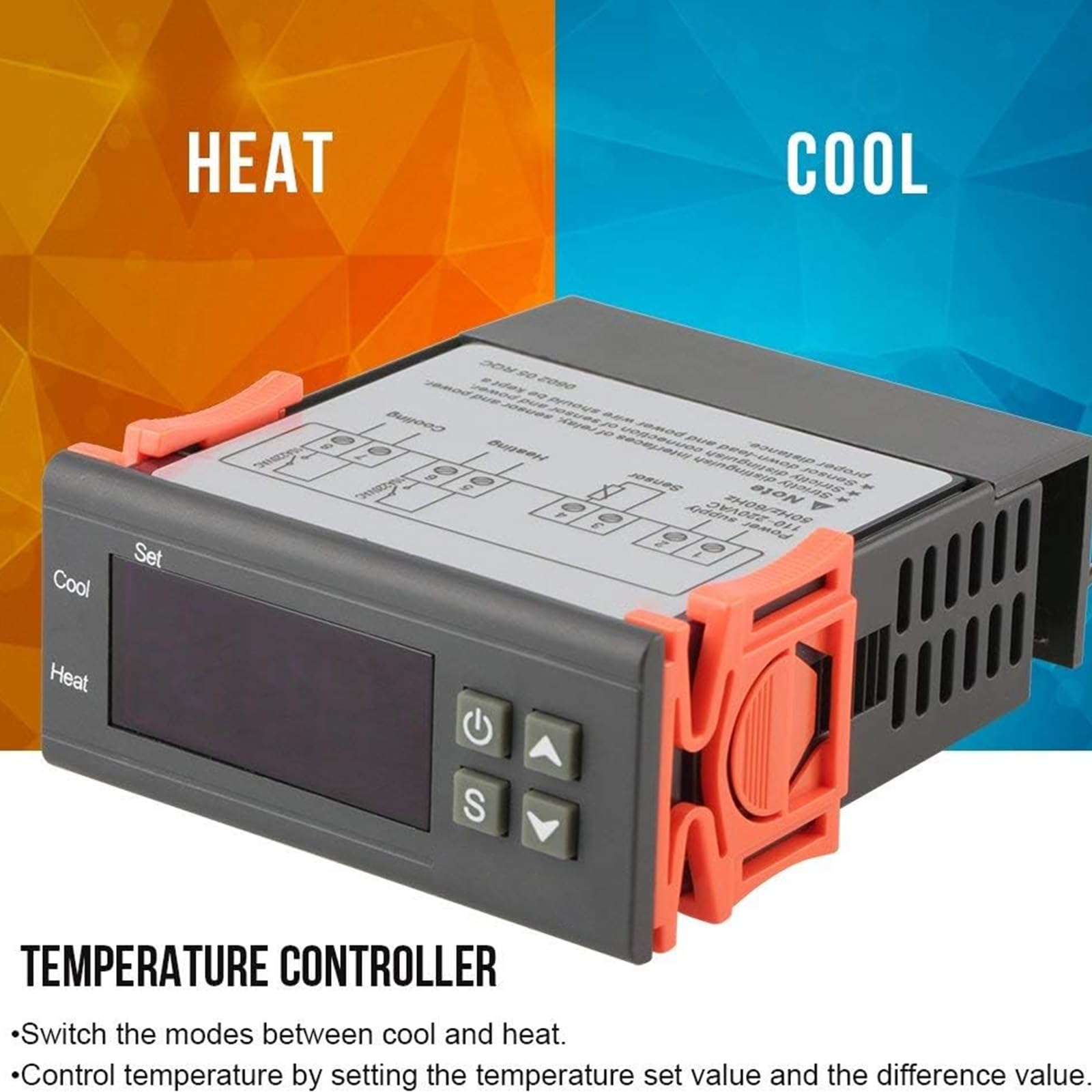

• 2 relays, switching between cooling and heating mode
• Control the temperature by setting the temperature set value and the difference value
• Temperature calibration, delay protection for the cooling control output

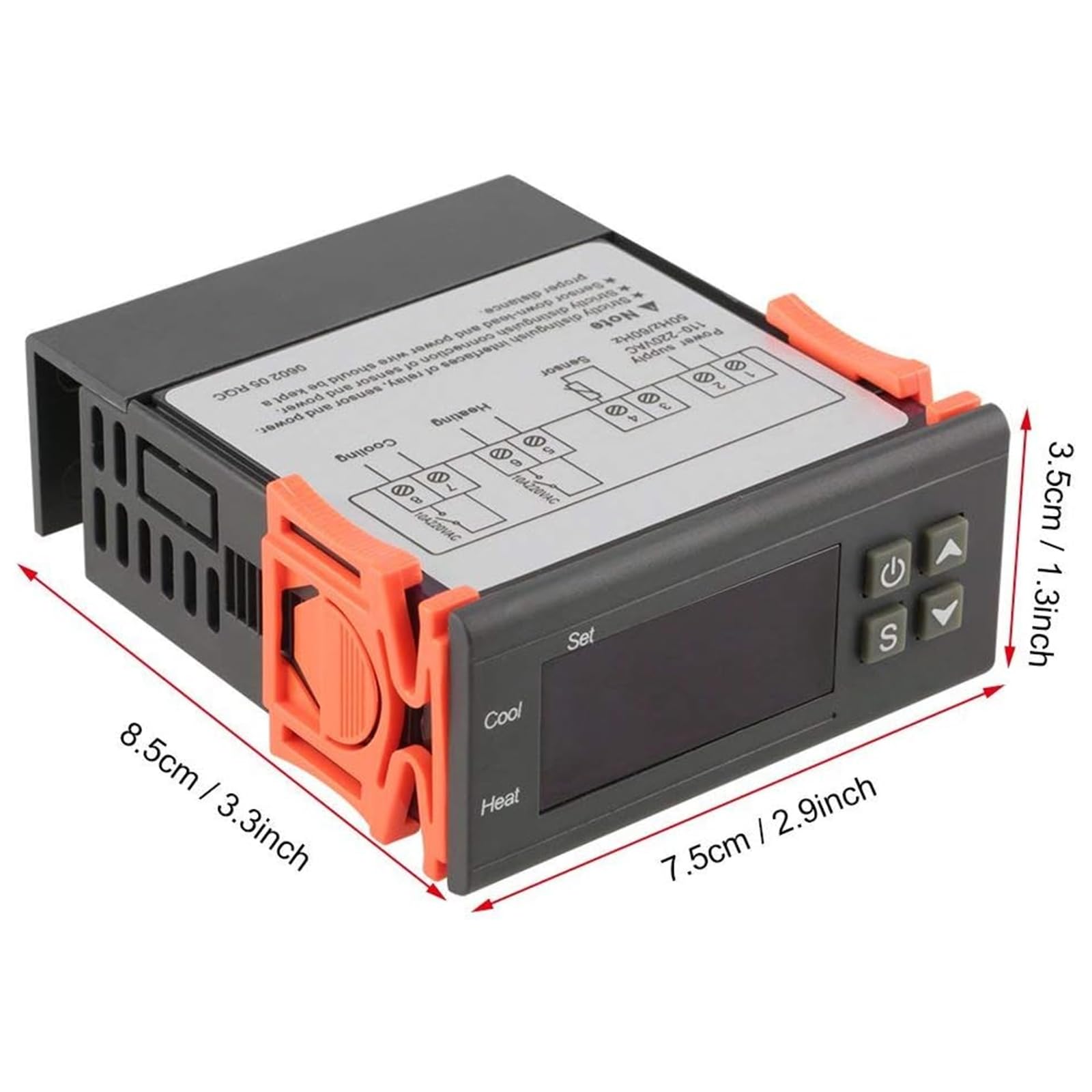

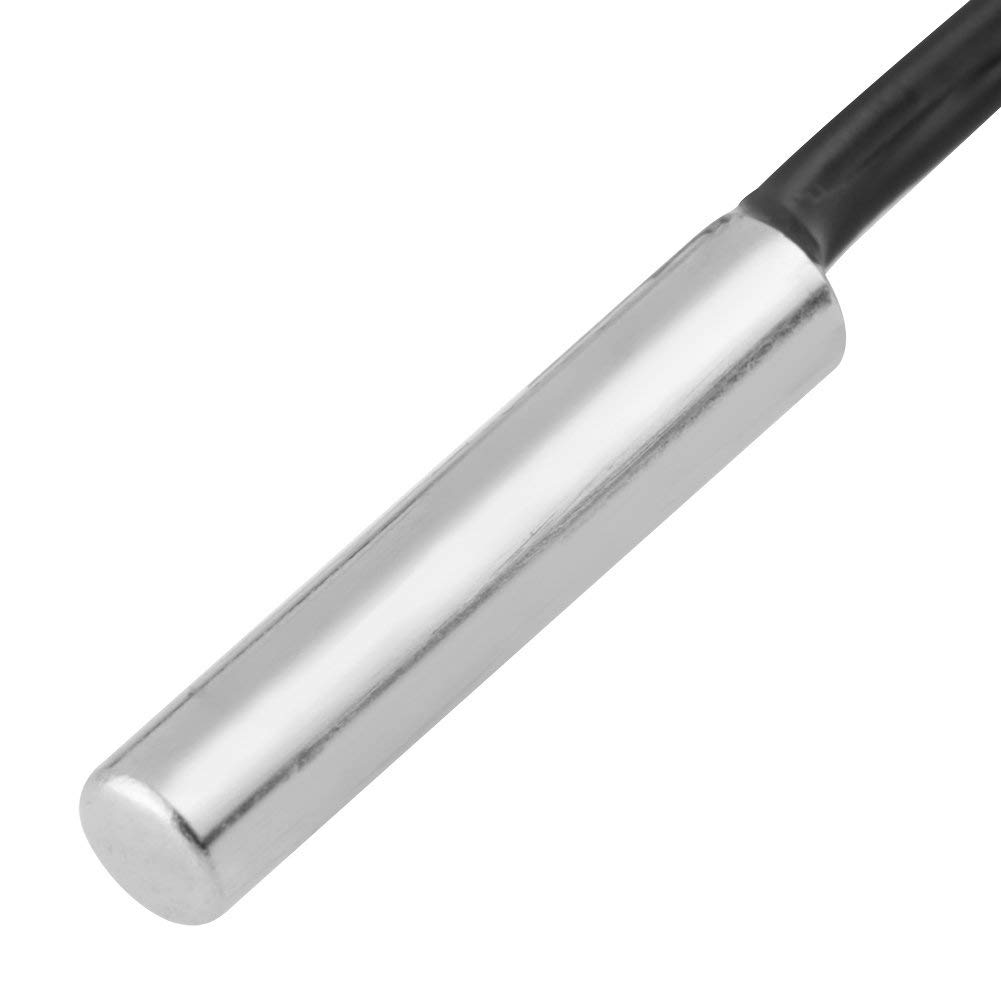

Note: The manual is identical to the 110V manual. If the description on the device is 12V, please connect a 12V device. Do not connect a 110V device. Thank you for your understanding. Installation dimensions: Front plate size: 75 (L) x 34.5 (W) mm. Mounting size: 71 (L) x 29 (W) mm. Product size: 75 (L) x 34.5 (W) x 85 (D) mm. Sensor length: 2 m (including probe). Technical parameters: Output: 2 relays Temperature measurement range: -50 to -50 °C - 99 °C. Resolution: 0.1°F / 0.1°C. Accuracy: ± 1 ° F ~ -50 ° F -160 ° F / ± 1 ° C ~ -50 °C -70 °C. Power supply: 12 V DC 50 Hz / 60 Hz. Power consumption: 3 W. Sensor: NTC sensor. Relay contact capacity: cooling (10A / 250VDC) / heater (10A / 250VDC); Ambient temperature: 0 °C to 60 °C. Storage temperature: -30 to 75 °C. Relative humidity: 20-85% (no condensate). Package contents: 1 x ITC 1000 temperature controller 12 V. 1 x 2 m sensor
