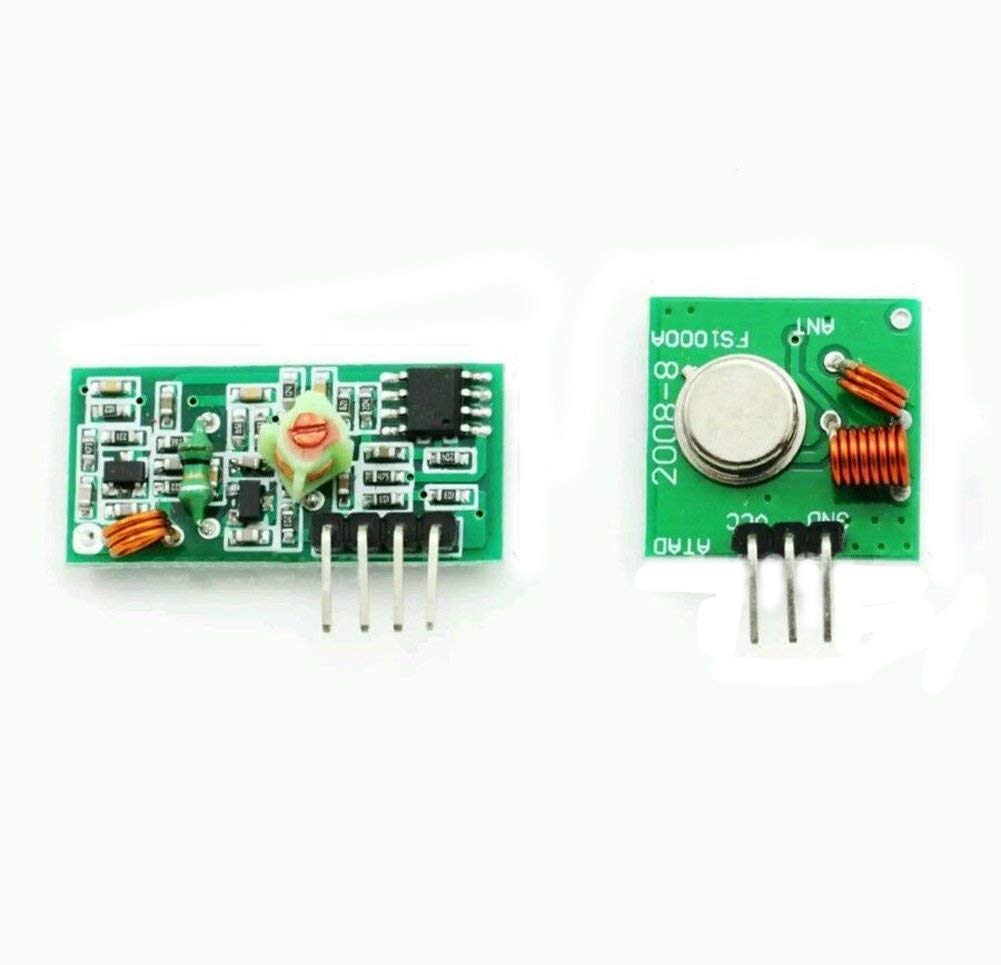

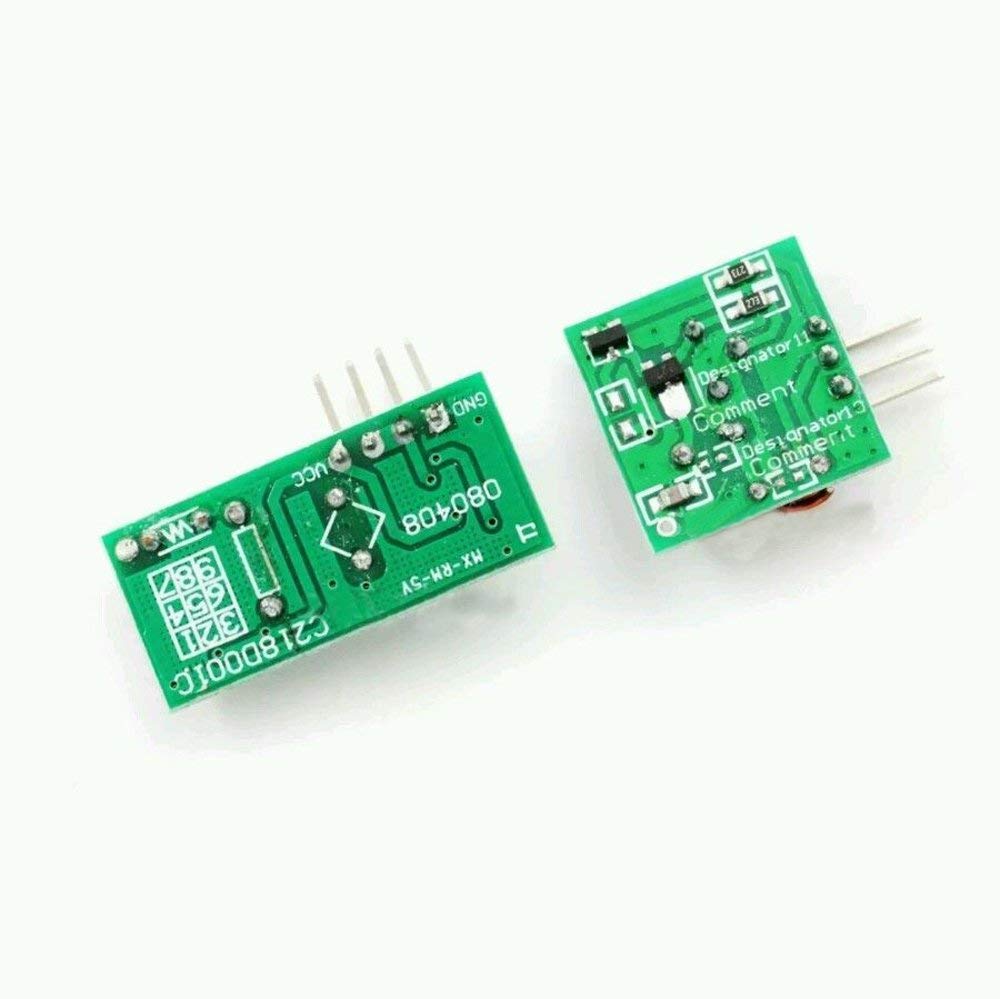

ARCELI 5pcs 433Mhz RF Transmitter and Receiver Link Kit

• VCC voltage module operating voltage and good performance filtering
• Strong influence on antenna module reception, preferably connected to the 1/4 wavelength of the antenna, typically 50 ohm single conductor
• The length of the antenna 433M is approximately 17 cm
• The antenna position also affects the reception of the module, installation, the antenna as far as possible from the shielding, high pressure and interference source
• The frequency used for reception, decoding and oscillation resistance should match the transmitter

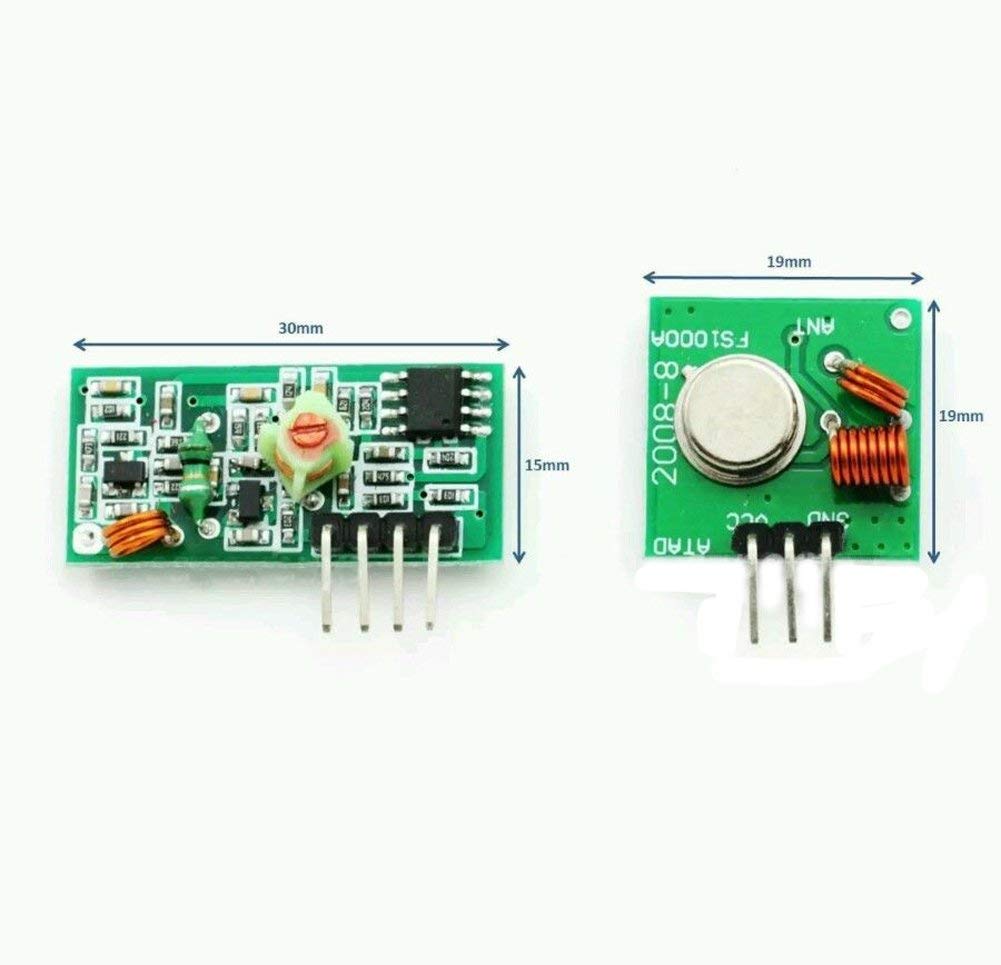

Receiving module parameters: 1. Product model: MX-05V. Operating voltage: DC 5 V. Current 3. Quiescent: 4 mA. 4. Reception frequency: 433.92 MHz. Sensitivity 5. Receiver: -105 dB. 6. Size: 30 x 15 x 7 mm. 7. External antenna: 32 cm single core wire, wrapped in a spiral. Technical parameters of the transmitter head: 1. Product model: MX-FS-03V. 2. Launch distance
