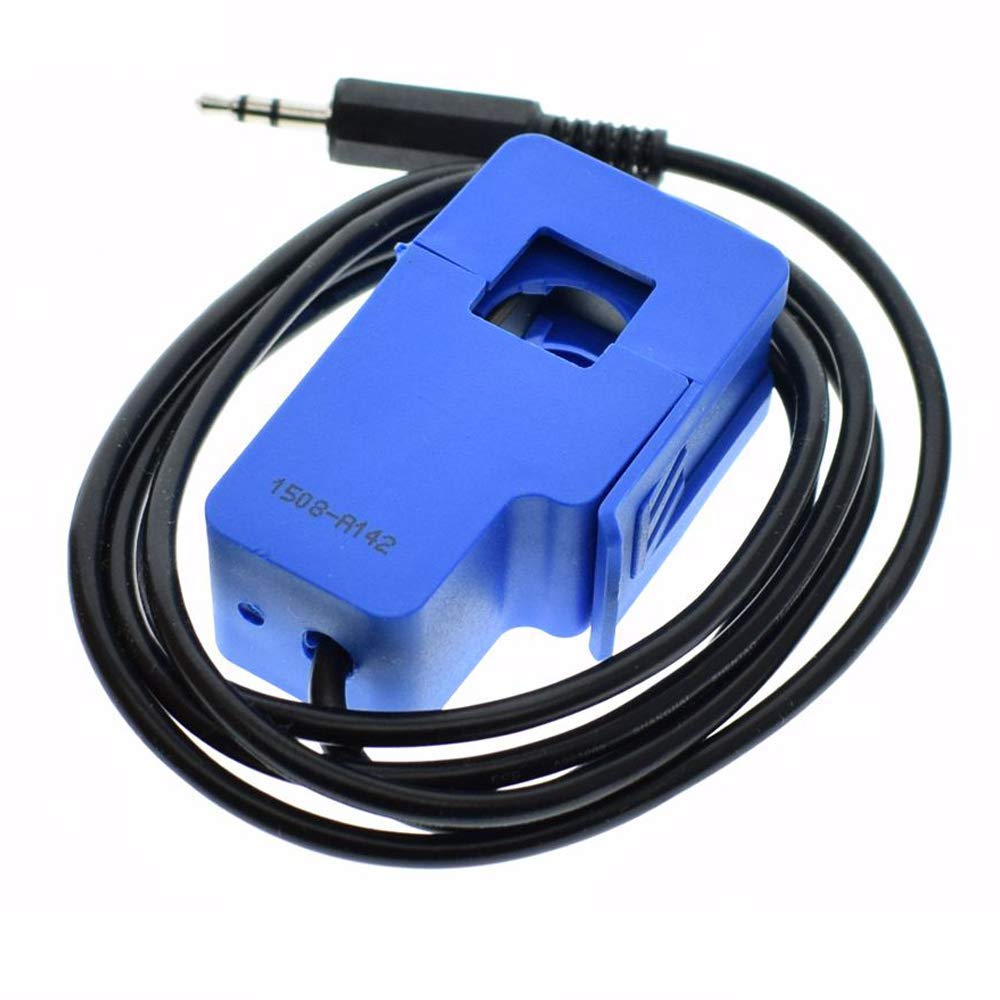

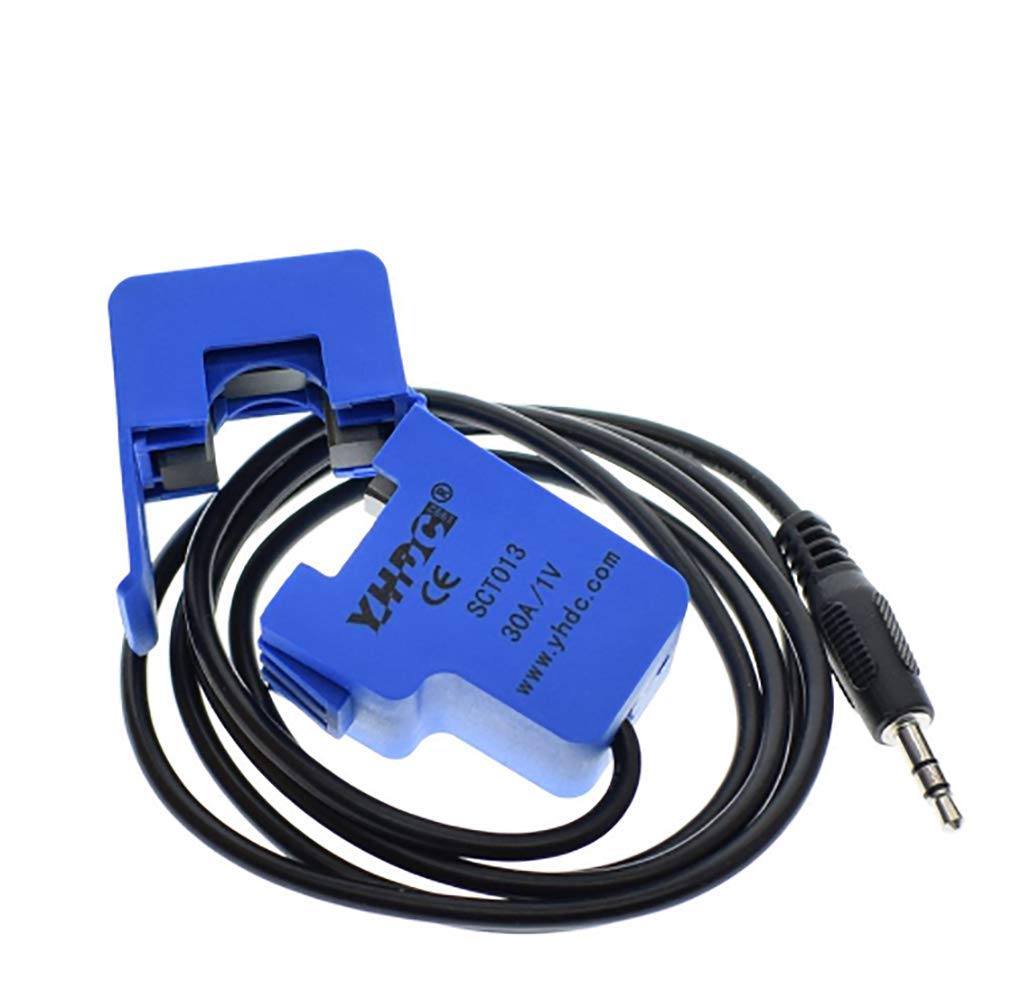

ARCELI 30A SCT-013-030 Non-invasive Sensor Split Core AC Current Transformer

• Applicable for current measurement, monitoring and protection of the following devices: AC motor, air compressor, lighting equipment.
• Input current: 0 ~ 30A AC, Output voltage: 0 ~ 1 V, Operating frequency: 50 ~ 1 KHz, Secondary coil: 1800 + - 2T, Accuracy: + -1%, Non-linearity: + - 3%.
• Built-in sampling resistor (RL): 62Ω, resistance level: degree B, working temperature: -13F ~ + 158F (-25C ~ + 70C).
• Safety indicators: Dielectric strength (between housing and output) 1000V AC / 1min 5mA, fire resistance: according to UL94-VO.

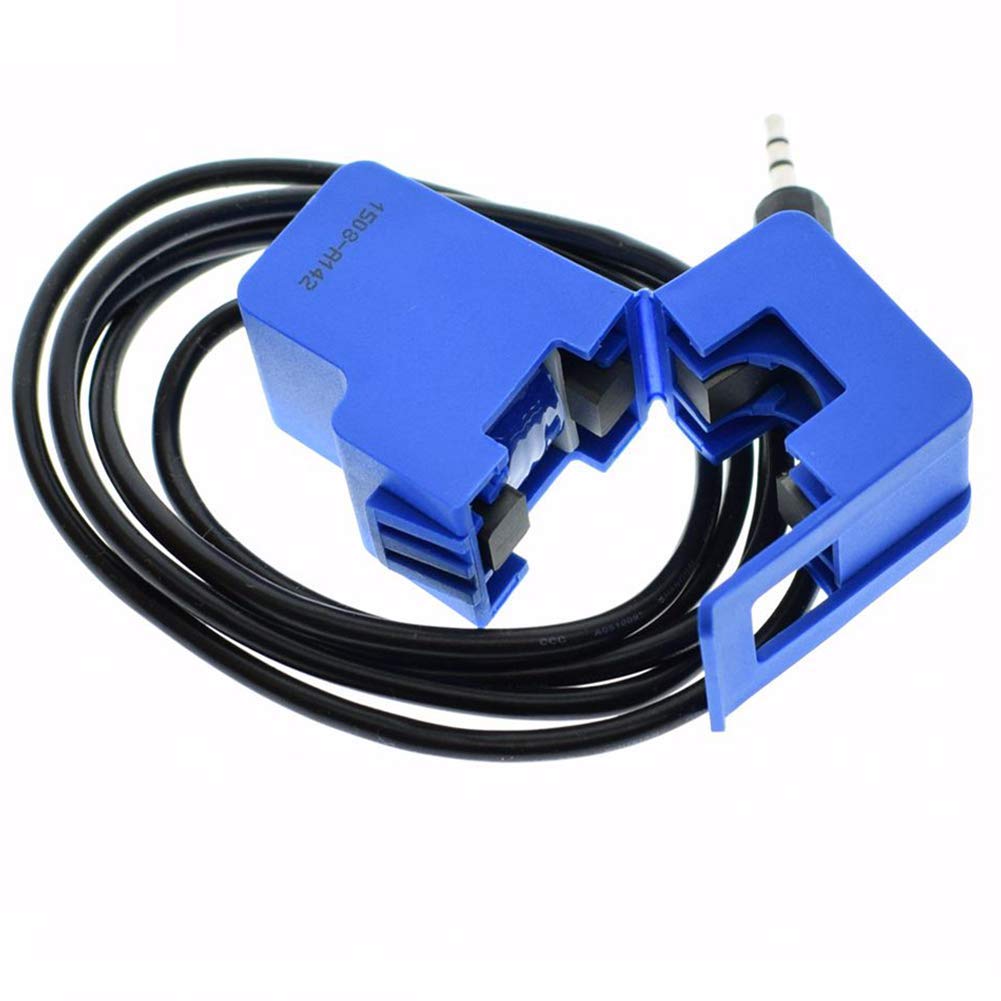

• 1m length guide wire, open size: 13mm x 13mm. Model: SCT013-030

Split-core current transformers are sensors used to measure AC current. They are particularly useful for measuring the power consumption of an entire building (or its generation). This split core power converter is especially suitable for home use. It can be clamped directly to the live or neutral wire without the need for high voltage electrical work. Applicable for current measurement, monitoring and protection of the following devices: AC motor. air compressor Lighting system. Specification: Input current: 0 ~ 30 A AC. Output voltage: 0 ~ 1 V Operating frequency: 50 ~ 1 kHz Secondary coil: 1800 + - 2T Accuracy: + -1% Non-linearity: + - 3% Built-in sampling resistor (RL): 62Ω¸ Resistance level: degree B. Working temperature: -13F ~ + 158F (-25C ~ + 70C). Safety indicators: Dielectric strength (between housing and output): 1000V AC / 1min 5mA Fire resistance: UL94-VO Lead wire length: 1 m. Open size: 13mm x 13mm Packing list: 1 x 30 A split-core current converter
