ARCELI Precision 200A Watt Meter Detector Power Analyzer For RC Model Voltage Current Power

• Measures from 0 to 60 volts, works on 12, 24, 36 and 48 volt battery bank systems.
• Alu-Chrom precision current sensing resistor, with a resistance of only 0.001 Ohms and circuits consuming only 7mA.

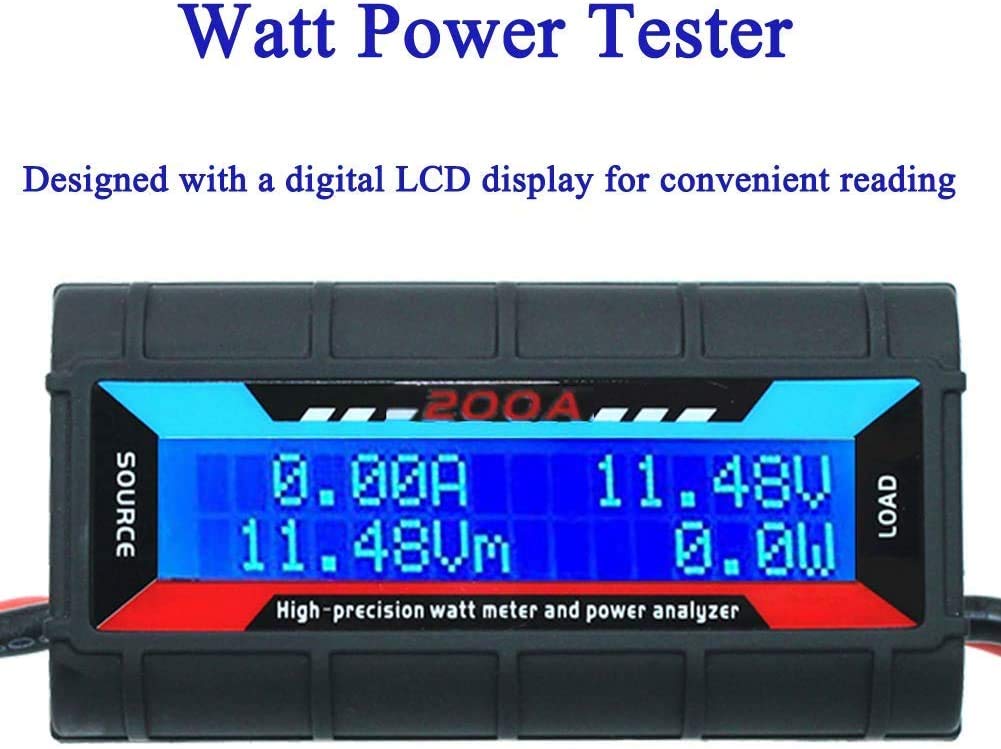

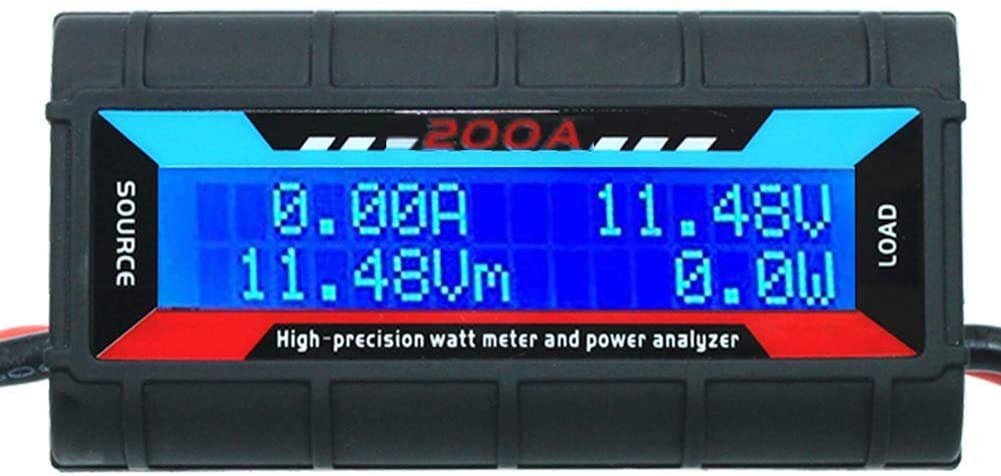

• Here is the all-in-one meter: a power meter, a voltmeter, an ammeter, an ammeter and an energy meter. The digital LCD display gives clear and accurate readings.
• Perfect Troubleshooting Tool: It is indispensable for analyzing, testing and troubleshooting any DIY DC power project.

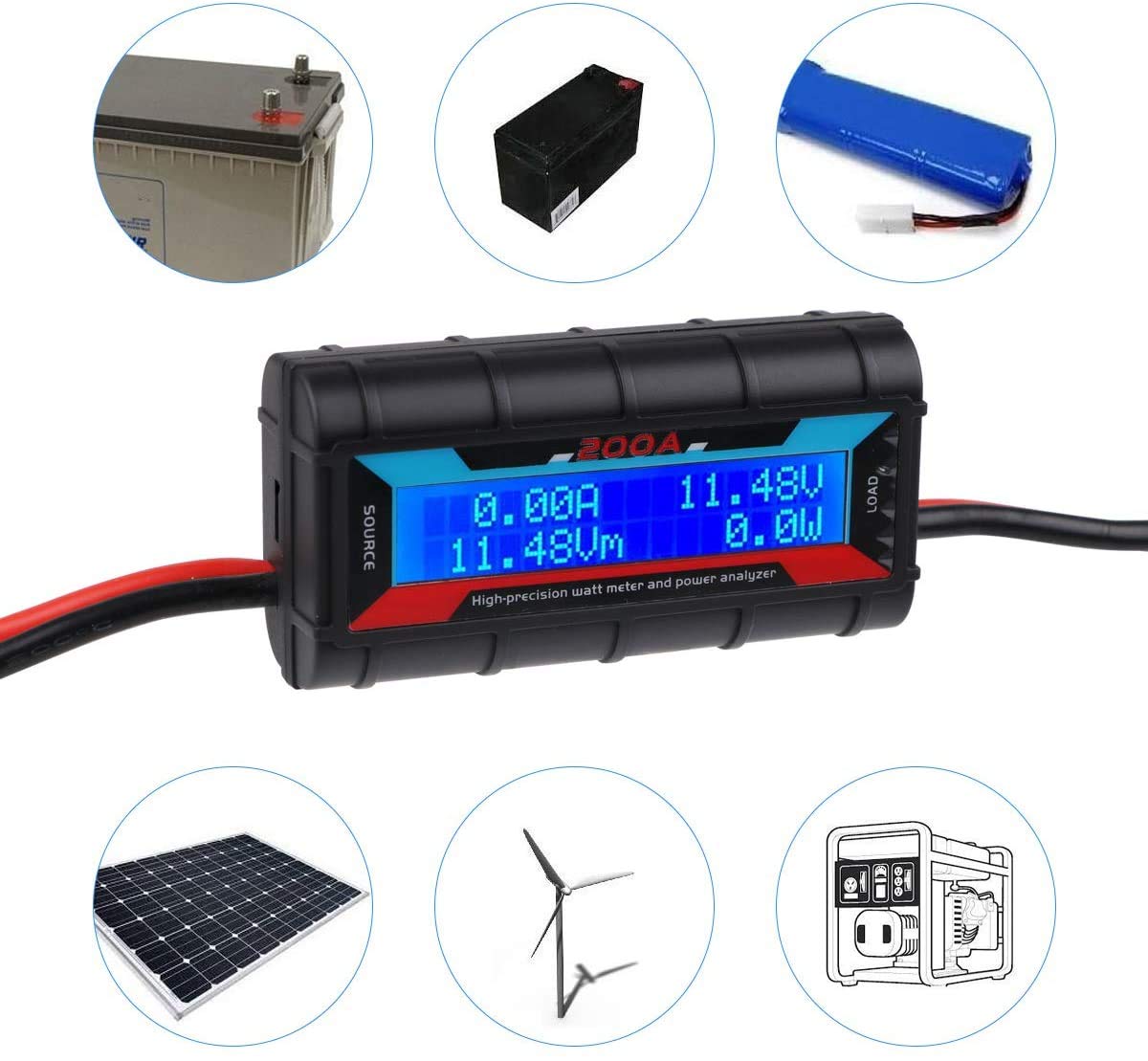

• The professional RC power meter is a great addition to your RC leisure systems, DC circuits, solar system, boats/campers and emergency systems.

Product information: The digital LCD display gives clear and accurate readings. Handles up to 100 amps intermittently and 50 amps in continuous service. Connecting the charge to the battery allows real-time reading of the battery charge. Handles from 0 to 60 volts. Works on 12, 24, 36 and 48 volt battery bank systems. Extremely low power consumption of 7 mA. More efficient than any LED meter. Measure energy (wh), load (ah), power (w), current (A) and voltage (V). Accuracy and accuracy of current resolutions of 0.01A and 0.01V. Measurements for peak amps, peak watts (except Doc Wattson) and minimum voltage (sagging). Robust - 50A continuous and 100A peak handles at 60V. Acts as a thread so as not to affect the performance of the model. Alu-Chrom precision current sensing resistor, with a resistance of only 0.001 Ohms and circuits consuming only 7mA. Uses DSP to increase ADC resolution and differential measurement amplifiers to increase noise immunity. Features: Voltage: (0) V-4V-60V 0.01V (resolution). Current: 0-100 A peak 0.01A (resolution). Power: 0-6554 W 0.1W (resolution). Charge: 0-65Ah 0.001Ah (resolution). Energy: 0-6554 wh 0.1 Wh (resolution). Measurement update period: 400 mS. Signal sampling rate: sample/s. Data sequence duration: 2 seconds. Circuit resistance: 0.001 Ohms. Operating current: 7 mA. Auxiliary supply voltage: 4.0V ~ 60V Size: 8.5 cm x 4.8 cm x 2 cm - 3.27 inches x 1.85 inches x 0.79 inches. Display Screen: 1602 STN LCD Package contents: 1 x Power Meter 1 x user manual (English language not guaranteed)
