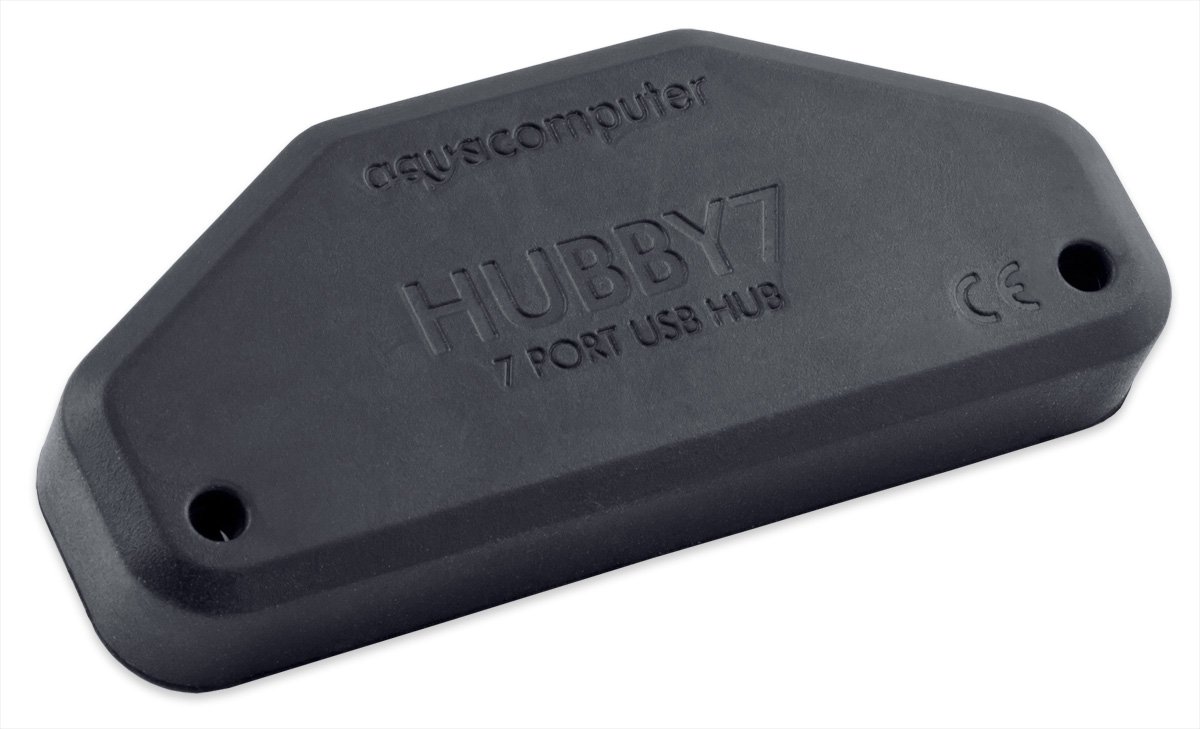

Aqua Computer HUBBY7 internal USB 2.0 Hub

• Internal USB 2 0 stroke
• A total of 7 internal USB ports
• Integrated monitoring of power consumption
• Additional power supply via SATA plug possible

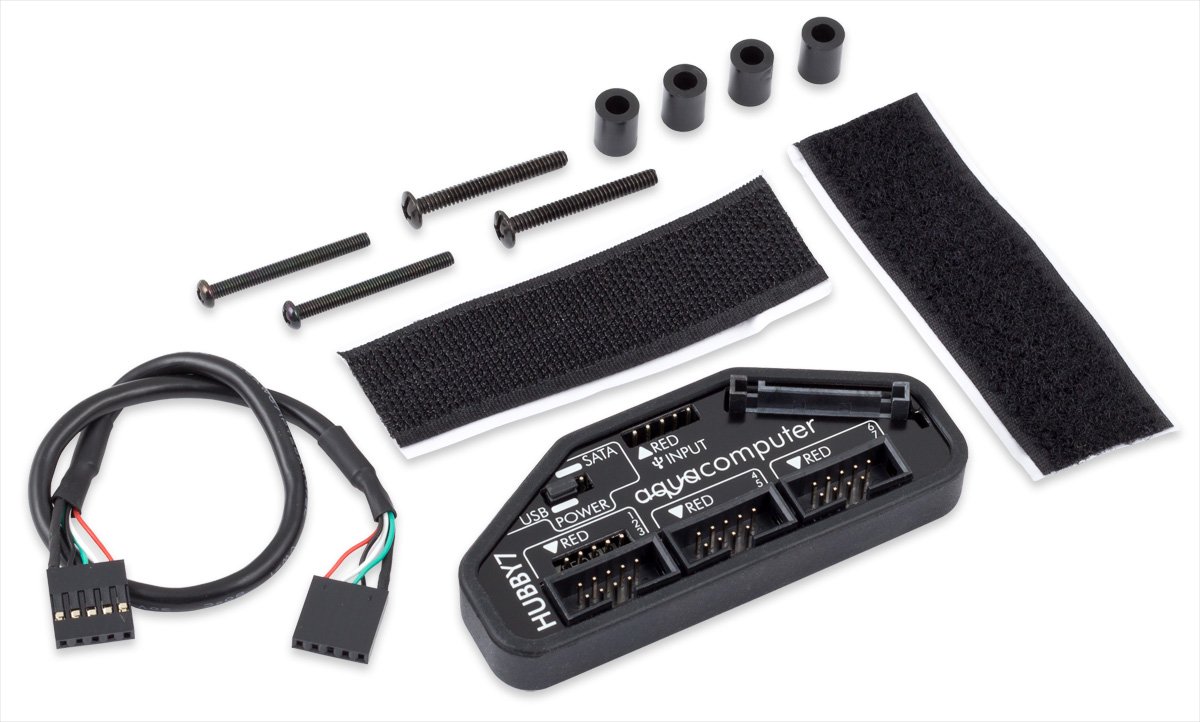

• Easy to install on the motherboard or via Velcro strap

HUBBY7 is an internal USB 2. 0 hub with seven ports, which is characterised by the following features: Safety: monitoring the power consumption of the connected USB devices with shutdown of the hub and error transmission to the operating system in case of overload. In addition, thermal monitoring and fuse to avoid damage to the motherboard and connected devices. Flexibility: The hub can be supplied via the USB connection or alternatively via a SATA power supply plug. When powered by USB, depending on the motherboard configuration, voltage is also available in standby, which means that for example switching on the PC by a connected device (e.g. keyboard). In this case, according to the USB specification, a total of 500 mA total current for hub and all connected devices are available. When supplied directly from the PC power supply via SATA power plug, the power supply is interrupted in standby, which can be advantageous for permanently illuminated input devices, for example. A maximum of 1000 mA current is available via SATA power supply, divided into a total of 500 mA for ports 1, 2 and 3 or ports 4, 5, 6 and 7. Easy to install: the hub can be mounted directly 20 mm above the motherboard, corresponding holes with the standard ATX distance are available. Alternatively, the hub can also be attached to the housing using self-adhesive Velcro straps. Dimensions: approx. 80 x 30 mm, height 16 mm without connection cable (total approx. 55 mm incl. Cable and spacer when mounted on motherboard). Box contents: one USB hub. An internal USB cable, total length 25 cm. Self-adhesive Velcro strap. Mounting material. Note: Due to the total current limit, not suitable for USB-powered hard drives, CD-ROM drives, mobile phones and similar devices.
