AOLISHENG Heavy Duty Drawer Slides 12 Inch with Lock, Full Extension Ball Bearing, 500 lb Load Capacity, 1 Pair

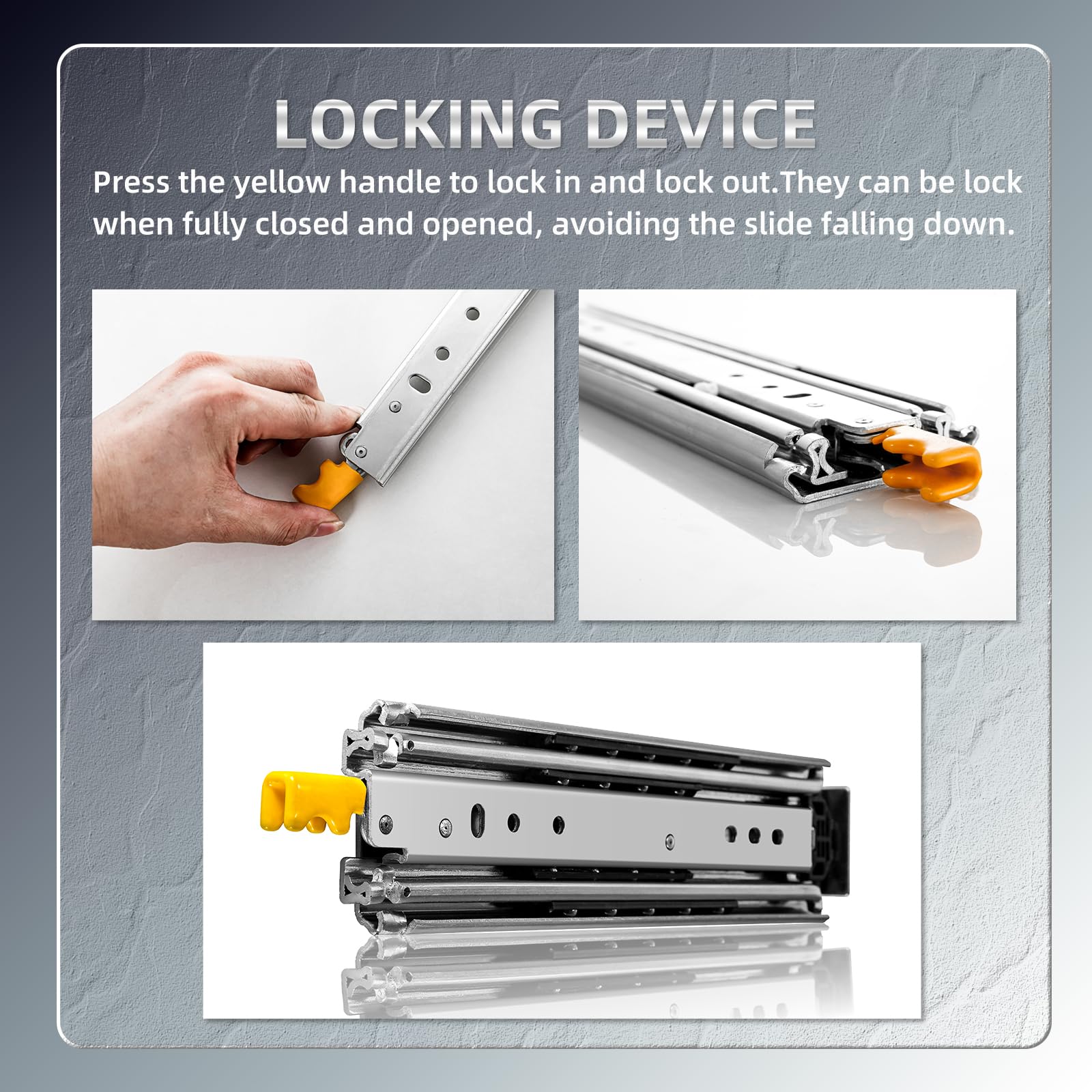

• 【Lock Drawer Slides & Non-removable 】Press the yellow handles on both sides at the same time to lock and unlock the drawers, they can be locked when fully closed and fully opened to prevent sliding. Locking slides can be used in shelves, cabinets, industrial drawers, RVs, trucks, vending machines, etc.

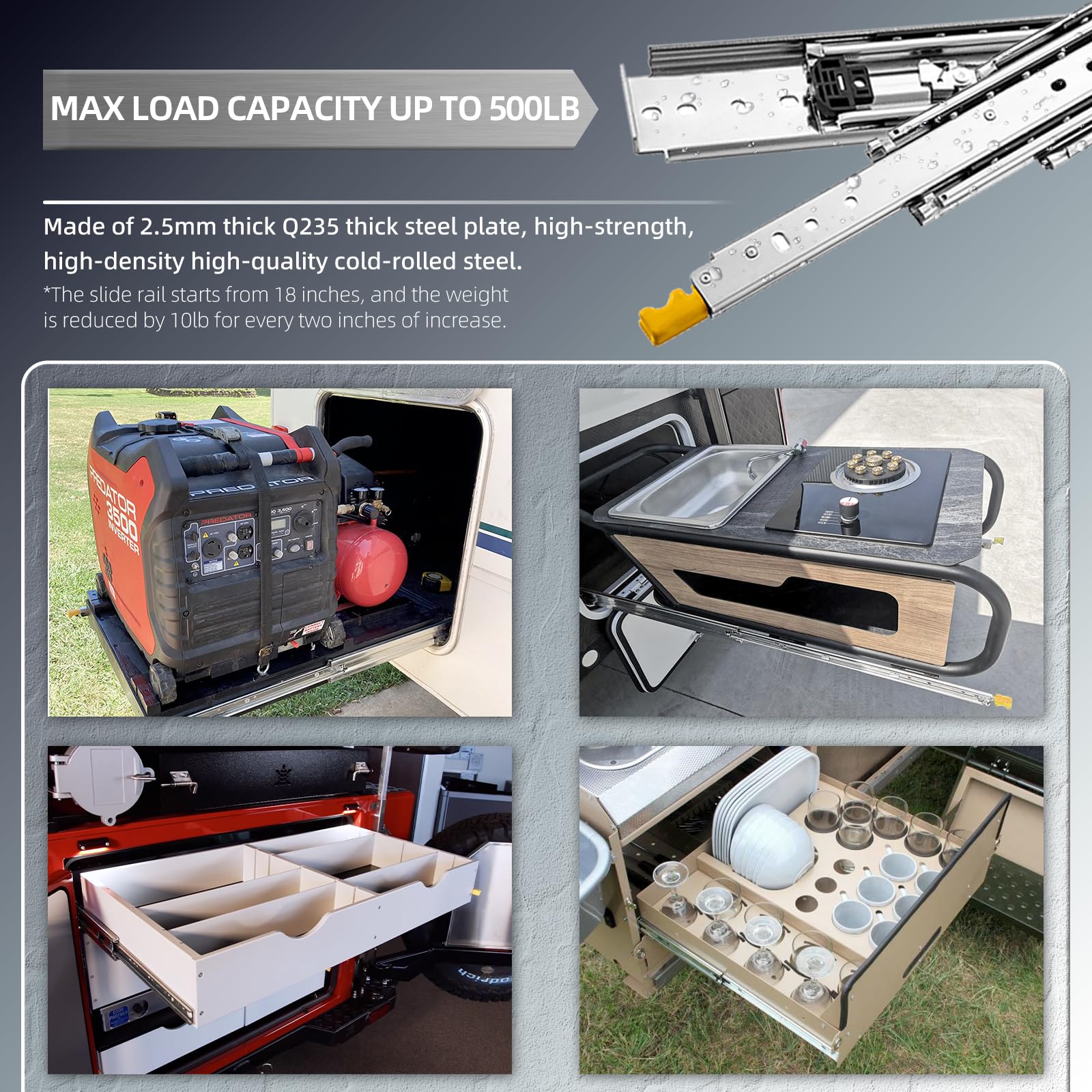

• 【Max Load Capacity 500lb】 AOLISHENG heavy duty drawer slides are made of 2.5mm thick Q235 thick steel plate, high-strength, high-density high-quality cold-rolled steel. It can support heavy load storage without deformation, and the bottom is equipped with a limited rubber pad, which is made of ABS plastic, with good wear resistance and impact resistance. After testing, the number of opening and closing times has reached more than 200,000 times.

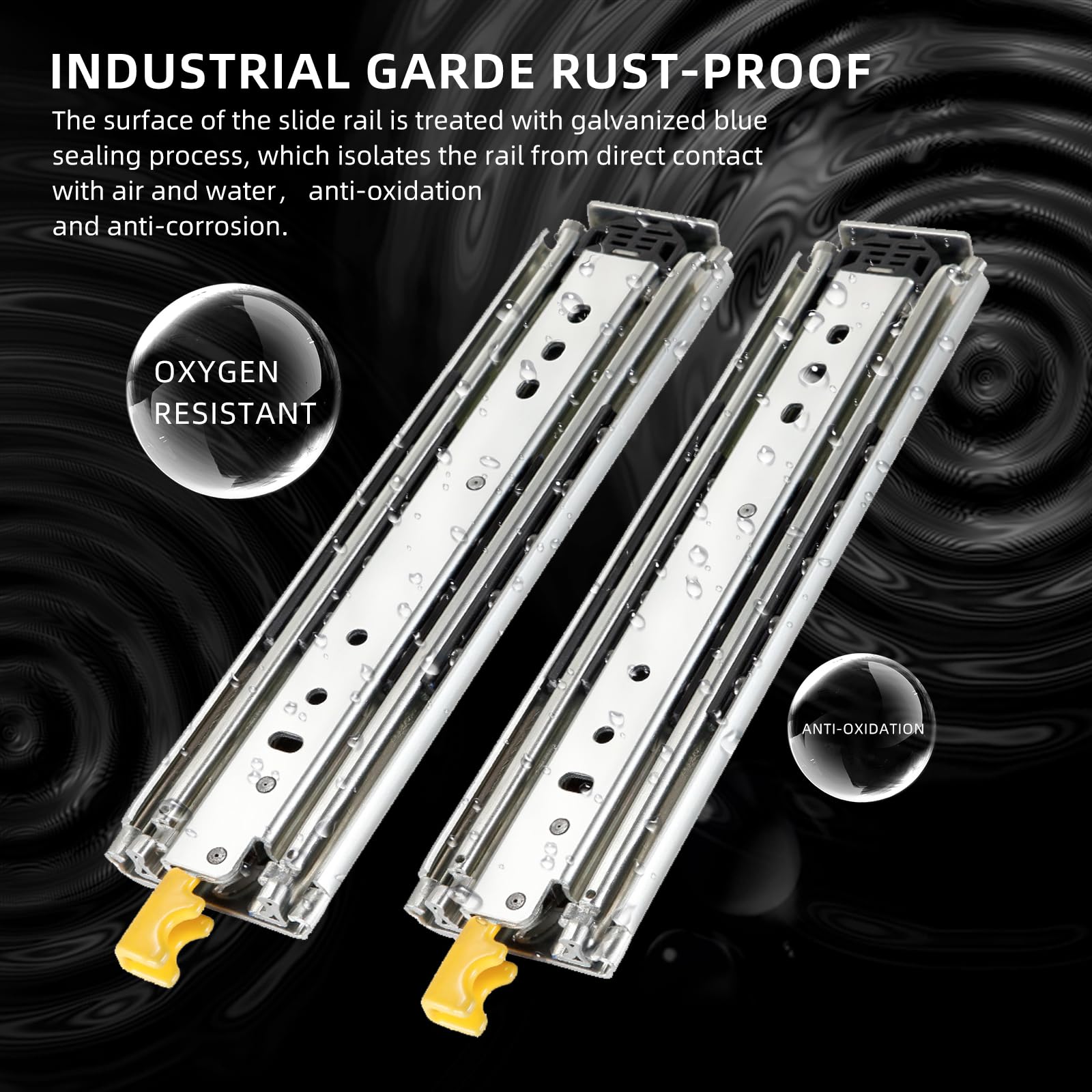

• 【Full Extension Slide Rail, Double Anti-rust】The drawer can be fully pulled out for convenient storage of items. The surface of the slide rail is treated with galvanized blue sealing process, which isolates the rail from direct contact with air and water, and increases anti-oxidation and anti-corrosion. Easy to clean and wide range of utility.
• 【Notes on Slide Rails】 1. In order to ensure the safety of users, the heavy-duty slide rails cannot be disassembled. 2. The locking mechanism can only take effect when the drawer is fully closed or fully opened. 3. Due to different usage scenarios, this product does not contain screws. You can buy M6 screws yourself. 4. The slide rail starts from 18 inches, and the weight is reduced by 10lb for every two inches of increase.

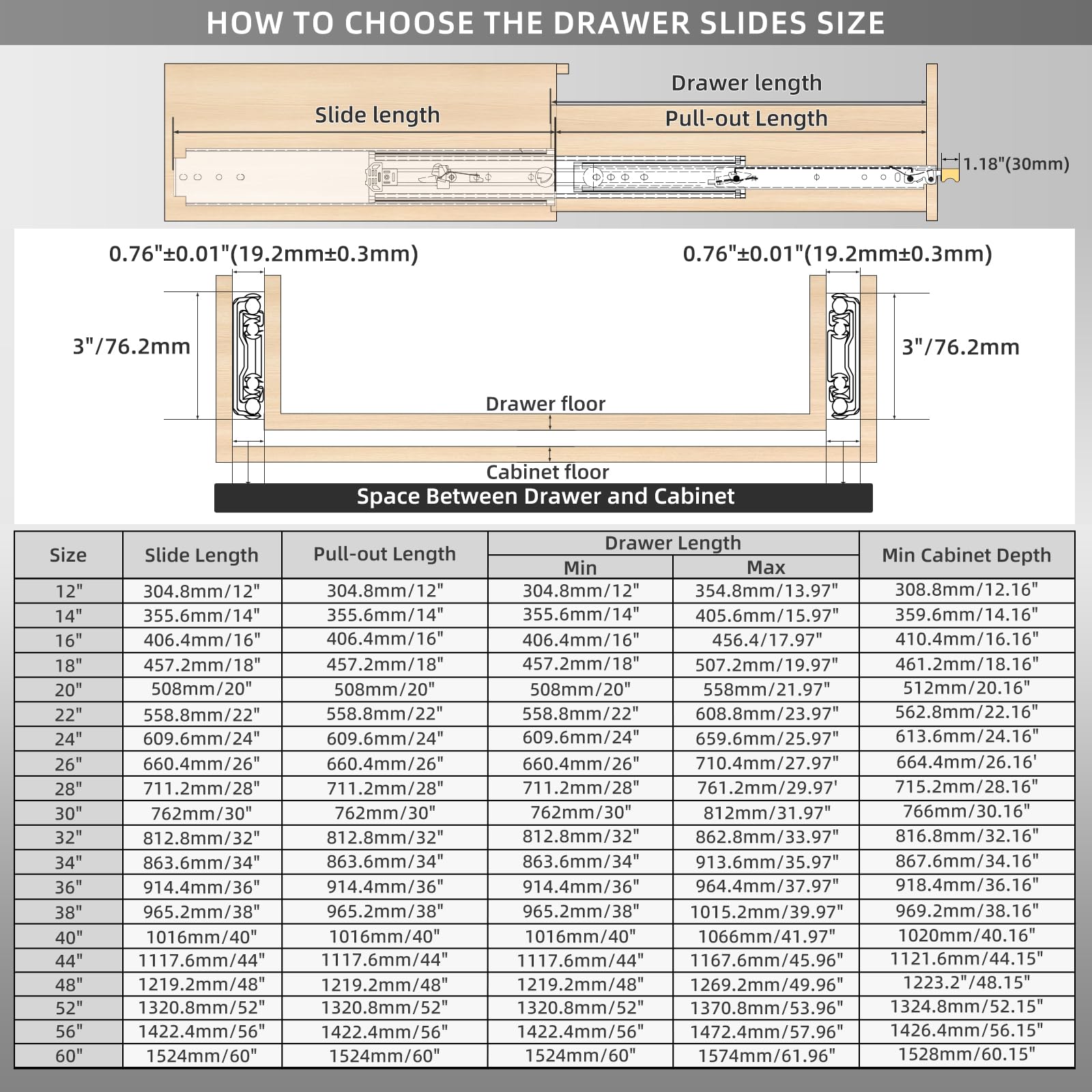

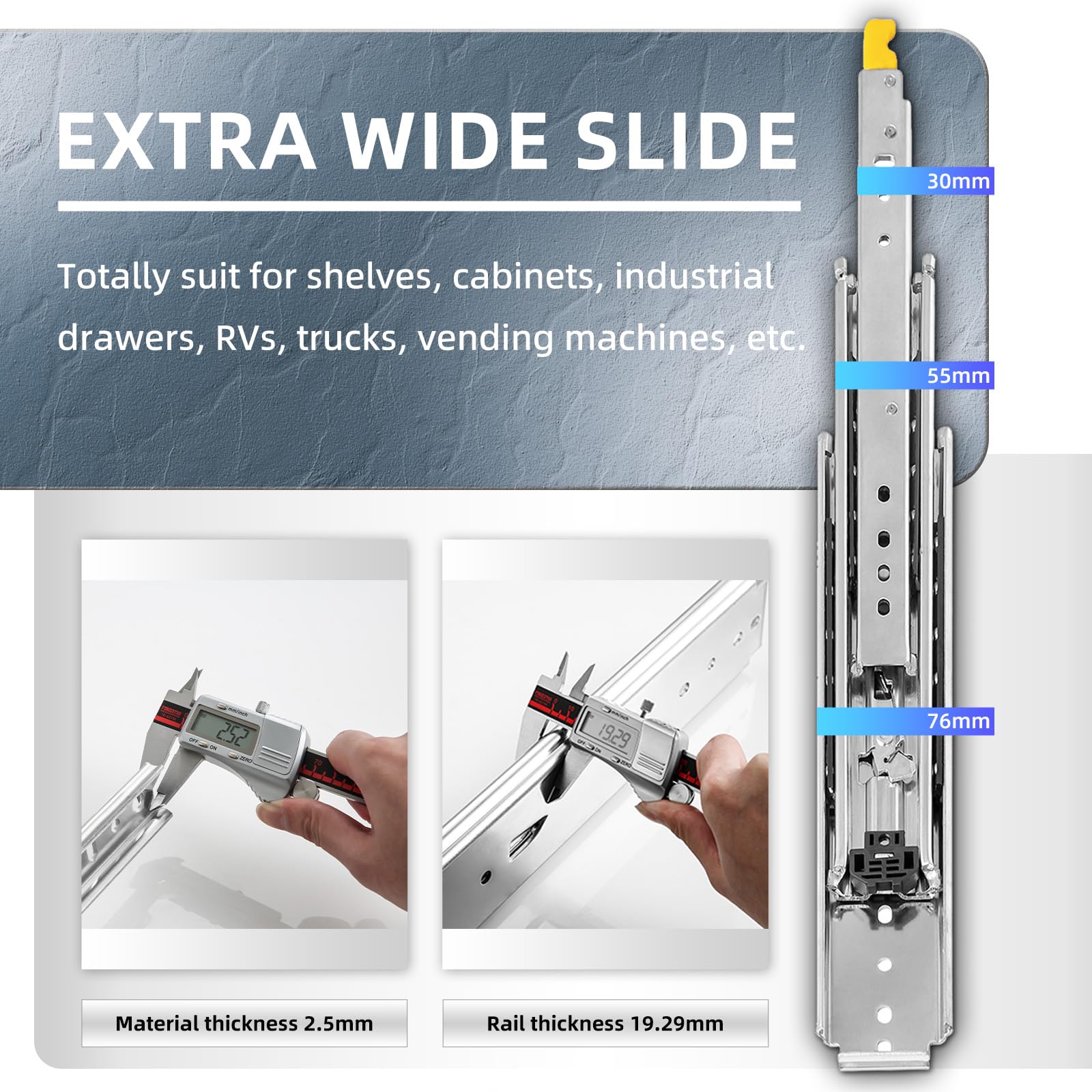

• 【Installation Requirements】 Size: 12"(304.8mm); Full extension length: 24"(709.6mm); Width: 3 inch( 76.2mm); Installation clearance: 0.76"±0.01"（19.2mm±0.3mm). Same clearance on both sides. Approximate length of yellow lock : 1.18"(30mm). You can choose the size of the rail according to the depth of the drawer. The length of the slide should be ≦ The length of drawer. Please choose the right size before you purchase.

Heavy duty drawer runners
