AOICRIE 4 Pcs for Board, Compatible with ATmega328P 5V 16MHz Micro Controller Board Module CH340G Chip with USB Cable for Arduino

• 【Specification】: It can be powered via the Mini-B USB connection, 7-12V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The power source is automatically selected to the highest voltage source.
• 【Advantage】: Using Atmel atmega328p-au MCU, support ISP download; Support USB Download and Power. It can be used for Arduino.
• 【More Breadboard Space】: Smaller footprint than either, so users have more breadboard space.
• 【Compatible】: card is 100% compatible with the card, and fully compatible with Windows, Mac and Linux operating system.

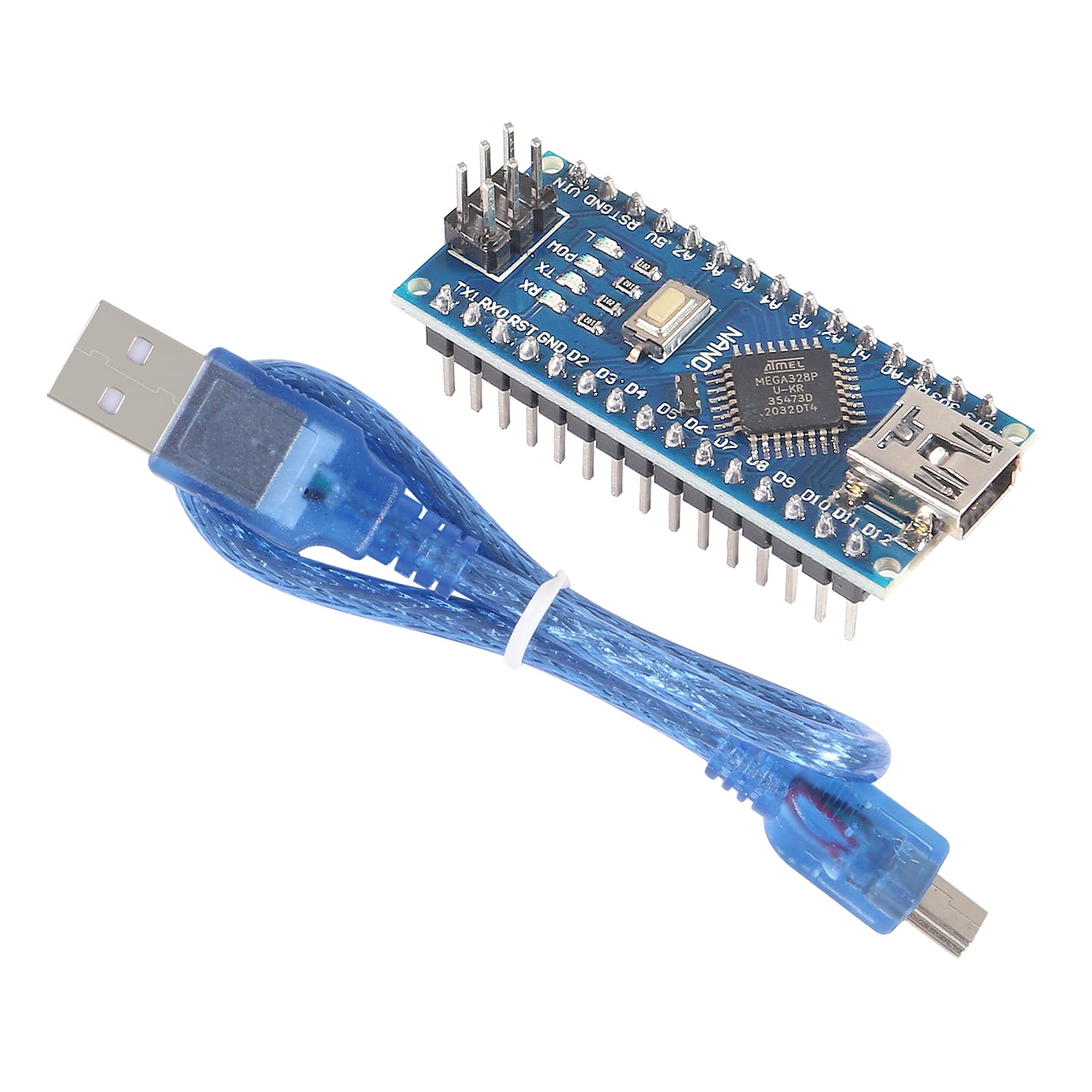

• 【What You Get】: 2 * Welded Mini Board, 2* USB Cable and 12 months Warranty.

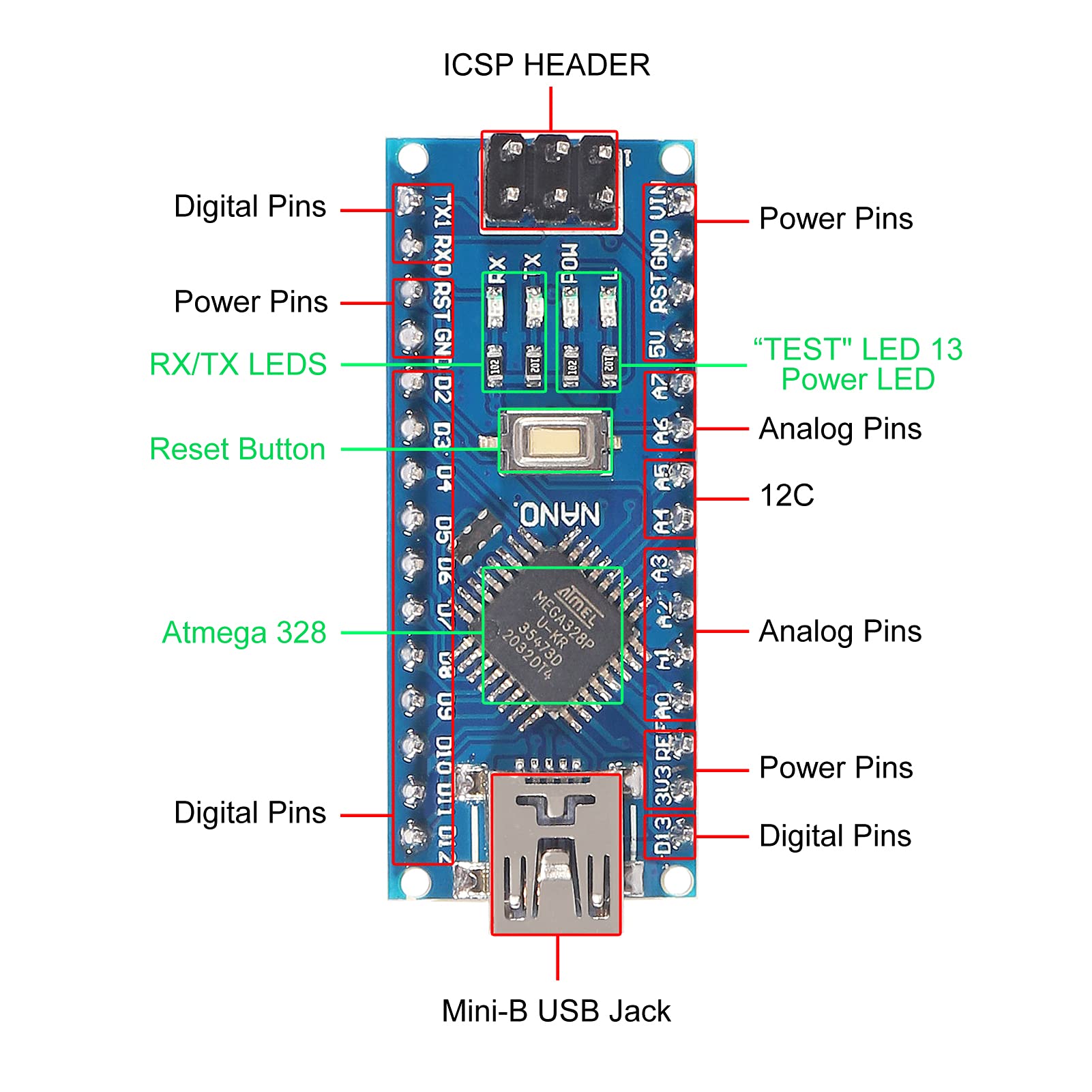

AOICRIE Mini Card CH340G chip Soldered with USB Cable for Arduino E-Book included! It has a variety of facilities for communicating with a PC or other micro-controllers. The pins has been welded, you don't need to solder it by yourself. The small board is perfect to start, and with the integrated USB interface, you can play the first programs on the board in a few moments of configuration. Start your microcontroller development with this complete module! Specification: CH340G Replace FT232RL. Operating Voltage(logic level): 5V. 8 analog inputs ports: A0 ~ A7. 14 Digital input / output ports: TX, RX, D2 ~ D13. 6 PWM ports: D3, D5, D6, D9, D10, D11. 1 pairs of TTL level serial transceiver ports RX / TX. Support USB download and Power. Support for external 5V ~ 12V DC power supply. Support power supply by 9V battery. Support ISP download. Package Including: 2 * Board for Arduino 2 * Mini USB Cable
