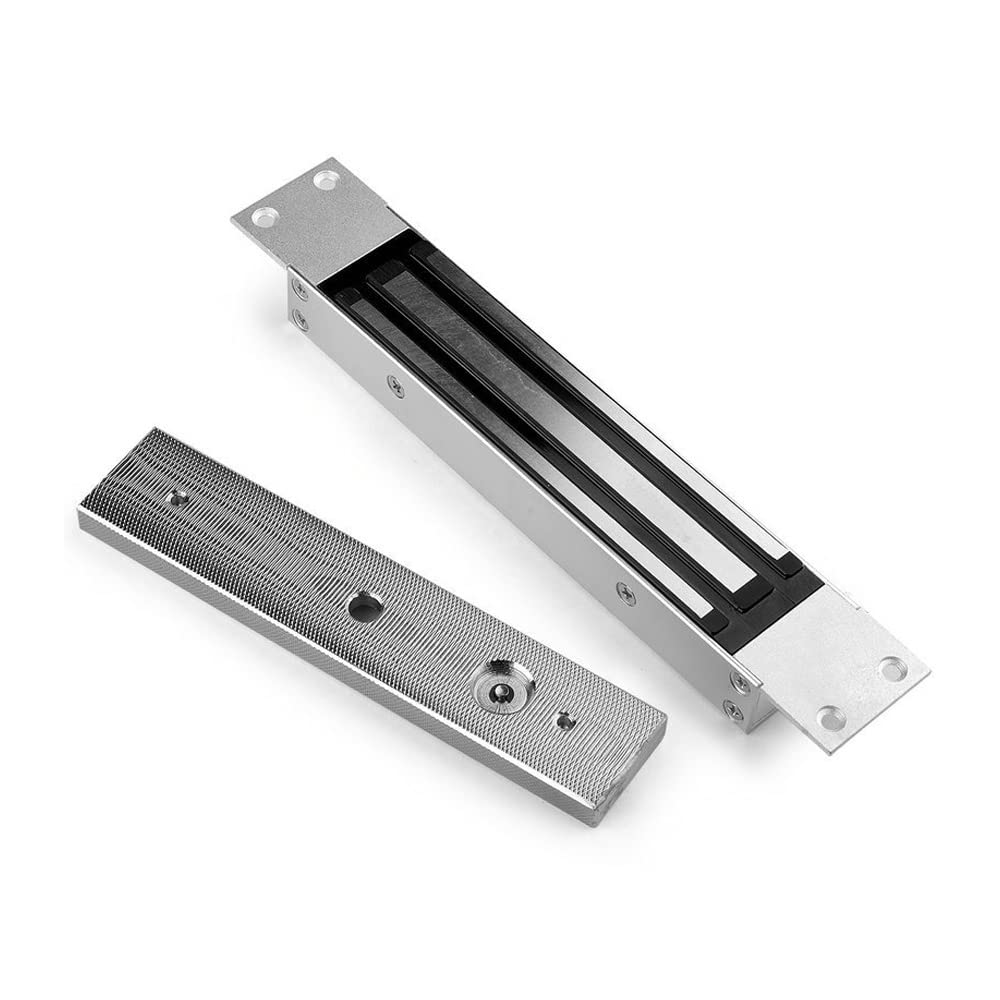

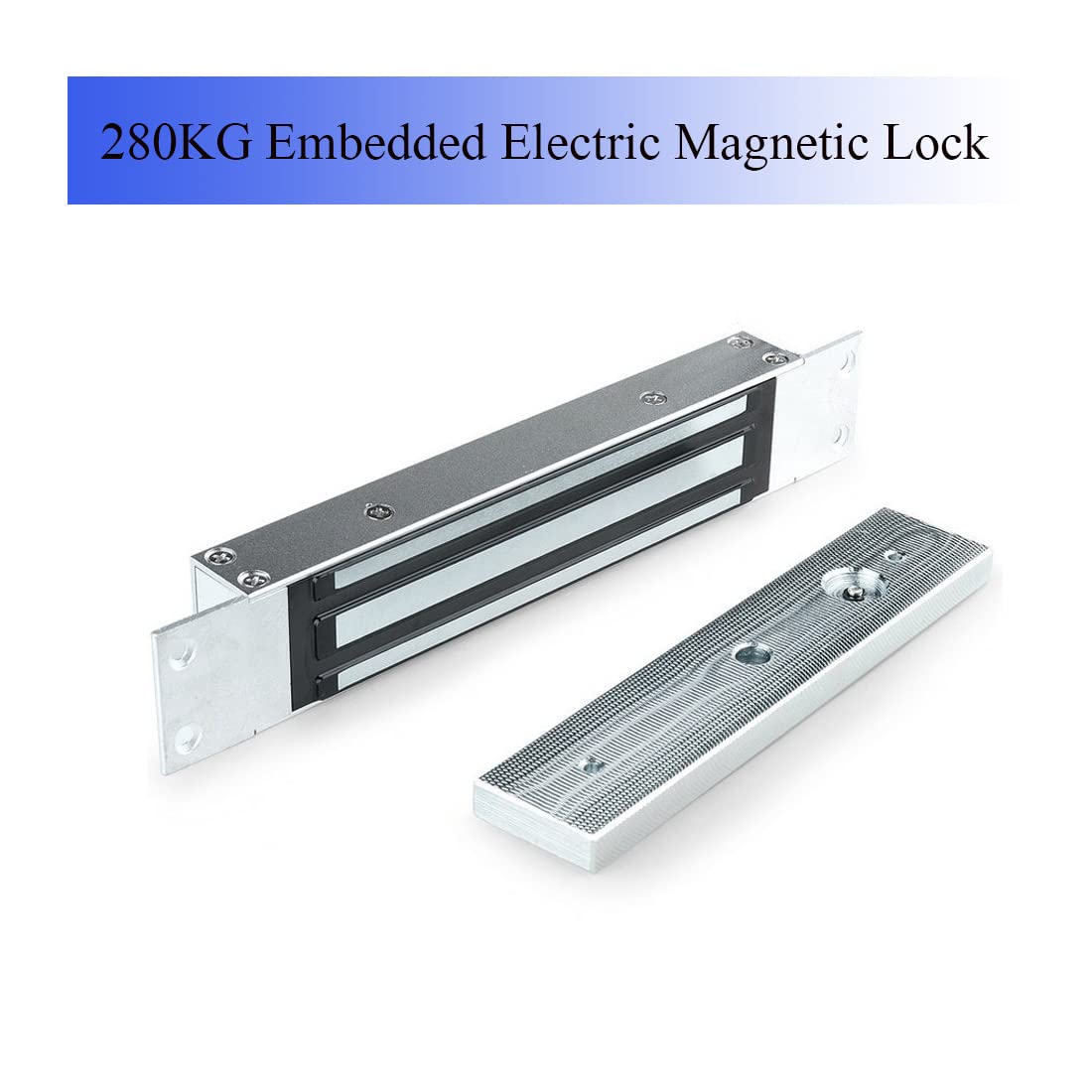

AOAMZ 280kg/600lbs Electric Magnetic Lock DC12V Integrated Installation Waterproof NC Fail Safe Electromagnetic Lock for Access Control System Wood/Metal/Glass Door

• 1. Flush-mounted magnetic lock is waterproof and can be opened with buttons and remote control. It is a highly efficient and easy to use electromagnetic lock for the access control system.
• 2. Faster, easier and more reliable than electric locks. No special tools or long installation required. Unlocking in case of power failure, type NC fail-safe
• 3. Holding force: 280kg/600Lb, DC 12V
• 4. Safety function: built-in voltage reduction, opening method: 90 degree swing door
• 5. Wide range of applications: wooden doors, glass doors, metal doors, fire doors, drawers, cabinets, etc.

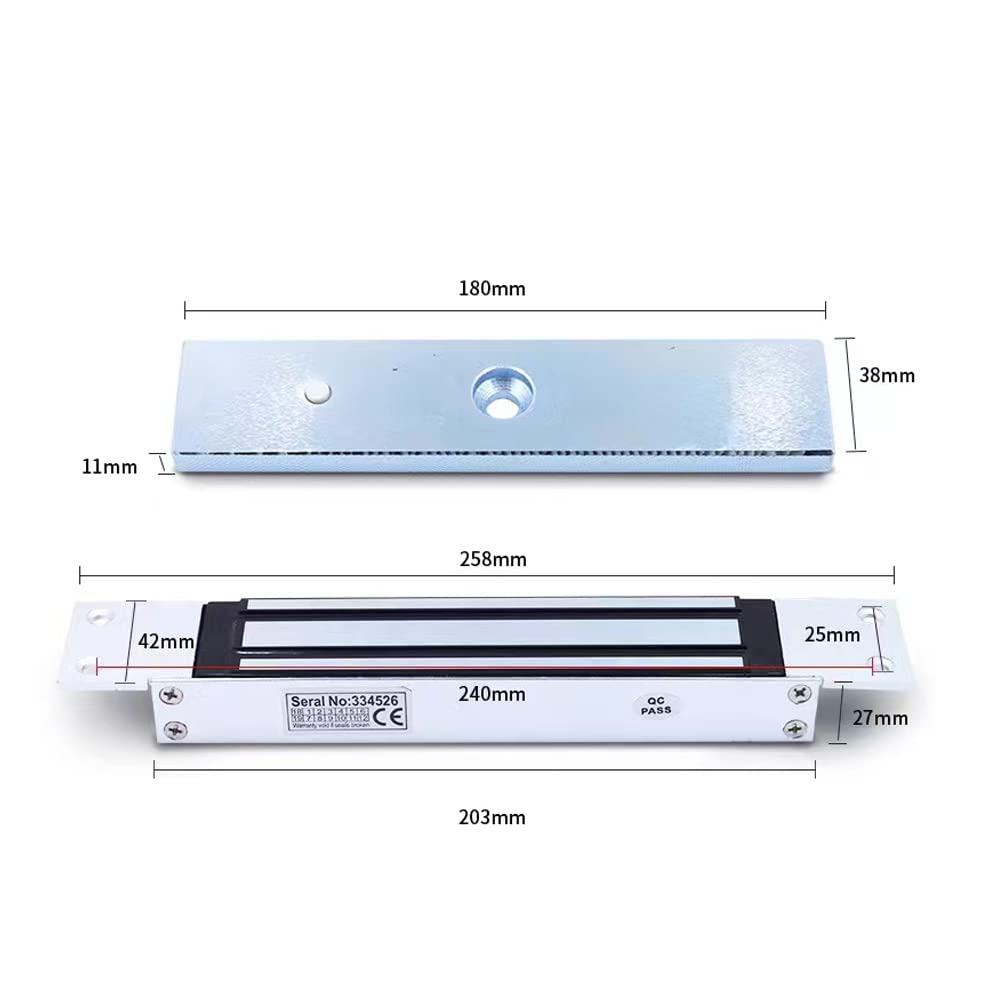

Product features: 1. The built-in magnetic lock is waterproof and can be opened with buttons and remote control. It is a highly efficient and easy to use electromagnetic lock for the access control system. 2. Faster, easier and more reliable than electric locks. No special tools or long installation are required. Unlocking in case of power failure, type NC fail-safe. 3. Holding force: 280kg/600lbs, DC 12V 4. Safety function: built-in voltage protection, opening method: 90 degree swing door. 5. Wide range of applications: wooden doors, glass doors, metal doors, fire doors, drawers, cabinets, etc. Product features: Type: magnetic lock, 280 kg. Material: Aluminum alloy body + iron plate Holding Force 280kg Working Voltage: DC 12V Working current: 380-430mA Humidity: 0-95% Operating temperature: -30 to 55 °C. Operation mode: power to lock, turn off to unlock. Dimensions: 258 x 27 x 42 mm / 180 x 38 x 11 mm. Waterproof: Yes Can be installed outdoors wiring diagram Red wire: +12V DC Black Wire: GND If you want to test the lock, connect the red cable. Cable to "+ 12V" and black cable to "GND" of the power supply 12VDC. When you install the complete set of the access control system, connect the red cable to "NC", the black cable to "COM" of the power supply. Package includes: 1 x Electric Magnetic Lock 280kg 1 x Pack of Screws 1 x installation instructions (English language not guaranteed)
