Antennentechnik Bad Blankenburg Stationary Antenna DAB/DAB)

• Suitable for indoor / outdoor use; spotlight in a plastic tubing protects, HF Cable-Antenna; securely attached to avoid Strahlernähe in metallic surfaces

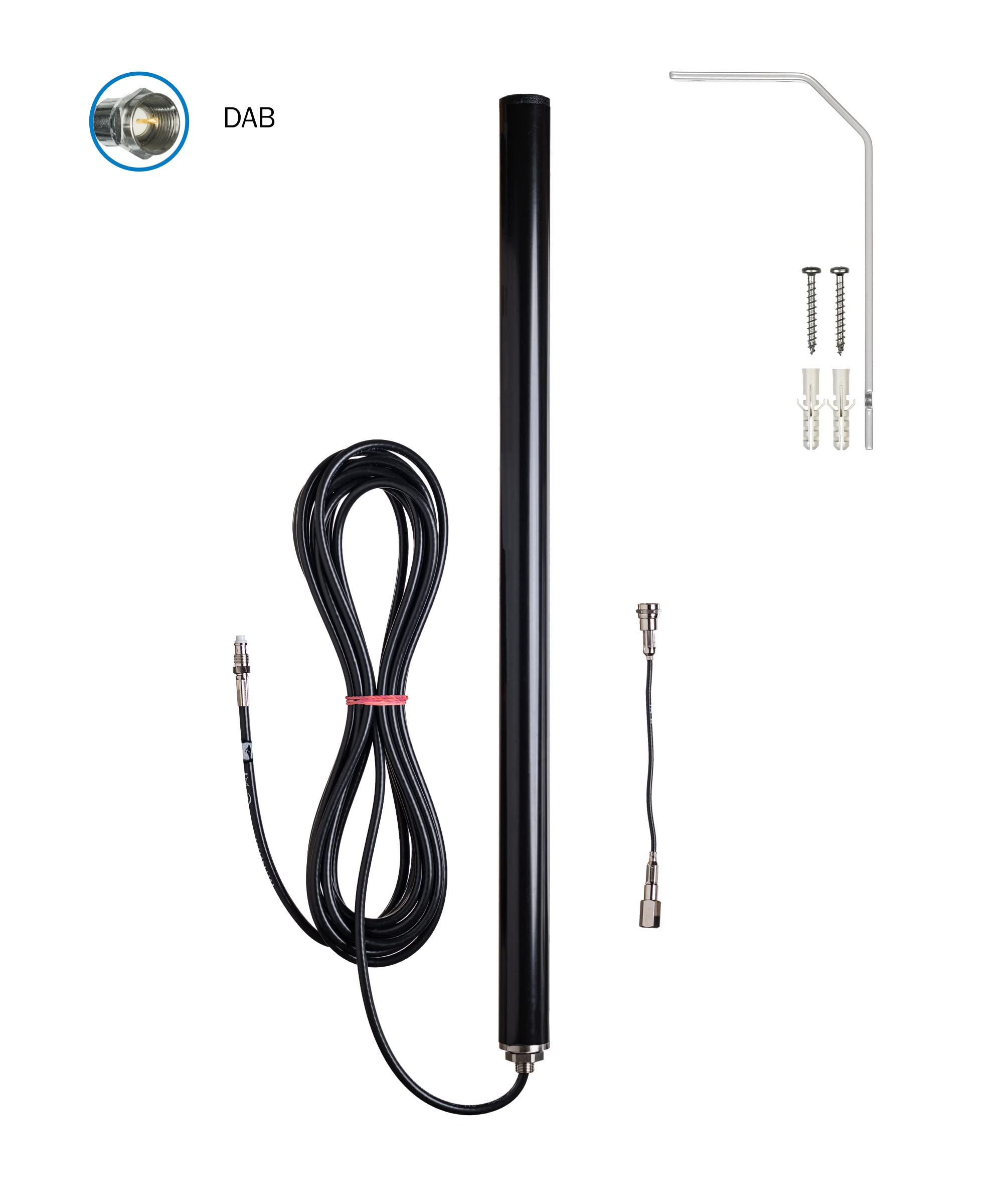

• Box contents: DAB / DAB Staionsantenne BIII / L- Band); wall mount; attachment; 5.47 yrd (5,0 m) RG58 Cable FME, with 5.91 inch (150 mm) RG174–FME (m) to F Male
• Gain: BIII - 1dBi L- Band; - 2 dBi, vertical Polarisation

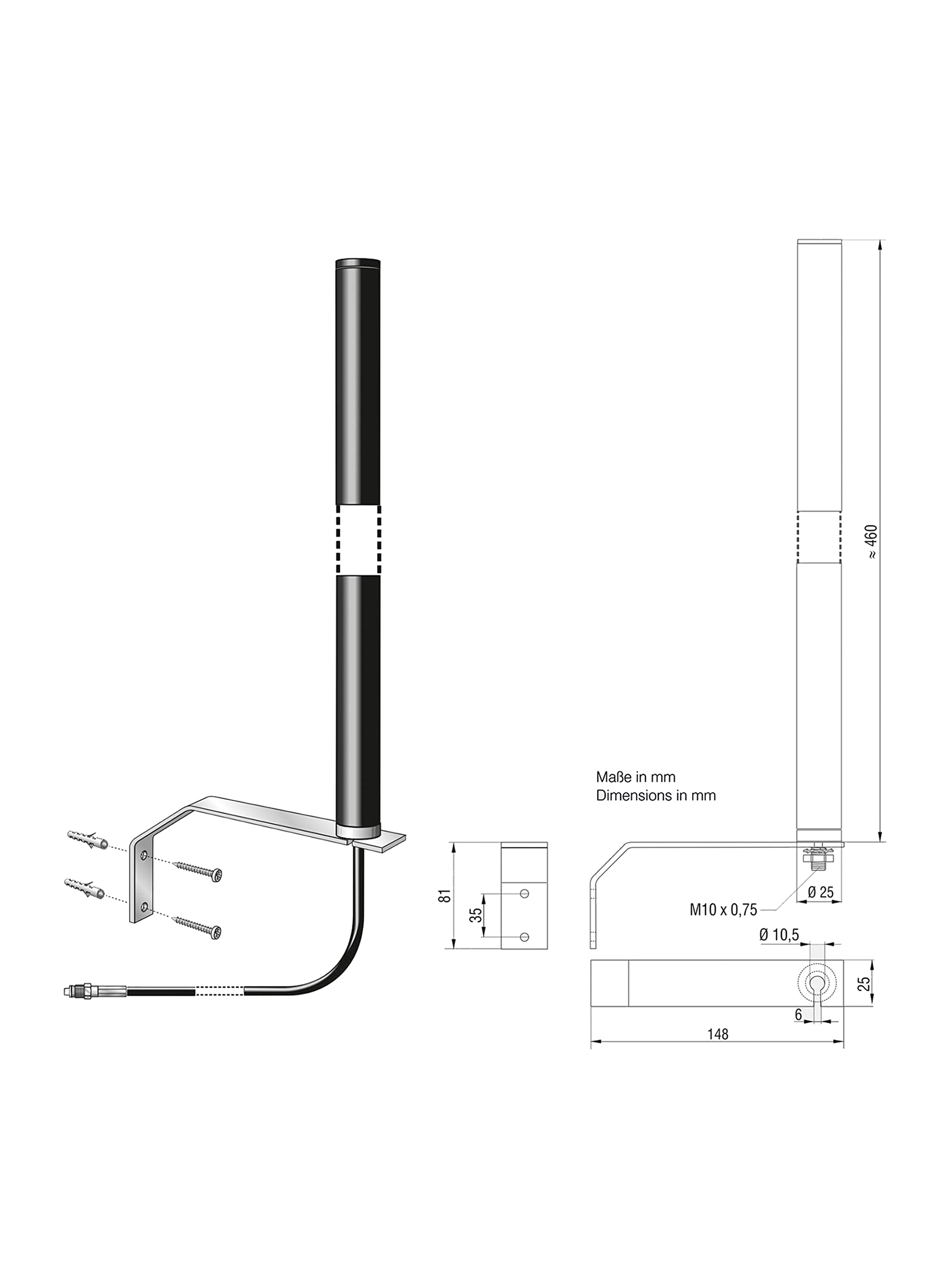

Fixed Antenna to be mounted on vertical surfaces. Highlights: /DAB/DAB + (BIII/L frequency band UHF) – Suitable for indoor/outdoor – Avoid Metal Surfaces In The Spotlight Power LED's in a plastic tube – Protection. – RF cable permanently attached to the antenna – includes adaptor cable – Polarisation: Vertical – Impedance: 50 O – Return loss: 14 dB ; Adjustment: = 1.5: 1 (band middle) – UV resistance: provided (casing Whitening possible) – HF cable 5.0 m – Connector: FME (F) Frequency: – B III: 174 – 240 MHz – L band: 1452 – 1492 MHz Gain: – B III: 1 dBi – L Frequency Band UHF: 2 dBi Basic properties , Colour: Black
