Antennentechnik Bad Blankenburg Combined Flex Roof Antenna (AM/FM, DAB +, GPS)

• DAB reception, for active and quiet in areas B III L frequency band PASSIVE.
• Radio reception, Active and quiet for LMK/FM.
• 12 V power supply for the amplifier using either an inner conductor cable connection or DIN plug sleeves.
• Active GPS antenna (Phantom Power Supply).

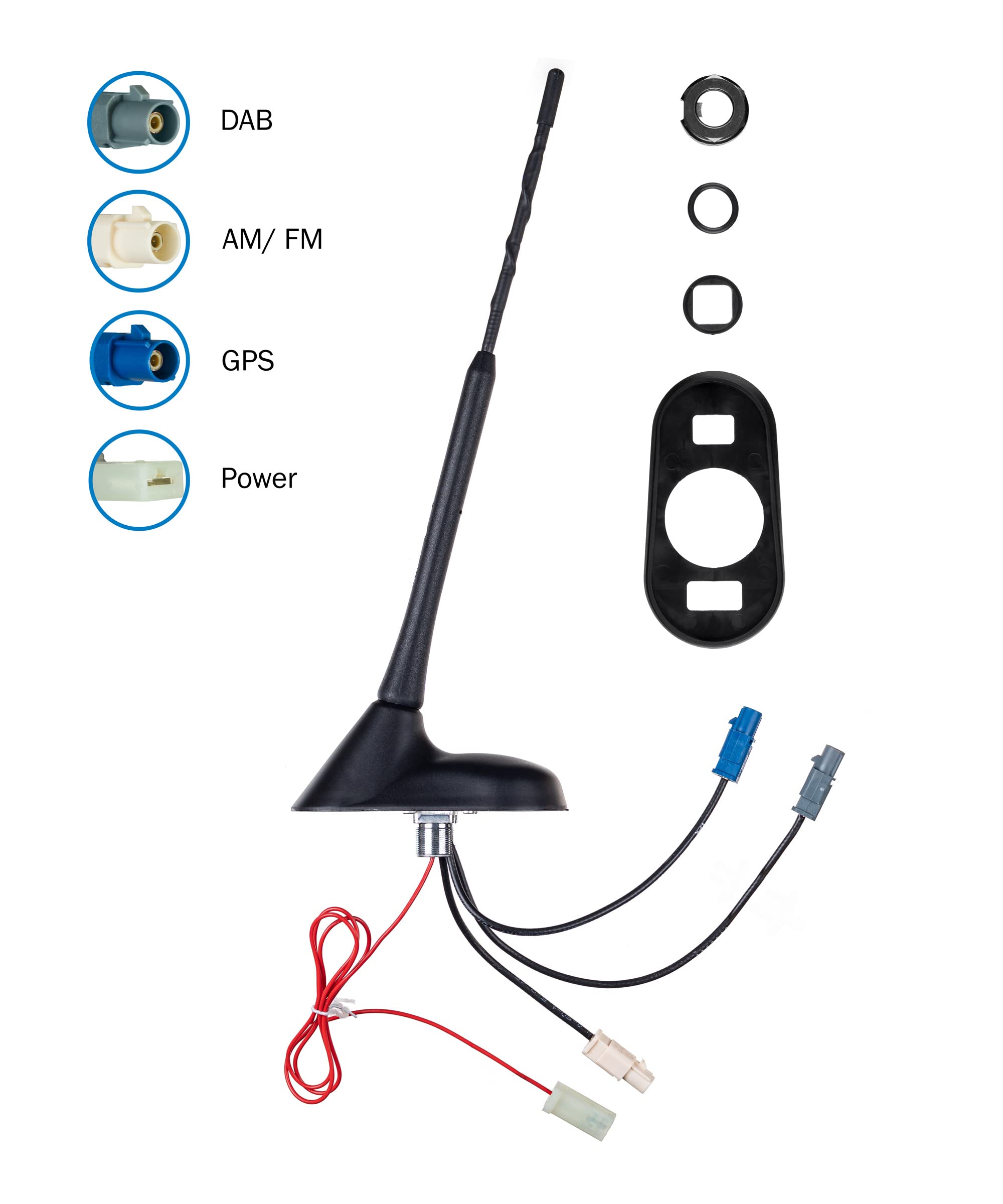

• Box contents: Roof antenna, mounting material, mounting instructions [English language not guaranteed].

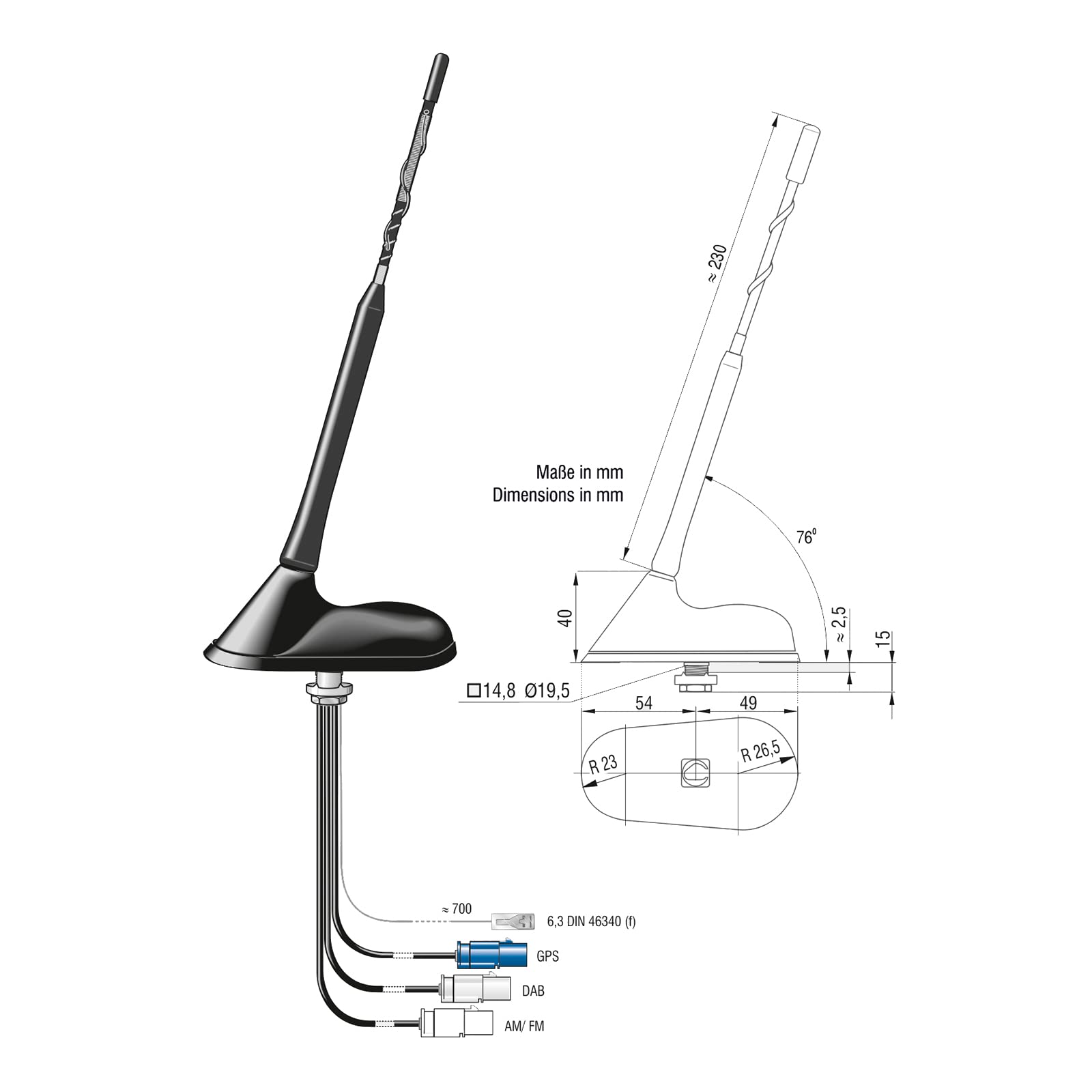

Combination Flex Antenna Roof Mount – 3761.01 – Am/Fm, DAB/DAB +, GPS<br/> Roof antenna with the following functions and features:<br/> Noise/DAB * PC, laptop, smart phone, active and in the areas of B III, L Frequency Band UHF PASSIVE – Radio reception, and low noise for LMK/AM<br/> - 12 V power supply for the amplifier can be made using either a inner conductor of the cable or DIN/barrel – Active GPS Antenna (Phantom Power Supply) – Silent antenna rod – Low installation depth (15 mm) – Minimal assembly – only a mounting hole for 3 functions – Interchangeable with conventional flex aerial – Replacement Elements: 4626.11 – Impedance: 50 O<br/> Particularly suitable for use with: – Analog and digital radio – Satellite Navigation Systems – Fleet Management<br/> Frequency: – LMK/AM: 0,15 – 16 MHz – Am/Fm: 87.5 – 108 MHz – B III: 174 – 240 MHz – L band: 1452 – 1492 MHz – GPS: 1575,42 MHz<br/> Reinforcement: – LMK/AM: 6 dB – Am/Fm: 14 dB – B III: 10 dB – L Frequency Band UHF: 0 dB – GPS: 28 dB ± 3 dB<br/> Cable: RG 174: – LMK/AM/FM/AM FM: 110 mm – B III/L band 200 mm (8 ") or 250 mm (10) – GPS: 150 mm<br/> Connector: – LMK/AM/FM/AM FM: FAKRA (M) – B<br/> Size B III/L, Band: FAKRA (M), G – GPS: FAKRA (M) with C<br/>
