PH44 M.2 NVME to PCIe X16 Adapter, 4 Port M.2 NVMe SSD to PCIE X16 M Key Hard Drive Converter Reader Expansion Card, Supports PCIE split or PCIE RAID (ph44)

• This adapter card has 4 expansion cards, which can simultaneously expand 4 x 32Gbps full‑speed signals. Adopts a firm structure and uses thicker PCB material to stabilize the PCIE X16 interface and protect important data. 4 disks are equipped with 4 LED indicators, and the operation is simple and convenient to use.
• The motherboard supports PCIE split or PCIE RAID function, and supports PCIE 3.0, 4.0 transmission protocol. No disk drop, no speed reduction, no blocking, and equipped with high‑power DC power chip to ensure stable operation of M2.NVME SSD.
• How to Use: 1.Motherboard support: The motherboard supports PCIE split function, which can be set to PCIE X4X4X4 or 4X4 mode. The motherboard supports PCI‑E RAID function. For motherboard supports the function of HyperM.2X16 expansion card.
• Different motherboards have different PCIE split channels. Some motherboards PCIE RAID is X8+. X4+X4, this motherboard 4‑bit M.2 card can only support SSDs or devices, and 2‑bit M.2 card can only support 1 M.2 SSD or device.
• If you need to use this product normally, please select the motherboard correctly. Many motherboards share PCIE channels. Make sure that the motherboard can support the function of PCIE splitting. If you cannot recognize that many M.2 SSDs or devices, please remove or replace other PCIE devices, such as graphics cards, expansion cards, and onboard NVME SSDs.

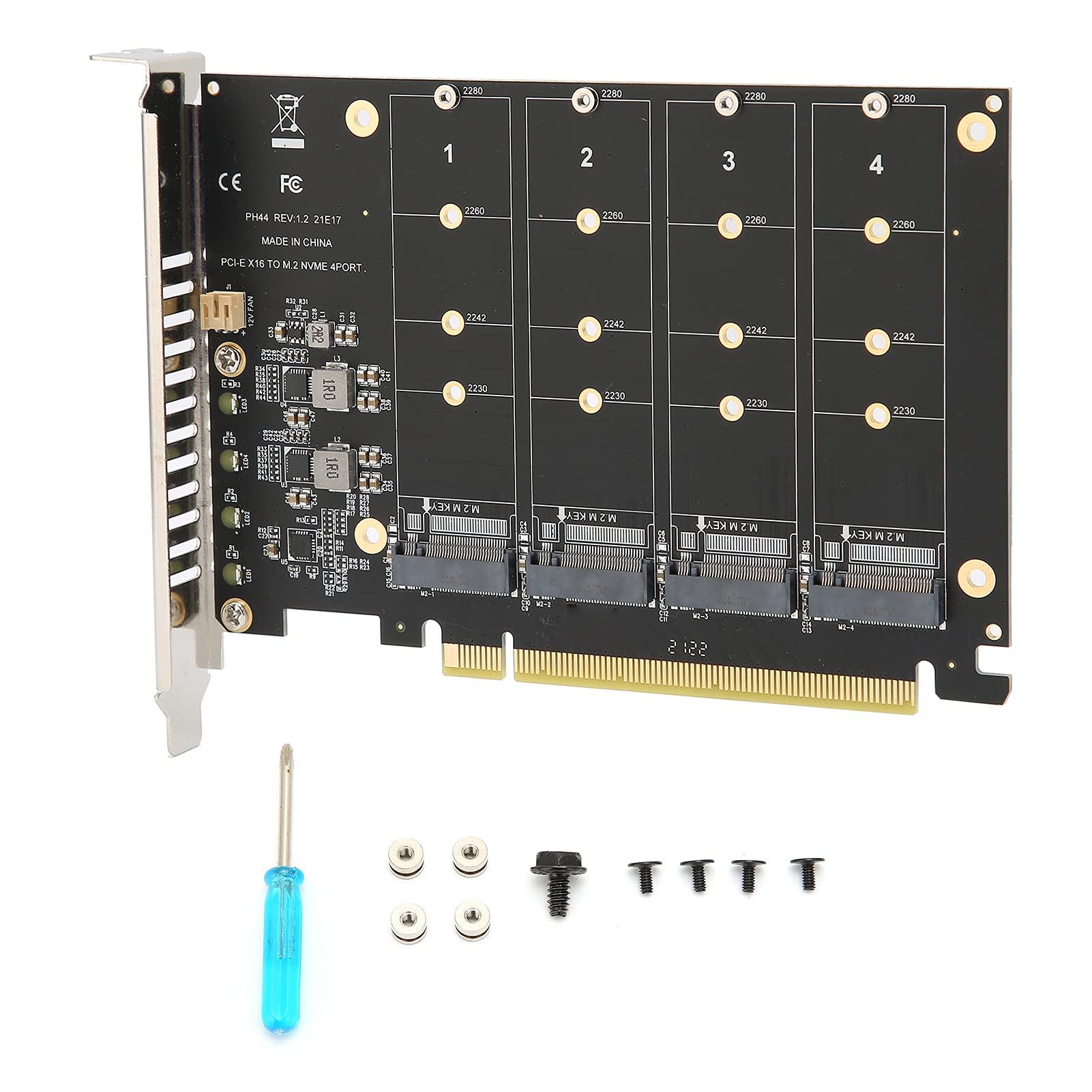

Server motherboards, X299 and X399 motherboards have split function 2.CPU support is required, and the CPU must have enough channels. Generally, low‑end CPUs do not have enough PCIE channels, so they may not be able to support it either. When purchasing a CPU, you can refer to the motherboard introduction to make the correct choice. Specification: Item Type: Adapter Card Model: PH44 Support Hard Disk: M.2 NVME Protocol SSD / M.2 PCIE Equipment Transmission Speed: 4 x 32Gbps Package List: 1 x Adapter Card 4 x Nuts 5 x Screws 1 x Screwdriver
