ANLEON MX400 Low-Noise 4-Channel Mono Line Mixer for guitars bass keyboards mix and 5-Channel Stereo Mixer

• The 4-channel mixer function is suitable for guitars/bass/keyboards mix
• Ultra-compact 4-channel Mono line mixer for instruments Highest sonic quality even at maximum output level
• Input Level control for each channel Ultra low-noise operational amplifiers for outstanding audio performance
• 5-Channel Stereo Mixer : The unit mixes up to five stereo signals such as CD/TV/phone/MP3/Mac Mini/PS3/Xbox/ FM Tuner/ Phono Player/ Echo/Alexa/Chromecast and more. All signals are mixed via stereo 100K ohm potentiometers to 1/8” headphone output .
• Highest sonic quality even at maximum output level

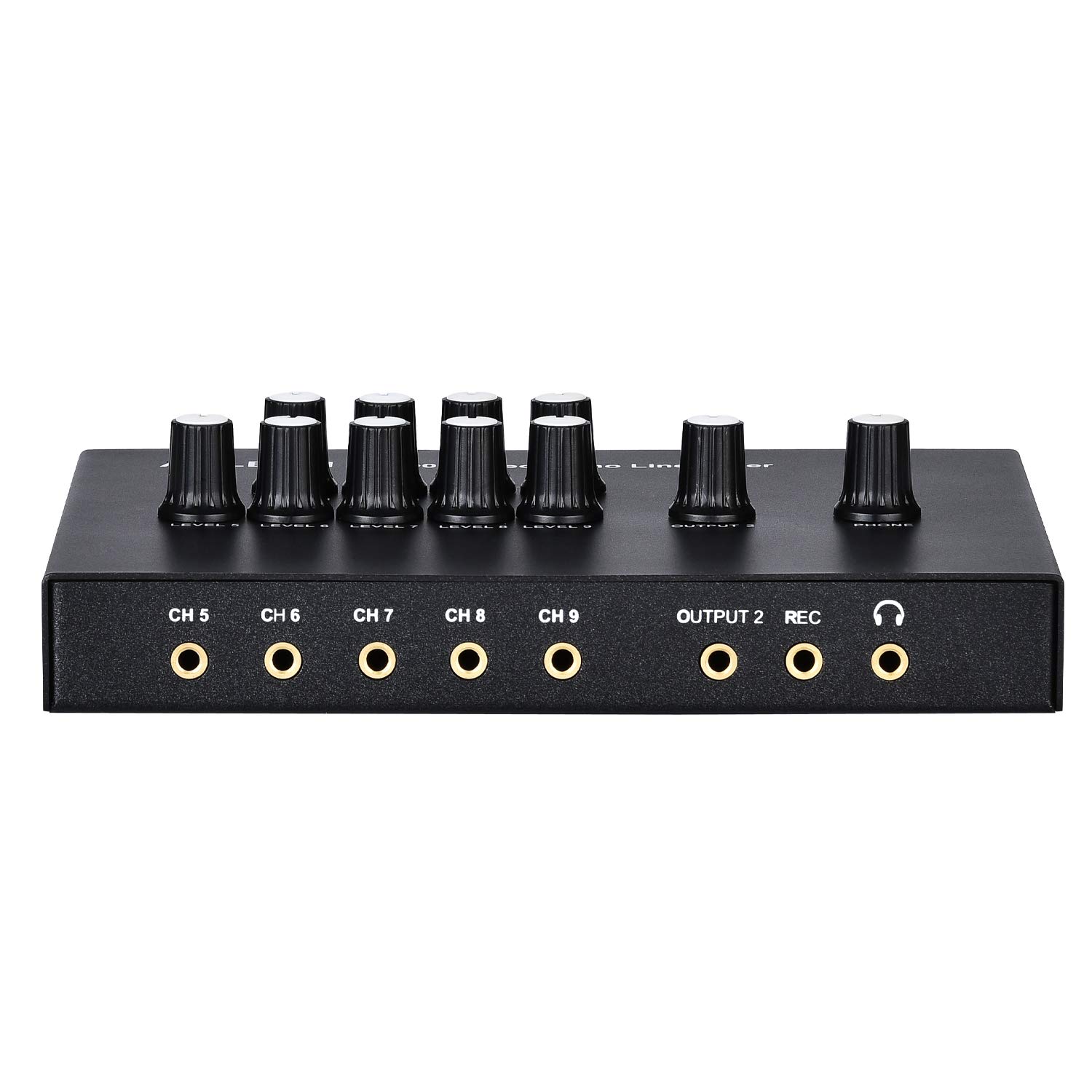

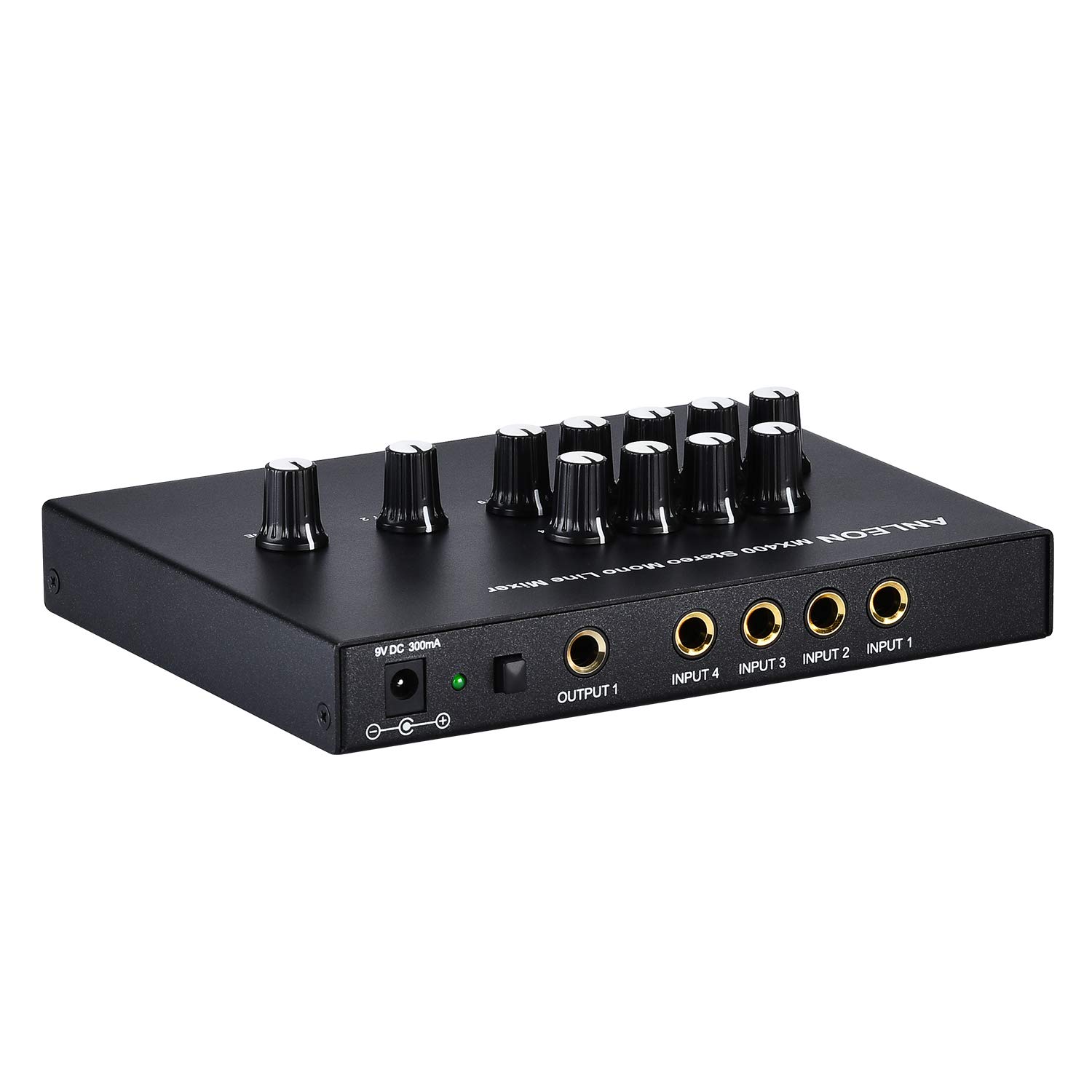

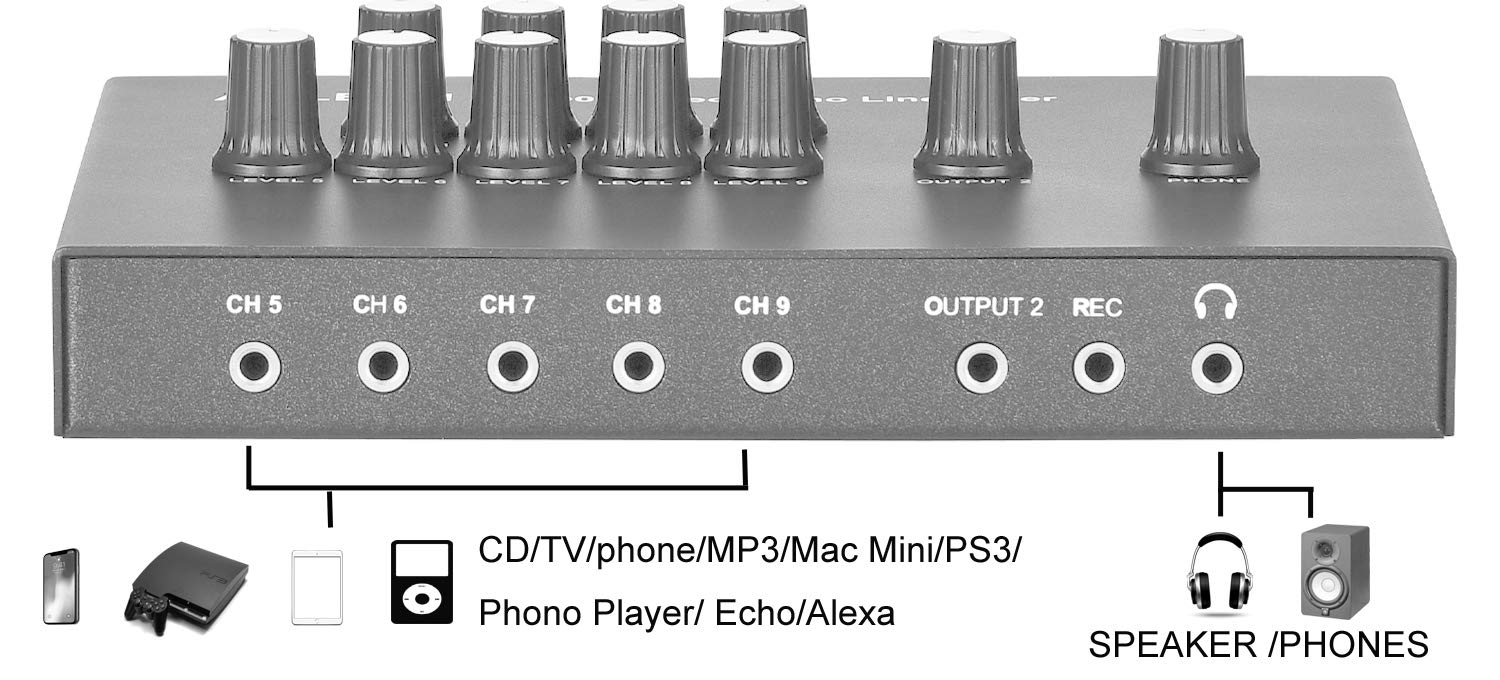

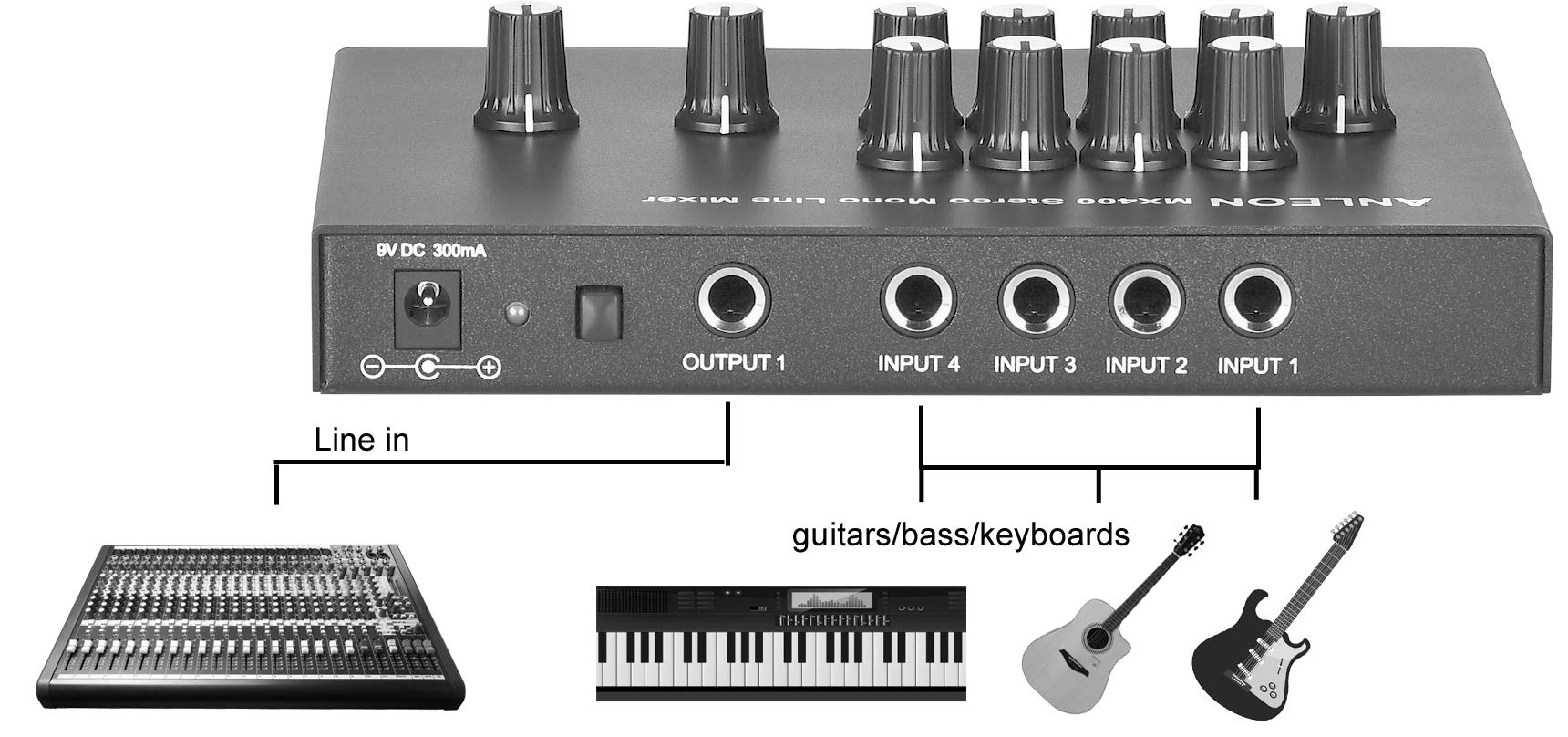

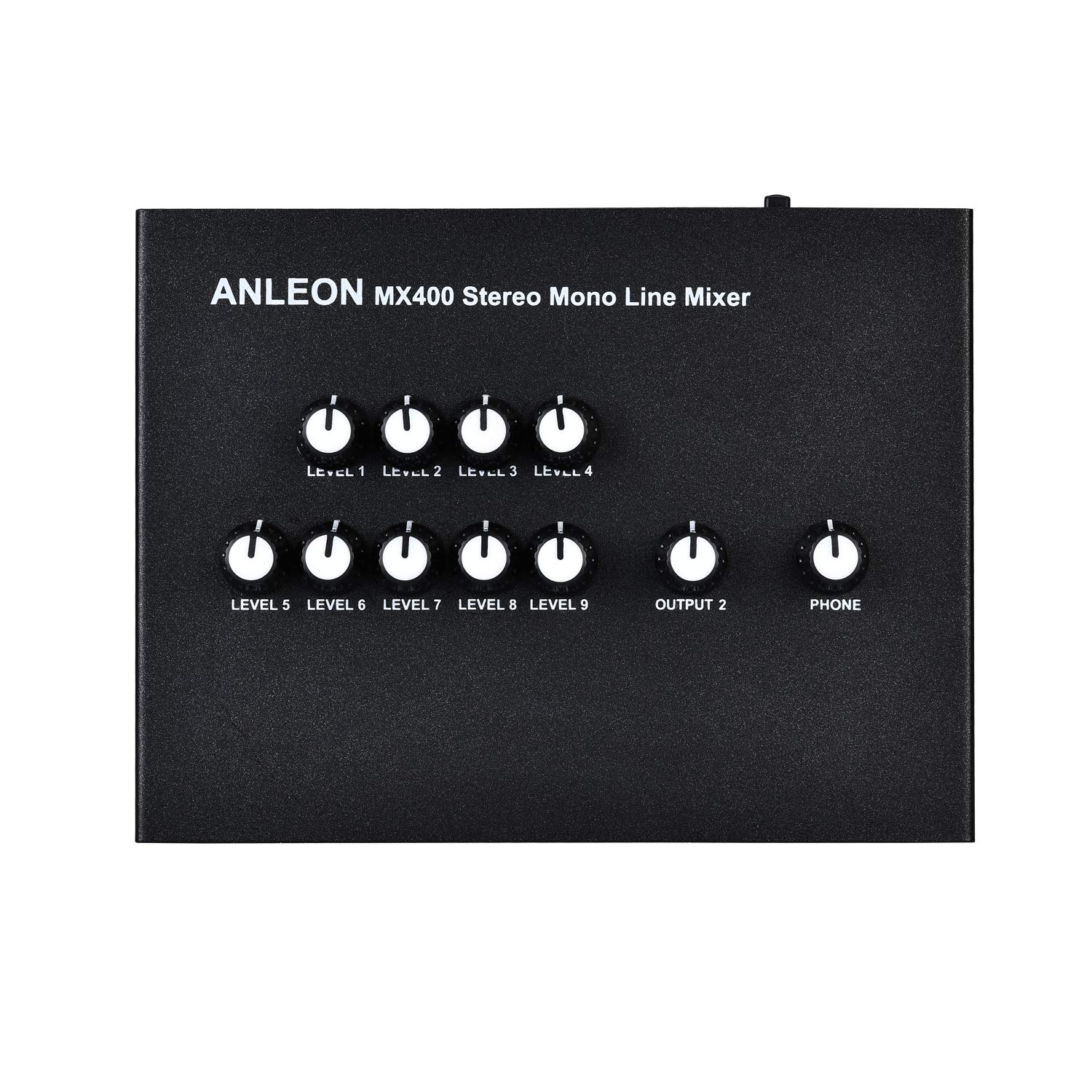

ANLEON MX400 Low-Noise 4-Channel Mono Line Mixer and 5-Channel Stereo Mixer. 4-Channel Mono Line Mixer (INPUT 1~4) : The 4-channel mixer function is suitable for guitars/bass/keyboards mix. It is perfect for anyone wanting to mix 4 line level signals quickly and without complications. INPUT 1-4 : Up to four line signal sources can be connected to these 1/4" TS connectors (INPUT). LEVEL 1-4 : Input Level control for INPUT 1~4. OUTPUT 1 : The OUTPUT carries the MIX signal from INPUT 1-4 and is on a 1/4" TS connector. 5-Channel Stereo Mixer (CH5-9) : The unit mixes up to five stereo signals such as CD/TV/phone/MP3/Mac Mini/PS3/Xbox/ FM Tuner/ Phono Player/Alexa/Chromecast and more. All signals are mixed via stereo 100K ohm potentiometers to 1/8” headphone output . CH 5-9 :Up to five stereo audio sources can be connected to these 1/8" (3.5mm)stereo jacks. LEVEL 5-9 : Adjusts the level of signal from the CH5~9. OUTPUT 2 : Carries the MIX signal from CH5-9. REC : This jack is convenient for recording direct to a record device. PHONES Jack: Stereo headphones can be connected to this jack for convenient CH 5~9 mix monitoring. You can not mix the signal sources from INPUT 1-4with the signal sources from CH5-9. Product Content: MX400 Mixer1 pc 9V /DC 300mA power adapter 1 pc
