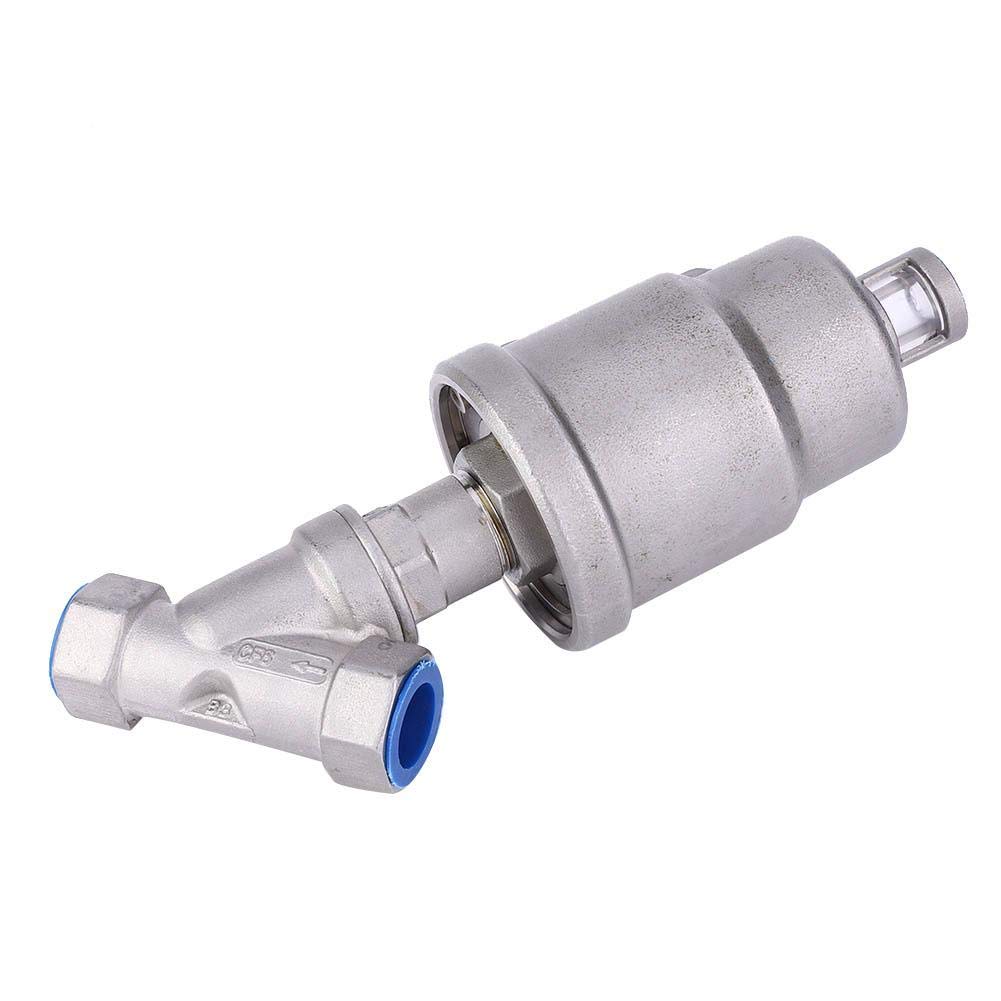

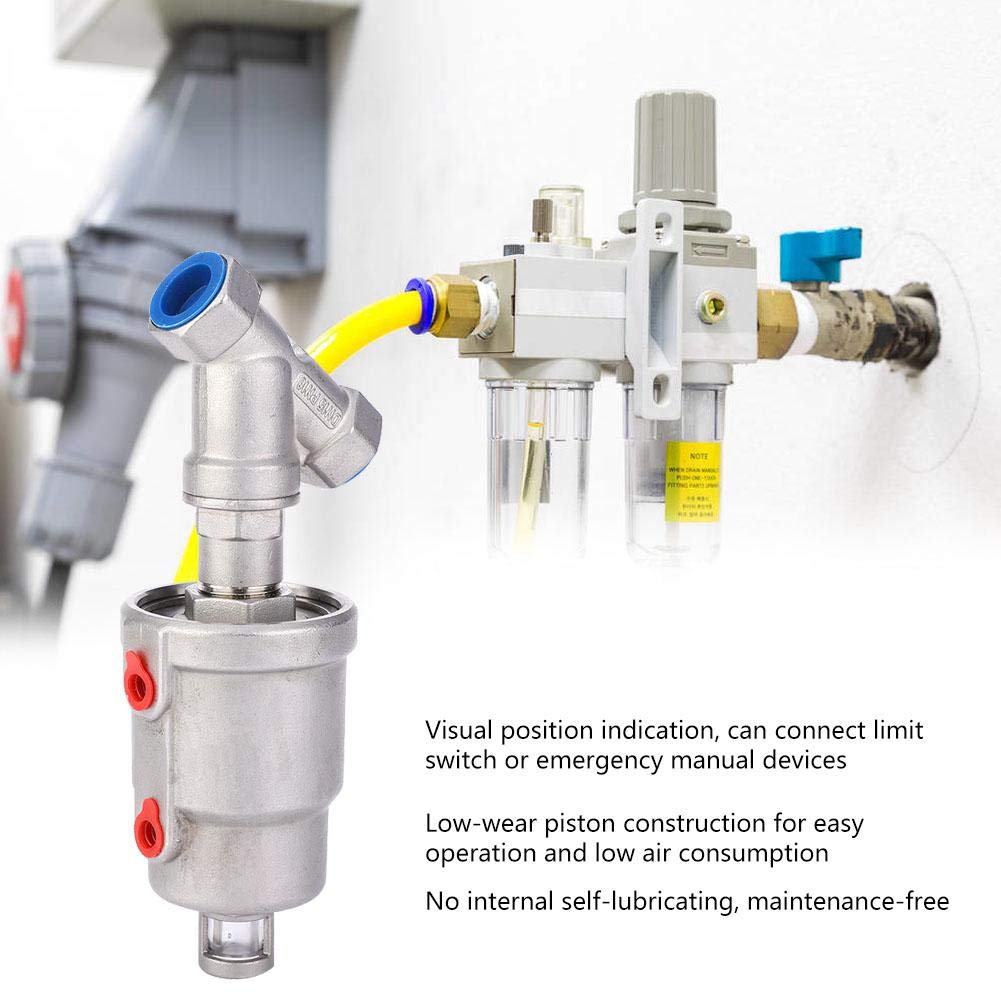

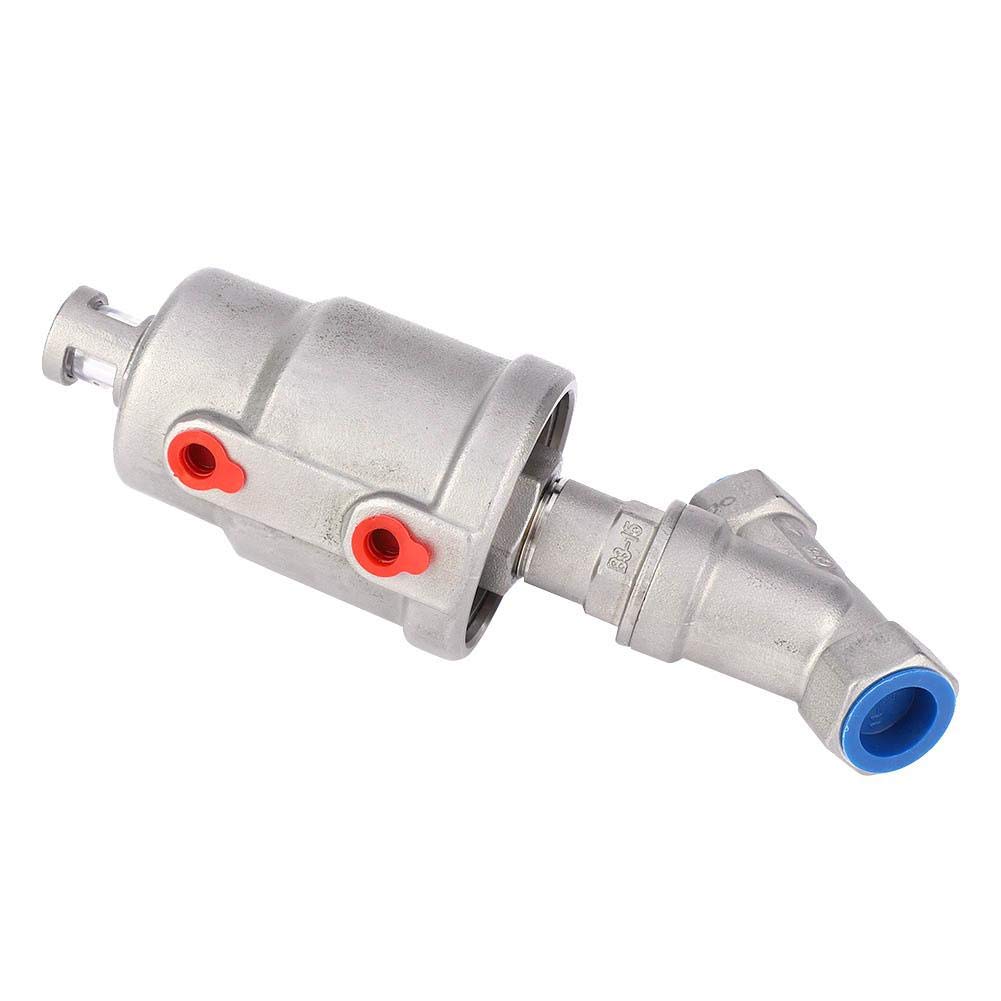

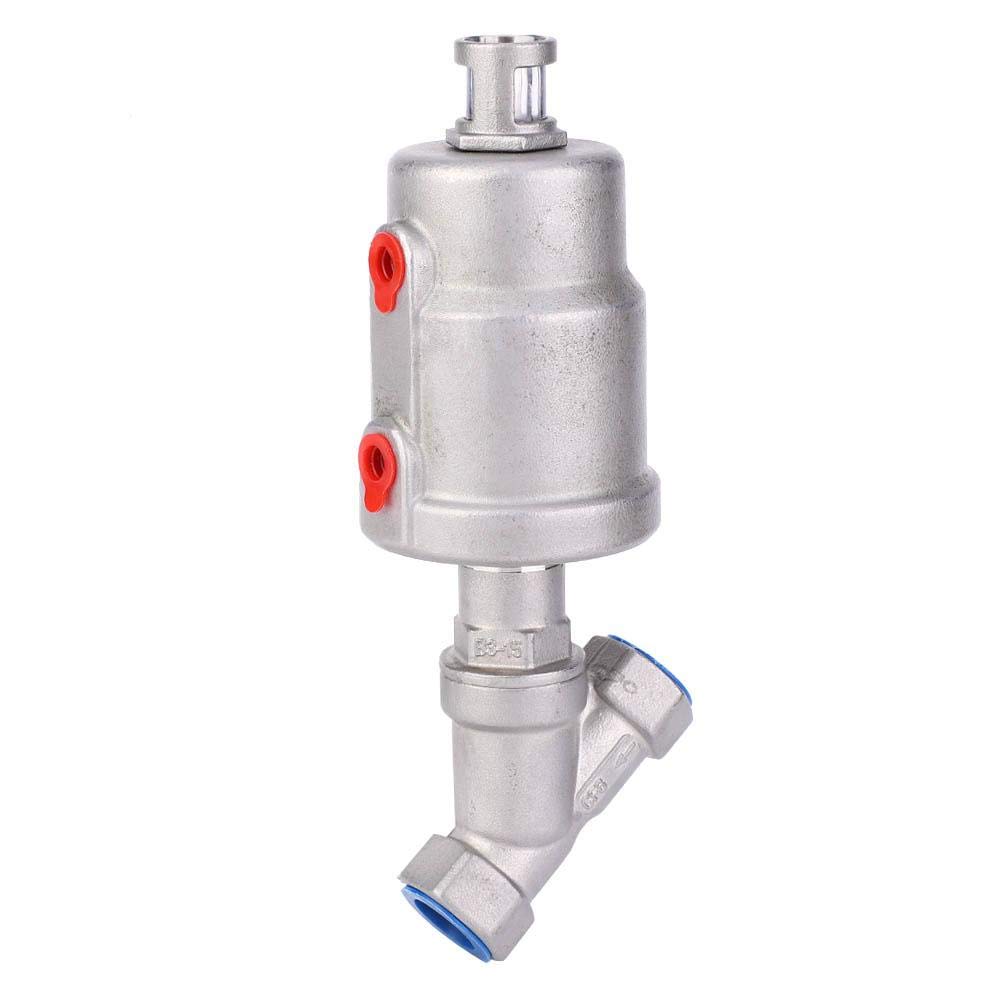

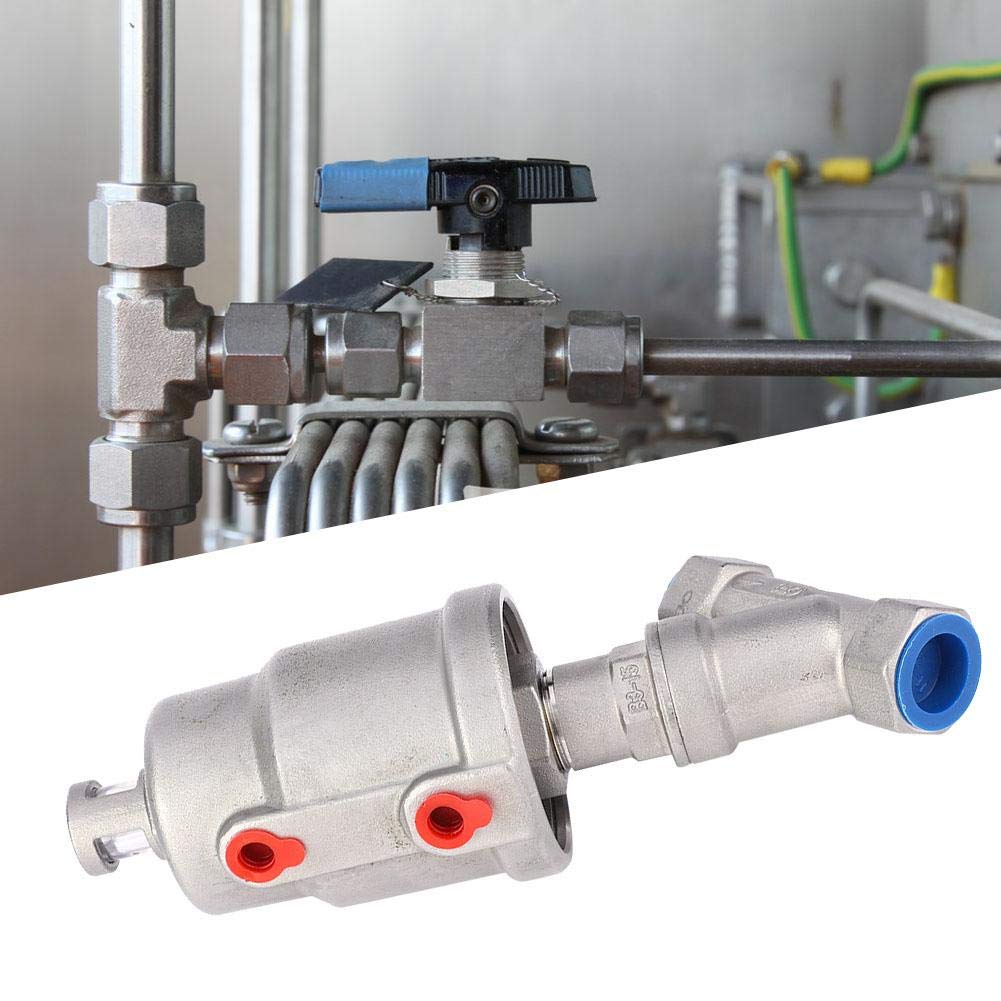

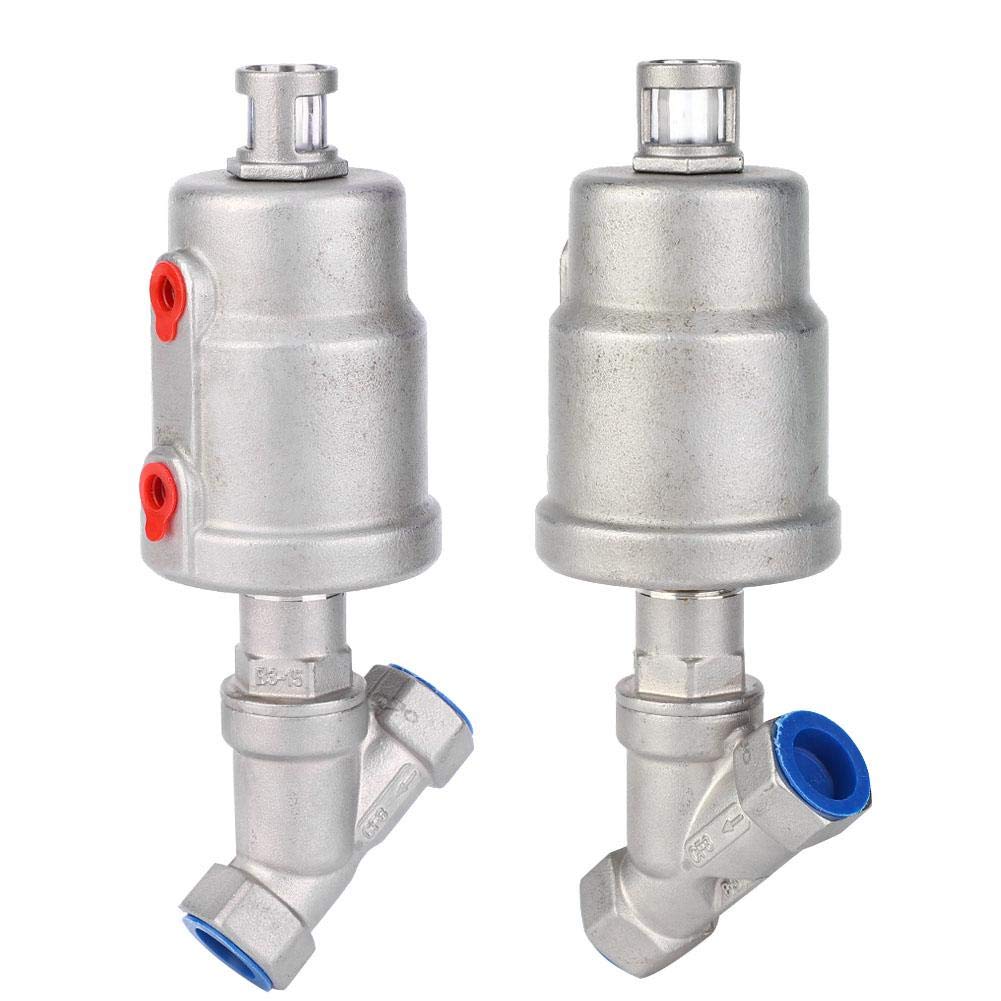

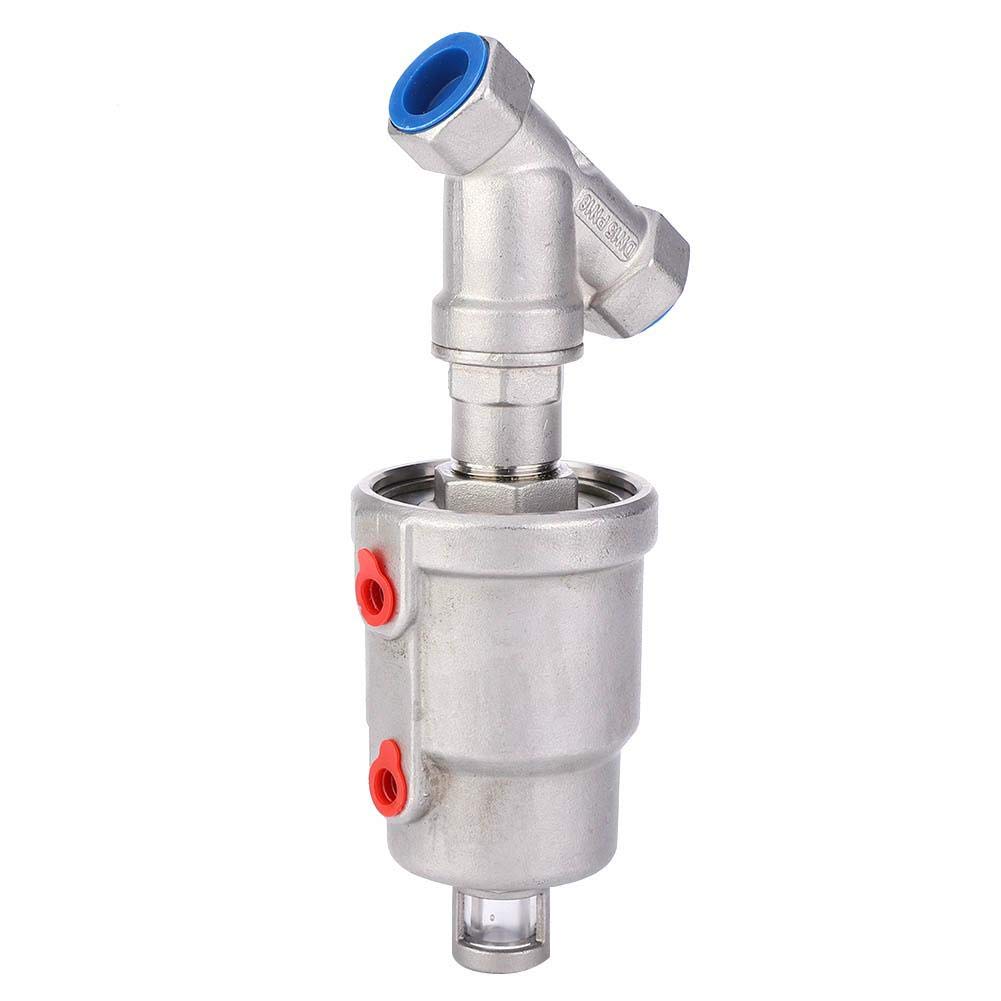

Angle Seat Valve, Stainless Steel Pneumatic Steam Valve with Air Actuated Female Thread Durable Practical(1/2" DN15)

Feature: 1. Built-in metal connector for easy connection 2. Stem PTEE sealing to prevent dirt from being introduced 3. No water hammer, water hammer (water impact) is absorbed when fluid flows from under the valve stem 4. The flowing rate is 30% larger than the ordinary angle seat valve, the volume is smaller, and the fluid flowing is excellent. Specification: IteItem Type: Angle Seat ValveMaterial: Stainless steel Standard(optional): DN15 (1/2in), DN20 (3/4in) Connection Form: Thread Pressure Environment: Atmospheric Pressure Use: Inverting Bore Diameter: 50mm Spool Sealing: PTFE Stem Sealing: PTFE/FKM Piston Sealing: FKM/NBR Applicable Medium: Water, Neutral Gas or Liquid, Alcohol, Oil, Organic Solvent, Weak Acid or Weak Alkaline Solution Medium Temperature: PTFE: -10℃ ~ +180℃ Ambient Temperature: -10℃~ +60℃ Viscosity: Up to 600mm²/S Control Medium: Air/Neutral Gas Control Pressure Range: 0.3-1MPa Widely Used: Beer and beverage, textile printing and dyeing, pharmaceutical, food processing, rubber machinery, organic or inorganic chemicals, high temperature sterilization, water/sewage treatment Package List: 1 x Angle Seat Valve
