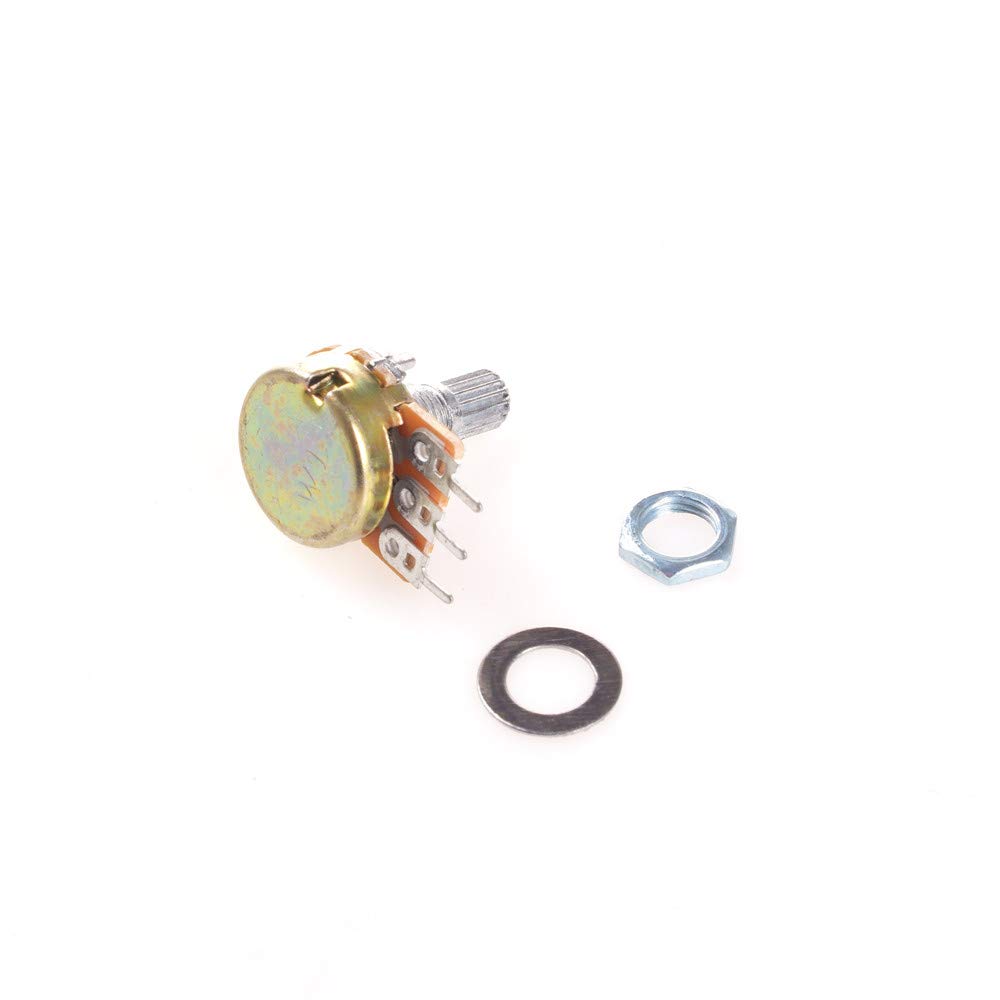

ANGEEK Pack of 10 WH148 B20K 3-pin linear potentiometer with nuts and washers.

• High quality 20K ohm, 3 terminals, single linear (type B) rotary potentiometer, is suitable for most
• Features: Knurled Shaft; Shaft Diameter: 6mm Tip adjustment type and crankshaft for easy operation in daily use time.

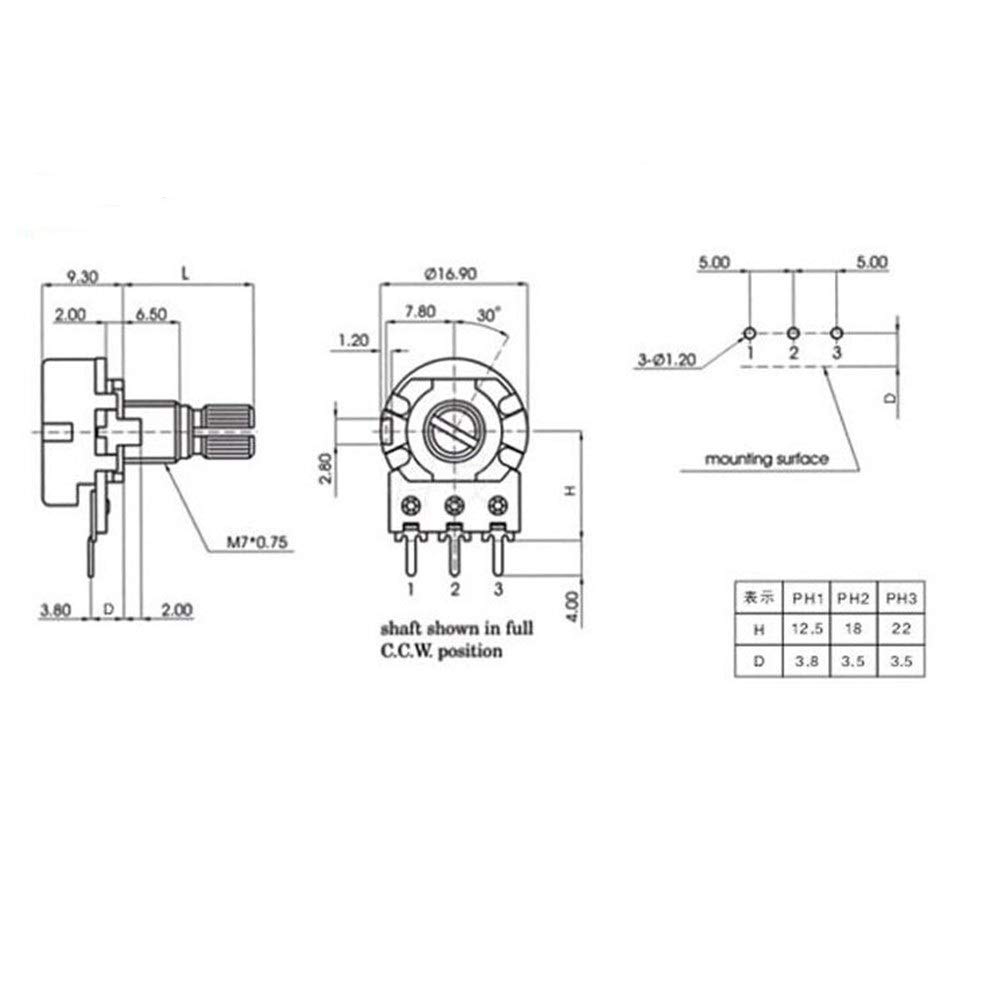

• Shaft length: 15 mm; mounting thread diameter: 7 mm; base size: 16 x 7 mm.
• Large elements for the use of electrical devices such as volume control.

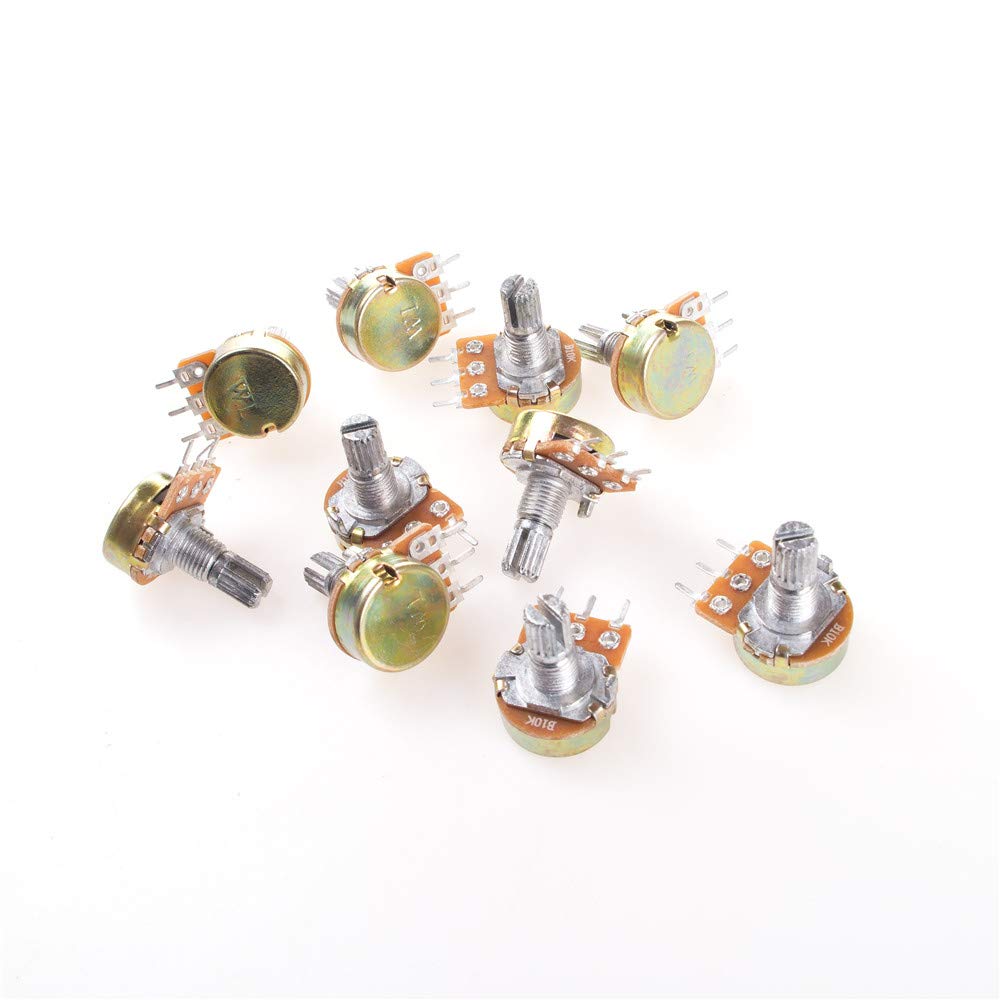

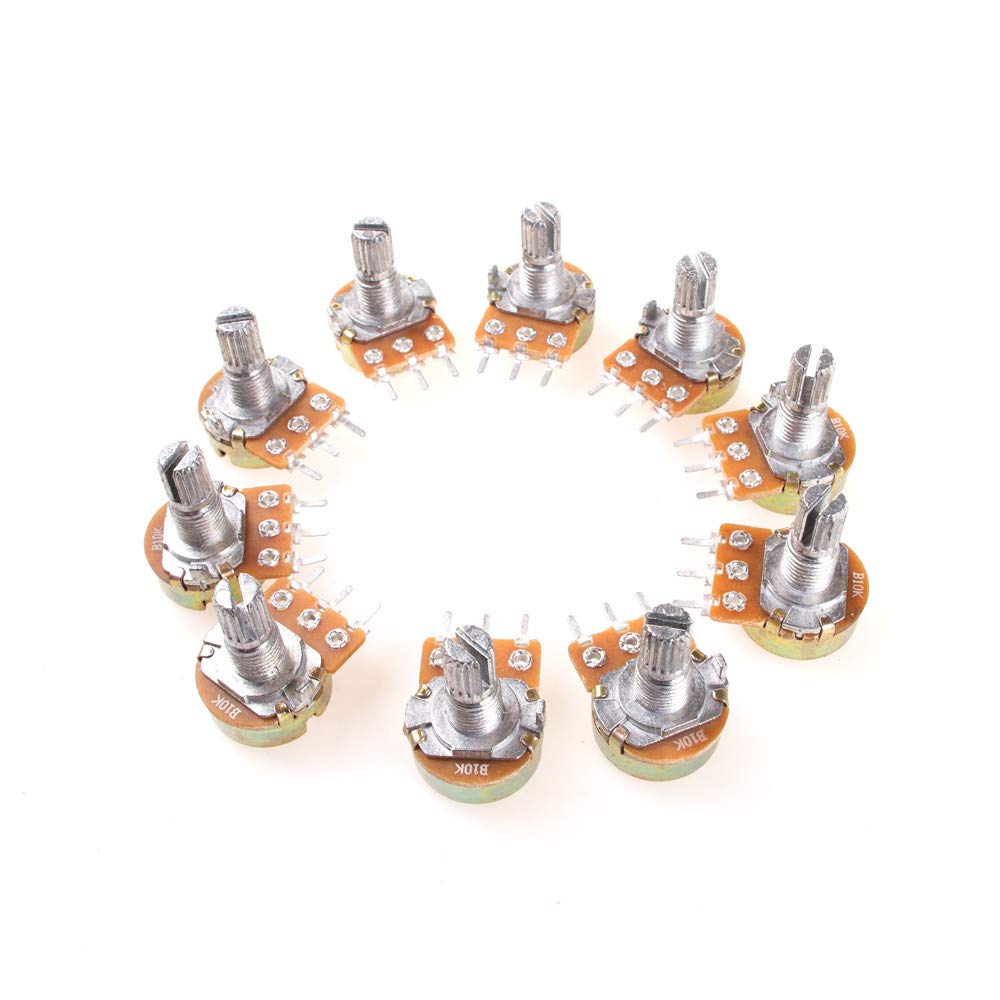

• Package: 10 x B20K potentiometer with nut and discs

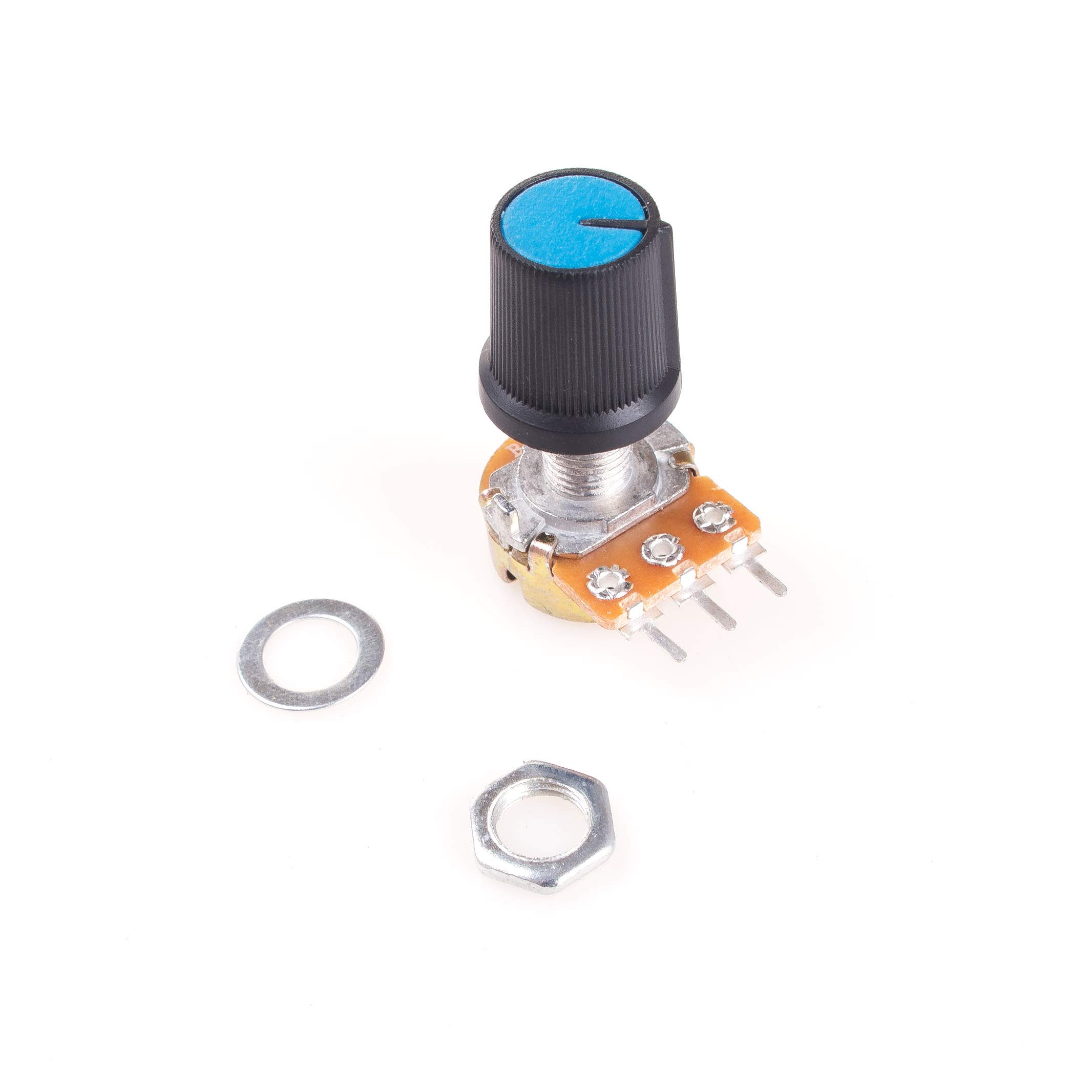

Description: With the potentiometer, you can set the resistance continuously and, for example, dim light, adjust an electric heater and much more. Examples of use: Microcontroller control. Level adjustment. Model building. Electronics (Arduino, Raspberry Pi, etc.) Car area (12 V, 24 V, etc.). Breadboard projects. Potentiometer Technical Data: Tolerance +/- 20%. Temperature range: -10 to 60 °C. Rotation angle: 300°. Maximum working voltage: 200 V. Test voltage: 500 V AC. Package includes: Pack of 10 20K Ohm Linear Potentiometers Pack of 10 potentiometer caps. Pack of 10 nuts. Pack of 10 discs.
